Timing Plot

Total Reductions to Date: 1

Date Processed: 09/06/2025 at 07:00:04 (PDT)

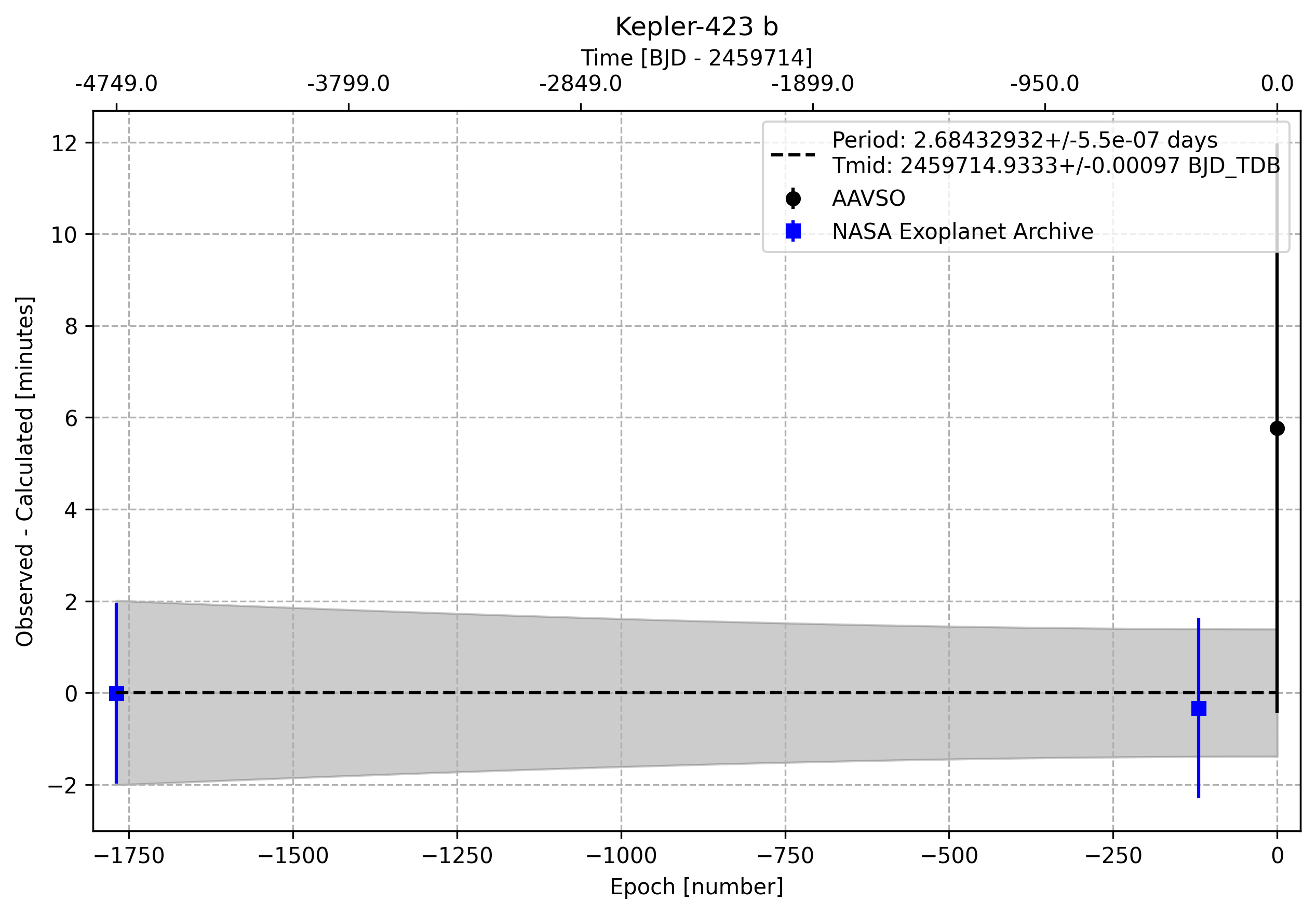

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 2.68432931949963 5.491128593023728e-07
Ephemeris (BJD_TDB) 2459714.933299343 0.0009704069780418652
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 292.8557189 decimal
DEC 46.3911883 decimal
Host Star Metallicity 0.0914 0.0129 Gajdoš et al. 2019
Host Star log(g) 4.4174 0.11 Log10(cgs) Gajdoš et al. 2019
Host Star Radius [R_Sun] 1.01895 0.046 Sol Gajdoš et al. 2019
Host Star Effective Temperature [K] 5616.02 121.76 K Gajdoš et al. 2019
a/Rs 8.546 0.0652 Q1-Q17 DR25 KOI Table
eccentricity 0.0 0.028 Q1-Q17 DR25 KOI Table
inclination [degrees] 89.49 0.13 deg Q1-Q17 DR25 KOI Table
omega [degrees] 120.26 77.01 deg Gandolfi et al. 2015
orbital period [days] 2.684328466 4.6e-08 day Gajdoš et al. 2019
Rp 13.18 0.62 R_Earth Berger et al. 2018
Rp/Rs 0.1347 0 Q1-Q17 DR25 KOI Table
ephemeris [JD] 2454966.35484 1.428e-05 BJD Gajdoš et al. 2019

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2454966.354733198 2.3893333333333334e-05 BJD, BJD-TDB, JD Gajdoš et al. 2019, Q1-Q17 DR25 Supplemental KOI Table, Q1-Q17 DR25 KOI Table, Bonomo et al. 2017, Holczer et al. 2016, Morton et al. 2016, Q1-Q17 DR24 KOI Table, Gandolfi et al. 2015, Q1-Q16 KOI Table, Q1-Q12 KOI Table, Endl et al. 2014, Q1-Q8 KOI Table
2459392.813554 0.0009598 BJD ExoFOP-TESS TOI

Observations

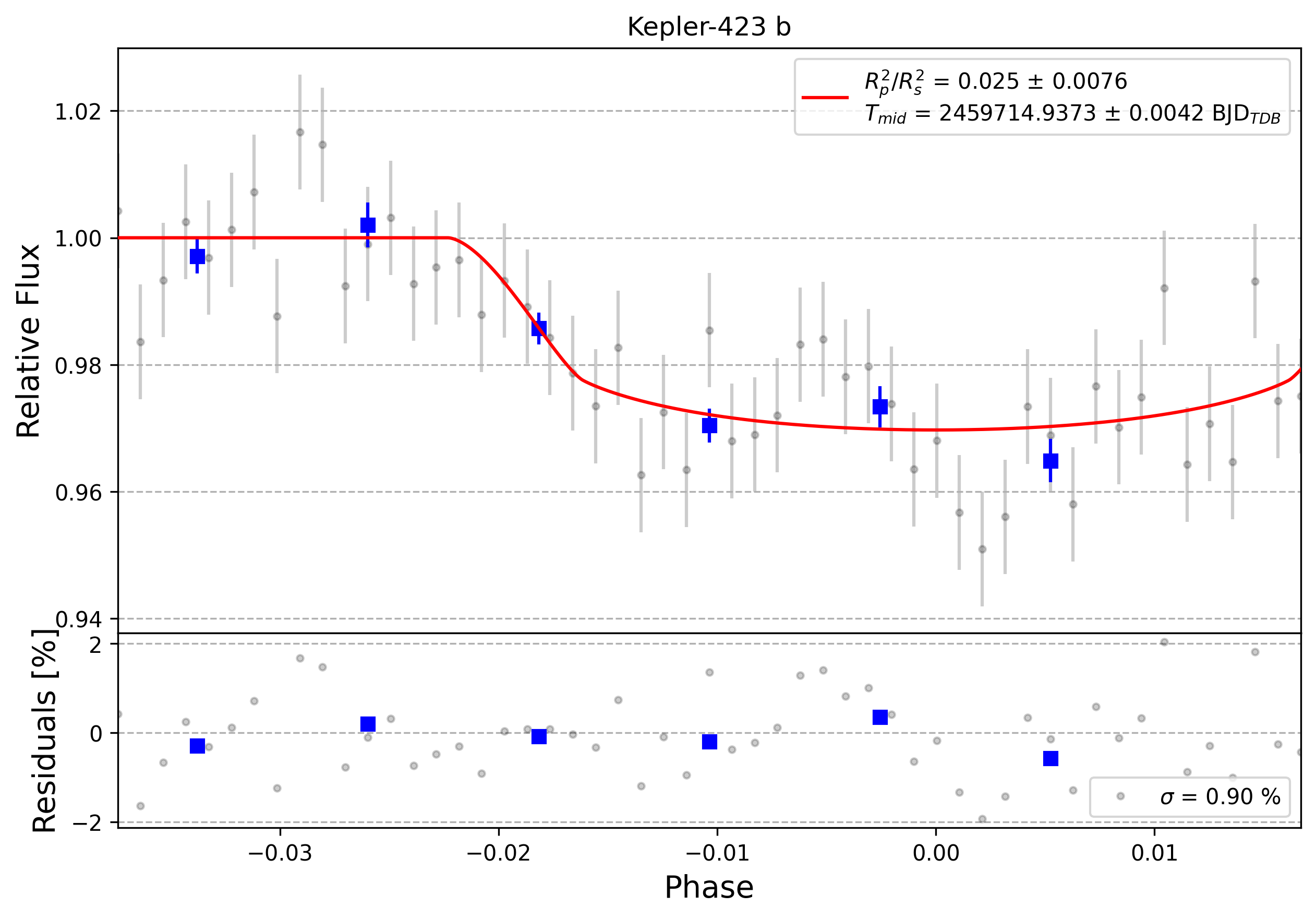

Light curve chart for 0001481

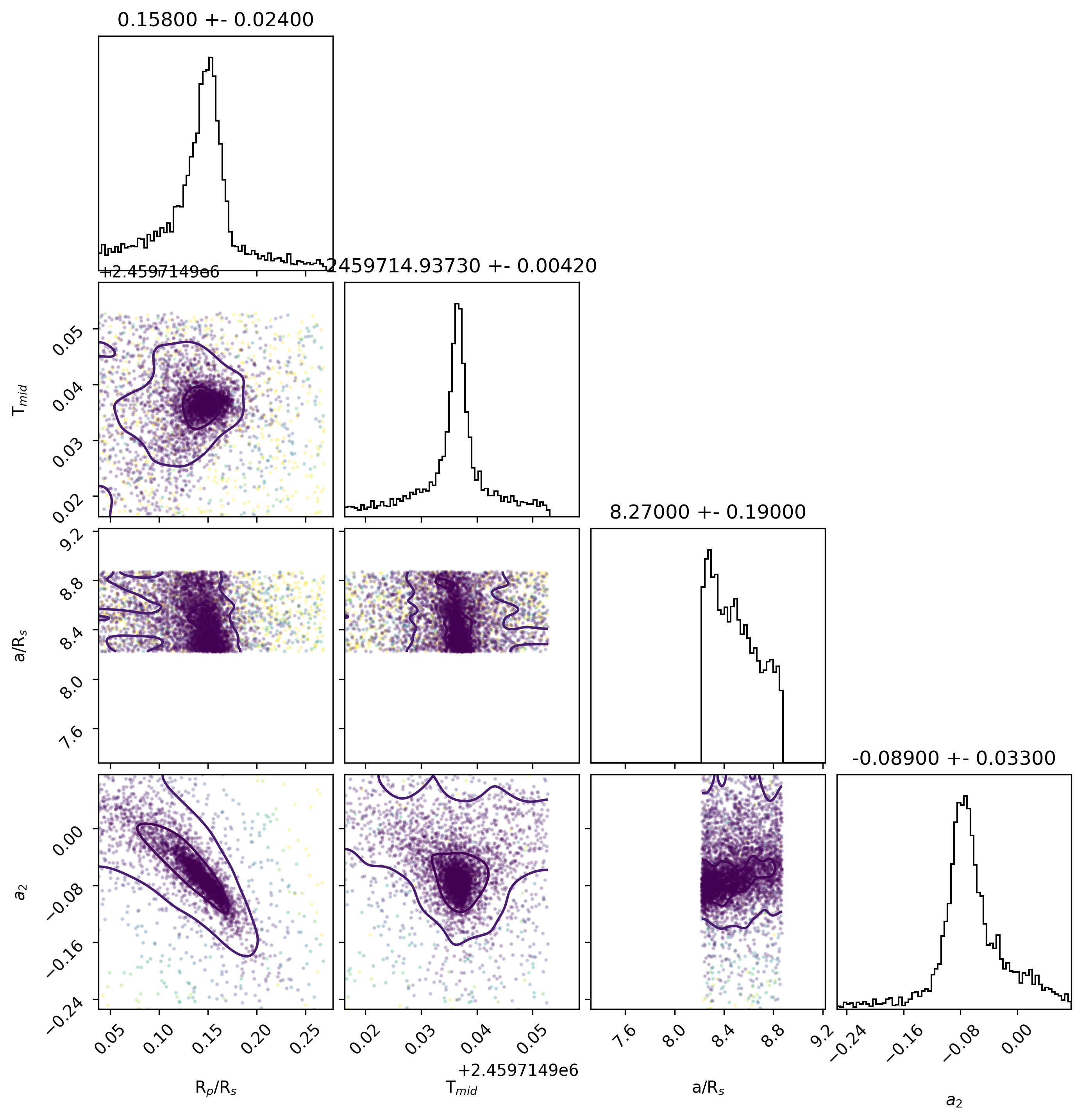

Parameter Value Uncertainty
Am1 1.121 0.01
Am2 -0.089 0.033
a/Rs 8.27 0.19
Rp/Rs 0.158 0.024
ephemeris [JD] 2459714.9373 0.0042
eccentricity 0.0
inclination [degrees] 89.49
omega [degrees] 120.26
orbital period [days] 2.684328466
u0 2.3482390919197975
u1 -4.157029832907994
u2 4.347337164295584
u3 -1.5385463585270163
duration 0.1047 0.0046
