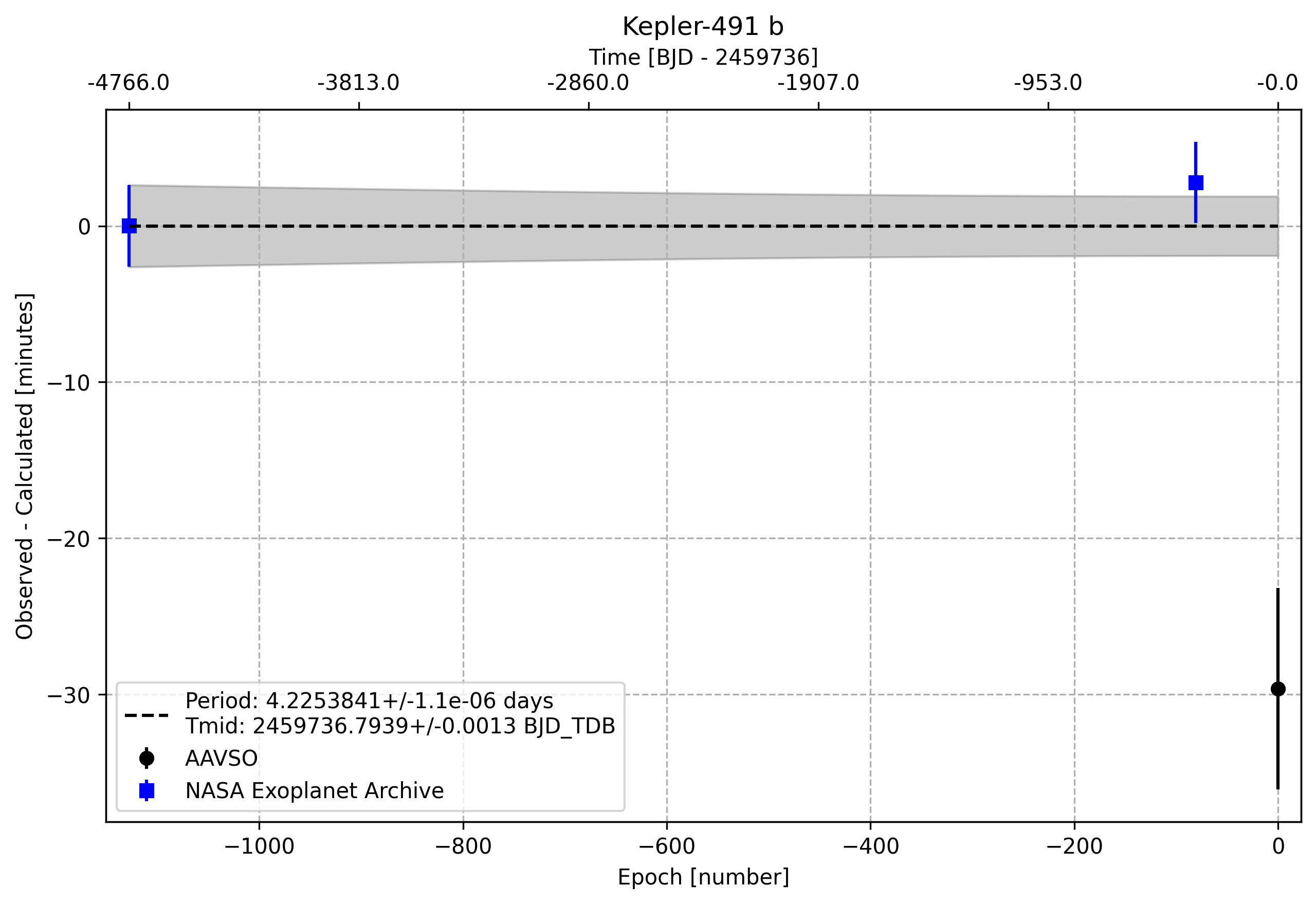

Timing Plot

Total Reductions to Date: 1

Date Processed: 09/06/2025 at 07:00:04 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 4.225384111011862 1.1426505088281673e-06
Ephemeris (BJD_TDB) 2459736.7938766144 0.001287794295201548
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 287.1305782 decimal
DEC 42.3501533 decimal
Host Star Metallicity 0.37 0.04 Fulton & Petigura 2018
Host Star log(g) 4.39363 0.08 Log10(cgs) Gajdoš et al. 2019
Host Star Radius [R_Sun] 1.03122 0.025 Sol Gajdoš et al. 2019
Host Star Effective Temperature [K] 5501.0 122.0 K Gajdoš et al. 2019
a/Rs 12.3266 0.086 Q1-Q17 DR25 KOI Table
eccentricity 0.0 Q1-Q17 DR25 KOI Table
inclination [degrees] 89.66 deg Q1-Q17 DR25 KOI Table
omega [degrees] 0.0 deg Gajdoš et al. 2019
orbital period [days] 4.22538411 1.8e-07 day Gajdoš et al. 2019
Rp 8.55 0.22 R_Earth Fulton & Petigura 2018
Rp/Rs 0.087 0 Q1-Q17 DR25 KOI Table
ephemeris [JD] 2454970.56079 3.568e-05 BJD Gajdoš et al. 2019

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2454970.5605989248 5.496e-05 BJD, JD Gajdoš et al. 2019, Q1-Q17 DR25 Supplemental KOI Table, Q1-Q17 DR25 KOI Table, Morton et al. 2016, Q1-Q17 DR24 KOI Table, Q1-Q16 KOI Table, Q1-Q12 KOI Table, Q1-Q8 KOI Table
2459394.539688 0.00126356 BJD ExoFOP-TESS TOI

Observations

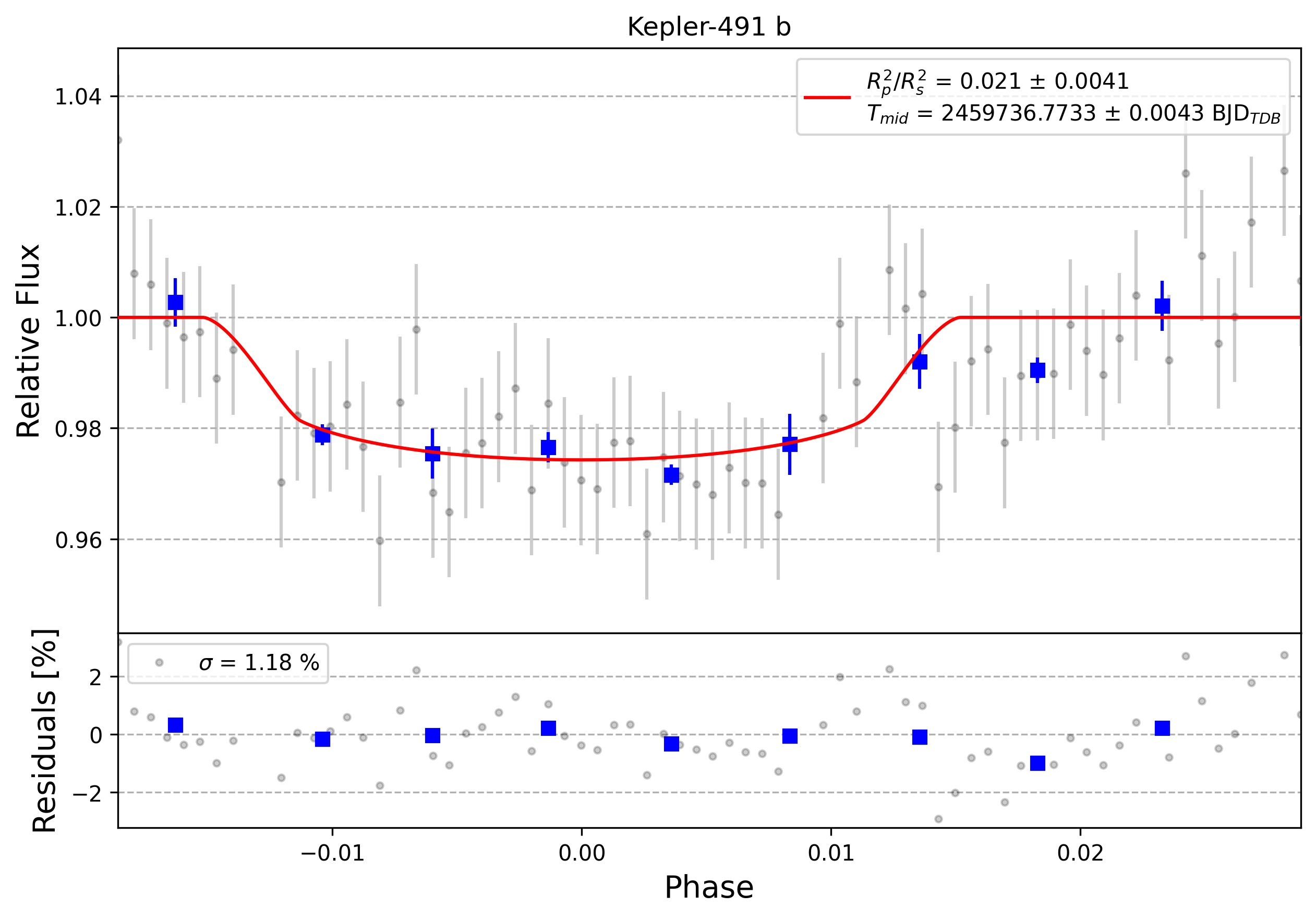

Light curve chart for 0001563

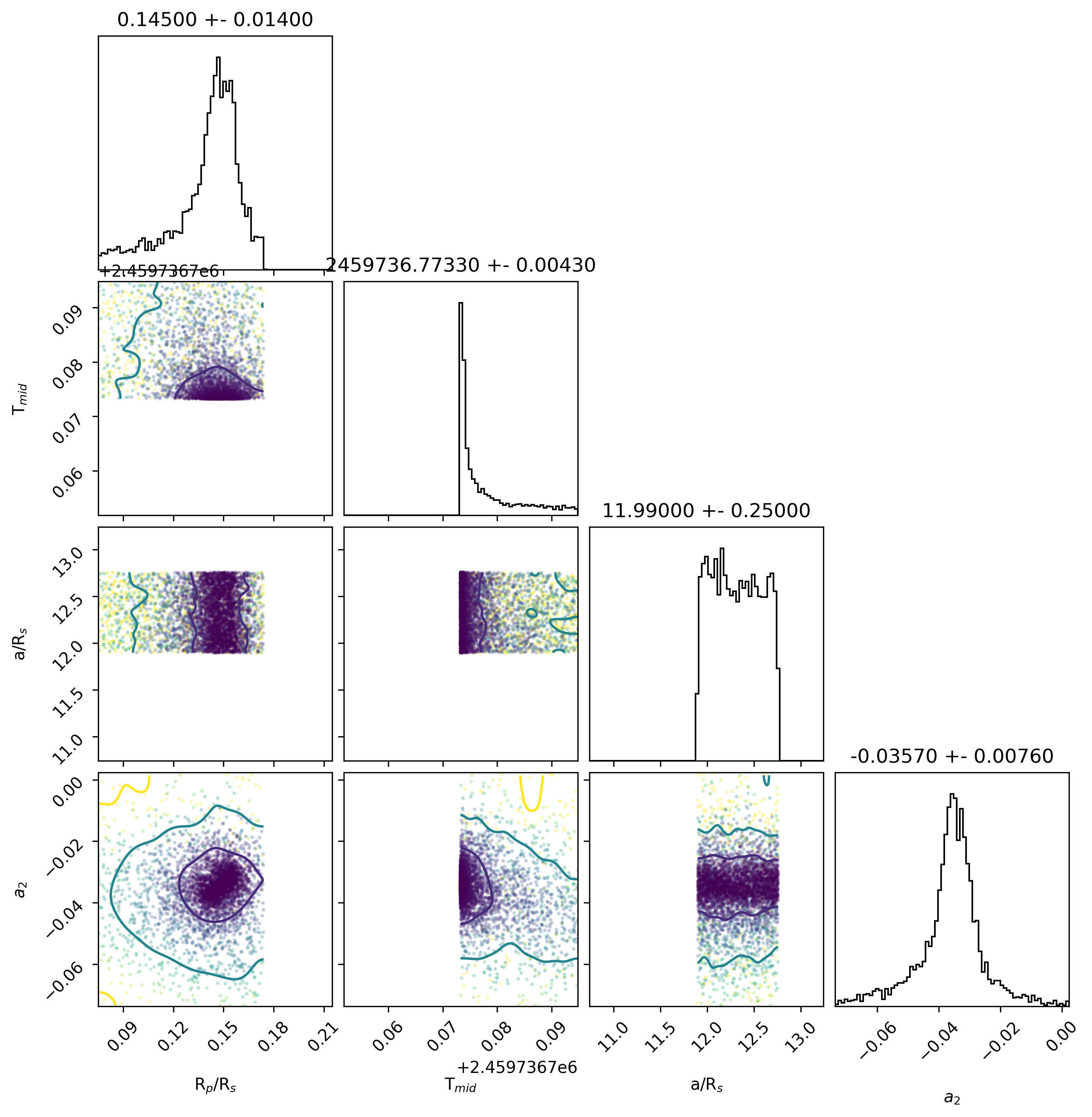

Parameter Value Uncertainty
Am1 1.046 0.012
Am2 -0.0357 0.0076
a/Rs 11.99 0.25
Rp/Rs 0.145 0.014
ephemeris [JD] 2459736.7733 0.0043
eccentricity 0.0
inclination [degrees] 89.66
omega [degrees] 0.0
orbital period [days] 4.22538411
u0 2.2901449242114444
u1 -4.031126067274373
u2 4.222524383325138
u3 -1.4815431773416932
duration 0.1284 0.0031
