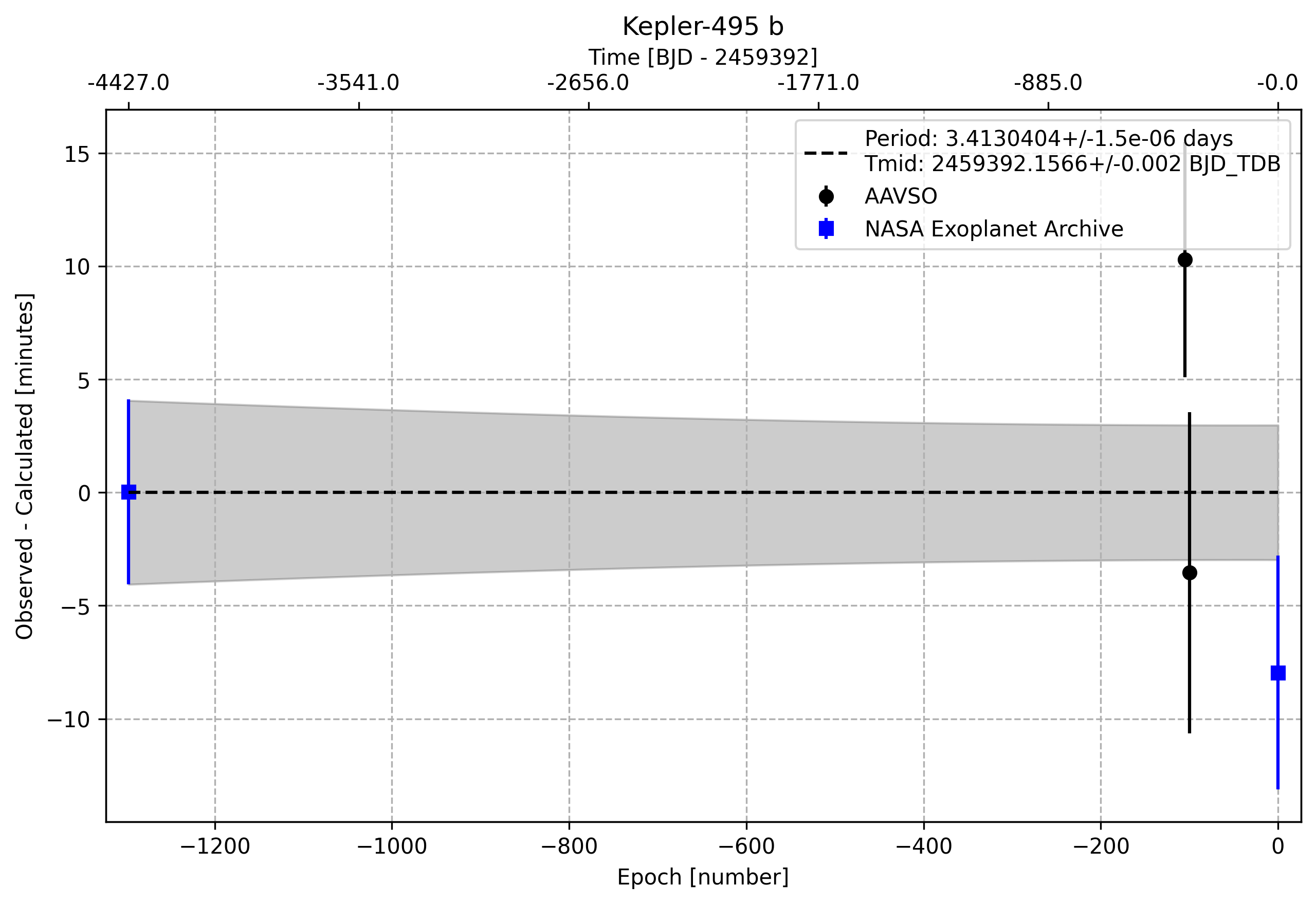

Timing Plot

Total Reductions to Date: 2

Date Processed: 09/06/2025 at 07:00:04 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 3.413040432749619 1.5492520101033032e-06
Ephemeris (BJD_TDB) 2459392.1565988665 0.002002260535047169
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 285.9307362 decimal
DEC 39.0981201 decimal
Host Star Metallicity 0.18 0.15 Q1-Q17 DR25 KOI Table
Host Star log(g) 4.53617 0.165 Log10(cgs) Gajdoš et al. 2019
Host Star Radius [R_Sun] 0.865985 0.039 Sol Gajdoš et al. 2019
Host Star Effective Temperature [K] 5410.0 122.0 K Gajdoš et al. 2019
a/Rs 10.5406 0.059 Q1-Q17 DR25 KOI Table
eccentricity 0.0 Q1-Q17 DR25 KOI Table
inclination [degrees] 89.75 deg Q1-Q17 DR25 KOI Table
omega [degrees] 0.0 deg Gajdoš et al. 2019
orbital period [days] 3.41303209 4.3e-07 day Gajdoš et al. 2019
Rp 5.29 0.24 R_Earth Berger et al. 2018
Rp/Rs 0.0622 0 Q1-Q17 DR25 KOI Table
ephemeris [JD] 2454965.4444 0.00010366 BJD Gajdoš et al. 2019

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2454965.443157222 0.00014918444444444442 BJD, JD Gajdoš et al. 2019, Q1-Q17 DR25 Supplemental KOI Table, Q1-Q17 DR25 KOI Table, Holczer et al. 2016, Morton et al. 2016, Q1-Q17 DR24 KOI Table, Q1-Q16 KOI Table, Q1-Q12 KOI Table, Q1-Q8 KOI Table
2459392.151066 0.00297812 BJD ExoFOP-TESS TOI

Observations

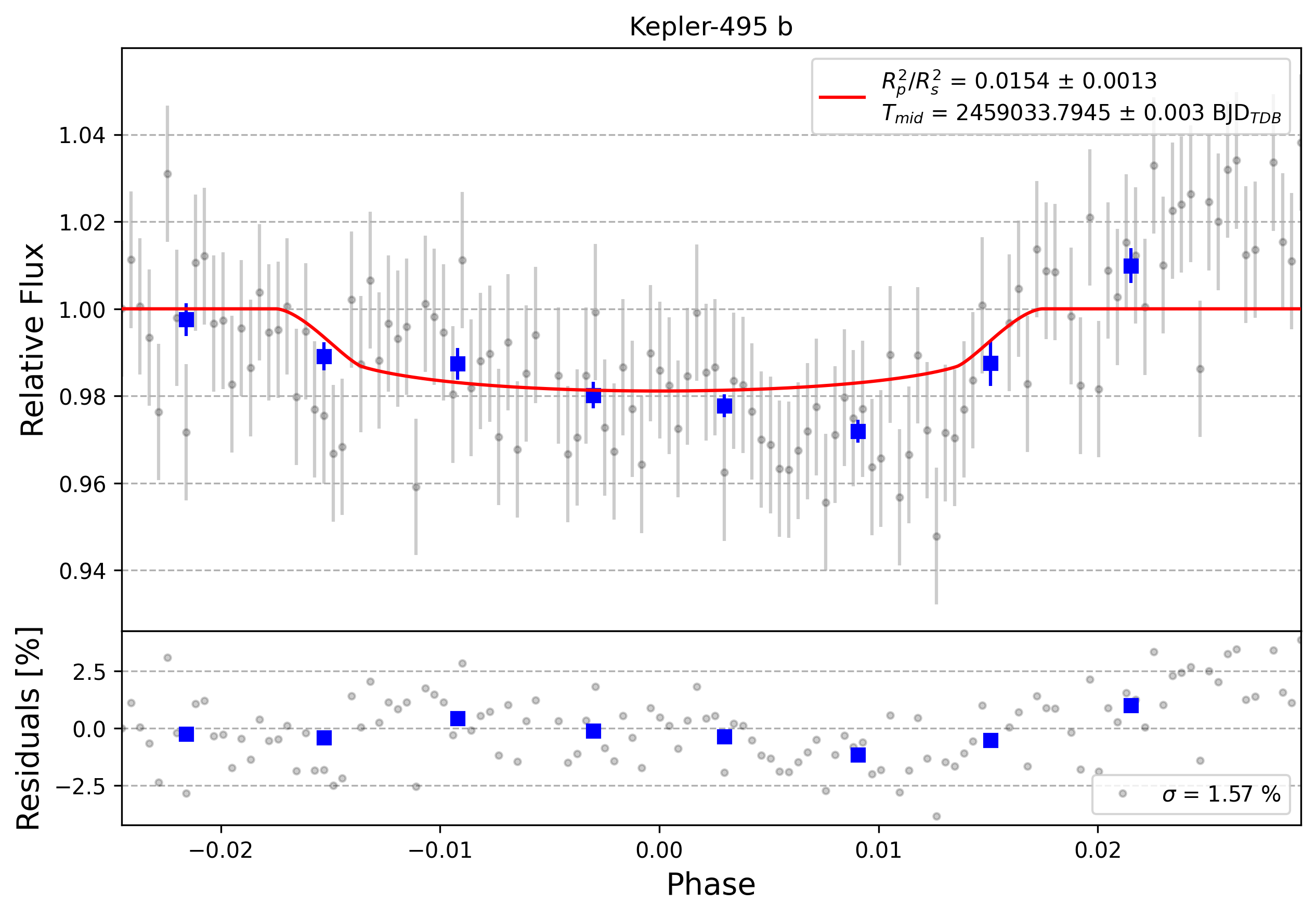

Light curve chart for 0000348

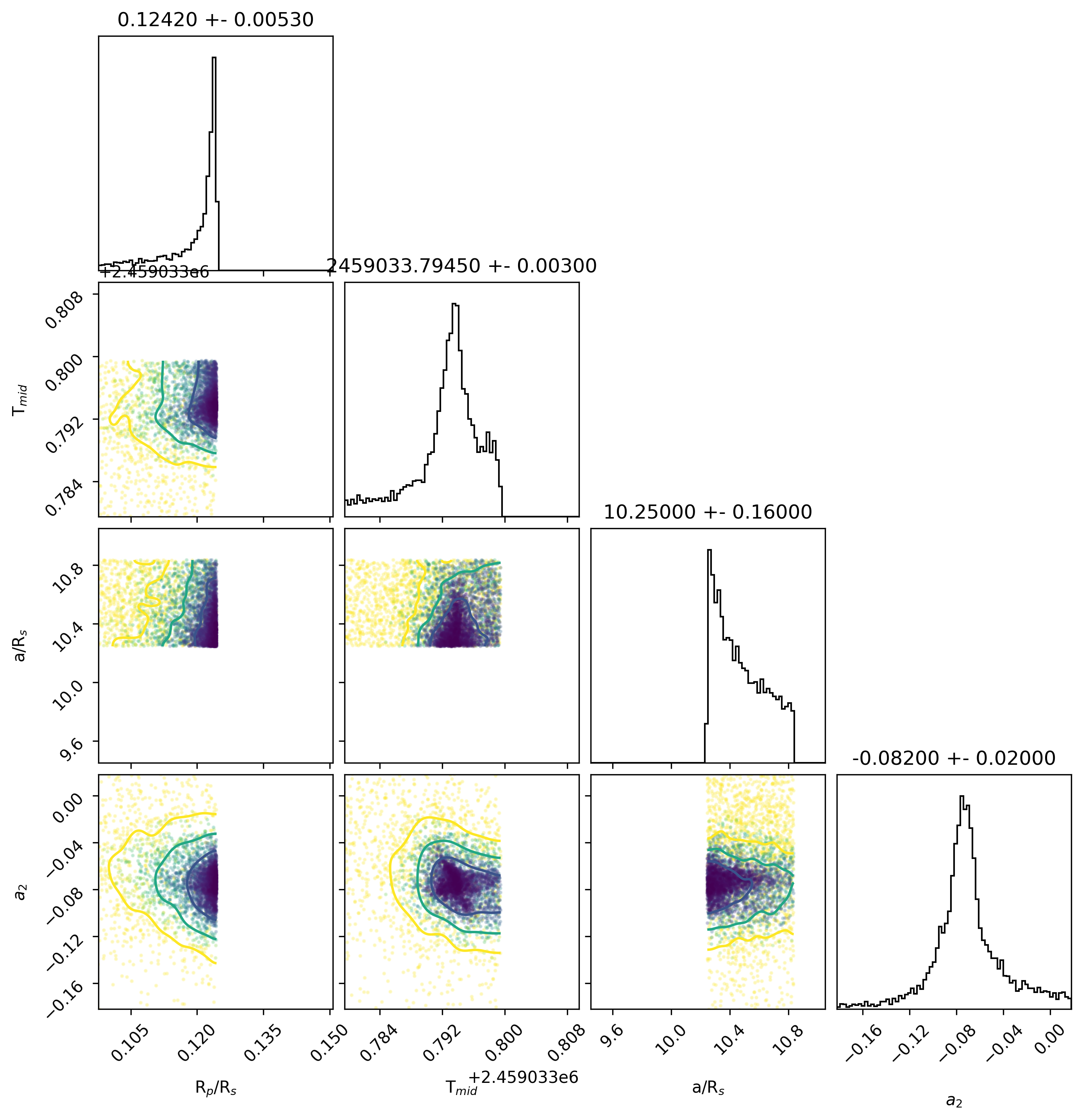

Parameter Value Uncertainty
Am1 0.3932 0.0061
Am2 -0.082 0.02
a/Rs 10.25 0.16
Rp/Rs 0.1242 0.0053
ephemeris [JD] 2459033.7945 0.003
eccentricity 0.0
inclination [degrees] 89.75
omega [degrees] 0.0
orbital period [days] 3.41303209
u0 2.2646158096212843
u1 -3.965207515276748
u2 4.165044530684511
u3 -1.4644527629650486
duration 0.1193 0.0019

Light curve chart for 0000371

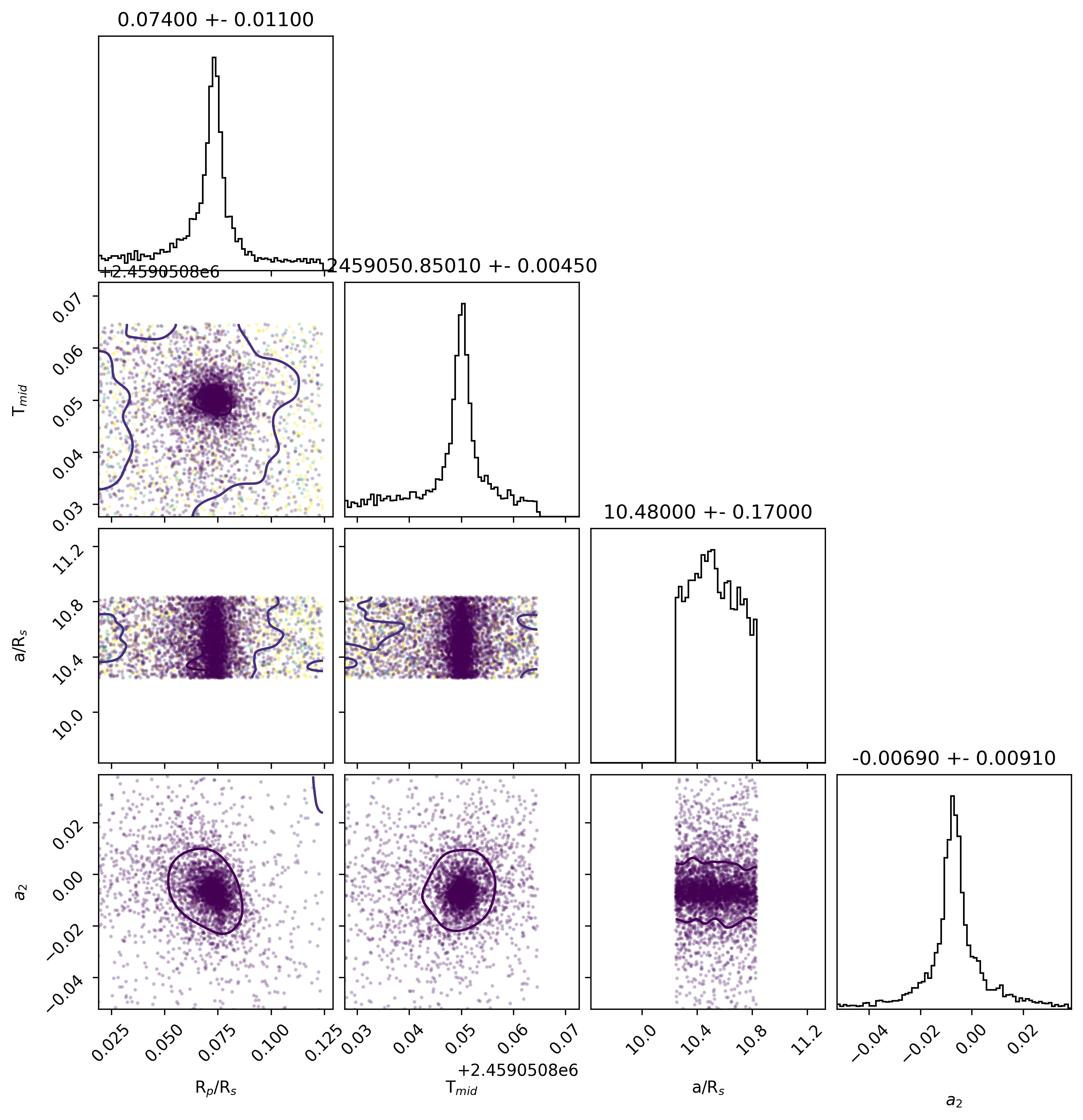

Parameter Value Uncertainty
Am1 1.213 0.01
Am2 -0.0069 0.0091
a/Rs 10.48 0.17
Rp/Rs 0.074 0.011
ephemeris [JD] 2459050.8501 0.0045
eccentricity 0.0
inclination [degrees] 89.75
omega [degrees] 0.0
orbital period [days] 3.41303209
u0 1.9518122716113604
u1 -3.2879882033370613
u2 3.634745254123027
u3 -1.298569268235401
duration 0.1113 0.0022
