KPS-1 b

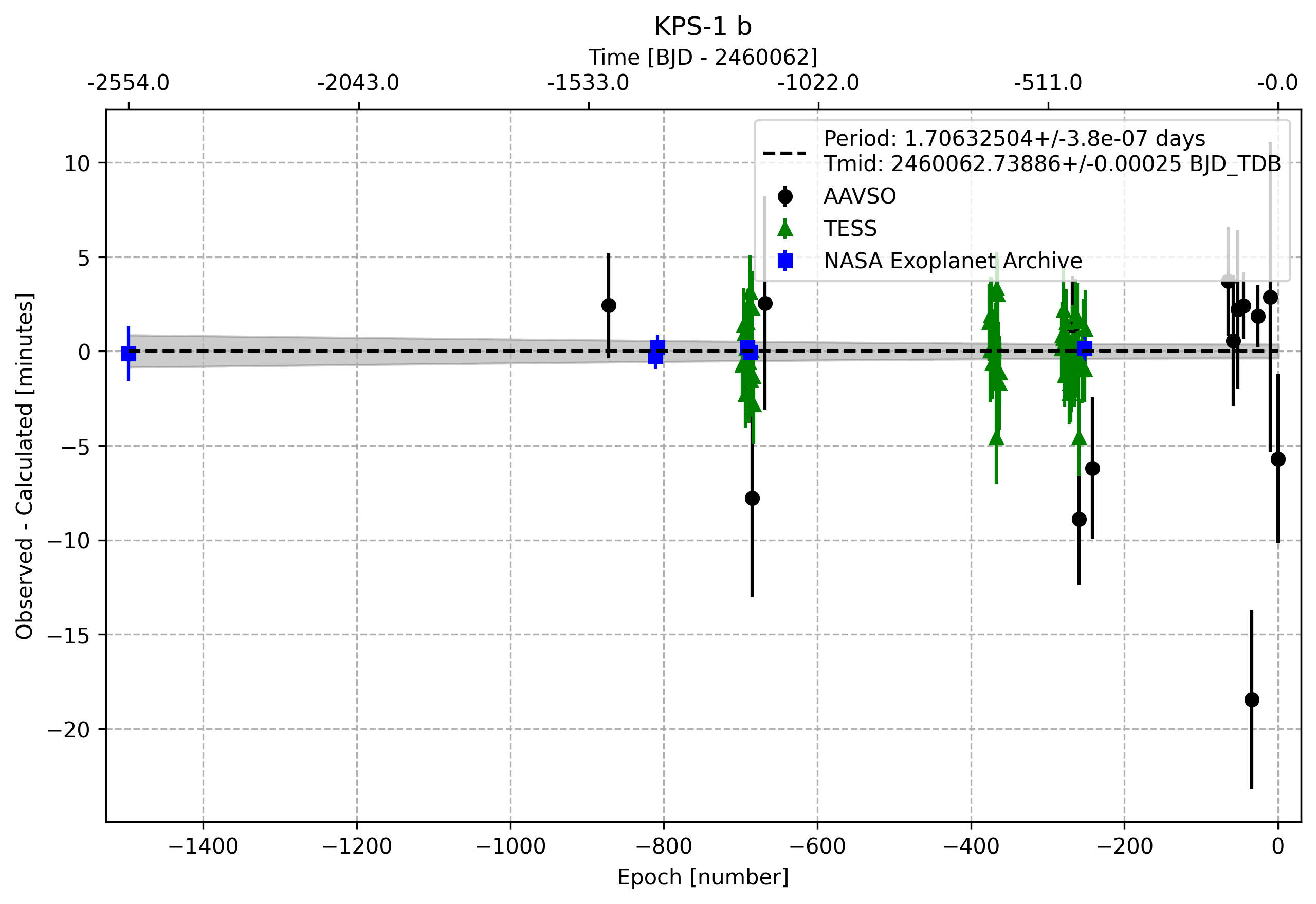

Timing Plot

Total Reductions to Date: 77

Date Processed: 09/06/2025 at 07:00:04 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 1.706325036518488 3.8602689826870505e-07
Ephemeris (BJD_TDB) 2460062.7388558285 0.00025395227920179867
Time saved (hours) 0.0002

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 165.167198 decimal
DEC 64.9638452 decimal
Host Star Metallicity 0.22 0.13 Kokori et al. 2023
Host Star log(g) 4.47 0.06 Log10(cgs) Kokori et al. 2023
Host Star Radius [R_Sun] 0.907 0.086 Sol Kokori et al. 2023
Host Star Effective Temperature [K] 5165.0 90.0 K Kokori et al. 2023
a/Rs 6.37 0.05 Kokori et al. 2023
eccentricity 0.0 Burdanov et al. 2018
inclination [degrees] 83.2 0.9 deg Kokori et al. 2023
omega [degrees] 0.0 deg Kokori et al. 2023
orbital period [days] 1.70632513 8.9e-07 day Kokori et al. 2023
Rp 11.55 1.46 R_Earth Burdanov et al. 2018
Rp/Rs 0.1048 0 ExoFOP-TESS TOI
ephemeris [JD] 2458888.7872 0.0002 BJD-TDB Kokori et al. 2023

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2458888.7872 0.0002 BJD-TDB Kokori et al. 2023
2458883.66839 0.00032 BJD Patel & Espinoza 2022
2458684.02836 0.00025 BJD-TDB Ivshina & Winn 2022
2458678.90907 0.00026 BJD-TDB Kokori et al. 2022
2457508.37019 0.00079 BJD-TDB Burdanov et al. 2018
2459632.745042 0.0003659 BJD ExoFOP-TESS TOI

Observations

Light curve chart for 0000177
Parameter Value Uncertainty
Am1 0.06316 0.00044
Am2 0.022 0.052
a/Rs 6.25 0.13
Rp/Rs 0.1152 0.0082
ephemeris [JD] 2458574.8253 0.002
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.187257687798093
u1 -3.807414396461278
u2 4.025266887647522
u3 -1.405110119003186
duration 0.064 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Clear with blue-blocking 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO LPAC (collaborate/publish)
Light curve chart for 0000265
Parameter Value Uncertainty
Am1 0.5758 0.002
Am2 0.117 0.079
a/Rs 6.24 0.14
Rp/Rs 0.124 0.011
ephemeris [JD] 2458893.9009 0.0035
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.5415344547479082
u1 -2.631835920990352
u2 3.2534888129043025
u3 -1.1631872981810973
duration 0.0605 0.0038
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

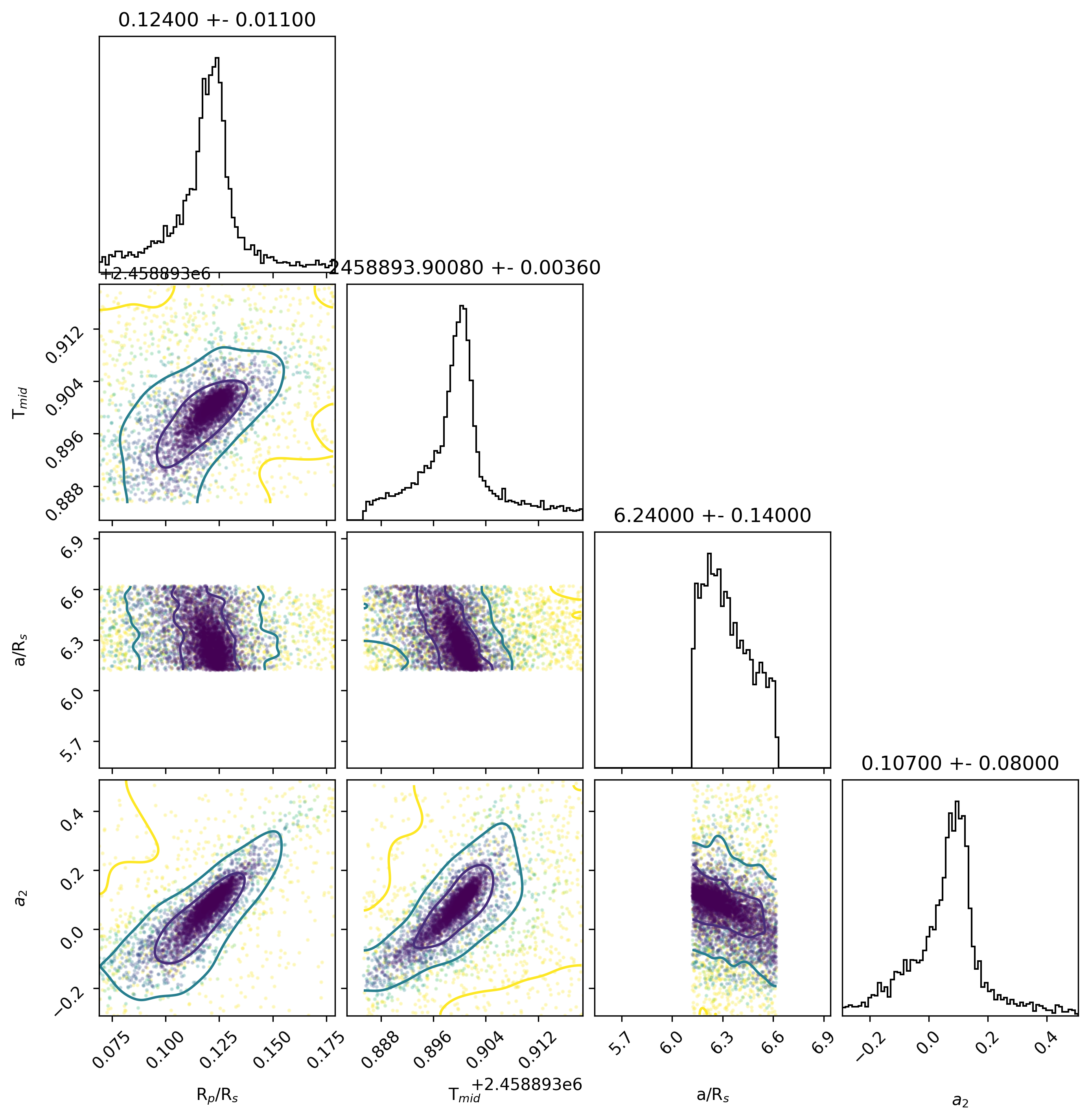

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ELIB (collaborate/publish)
Light curve chart for 0006508
Parameter Value Uncertainty
Am1 0.916 0.011
Am2 0.071 0.036
a/Rs 6.13 0.14
Rp/Rs 0.153 0.023
ephemeris [JD] 2458922.9158 0.0043
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.5416462022937758
u1 -2.6326408276925926
u2 3.254716557109631
u3 -1.1637218832117582
duration 0.0761 0.0045
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DSHE (collaborate/publish) MOBS
Light curve chart for 0009979
Parameter Value Uncertainty
Am1 1.017 0.023
Am2 -0.0094 0.0084
a/Rs 6.62 0.14
Rp/Rs 0.161 0.03
ephemeris [JD] 2459311.9506 0.007
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.541018438623918
u1 -2.631744909647859
u2 3.2543679353297117
u3 -1.16364141581191
duration 0.0711 0.0044
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LIGA (collaborate/publish) MOBS
Light curve chart for 0008041
Parameter Value Uncertainty
Am1 1.108 0.022
Am2 -0.08 0.24
a/Rs 6.59 0.14
Rp/Rs 0.209 0.062
ephemeris [JD] 2459318.802 0.011
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.5413018939267422
u1 -2.631606348656988
u2 3.253260407200685
u3 -1.162955903993082
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO TABC (collaborate/publish) MOBS

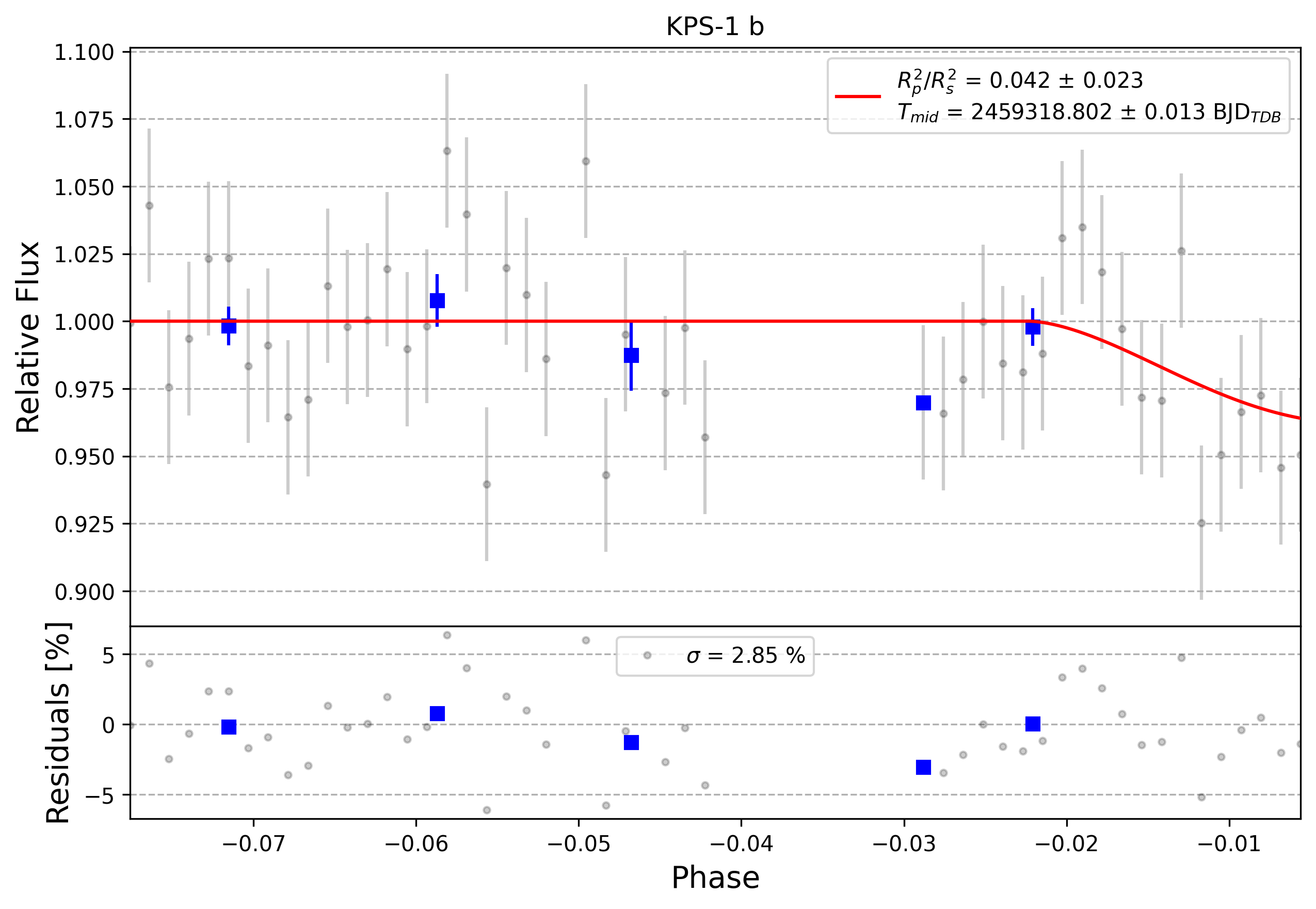

Light curve chart for 0012165
Parameter Value Uncertainty
Am1 0.866 0.025
Am2 0.12 0.24
a/Rs 6.61 0.15
Rp/Rs 0.209 0.057
ephemeris [JD] 2459318.802 0.013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.541423306049114
u1 -2.631603029103174
u2 3.2534000196448605
u3 -1.163220248111363
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KPRB (collaborate/publish) MOBS
Light curve chart for 0005041
Parameter Value Uncertainty
Am1 1.207 0.017
Am2 -0.081 0.019
a/Rs 6.12 0.15
Rp/Rs 0.187 0.053
ephemeris [JD] 2459323.9098 0.0078
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.5411388299337363
u1 -2.631560083524073
u2 3.2534636561165926
u3 -1.1630423540458699
duration 0.0644 0.0086
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WGAC (collaborate/publish) MOBS
Light curve chart for 0010603
Parameter Value Uncertainty
Am1 3.24 0.3
Am2 -0.99 0.3
a/Rs 6.14 0.14
Rp/Rs 0.209 0.054
ephemeris [JD] 2459330.707 0.011
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.542202089260627
u1 -2.6343129684539806
u2 3.2567211355292818
u3 -1.1646102078070015
duration 0.0856 0.0072
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MJOU (collaborate/publish) MOBS
Light curve chart for 0006465
Parameter Value Uncertainty
Am1 0.879 0.024
Am2 0.1 0.34
a/Rs 6.29 0.14
Rp/Rs 0.076 0.051
ephemeris [JD] 2459342.671 0.012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.5419383841231935
u1 -2.6335281445271352
u2 3.2556703757864374
u3 -1.164080566869227
duration 0.0598 0.0082
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO BALN (collaborate/publish) MOBS
Light curve chart for 0007586
Parameter Value Uncertainty
Am1 1.356 0.022
Am2 -0.237 0.048
a/Rs 6.21 0.15
Rp/Rs 0.142 0.053
ephemeris [JD] 2459347.779 0.011
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.5413290342288848
u1 -2.632868303914613
u2 3.2556855259193282
u3 -1.1641462077201057
duration 0.06 0.011
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO NGIB (collaborate/publish) MOBS
Light curve chart for 0006643
Parameter Value Uncertainty
Am1 0.982 0.019
Am2 0.013 0.013
a/Rs 6.62 0.14
Rp/Rs 0.184 0.061
ephemeris [JD] 2459364.873 0.011
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.5407607531558183
u1 -2.6302246023756872
u2 3.25162662264423
u3 -1.1621627249713482
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO TKVA (collaborate/publish) MOBS
Light curve chart for 0001189
Parameter Value Uncertainty
Am1 1.0056 0.0037
Am2 -0.0044 0.0033
a/Rs 6.27 0.13
Rp/Rs 0.1171 0.0056
ephemeris [JD] 2459605.4446 0.0018
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.8569612403517055
u1 -3.1039318271509377
u2 3.4807749220401205
u3 -1.2338042833732996
duration 0.0732 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

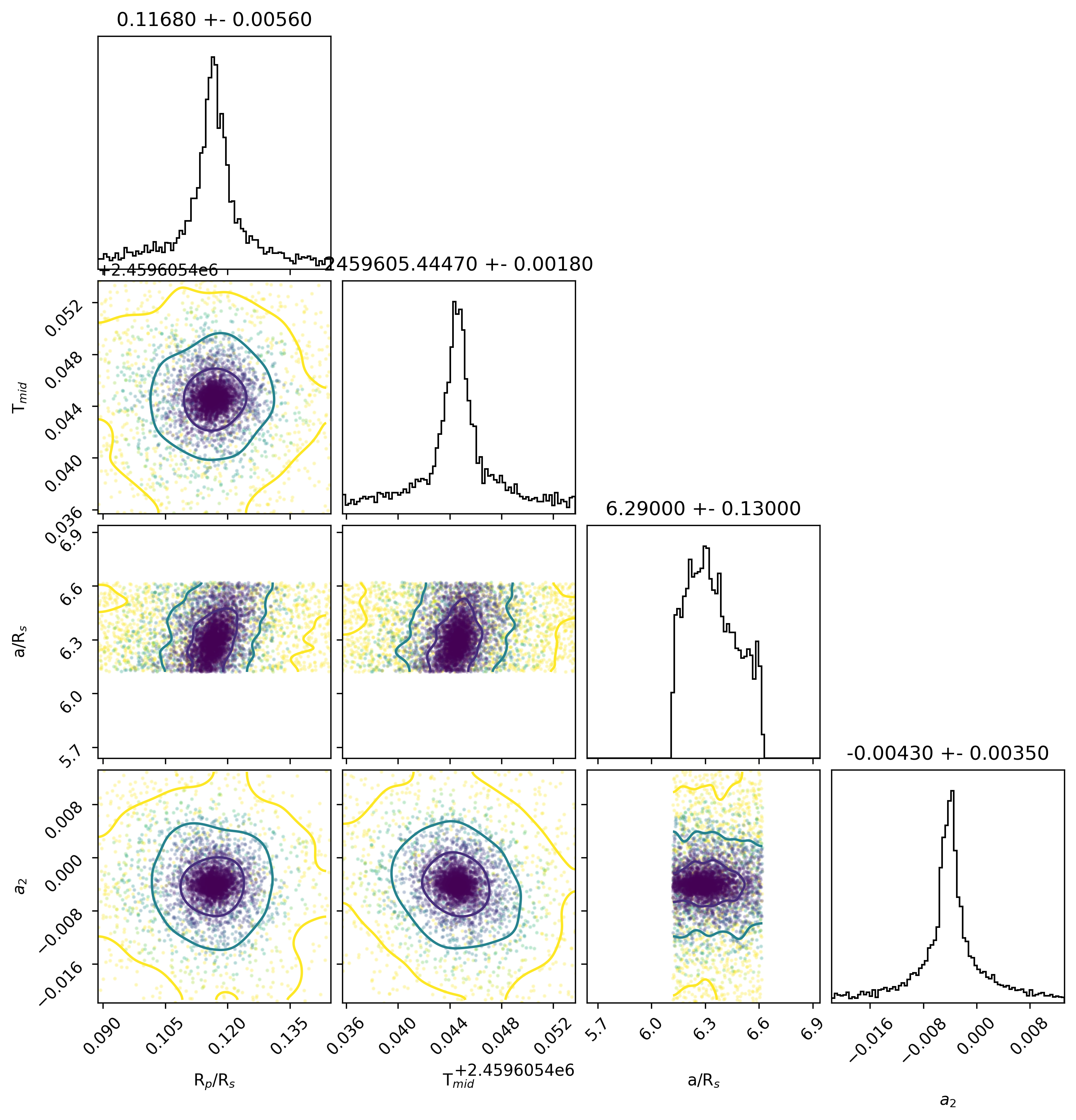

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
R Cousins R 561.7 nm 719.7 nm
Organization Observer Code Secondary Observers
AAVSO PJEF (collaborate/publish)
Light curve chart for 0001678
Parameter Value Uncertainty
Am1 0.827 0.012
Am2 0.158 0.085
a/Rs 6.48 0.14
Rp/Rs 0.144 0.014
ephemeris [JD] 2459620.7944 0.0023
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.9295241394099736
u1 -3.365691546195902
u2 3.7599258379251506
u3 -1.3237583751119613
duration 0.0718 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

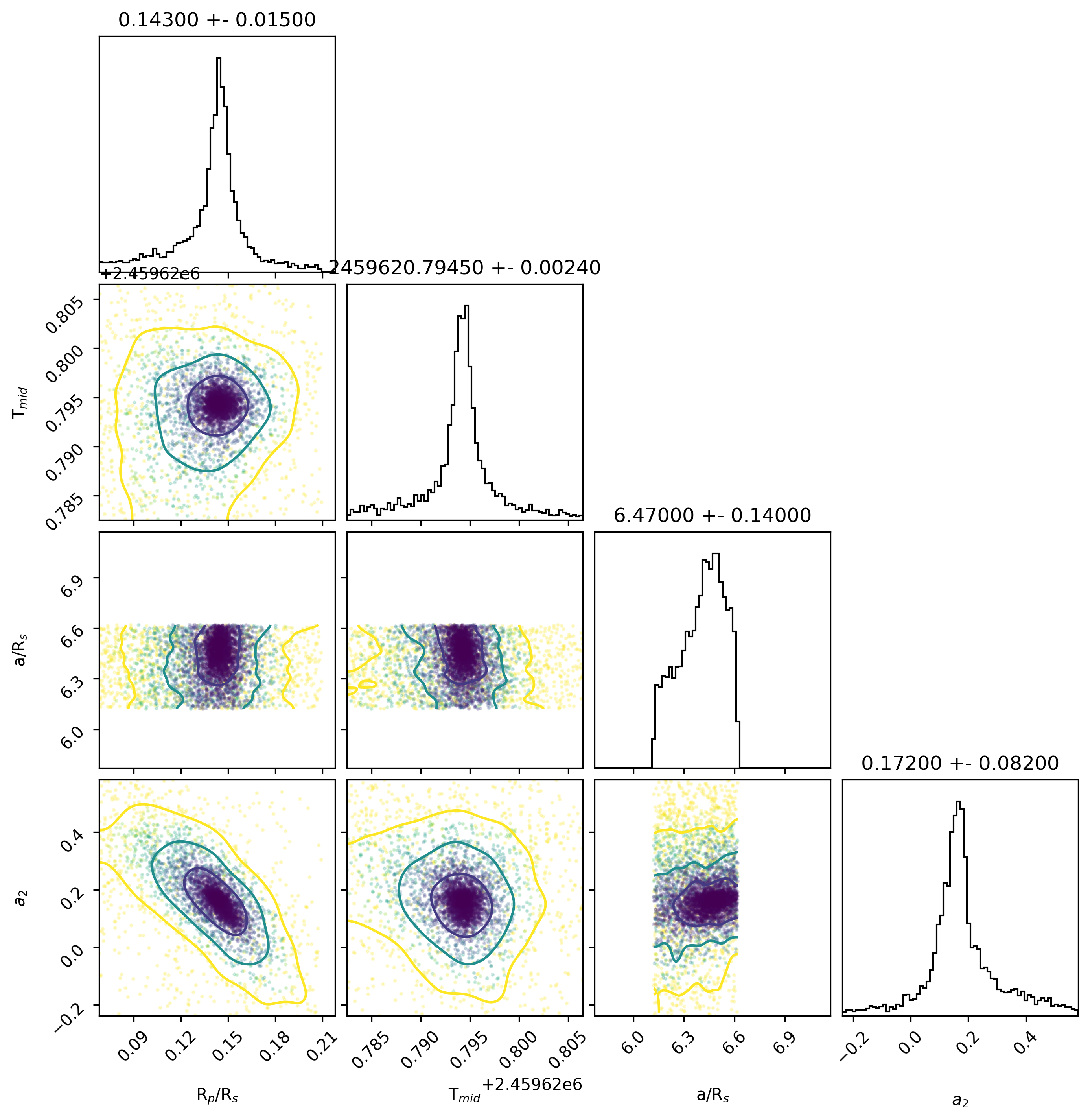

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 400.0 nm 900.0 nm
Organization Observer Code Secondary Observers
AAVSO RJUB (collaborate/publish) UNIS
Light curve chart for 0001286
Parameter Value Uncertainty
Am1 1.0146 0.006
Am2 -0.009 0.01
a/Rs 6.5 0.14
Rp/Rs 0.1222 0.0079
ephemeris [JD] 2459649.8043 0.0025
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.1878795030362115
u1 -3.810069219141273
u2 4.028775150827021
u3 -1.406585374688531
duration 0.0488 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Astrodon ExoPlanet-BB 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO LPAC (collaborate/publish)

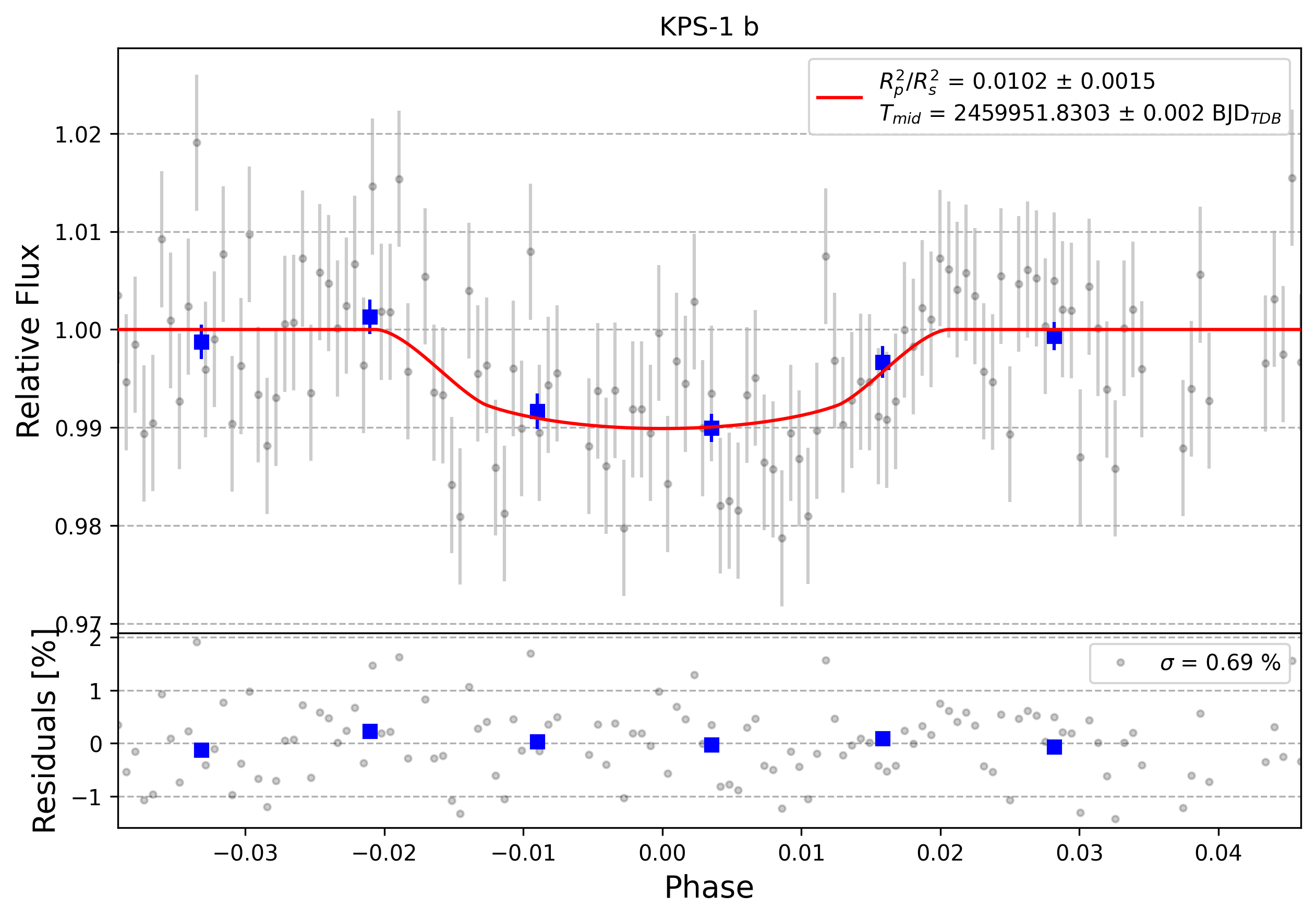

Light curve chart for 0002624
Parameter Value Uncertainty
Am1 0.9928 0.0069
Am2 0.0052 0.0054
a/Rs 6.3 0.13
Rp/Rs 0.1009 0.0076
ephemeris [JD] 2459951.8302 0.0021
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.5415513966604864
u1 -2.6324688568485093
u2 3.2546918969512593
u3 -1.1637743882645477
duration 0.0706 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SGCA (collaborate/publish)
Light curve chart for 0002339
Parameter Value Uncertainty
Am1 0.9897 0.0054
Am2 0.0069 0.0038
a/Rs 6.12 0.14
Rp/Rs 0.1 0.01
ephemeris [JD] 2459963.7722 0.0024
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.8346263501778053
u1 -3.1940042590675755
u2 3.6390309280757194
u3 -1.279652964960163
duration 0.0702 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 0002500
Parameter Value Uncertainty
Am1 0.9588 0.0044
Am2 0.038 0.042
a/Rs 6.49 0.14
Rp/Rs 0.11 0.014
ephemeris [JD] 2459974.0114 0.0029
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.0724169861062585
u1 -3.523826599984309
u2 3.7744841729299026
u3 -1.3230745028076552
duration 0.0562 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
RJ Johnson R 590.0 nm 810.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)

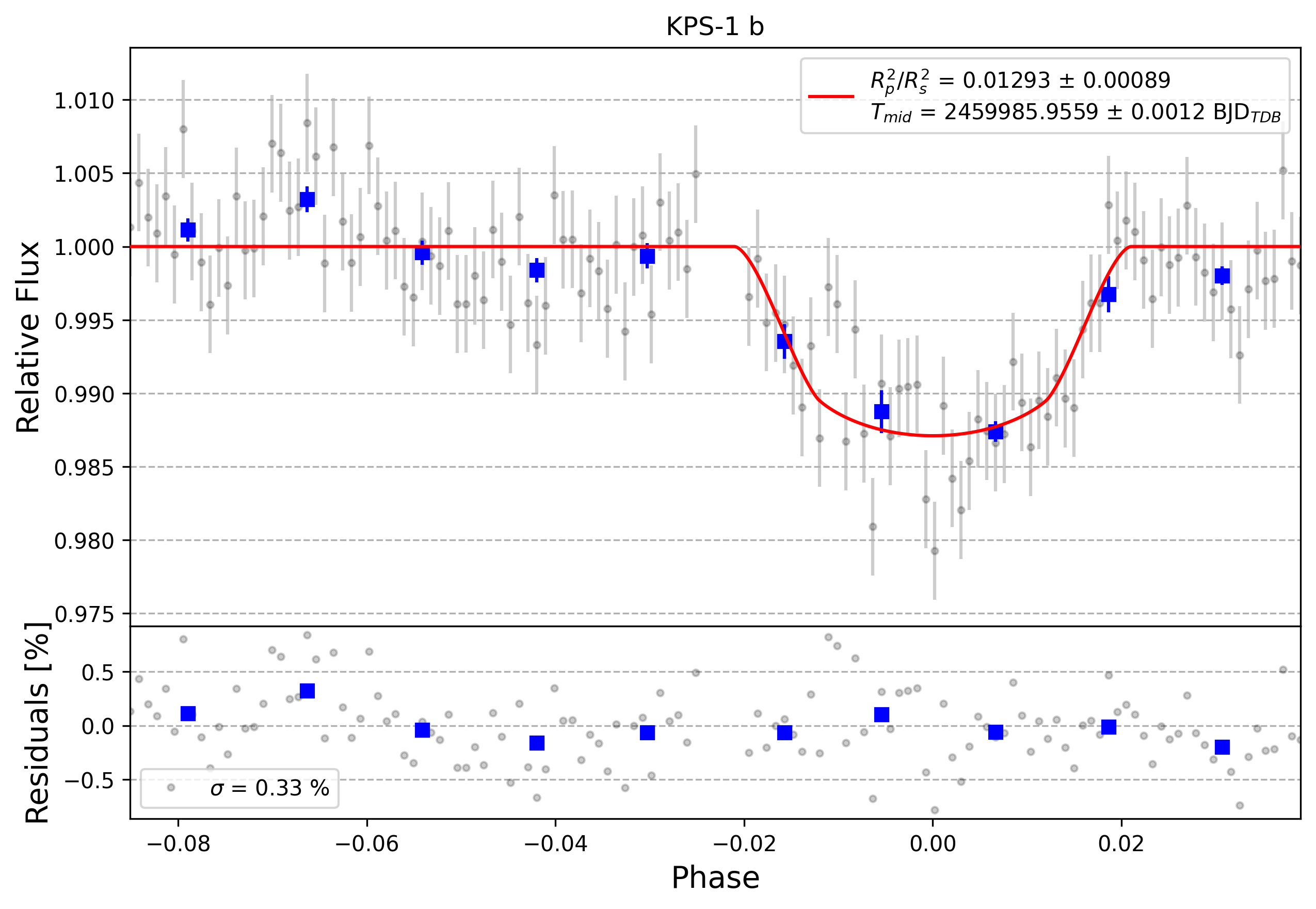

Light curve chart for 0002845
Parameter Value Uncertainty
Am1 0.9917 0.0033
Am2 0.0075 0.0093
a/Rs 6.3 0.11
Rp/Rs 0.1133 0.004
ephemeris [JD] 2459985.9562 0.0012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.7999388416777298
u1 -2.995234938411923
u2 3.40621751624863
u3 -1.2109213687578406
duration 0.0718 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
SR Sloan r 553.1 nm 693.1 nm
Organization Observer Code Secondary Observers
AAVSO HELC (collaborate/publish)
Light curve chart for 0002939
Parameter Value Uncertainty
Am1 1.0095 0.0068
Am2 -0.007 0.017
a/Rs 6.14 0.14
Rp/Rs 0.09 0.017
ephemeris [JD] 2459992.7739 0.0064
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.5415589933365559
u1 -2.633227533928841
u2 3.255540603663076
u3 -1.1638720145594554
duration 0.0726 0.0036
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

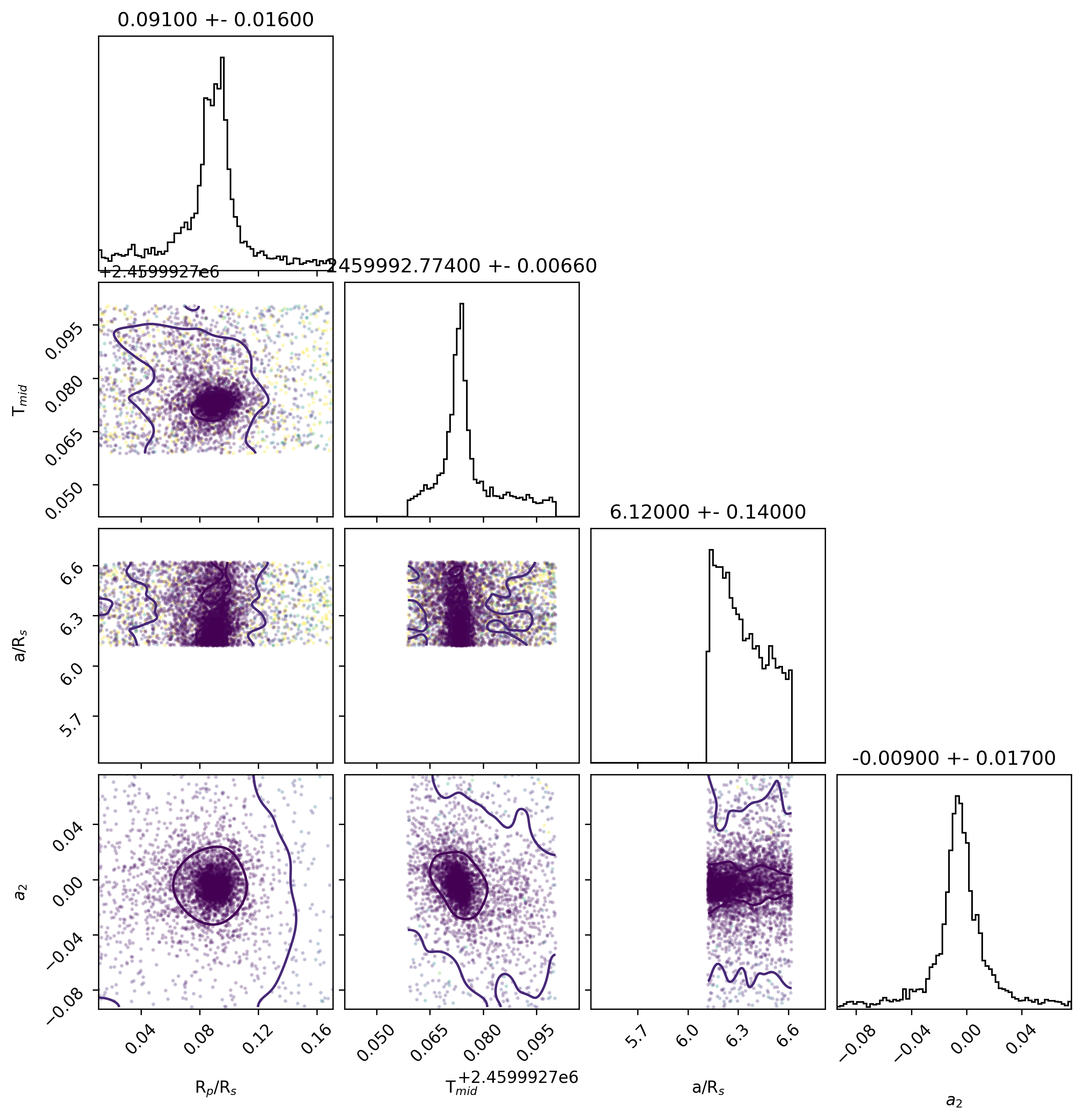

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 0003165
Parameter Value Uncertainty
Am1 1.005 0.012
Am2 -0.0031 0.0096
a/Rs 6.12 0.11
Rp/Rs 0.137 0.01
ephemeris [JD] 2460004.7091 0.0029
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.5423909769128177
u1 -2.6351067411357554
u2 3.258077365227677
u3 -1.1653615524556034
duration 0.0785 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DLMA (collaborate/publish)
Light curve chart for 0002997
Parameter Value Uncertainty
Am1 0.9909 0.0018
Am2 0.0073 0.0029
a/Rs 6.124 0.072
Rp/Rs 0.103 0.0032
ephemeris [JD] 2460018.3758 0.0011
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.8349633603529911
u1 -3.195282123097865
u2 3.6409096045606457
u3 -1.2805907875619913
duration 0.0745 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

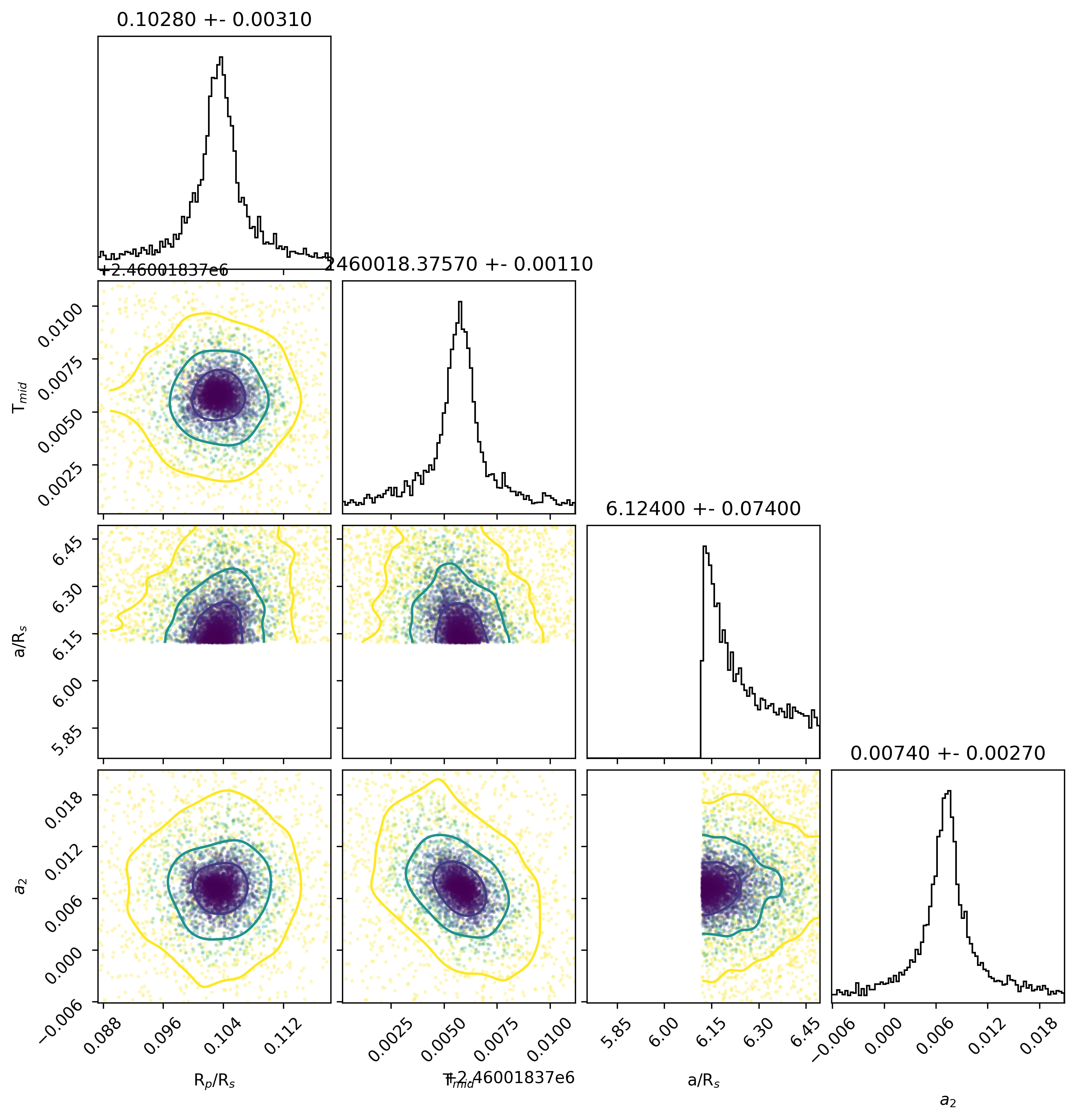

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO SAJB (collaborate/publish)
Light curve chart for 0003728
Parameter Value Uncertainty
Am1 1.0423 0.0078
Am2 -0.034 0.04
a/Rs 6.12 0.14
Rp/Rs 0.104 0.013
ephemeris [JD] 2460045.6776 0.0056
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 1.8348364190851367
u1 -3.1945171531537895
u2 3.639677217964442
u3 -1.2799964296603723
duration 0.0747 0.0034
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO PJEE (collaborate/publish)

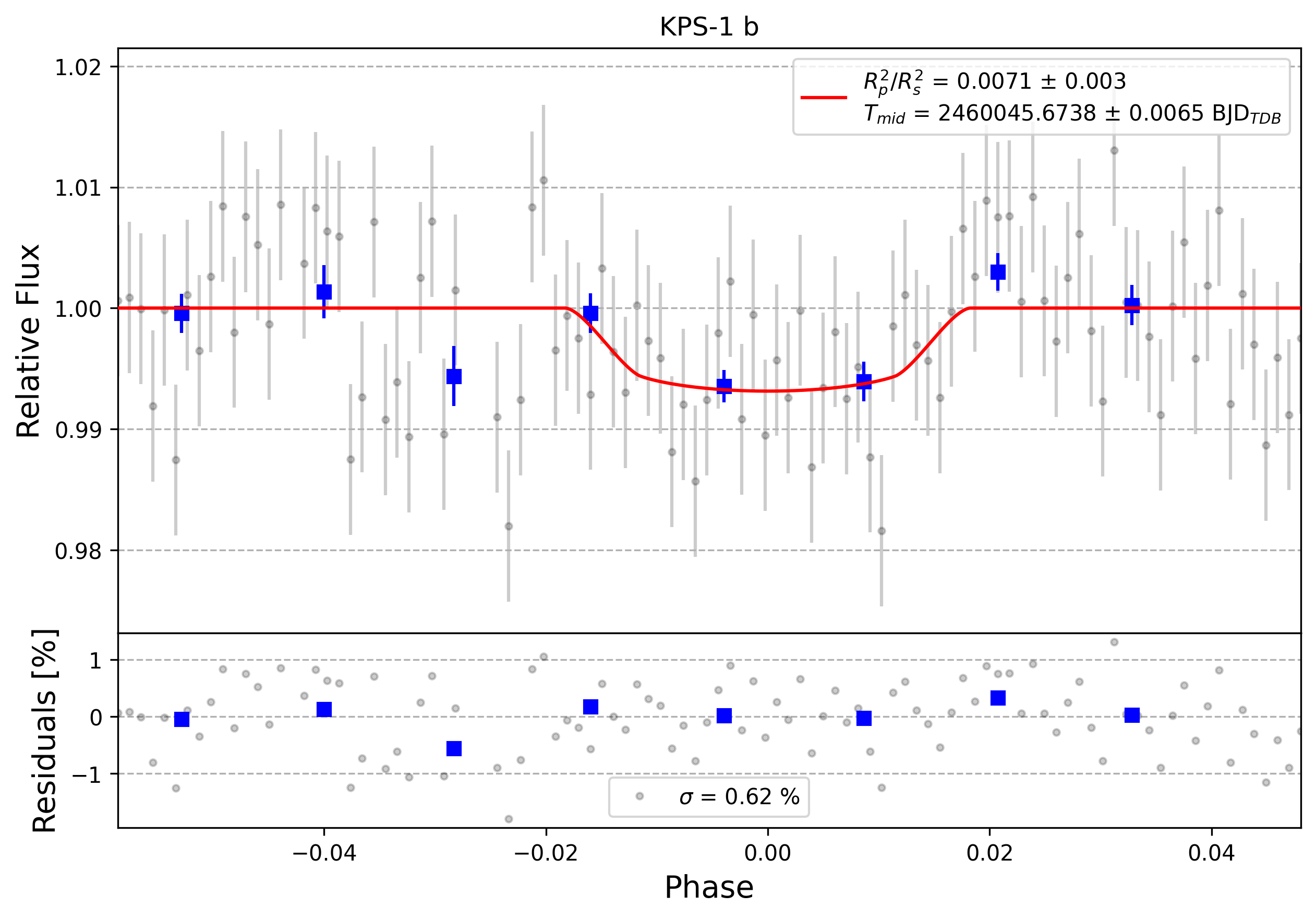

Light curve chart for 0003172
Parameter Value Uncertainty
Am1 0.8528 0.0053
Am2 0.138 0.021
a/Rs 6.6 0.14
Rp/Rs 0.083 0.018
ephemeris [JD] 2460045.6738 0.0066
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.1886820295169787
u1 -3.812513762015727
u2 4.03166373238511
u3 -1.4078319398098897
duration 0.0619 0.0035
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Astrodon ExoPlanet-BB 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO ZDAB (collaborate/publish)
Light curve chart for 0003381
Parameter Value Uncertainty
Am1 0.9595 0.0059
Am2 0.036 0.014
a/Rs 6.62 0.12
Rp/Rs 0.1022 0.0079
ephemeris [JD] 2460062.7348 0.003
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.0723343853651754
u1 -3.5230094311695073
u2 3.7732247382413577
u3 -1.3225496362115958
duration 0.064 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
RJ Johnson R 590.0 nm 810.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 10624c46db2f34264e01255033690fb6
Parameter Value Uncertainty
Am1 1.0008 0.0038
Am2 0
a/Rs 6.39 0.12
Rp/Rs 0.108 0.0044
ephemeris [JD] 2458895.6115 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.407857378946406
u1 -4.193389187266885
u2 4.253885220751682
u3 -1.4683533490433738
duration 0.0694 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for af4032a7b96ec3c415206768e891a958
Parameter Value Uncertainty
Am1 0.9997 0.0035
Am2 0
a/Rs 6.43 0.12
Rp/Rs 0.1125 0.0042
ephemeris [JD] 2459634.452 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.407231614539353
u1 -4.192520166014957
u2 4.2536679724002955
u3 -1.4683793575400985
duration 0.0691 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

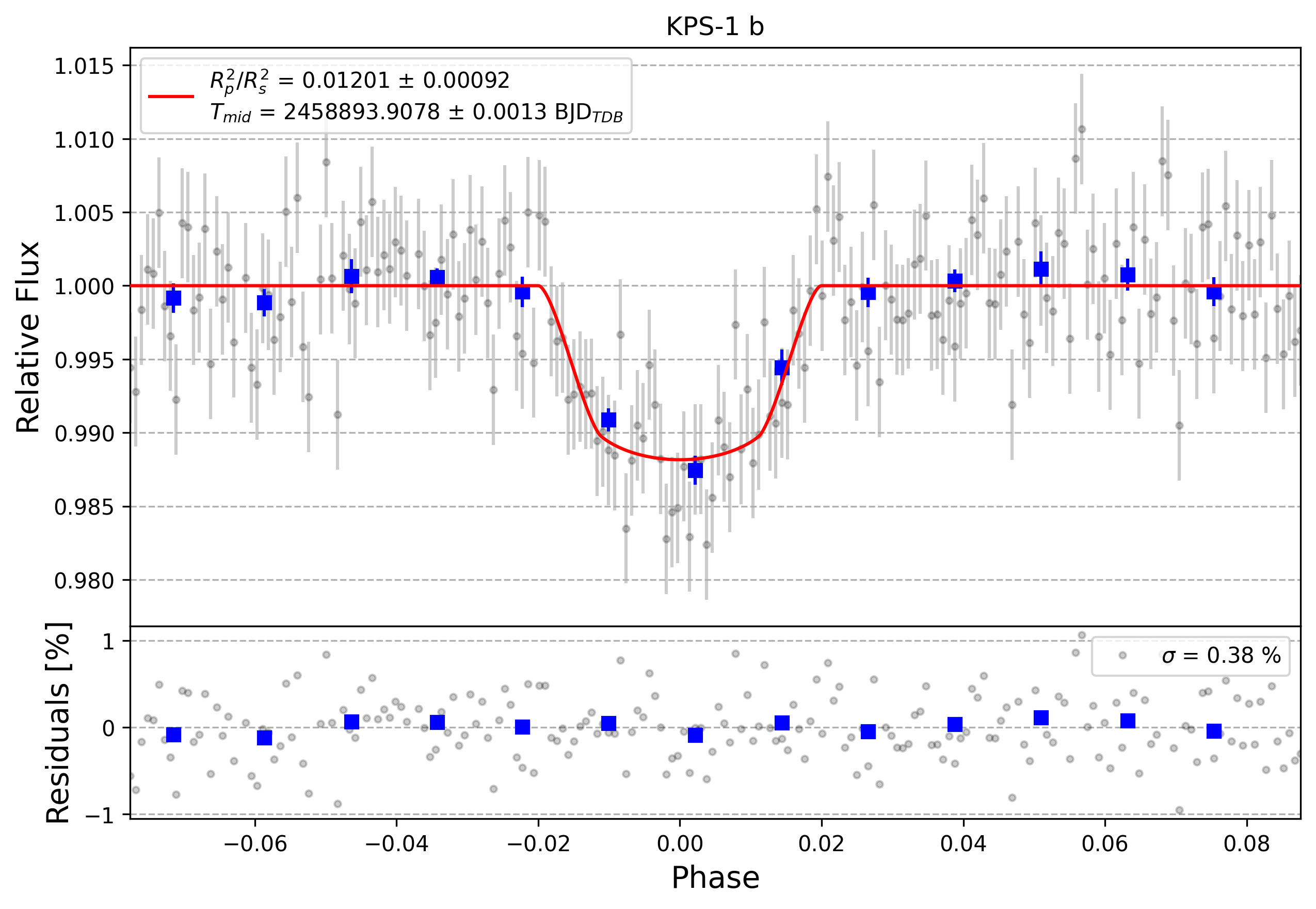

Light curve chart for ea37f105c7c10ddcf8a72215bbd24f16
Parameter Value Uncertainty
Am1 1.0001 0.0038
Am2 0
a/Rs 6.46 0.11
Rp/Rs 0.1094 0.0042
ephemeris [JD] 2458893.9077 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.408000461880155
u1 -4.194053726285771
u2 4.254784095957499
u3 -1.4687307681506585
duration 0.0683 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f6086c60a2b6a66ac4458a20690de7dc
Parameter Value Uncertainty
Am1 1.0002 0.0036
Am2 0
a/Rs 6.37 0.12
Rp/Rs 0.113 0.0042
ephemeris [JD] 2458892.1998 0.0012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4062038881274708
u1 -4.190072662352181
u2 4.251326158161597
u3 -1.467457320587191
duration 0.0705 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 37c1394db9a44627a57074814e44776b
Parameter Value Uncertainty
Am1 1.0006 0.0037
Am2 0
a/Rs 6.12 0.11
Rp/Rs 0.1094 0.0041
ephemeris [JD] 2459617.3894 0.0015
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.407569152534248
u1 -4.192919378369824
u2 4.253743093894948
u3 -1.4683928046736607
duration 0.0753 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 7235e1910fa26d4d6025baab47f9dc14
Parameter Value Uncertainty
Am1 1.0 0.0036
Am2 0
a/Rs 6.44 0.11
Rp/Rs 0.1128 0.004
ephemeris [JD] 2459632.7443 0.0011
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4071493500018204
u1 -4.192192983815966
u2 4.253265540243481
u3 -1.4682218430507405
duration 0.0691 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 5d0b1f5e5a61b9d6175c22d56b95d228
Parameter Value Uncertainty
Am1 0.9996 0.0037
Am2 0
a/Rs 6.21 0.12
Rp/Rs 0.1081 0.0045
ephemeris [JD] 2459600.3235 0.0015
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4062643113974866
u1 -4.189918417274857
u2 4.250899795279928
u3 -1.4672456260592144
duration 0.0733 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ae82a52f3bf09e89fe05551e38632b0d
Parameter Value Uncertainty
Am1 1.0002 0.0038
Am2 0
a/Rs 6.32 0.12
Rp/Rs 0.106 0.0045
ephemeris [JD] 2459619.0939 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4080126743928467
u1 -4.193772408161247
u2 4.254390691409868
u3 -1.4686308942461066
duration 0.0706 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 82b5defd144bac64438779b845ad68f7
Parameter Value Uncertainty
Am1 1.0 0.004
Am2 0
a/Rs 6.35 0.13
Rp/Rs 0.1101 0.0046
ephemeris [JD] 2459629.3326 0.0017
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.40726459047775
u1 -4.192161068918952
u2 4.253100928724233
u3 -1.4682043869068888
duration 0.0707 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3eec0fc9ad232c13a7b7e763221f6653
Parameter Value Uncertainty
Am1 1.0 0.0037
Am2 0
a/Rs 6.37 0.11
Rp/Rs 0.1068 0.0043
ephemeris [JD] 2459588.3796 0.0012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4076379483321326
u1 -4.193052361239401
u2 4.253688730966687
u3 -1.4682742546745176
duration 0.0697 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4bd57a7241548dc3291eb8219410ba97
Parameter Value Uncertainty
Am1 1.0009 0.0041
Am2 0
a/Rs 6.27 0.12
Rp/Rs 0.1072 0.0045
ephemeris [JD] 2459610.562 0.0014
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4063459574510357
u1 -4.190291943462189
u2 4.251467938720123
u3 -1.4675218893571609
duration 0.0719 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0ebfaeb5a8489cf10fc63a041cbfc7a6
Parameter Value Uncertainty
Am1 1.0004 0.0038
Am2 0
a/Rs 6.38 0.12
Rp/Rs 0.114 0.0042
ephemeris [JD] 2459620.7974 0.0014
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.406692513659569
u1 -4.190329056861958
u2 4.250808747025985
u3 -1.4671721404816105
duration 0.0705 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a1ab08070f6edfbfa2fc7f6eeb20d1b7
Parameter Value Uncertainty
Am1 1.0003 0.0044
Am2 0
a/Rs 6.123 0.098
Rp/Rs 0.1035 0.0047
ephemeris [JD] 2459436.5144 0.0016
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.407544237134243
u1 -4.193386974338405
u2 4.254504360896139
u3 -1.468661560294922
duration 0.0744 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0eae278ba0a2204943834a370fbd23d3
Parameter Value Uncertainty
Am1 0.9999 0.0042
Am2 0
a/Rs 6.22 0.11
Rp/Rs 0.1117 0.0045
ephemeris [JD] 2459424.5746 0.0014
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4069835048579877
u1 -4.191244953664765
u2 4.251877856118492
u3 -1.4676163439537975
duration 0.0734 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4f822928a961cd910174ee5cd6b46dad
Parameter Value Uncertainty
Am1 1.0004 0.0035
Am2 0
a/Rs 6.597 0.089
Rp/Rs 0.1129 0.0044
ephemeris [JD] 2458881.9621 0.0012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4077263276821688
u1 -4.193234910863645
u2 4.254013138961123
u3 -1.4685044923899104
duration 0.0658 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d98dba40a6ccc23b1088635aca980a19
Parameter Value Uncertainty
Am1 0.9986 0.0039
Am2 0
a/Rs 6.53 0.11
Rp/Rs 0.1045 0.0049
ephemeris [JD] 2459426.2807 0.0015
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4071805042994066
u1 -4.191500076621848
u2 4.251982274819705
u3 -1.46766263913779
duration 0.0663 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 683afd38a138cfbb43997257c573e92e
Parameter Value Uncertainty
Am1 1.0004 0.004
Am2 0
a/Rs 6.24 0.11
Rp/Rs 0.1091 0.0041
ephemeris [JD] 2458880.2558 0.0014
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.406027927085557
u1 -4.188843599913981
u2 4.249496769002003
u3 -1.466681032851143
duration 0.0727 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for bbd04d27c2e1d62f3f5480456910a072
Parameter Value Uncertainty
Am1 1.0009 0.0042
Am2 0
a/Rs 6.41 0.12
Rp/Rs 0.1055 0.0046
ephemeris [JD] 2459421.1618 0.0015
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4064465204417864
u1 -4.189857868730505
u2 4.250457268724038
u3 -1.4670458570985705
duration 0.0688 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 185a015042506ee1baf9ef6febc1e085
Parameter Value Uncertainty
Am1 1.0001 0.004
Am2 0
a/Rs 6.33 0.12
Rp/Rs 0.1217 0.0046
ephemeris [JD] 2458878.5478 0.0012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.406976513710325
u1 -4.1920700171107965
u2 4.253344073769709
u3 -1.468250506989472
duration 0.0723 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 5b04312a1e20951e4d72dfd361fedb9a
Parameter Value Uncertainty
Am1 1.0007 0.0043
Am2 0
a/Rs 6.49 0.11
Rp/Rs 0.1182 0.0047
ephemeris [JD] 2458897.317 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4072862762046876
u1 -4.192912230970001
u2 4.254304864533412
u3 -1.4686788463740168
duration 0.0686 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c2f841fc6b54aa97f50edb12537db6c1
Parameter Value Uncertainty
Am1 1.0002 0.004
Am2 0
a/Rs 6.569 0.096
Rp/Rs 0.1164 0.0044
ephemeris [JD] 2459581.5553 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.406627378724206
u1 -4.190625654604064
u2 4.251550449596024
u3 -1.467552110363128
duration 0.0669 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a0a435c66460b9020e21e95323a04fa3
Parameter Value Uncertainty
Am1 0.9998 0.0032
Am2 0
a/Rs 6.41 0.11
Rp/Rs 0.1047 0.0039
ephemeris [JD] 2459598.6168 0.0012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4065972550698254
u1 -4.190761887531742
u2 4.251856418927887
u3 -1.4676917231083735
duration 0.0686 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 076d4a23baf6a3d1b17d6c1b42c15941
Parameter Value Uncertainty
Am1 1.0007 0.0035
Am2 0
a/Rs 6.224 0.092
Rp/Rs 0.1122 0.004
ephemeris [JD] 2459584.9683 0.0012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.406894111251731
u1 -4.191117866022271
u2 4.251839047119158
u3 -1.4676152289912787
duration 0.0734 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6d04ace3e9c4ea2f692a36da2340a252
Parameter Value Uncertainty
Am1 1.0005 0.0038
Am2 0
a/Rs 6.35 0.12
Rp/Rs 0.1071 0.0047
ephemeris [JD] 2459434.8115 0.0015
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.407715013305868
u1 -4.193627219206567
u2 4.254710401737384
u3 -1.468798132436559
duration 0.0702 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8c745a9d650cfd6c8e62298f82222db8
Parameter Value Uncertainty
Am1 0.9998 0.0036
Am2 0
a/Rs 6.45 0.12
Rp/Rs 0.1139 0.0039
ephemeris [JD] 2459583.2621 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4069556441748174
u1 -4.191862293844564
u2 4.253079346900473
u3 -1.4681726338549055
duration 0.0689 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8a32bfce45d877c242b2d04559cc660f
Parameter Value Uncertainty
Am1 1.0 0.0039
Am2 0
a/Rs 6.38 0.11
Rp/Rs 0.1099 0.0044
ephemeris [JD] 2459613.9758 0.0012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4075054746152262
u1 -4.193444711691459
u2 4.2547499200736585
u3 -1.4688106195967108
duration 0.0699 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for e6f48e34a58af01c7b63997ebd17fb26
Parameter Value Uncertainty
Am1 0.9998 0.0038
Am2 0
a/Rs 6.5 0.11
Rp/Rs 0.1129 0.0041
ephemeris [JD] 2458883.6692 0.0012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.406252692051012
u1 -4.189947534787394
u2 4.251045323009209
u3 -1.467350416927316
duration 0.0677 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

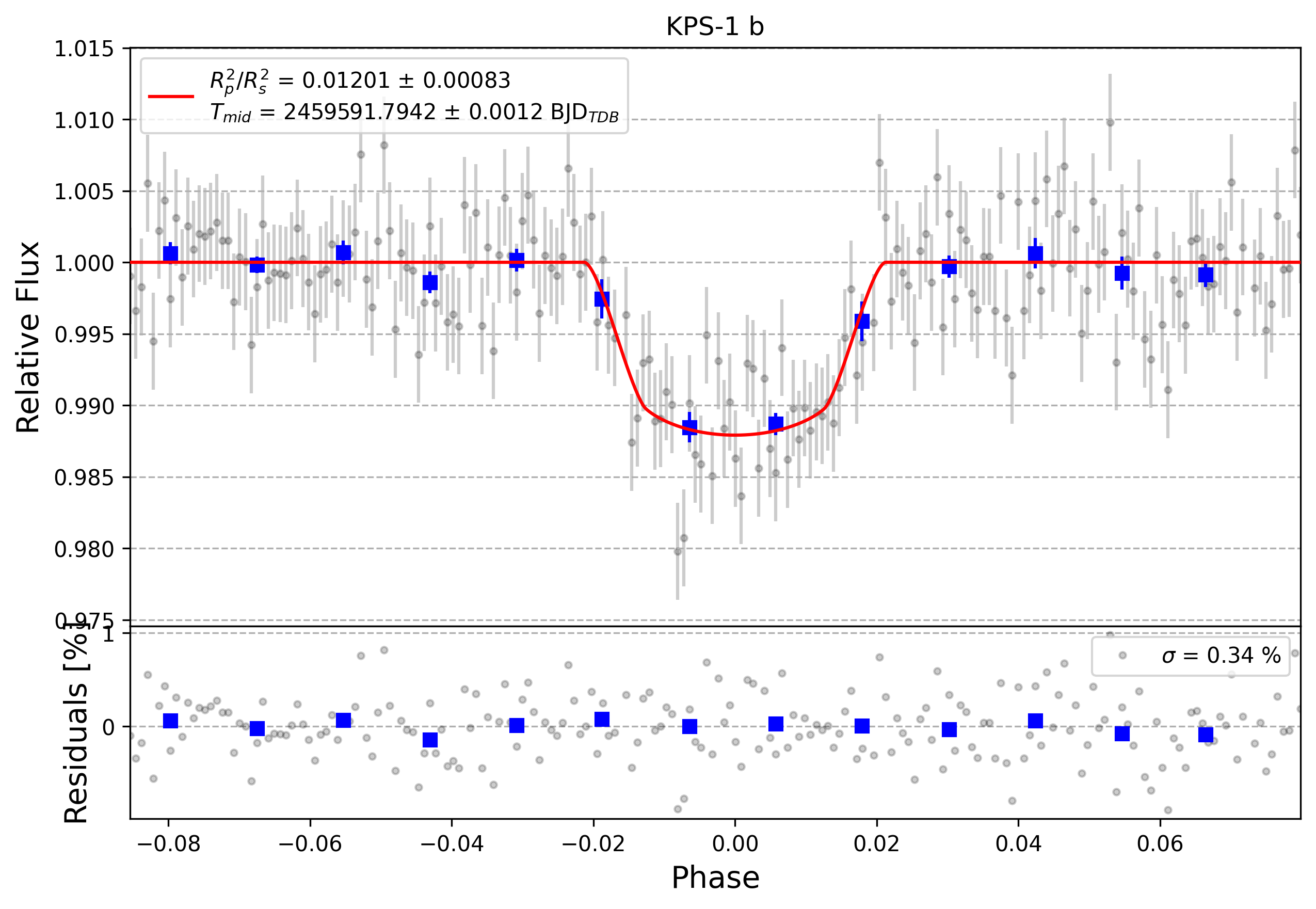

Light curve chart for a85f677b0196e6bc3b8d4bdb6c1f1da1
Parameter Value Uncertainty
Am1 1.0001 0.0034
Am2 0
a/Rs 6.25 0.1
Rp/Rs 0.1095 0.0039
ephemeris [JD] 2459591.7942 0.0012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.406221322730881
u1 -4.190012178821473
u2 4.251216871412471
u3 -1.4674259519738126
duration 0.0725 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 277a540c4efdcf56d90256ec0fadd8ee
Parameter Value Uncertainty
Am1 1.0 0.0038
Am2 0
a/Rs 6.25 0.12
Rp/Rs 0.1094 0.0043
ephemeris [JD] 2459605.4445 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.406380727974176
u1 -4.190178826363124
u2 4.2511597631615965
u3 -1.467361601425432
duration 0.0725 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a05bd7b0c64c497aae3263915787553c
Parameter Value Uncertainty
Am1 0.9998 0.0037
Am2 0
a/Rs 6.12 0.092
Rp/Rs 0.1031 0.0042
ephemeris [JD] 2459590.0871 0.0014
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4064772211939203
u1 -4.190313550609873
u2 4.25124229469224
u3 -1.4674059019278407
duration 0.0745 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for dca84d001d272e7e2943a42bac3c5e7c
Parameter Value Uncertainty
Am1 1.0014 0.0047
Am2 0
a/Rs 6.55 0.13
Rp/Rs 0.0939 0.0059
ephemeris [JD] 2459441.6355 0.0022
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4059676568321526
u1 -4.189002863587243
u2 4.249963725850356
u3 -1.4669284557658706
duration 0.0646 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 14981e1e7a9107cc7bcb617961a08fd1
Parameter Value Uncertainty
Am1 0.999 0.0035
Am2 0
a/Rs 6.37 0.13
Rp/Rs 0.1121 0.0041
ephemeris [JD] 2459431.3987 0.0014
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4079725628177493
u1 -4.1940092647738085
u2 4.254749253374316
u3 -1.4687124880175522
duration 0.0704 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

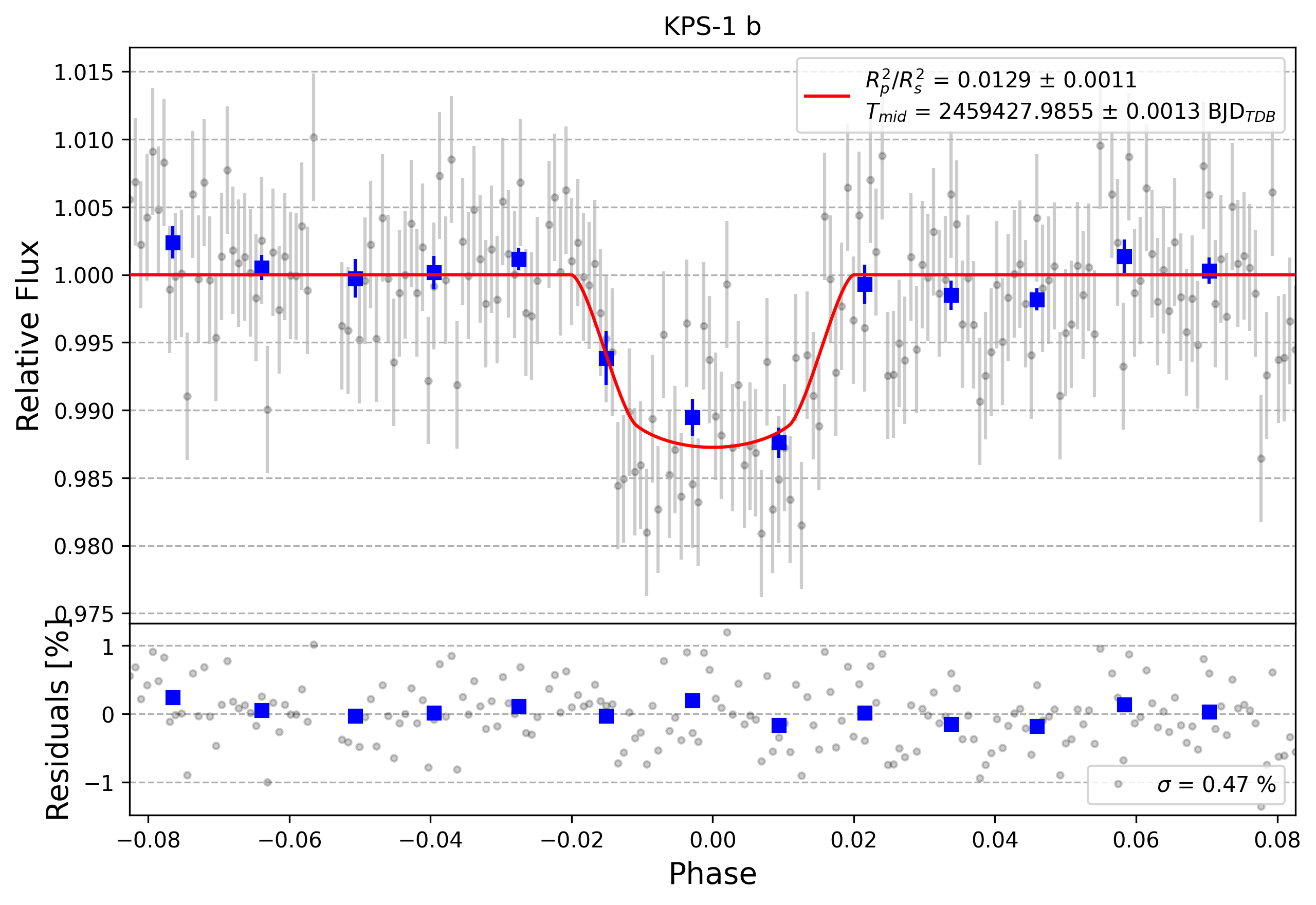

Light curve chart for f9be5bad132c07aeac55dfdc79dde6d3
Parameter Value Uncertainty
Am1 1.0022 0.0047
Am2 0
a/Rs 6.49 0.11
Rp/Rs 0.1138 0.0051
ephemeris [JD] 2459427.9855 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.407716057280134
u1 -4.193038451907734
u2 4.253597916721836
u3 -1.4682754587106883
duration 0.068 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4d5c619db9086269998388348c24fcd3
Parameter Value Uncertainty
Am1 1.0007 0.0034
Am2 0
a/Rs 6.48 0.12
Rp/Rs 0.1138 0.0042
ephemeris [JD] 2459439.9323 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.406409643357575
u1 -4.189262114180574
u2 4.249497778575912
u3 -1.4666452444304618
duration 0.0685 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ba121f39df1b4343bc46aec4e3e3ec67
Parameter Value Uncertainty
Am1 1.001 0.0035
Am2 0
a/Rs 6.12 0.12
Rp/Rs 0.103 0.004
ephemeris [JD] 2459586.6754 0.0016
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4059478003788106
u1 -4.188764787017649
u2 4.249578333162635
u3 -1.466761283200145
duration 0.0748 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 12a8c696809a82f9ddba865e418f3a00
Parameter Value Uncertainty
Am1 1.0008 0.0041
Am2 0
a/Rs 6.62 0.11
Rp/Rs 0.0992 0.0048
ephemeris [JD] 2459422.8668 0.0018
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4079249220056895
u1 -4.194158526481972
u2 4.2552446604522665
u3 -1.4690109925678976
duration 0.0638 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fa8a372d7d676c0c23aea6d0ad4c995f
Parameter Value Uncertainty
Am1 1.0009 0.004
Am2 0
a/Rs 6.522 0.09
Rp/Rs 0.1078 0.0048
ephemeris [JD] 2458876.8435 0.0011
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4070145182415996
u1 -4.191604272148248
u2 4.252427481803439
u3 -1.4678376645306828
duration 0.0668 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

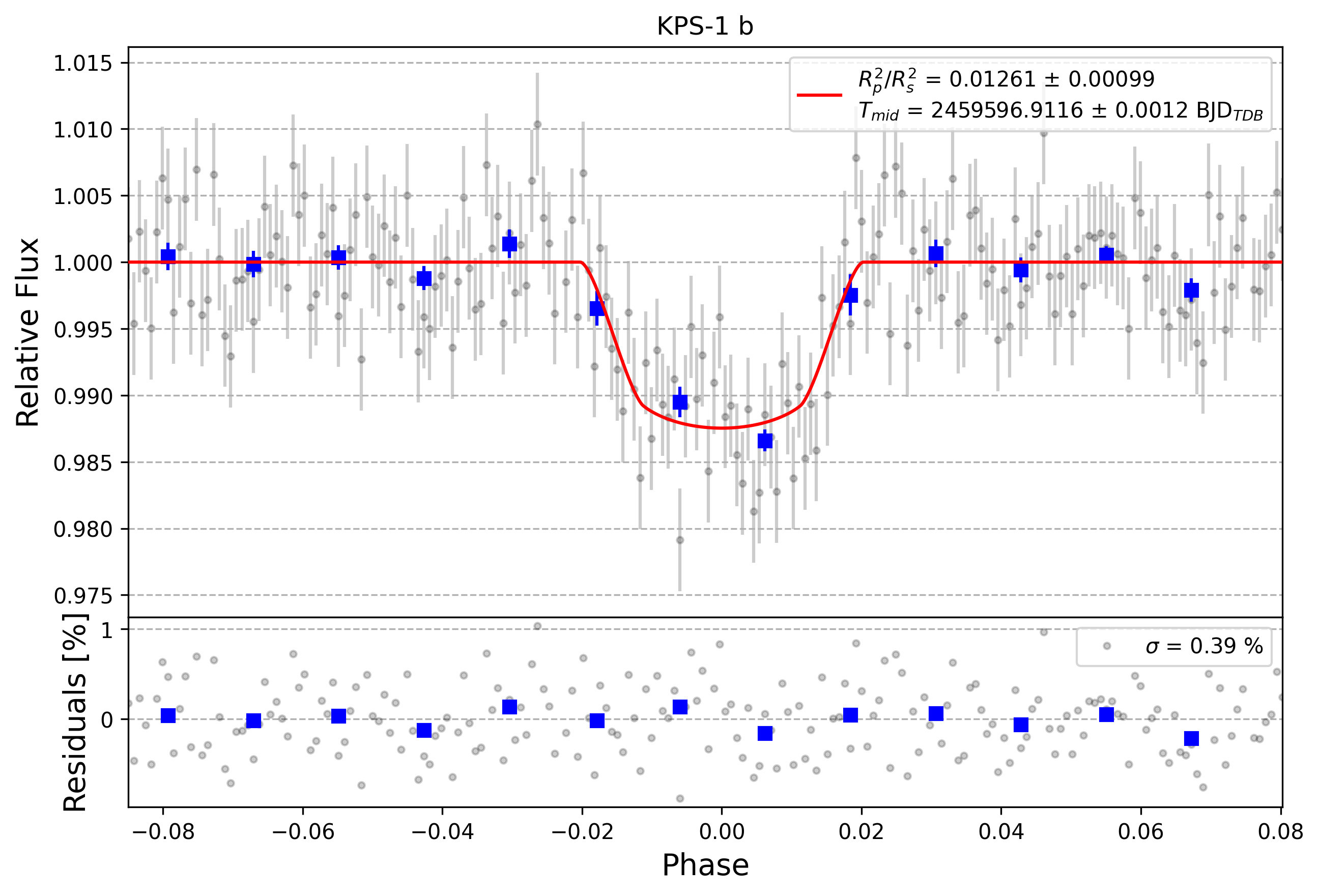

Light curve chart for 71d7e0a7254edd0990e49a30c7f7ef3d
Parameter Value Uncertainty
Am1 0.9994 0.0039
Am2 0
a/Rs 6.43 0.11
Rp/Rs 0.1122 0.0045
ephemeris [JD] 2459596.9117 0.0011
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4065100985662196
u1 -4.190303325681477
u2 4.251212578406927
u3 -1.4674192879436663
duration 0.0691 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 5f11cb4bcf4a380c3893ece6505ede2d
Parameter Value Uncertainty
Am1 0.9996 0.0039
Am2 0
a/Rs 6.516 0.091
Rp/Rs 0.103 0.0047
ephemeris [JD] 2458875.1376 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.406981362811056
u1 -4.191762473969279
u2 4.2527983779828755
u3 -1.4680172034530186
duration 0.0663 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 1d518f7a134b45c6007da989012c9e7b
Parameter Value Uncertainty
Am1 1.0005 0.0039
Am2 0
a/Rs 6.12 0.14
Rp/Rs 0.0963 0.005
ephemeris [JD] 2458887.0799 0.0022
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4069462673075765
u1 -4.1918528452251
u2 4.253100469610149
u3 -1.4681938283164904
duration 0.0737 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 27765074cf4b41564b6483fb65307d7c
Parameter Value Uncertainty
Am1 0.9996 0.004
Am2 0
a/Rs 6.26 0.11
Rp/Rs 0.107 0.0045
ephemeris [JD] 2458888.7895 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4075127155373273
u1 -4.192425176737905
u2 4.25287330100616
u3 -1.467960776432831
duration 0.072 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c664900511935c41362a7f4ab3c5dd04
Parameter Value Uncertainty
Am1 0.9998 0.0039
Am2 0
a/Rs 6.12 0.068
Rp/Rs 0.1067 0.0043
ephemeris [JD] 2459438.2262 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.407601964418022
u1 -4.193381091848137
u2 4.2544636097389175
u3 -1.4686844189123547
duration 0.0751 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 389c0ddff9c2fc1abf3c136e2c0f4301
Parameter Value Uncertainty
Am1 0.9959 0.0034
Am2 0
a/Rs 6.168 0.085
Rp/Rs 0.1132 0.0037
ephemeris [JD] 2459445.0484 0.0012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4069749571250445
u1 -4.191699697886655
u2 4.252621358111833
u3 -1.4678965539812263
duration 0.0745 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4ba663304640086c9260484d6ba70512
Parameter Value Uncertainty
Am1 1.0001 0.0039
Am2 0
a/Rs 6.4 0.13
Rp/Rs 0.1112 0.0043
ephemeris [JD] 2459615.6816 0.0016
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.409066902941543
u1 -4.197328929505909
u2 4.258488054624248
u3 -1.4702259646034648
duration 0.0697 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f74fdc42589b5439c011a8005e085d62
Parameter Value Uncertainty
Am1 1.0005 0.0035
Am2 0
a/Rs 6.23 0.12
Rp/Rs 0.1074 0.0041
ephemeris [JD] 2459603.7366 0.0014
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.407017630022511
u1 -4.192125290968362
u2 4.253323264886928
u3 -1.4682155405616215
duration 0.0727 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b656f284059ff1a2a982f4ae4f0f341b
Parameter Value Uncertainty
Am1 1.0002 0.0035
Am2 0
a/Rs 6.32 0.11
Rp/Rs 0.1047 0.0039
ephemeris [JD] 2459631.038 0.0012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.407447303715422
u1 -4.193445462557688
u2 4.254953553547599
u3 -1.4689553313015846
duration 0.0706 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6de9d867549a5fe6283d6153e1e22ae9
Parameter Value Uncertainty
Am1 1.0003 0.0037
Am2 0
a/Rs 6.201 0.095
Rp/Rs 0.108 0.0041
ephemeris [JD] 2459627.6254 0.0012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4076698621953185
u1 -4.192611334557767
u2 4.252899170109999
u3 -1.467957634374415
duration 0.0734 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 446ba1e1604ca59d7d255471d56f4741
Parameter Value Uncertainty
Am1 1.0001 0.0036
Am2 0
a/Rs 6.57 0.1
Rp/Rs 0.1161 0.0041
ephemeris [JD] 2459612.2703 0.0012
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.406758837010554
u1 -4.1910638630431505
u2 4.252013574830927
u3 -1.4677084854383908
duration 0.0669 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c0a82b437921cf1da347d146addef548
Parameter Value Uncertainty
Am1 0.9997 0.0039
Am2 0
a/Rs 6.37 0.12
Rp/Rs 0.107 0.0044
ephemeris [JD] 2458871.7235 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.406476450033385
u1 -4.190124812259177
u2 4.2510030312000024
u3 -1.4673546056293287
duration 0.0697 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 378b0ecaf07db0461e7917df8fe73ed9
Parameter Value Uncertainty
Am1 0.9989 0.0047
Am2 0
a/Rs 6.19 0.11
Rp/Rs 0.0984 0.0051
ephemeris [JD] 2459443.3418 0.0016
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.407895171558246
u1 -4.193921046732258
u2 4.254860257208281
u3 -1.4688343186319117
duration 0.0725 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ff561f33666a4522ffd2415e78ccf1e2
Parameter Value Uncertainty
Am1 1.0001 0.0034
Am2 0
a/Rs 6.61 0.11
Rp/Rs 0.1097 0.0043
ephemeris [JD] 2459602.0305 0.0014
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.407311068866486
u1 -4.192059829994144
u2 4.252620856084972
u3 -1.4678720315883256
duration 0.0655 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a4c93a3eb81317159e0025611f0f1dc4
Parameter Value Uncertainty
Am1 0.9994 0.0037
Am2 0
a/Rs 6.3 0.12
Rp/Rs 0.1061 0.0043
ephemeris [JD] 2458873.4302 0.0014
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4059867198252203
u1 -4.1889213561752925
u2 4.249682760369619
u3 -1.4667480606943393
duration 0.0711 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 56de921412e17f72fbd43ab3df2d7bf8
Parameter Value Uncertainty
Am1 1.0004 0.0037
Am2 0
a/Rs 6.36 0.11
Rp/Rs 0.1121 0.0043
ephemeris [JD] 2458890.4925 0.0013
eccentricity 0.0
inclination [degrees] 83.2
omega [degrees] 0.0
orbital period [days] 1.70632513
u0 2.4065105835580036
u1 -4.190868393105116
u2 4.252231153417772
u3 -1.4678732805074786
duration 0.0706 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
