WASP-114 b

Timing Plot

Total Reductions to Date: 15

Date Processed: 09/06/2025 at 07:00:04 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 1.5487745490915028 2.4372113532680596e-07
Ephemeris (BJD_TDB) 2460195.8452567332 0.0004223347636421038
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 327.6656953 decimal
DEC 10.4629385 decimal
Host Star Metallicity 0.14 0.07 Kokori et al. 2023
Host Star log(g) 4.3 0.1 Log10(cgs) Kokori et al. 2023
Host Star Radius [R_Sun] 1.43 0.06 Sol Kokori et al. 2023
Host Star Effective Temperature [K] 5940.0 140.0 K Kokori et al. 2023
a/Rs 4.29 0.11 Kokori et al. 2023
eccentricity 0.012 0.022 Kokori et al. 2023
inclination [degrees] 84.0 0.9 deg Kokori et al. 2023
omega [degrees] 289.0 150.0 deg Kokori et al. 2023
orbital period [days] 1.54877501 3.4e-07 day Kokori et al. 2023
Rp 14.51 0.99 R_Earth ExoFOP-TESS TOI
Rp/Rs 0.0993 0 ExoFOP-TESS TOI
ephemeris [JD] 2457522.66047 0.00024 BJD-TDB Kokori et al. 2023

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2456667.73621 0.0006050000000000001 BJD-TDB, HJD Ivshina & Winn 2022, Barros et al. 2016
2457242.33222 0.0002 BJD-TDB Kokori et al. 2022
2457522.66047 0.00024 BJD-TDB Kokori et al. 2023
2459797.810597 0.00083141 BJD ExoFOP-TESS TOI

Observations

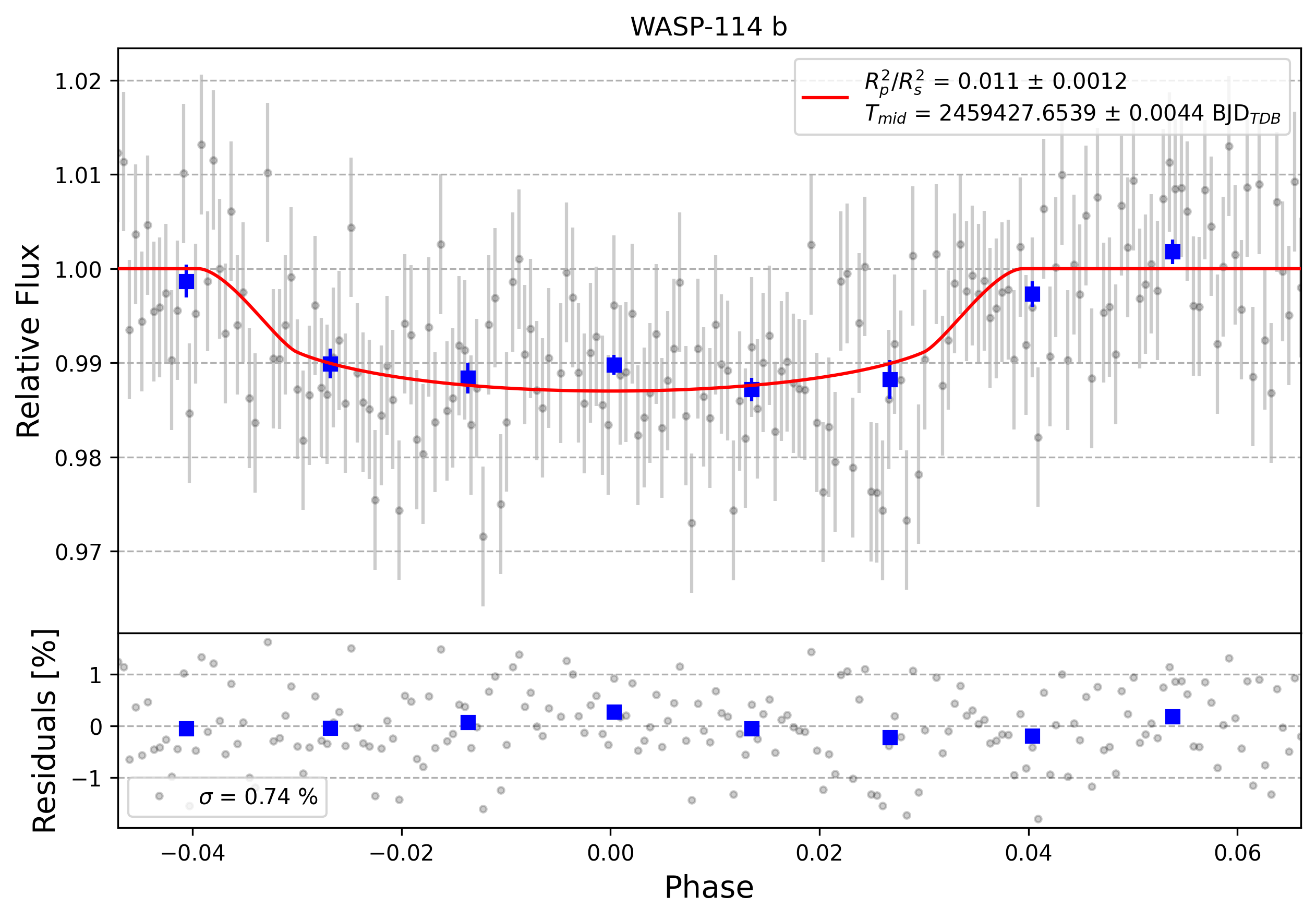

Light curve chart for 0000830
Parameter Value Uncertainty
Am1 1.0 0.0074
Am2 0.0008 0.0036
a/Rs 4.2 0.19
Rp/Rs 0.1047 0.0056
ephemeris [JD] 2459427.6539 0.0044
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 2.0169002119603174
u1 -3.7158611978615093
u2 4.292654504767311
u3 -1.5936934549005826
duration 0.1223 0.0069
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

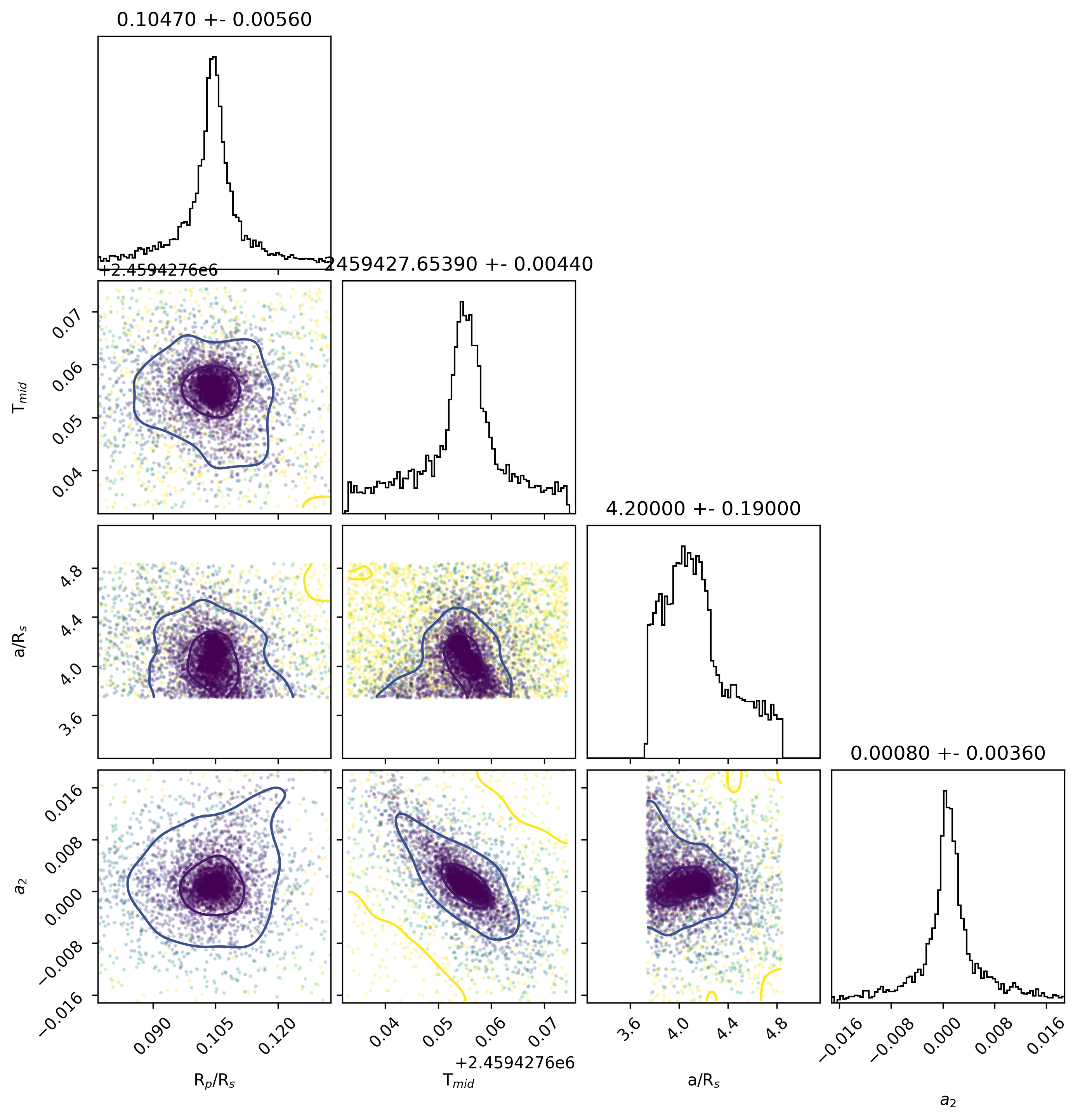

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO ASUB (collaborate/publish) MMU
Light curve chart for 0001091
Parameter Value Uncertainty
Am1 1.0003 0.0052
Am2 -0.0001 0.0031
a/Rs 4.29 0.2
Rp/Rs 0.101 0.011
ephemeris [JD] 2459554.6502 0.003
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 1.772418211649719
u1 -3.1719682247346124
u2 3.863524540664403
u3 -1.4639744700085071
duration 0.1187 0.007
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

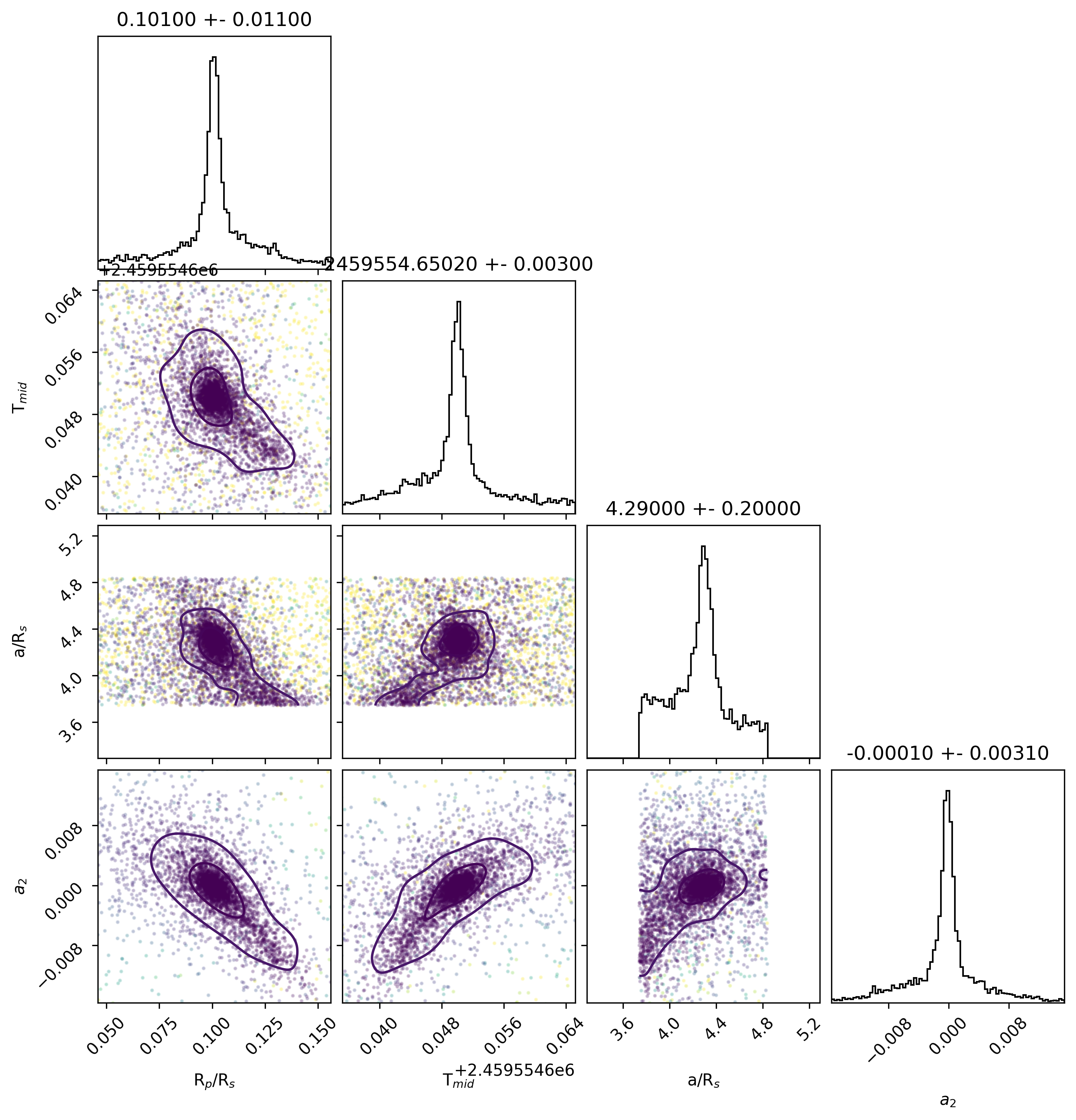

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CCHD (collaborate/publish)

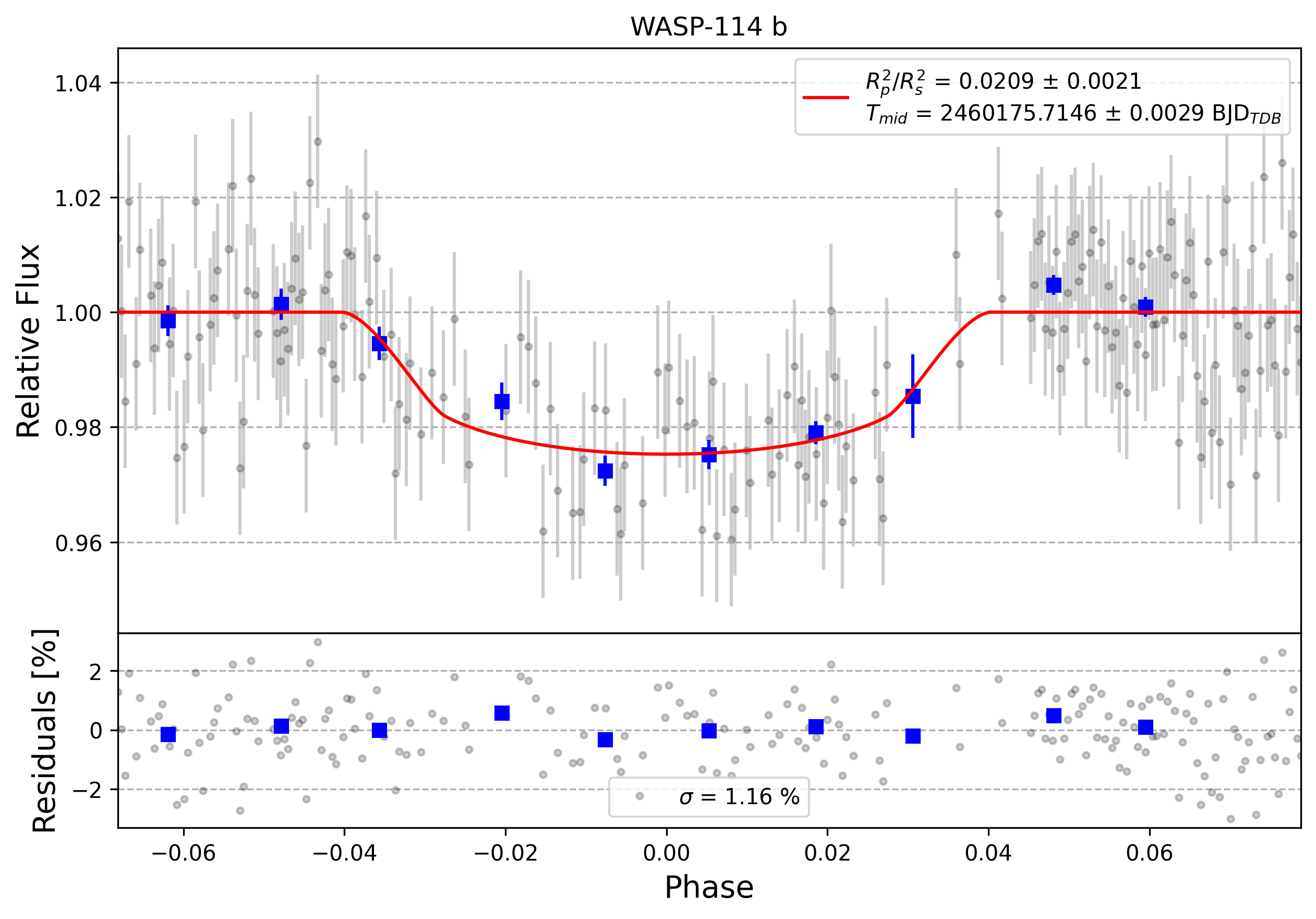

Light curve chart for 0004305
Parameter Value Uncertainty
Am1 1.019 0.012
Am2 -0.0145 0.006
a/Rs 4.27 0.19
Rp/Rs 0.1447 0.0072
ephemeris [JD] 2460175.7146 0.0029
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 2.0175531427509896
u1 -3.717805961916434
u2 4.295239768965067
u3 -1.5949868857955622
duration 0.1251 0.007
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

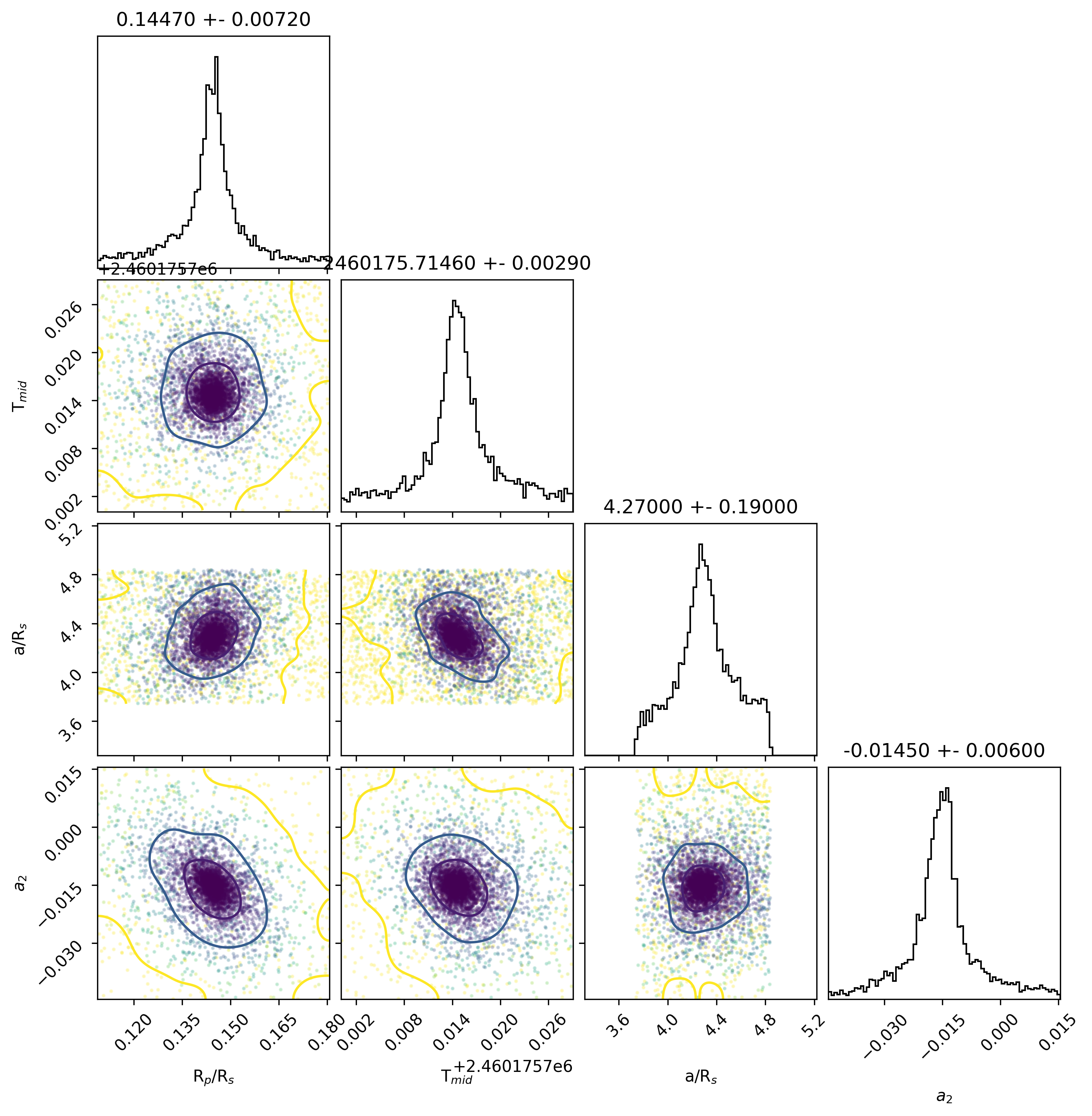

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO NANF (collaborate/publish)
Light curve chart for 0004441
Parameter Value Uncertainty
Am1 1.0008 0.0039
Am2 -0.0007 0.0063
a/Rs 4.25 0.17
Rp/Rs 0.0947 0.0057
ephemeris [JD] 2460192.7476 0.0024
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 2.3377688132670005
u1 -4.14930542196023
u2 4.3832736304305575
u3 -1.5717369564214603
duration 0.1189 0.0059
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

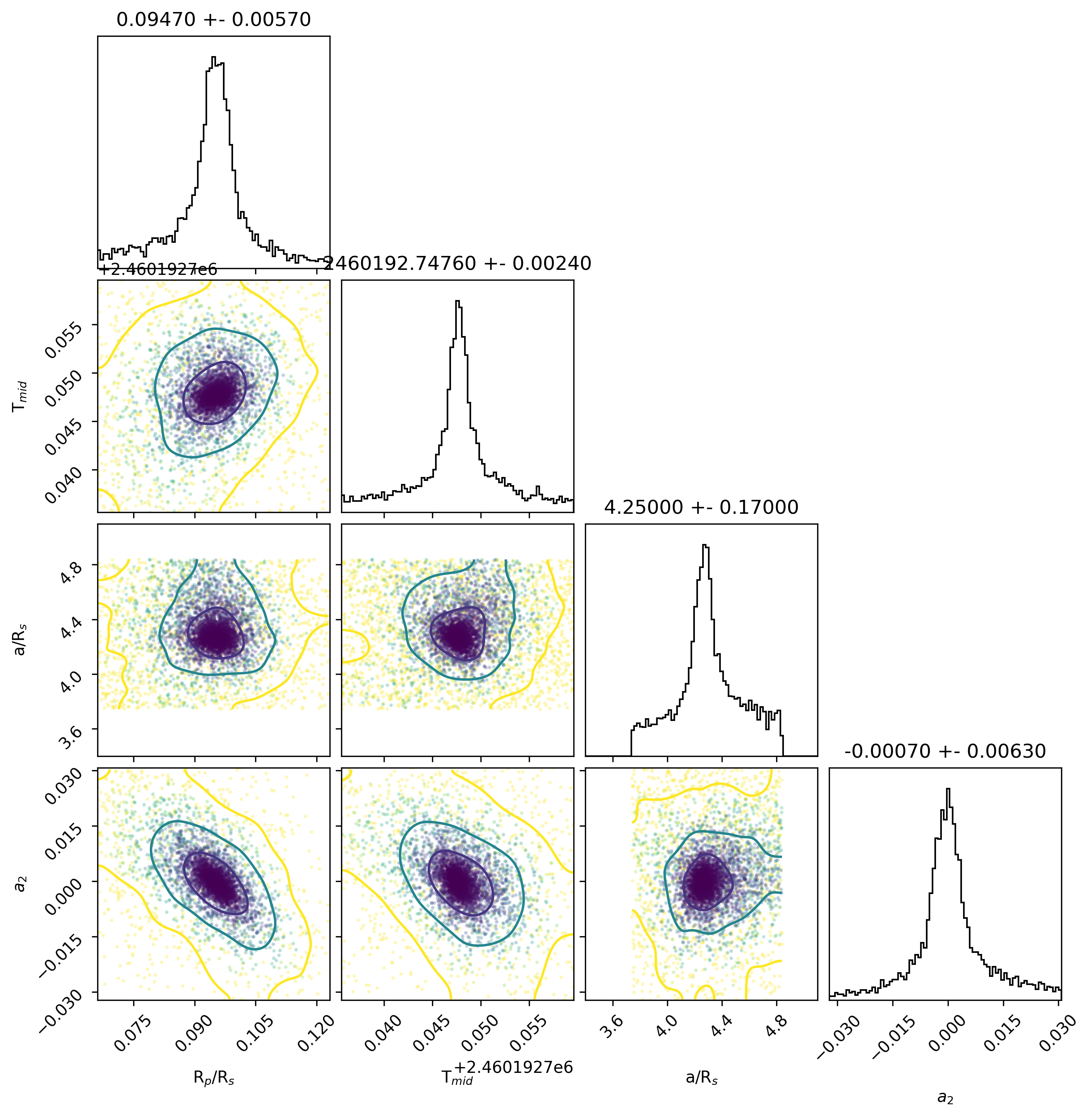

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
RJ Johnson R 590.0 nm 810.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 0004442
Parameter Value Uncertainty
Am1 0.9979 0.0036
Am2 0.0015 0.0017
a/Rs 4.03 0.13
Rp/Rs 0.09 0.0046
ephemeris [JD] 2460195.8411 0.002
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 2.3368438222008097
u1 -4.147039104058056
u2 4.381355250554472
u3 -1.5711599034099448
duration 0.1259 0.005
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

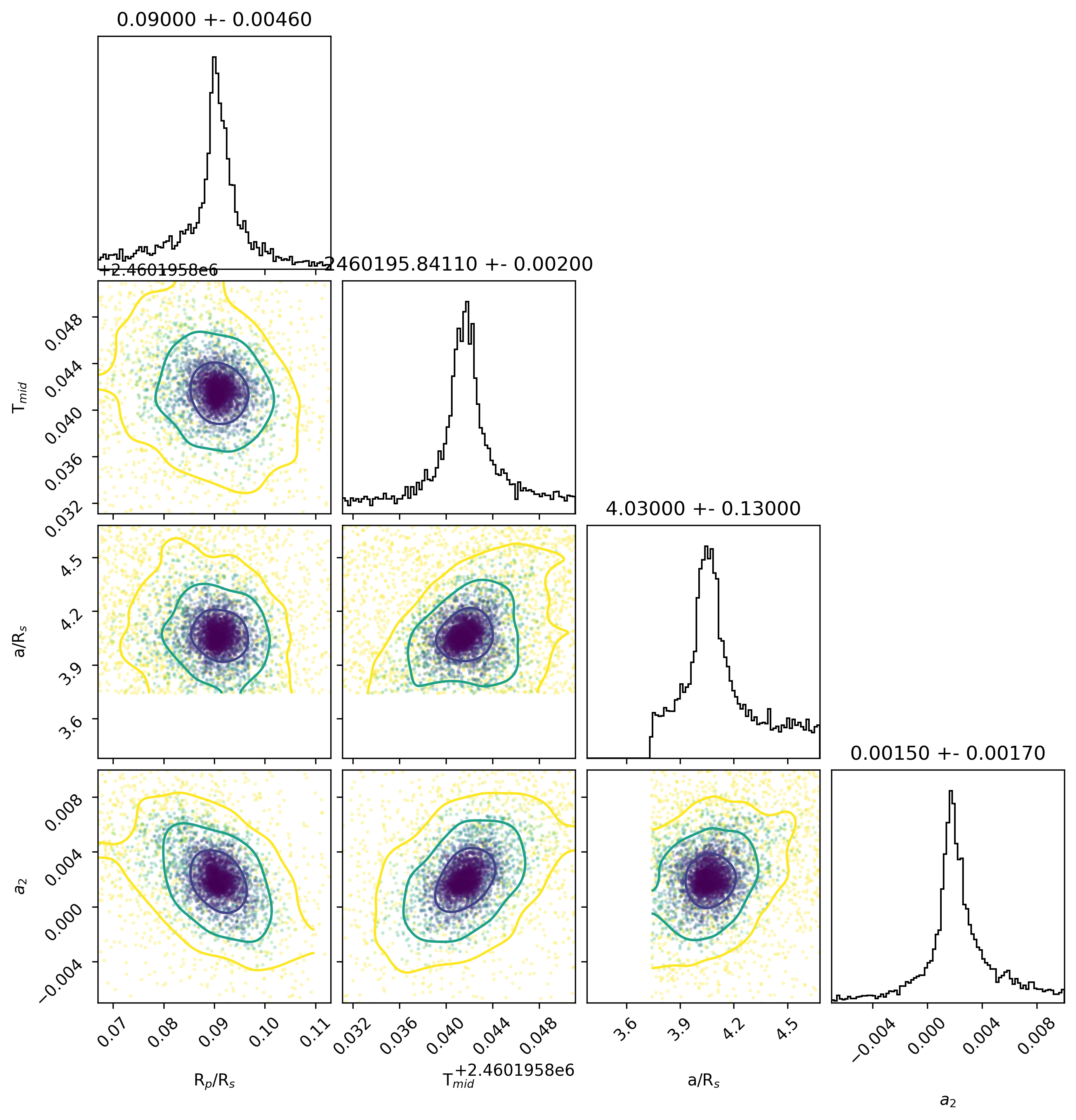

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
RJ Johnson R 590.0 nm 810.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 928b03ed599f3c93e3f1858b3420db88
Parameter Value Uncertainty
Am1 1.0027 0.0036
Am2 0
a/Rs 4.26 0.18
Rp/Rs 0.0882 0.0031
ephemeris [JD] 2459817.949 0.0025
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 2.665226326789269
u1 -4.797244741103693
u2 4.820915344746507
u3 -1.6888968585948465
duration 0.1179 0.0059
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4e13930d5d185a2b4ac58844f9ed6a75
Parameter Value Uncertainty
Am1 1.0001 0.003
Am2 0
a/Rs 4.33 0.11
Rp/Rs 0.0924 0.0024
ephemeris [JD] 2459799.3606 0.0015
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 2.6658747886329586
u1 -4.798252093369277
u2 4.821271880750418
u3 -1.6888945041715502
duration 0.1158 0.0037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9bfcb8238b4c78ad12b00d7f2599b6a3
Parameter Value Uncertainty
Am1 1.0 0.0028
Am2 0
a/Rs 4.2 0.1
Rp/Rs 0.091 0.0023
ephemeris [JD] 2459813.2973 0.0016
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 2.6670652787816134
u1 -4.802252973749456
u2 4.826049414473925
u3 -1.690861647592341
duration 0.1203 0.0035
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 512221b73879dbeb114684be2ff37d3e
Parameter Value Uncertainty
Am1 1.0001 0.0036
Am2 0
a/Rs 4.01 0.17
Rp/Rs 0.091 0.0031
ephemeris [JD] 2459802.4476 0.0025
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 2.6661910163029656
u1 -4.799716248691831
u2 4.8232596059350135
u3 -1.6897343016739796
duration 0.1266 0.0066
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9c6611b850833ada00243154e05a5932
Parameter Value Uncertainty
Am1 0.9996 0.0032
Am2 0
a/Rs 4.045 0.087
Rp/Rs 0.0919 0.0027
ephemeris [JD] 2459816.397 0.0014
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 2.666181050042756
u1 -4.800550188727003
u2 4.824687326726969
u3 -1.6903181161492777
duration 0.1261 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 33e6672e91204e39895103272cf462f2
Parameter Value Uncertainty
Am1 1.0005 0.0029
Am2 0
a/Rs 4.345 0.088
Rp/Rs 0.0852 0.0026
ephemeris [JD] 2459814.8462 0.0013
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 2.6670318533896786
u1 -4.802320259617479
u2 4.826279715440968
u3 -1.6909912372959948
duration 0.1144 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a8592f342135517ef8fd3af9055d24af
Parameter Value Uncertainty
Am1 1.0003 0.0028
Am2 0
a/Rs 4.37 0.11
Rp/Rs 0.0899 0.0024
ephemeris [JD] 2459811.7491 0.0015
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 2.6654515611502276
u1 -4.796694827343141
u2 4.819184435730888
u3 -1.6879410977265303
duration 0.114 0.0035
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 98ba95ba98331ceef5fbd4d8c819923f
Parameter Value Uncertainty
Am1 1.0005 0.003
Am2 0
a/Rs 4.246 0.095
Rp/Rs 0.0895 0.0025
ephemeris [JD] 2459800.9087 0.0014
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 2.666330292672429
u1 -4.801323969942874
u2 4.825920877157983
u3 -1.690927127975713
duration 0.1185 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ba6bbd4659540aba270c32093d13c44b
Parameter Value Uncertainty
Am1 0.9997 0.0028
Am2 0
a/Rs 4.209 0.091
Rp/Rs 0.0905 0.0027
ephemeris [JD] 2459824.1389 0.0013
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 2.6665863083784926
u1 -4.801191090424662
u2 4.82508126285198
u3 -1.6904764089064979
duration 0.12 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c65fbda19c006a1df3b616129d18c18a
Parameter Value Uncertainty
Am1 1.0 0.003
Am2 0
a/Rs 4.328 0.1
Rp/Rs 0.0894 0.0026
ephemeris [JD] 2459797.809 0.0014
eccentricity 0.012
inclination [degrees] 84.0
omega [degrees] 289.0
orbital period [days] 1.54877501
u0 2.6662115883382715
u1 -4.800792577292246
u2 4.825122505693874
u3 -1.6905414448399712
duration 0.1153 0.0034
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
