WASP-1 b

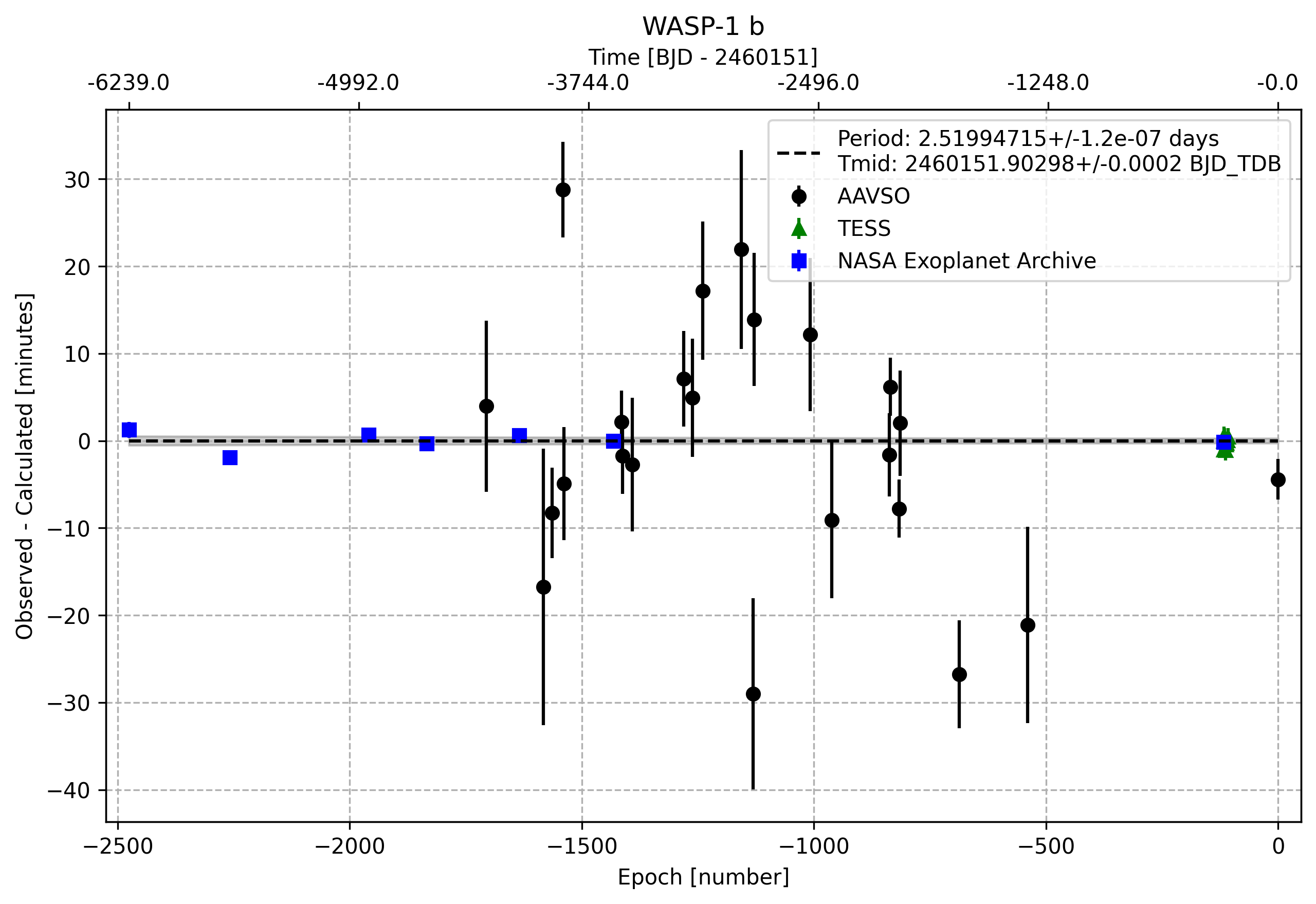

Timing Plot

Total Reductions to Date: 48

Date Processed: 09/06/2025 at 07:00:04 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 2.519947165464716 1.1629074723703946e-07
Ephemeris (BJD_TDB) 2460151.9030165086 0.00019887282722560808
Time saved (hours) 0.0001

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 5.1669536 decimal
DEC 31.9899732 decimal
Host Star Metallicity 0.26 0.08 Bonomo et al. 2017
Host Star log(g) 4.11132 0.078051 Log10(cgs) ExoFOP-TESS TOI
Host Star Radius [R_Sun] 1.517 0.052 Sol Kokori et al. 2023
Host Star Effective Temperature [K] 6116.0 106.58 K ExoFOP-TESS TOI
a/Rs 5.69 0.03 Kokori et al. 2023
eccentricity 0.013 0.026 Bonomo et al. 2017
inclination [degrees] 90.0 1.3 deg Kokori et al. 2023
omega [degrees] 91.1 170.0 deg Knutson et al. 2014
orbital period [days] 2.51994701 3e-07 day Kokori et al. 2023
Rp 17.7 0.89 R_Earth ExoFOP-TESS TOI
Rp/Rs 0.1115 0 ExoFOP-TESS TOI
ephemeris [JD] 2456031.78981 0.0002 BJD-TDB Kokori et al. 2023

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2453912.5147133335 0.00054 BJD, BJD-TDB, HJD Turner et al. 2016, Maciejewski et al. 2014, Collier Cameron et al. 2007
2454461.86099 0.00024 HJD-UTC Simpson et al. 2011
2455215.32701 0.00015 BJD-TDB Kokori et al. 2022
2455530.3197 0.00016 BJD-TDB Bonomo et al. 2017
2456031.78981 0.0002 BJD-TDB Kokori et al. 2023
2456543.33866 0.00028 BJD-TDB Ivshina & Winn 2022
2459854.549103 0.00038244 BJD ExoFOP-TESS TOI

Observations

Light curve chart for 0009484
Parameter Value Uncertainty
Am1 1.034 0.017
Am2 -0.0163 0.0046
a/Rs 5.839 0.087
Rp/Rs 0.118 0.015
ephemeris [JD] 2455852.8754 0.0066
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8267344917566273
u1 -3.282151761902847
u2 3.9361393917023855
u3 -1.4807220629031184
duration 0.1527 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WTOG (collaborate/publish) MOBS
Light curve chart for 0001393
Parameter Value Uncertainty
Am1 1.1583 0.0091
Am2 -0.135 0.013
a/Rs 5.696 0.087
Rp/Rs 0.108 0.038
ephemeris [JD] 2455895.714 0.011
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8268890945402119
u1 -3.283196605437765
u2 3.9378949349819985
u3 -1.4815873654052378
duration 0.1554 0.0055
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PJEG (collaborate/publish) MOBS
Light curve chart for 0007577
Parameter Value Uncertainty
Am1 1.027 0.011
Am2 -0.0175 0.0024
a/Rs 5.544 0.086
Rp/Rs 0.085 0.022
ephemeris [JD] 2455900.7509 0.0087
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8271935784395663
u1 -3.2839532755511103
u2 3.938510090325449
u3 -1.4817503345255312
duration 0.1561 0.004
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CJOB (collaborate/publish) MOBS
Light curve chart for 0011348
Parameter Value Uncertainty
Am1 1.12 0.09
Am2 -0.085 0.055
a/Rs 5.753 0.086
Rp/Rs 0.181 0.063
ephemeris [JD] 2455905.785 0.011
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8269051528172306
u1 -3.283067941965606
u2 3.937481763998229
u3 -1.4813189161768037
duration 0.113 0.012
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

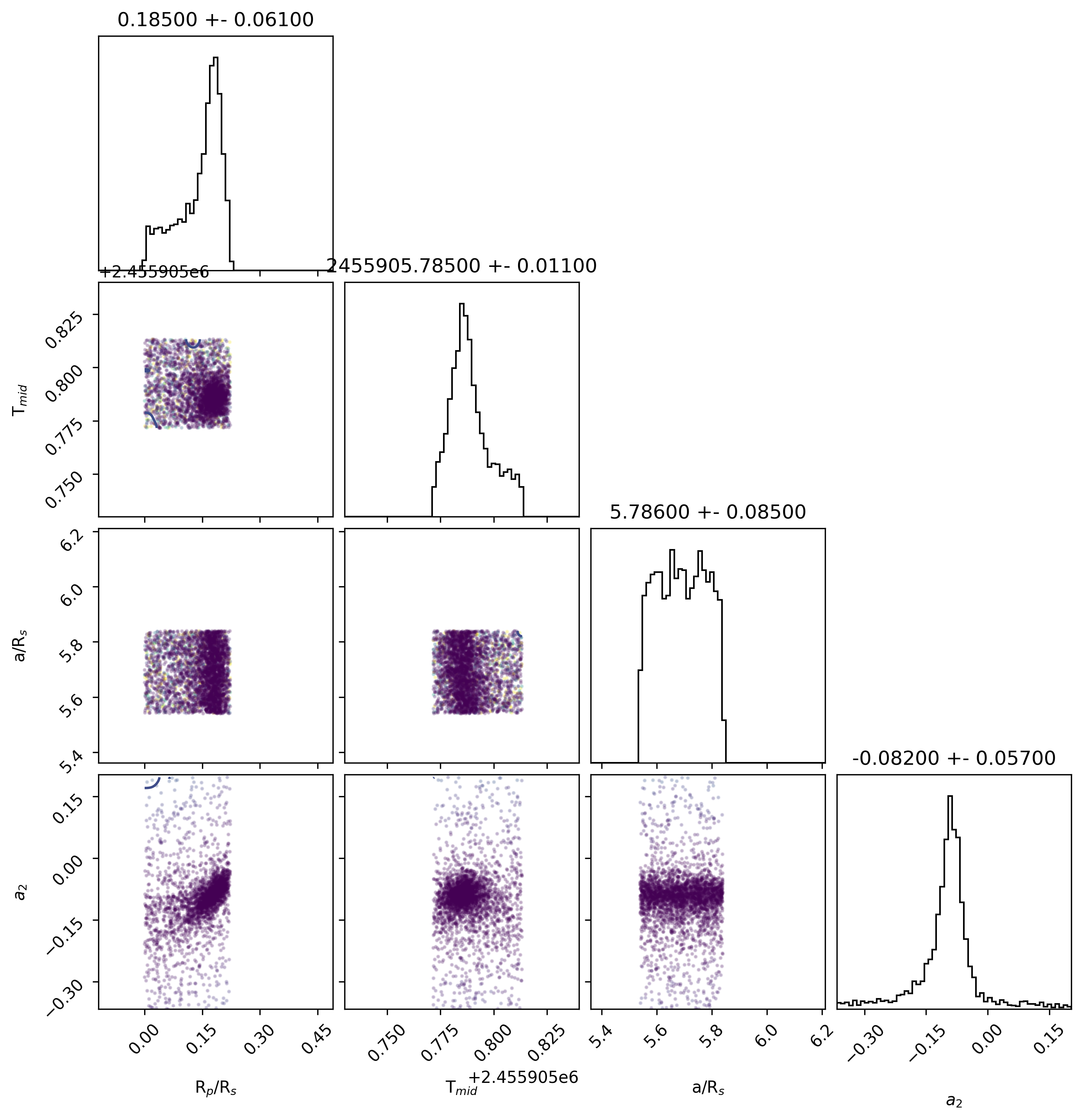

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SMAMA (collaborate/publish) MOBS
Light curve chart for 0010719
Parameter Value Uncertainty
Am1 1.117 0.036
Am2 -0.0331 0.0097
a/Rs 5.712 0.087
Rp/Rs 0.169 0.054
ephemeris [JD] 2456109.9175 0.009
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8271776676103115
u1 -3.283747943590754
u2 3.93810442035226
u3 -1.4815340856894892
duration 0.106 0.0098
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MJOU (collaborate/publish) MOBS
Light curve chart for 0004246
Parameter Value Uncertainty
Am1 0.929 0.016
Am2 0.062 0.071
a/Rs 5.819 0.085
Rp/Rs 0.176 0.025
ephemeris [JD] 2456162.815 0.011
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8273562434214037
u1 -3.284103079636952
u2 3.938677126497724
u3 -1.481930231591313
duration 0.123 0.011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MJAT (collaborate/publish) MOBS
Light curve chart for 0013244
Parameter Value Uncertainty
Am1 0.99 0.014
Am2 0.0133 0.0077
a/Rs 5.542 0.086
Rp/Rs 0.1307 0.0089
ephemeris [JD] 2456210.6965 0.0038
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.826977009658789
u1 -3.282893341776798
u2 3.9370242220362286
u3 -1.4811078312519874
duration 0.1628 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO JDOC (collaborate/publish) MOBS
Light curve chart for 0005758
Parameter Value Uncertainty
Am1 1.045 0.013
Am2 -0.035 0.053
a/Rs 5.839 0.073
Rp/Rs 0.128 0.026
ephemeris [JD] 2456263.6457 0.0045
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.051208677215706
u1 -3.760534032993184
u2 4.2944036733952
u3 -1.5850782536261208
duration 0.1539 0.0042
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO YNEA (collaborate/publish) MOBS
Light curve chart for 0012834
Parameter Value Uncertainty
Am1 0.986 0.012
Am2 0.017 0.013
a/Rs 5.832 0.085
Rp/Rs 0.112 0.011
ephemeris [JD] 2456268.6837 0.004
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8277671251235432
u1 -3.2854090253306047
u2 3.9400703892147666
u3 -1.482428430296081
duration 0.1518 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

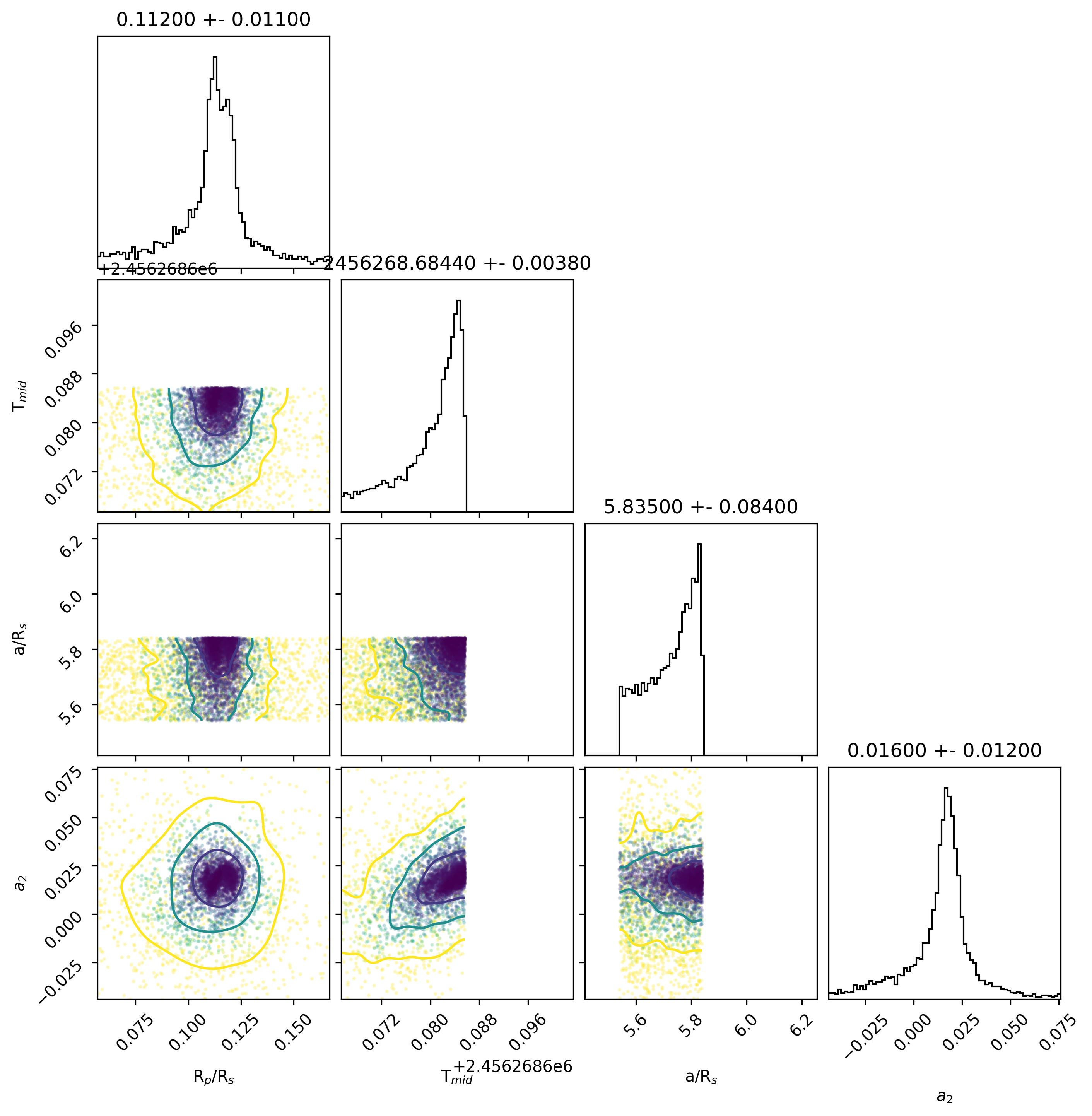

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PROK (collaborate/publish) MOBS
Light curve chart for 0008190
Parameter Value Uncertainty
Am1 1.032 0.019
Am2 -0.0192 0.0061
a/Rs 5.541 0.077
Rp/Rs 0.164 0.014
ephemeris [JD] 2456273.7002 0.0045
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8272265992307708
u1 -3.283023964164064
u2 3.9368554514849508
u3 -1.48105802788794
duration 0.1676 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GHAB (collaborate/publish) MOBS

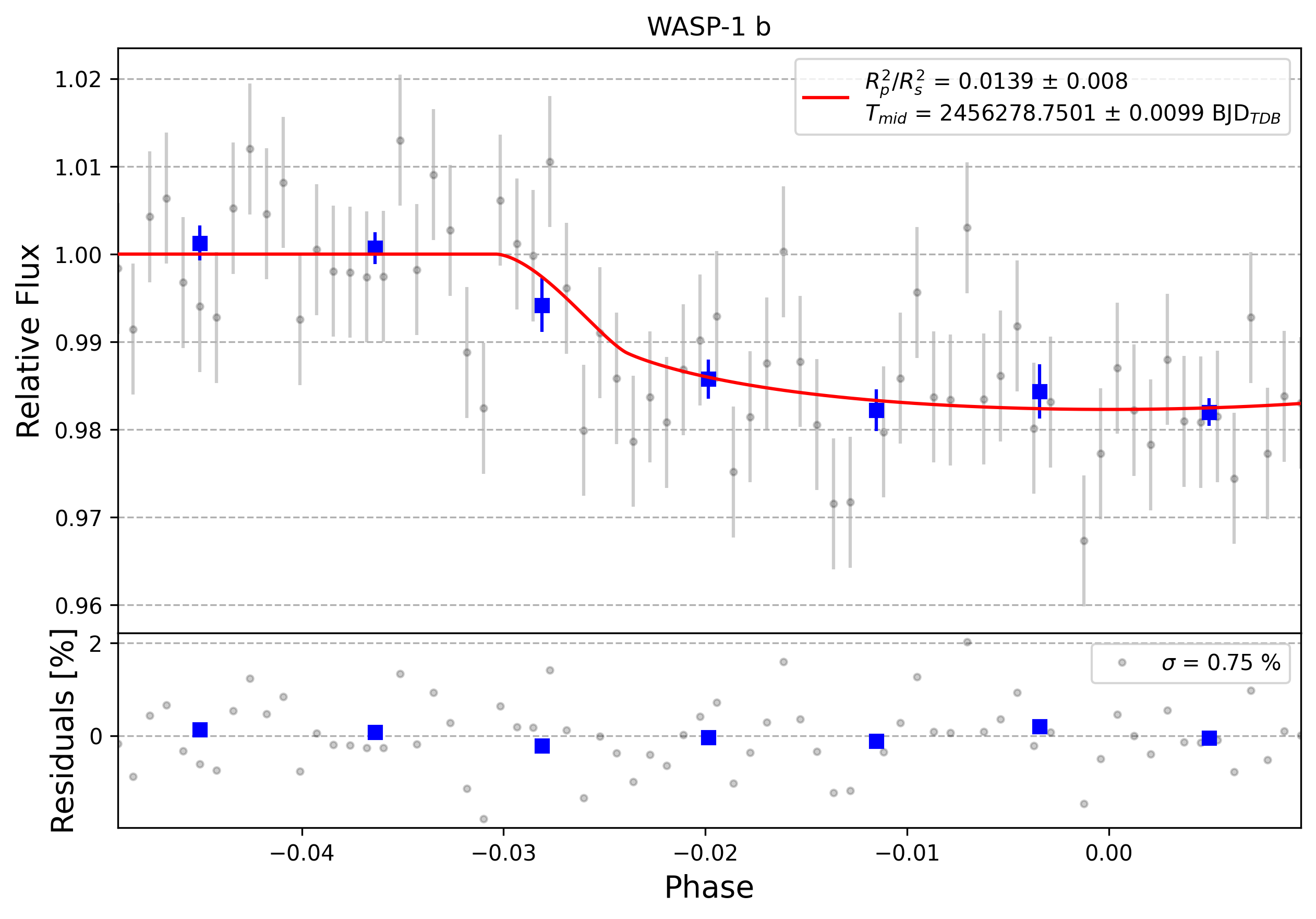

Light curve chart for 0012619
Parameter Value Uncertainty
Am1 1.1145 0.0083
Am2 -0.101 0.015
a/Rs 5.734 0.087
Rp/Rs 0.115 0.033
ephemeris [JD] 2456278.7506 0.0095
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.82673433846844
u1 -3.282482289758129
u2 3.936752763462669
u3 -1.4810047535107924
duration 0.1013 0.0098
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DCMA (collaborate/publish) MOBS
Light curve chart for 0008942
Parameter Value Uncertainty
Am1 0.794 0.036
Am2 0.2 0.16
a/Rs 5.57 0.085
Rp/Rs 0.221 0.056
ephemeris [JD] 2456545.838 0.01
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.826735833716035
u1 -3.281839576688749
u2 3.9356648173121074
u3 -1.4805610156934175
duration 0.1671 0.0096
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LMI (collaborate/publish) MOBS

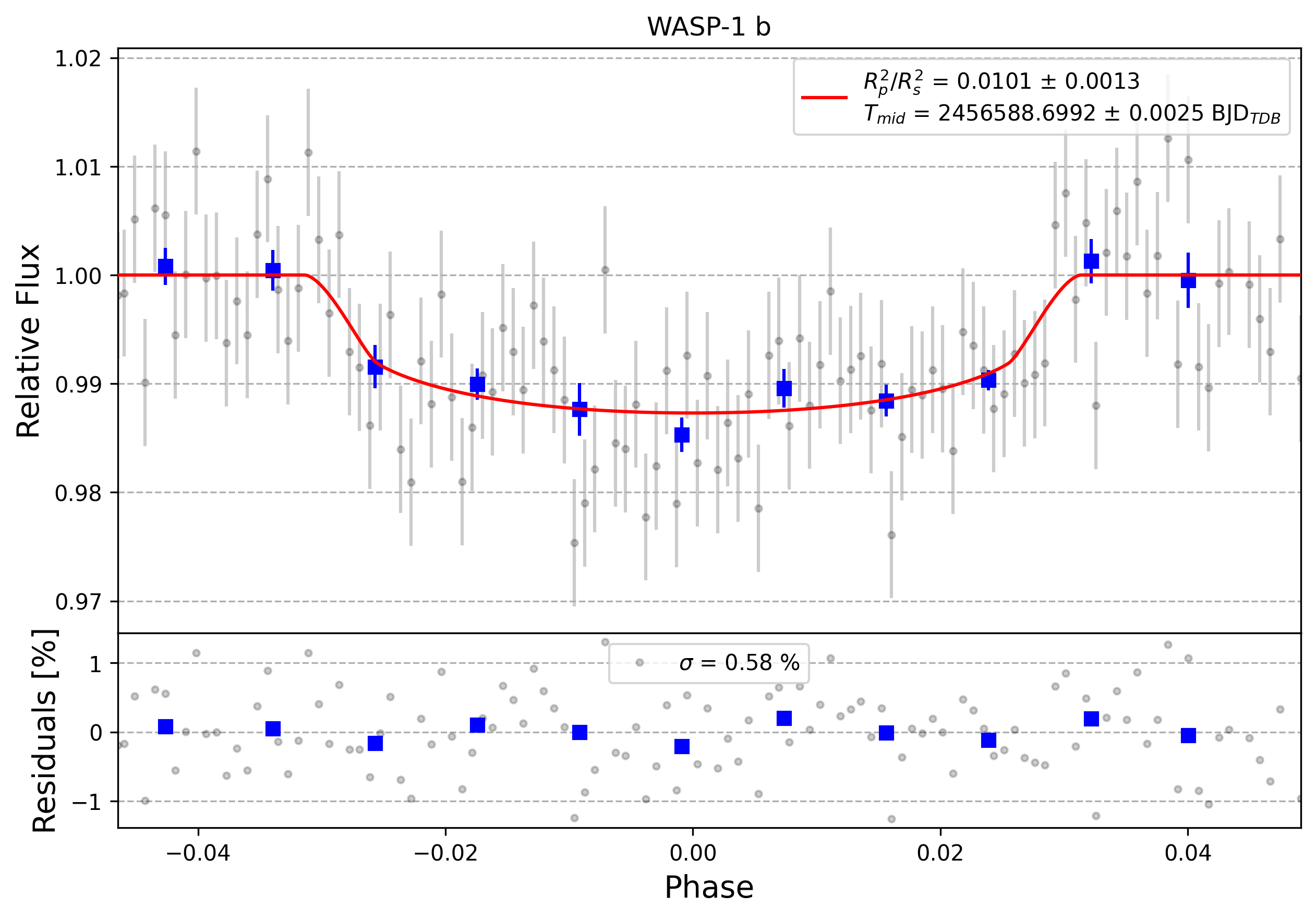

Light curve chart for 0000539
Parameter Value Uncertainty
Am1 0.7502 0.0044
Am2 -0.0049 0.0053
a/Rs 5.545 0.081
Rp/Rs 0.1011 0.0063
ephemeris [JD] 2456588.6992 0.0024
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.0514779205340155
u1 -3.7612829540002375
u2 4.295026788541482
u3 -1.5852216910743735
duration 0.1582 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0000540
Parameter Value Uncertainty
Am1 0.742 0.004
Am2 0.002 0.011
a/Rs 5.721 0.085
Rp/Rs 0.0976 0.0096
ephemeris [JD] 2456593.7365 0.0032
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.051694002118343
u1 -3.760995639850183
u2 4.294503603109843
u3 -1.585201901384913
duration 0.1528 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

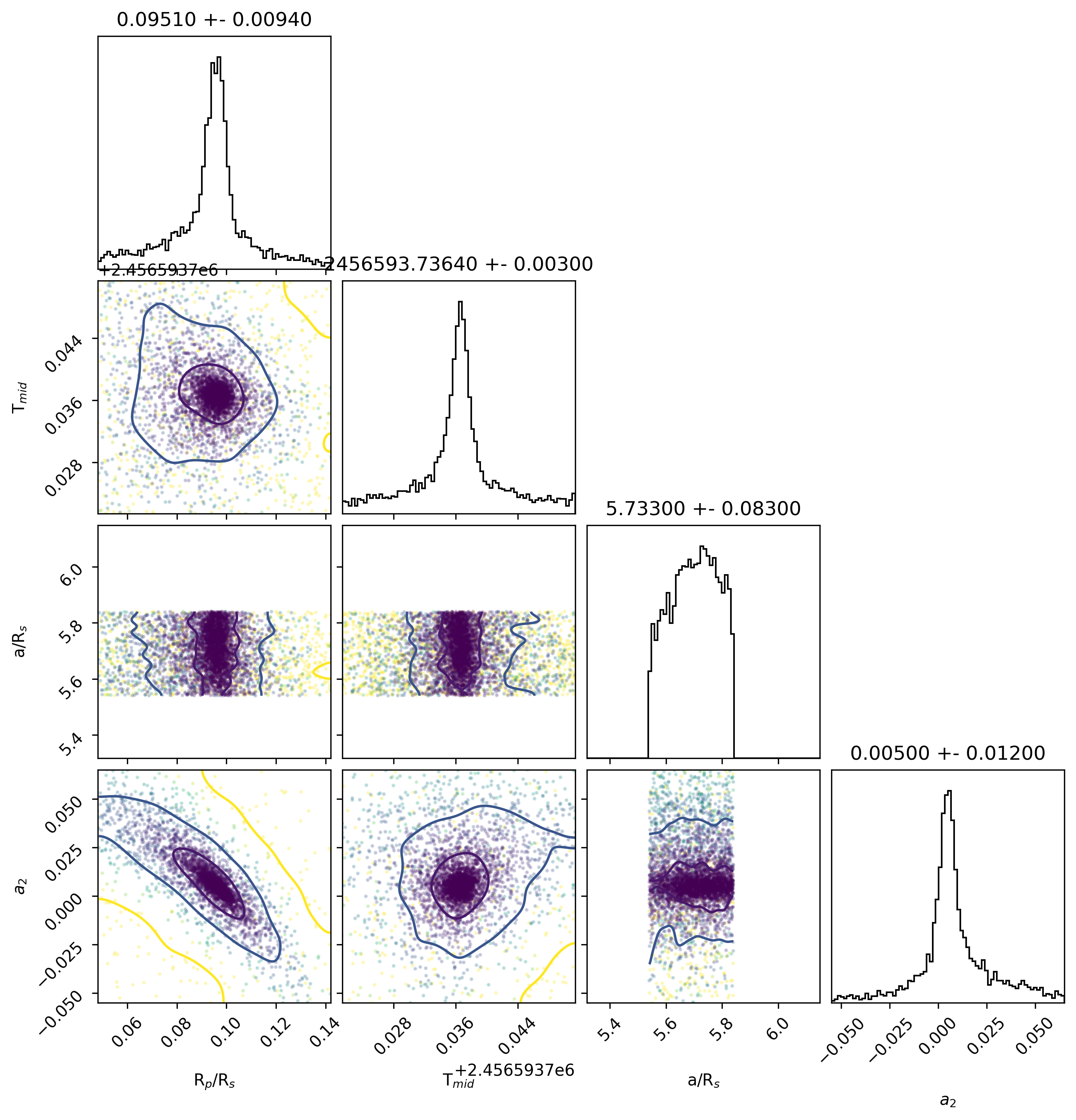

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0001370
Parameter Value Uncertainty
Am1 1.0219 0.0091
Am2 -0.017 0.0055
a/Rs 5.546 0.083
Rp/Rs 0.106 0.011
ephemeris [JD] 2456646.6548 0.0056
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8267211699373906
u1 -3.2825251906801993
u2 3.9368196919922647
u3 -1.4810156125862712
duration 0.159 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO NKED (collaborate/publish) MOBS
Light curve chart for 0004518
Parameter Value Uncertainty
Am1 0.991 0.016
Am2 0.0057 0.0057
a/Rs 5.676 0.084
Rp/Rs 0.168 0.063
ephemeris [JD] 2456873.466 0.012
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8267564922405515
u1 -3.2827623324776796
u2 3.9373498637589317
u3 -1.4813439648507183
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MJEM (collaborate/publish) MOBS
Light curve chart for 0012297
Parameter Value Uncertainty
Am1 0.68 0.05
Am2 0.38 0.45
a/Rs 5.781 0.088
Rp/Rs 0.207 0.064
ephemeris [JD] 2456908.741 0.012
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8275261773196174
u1 -3.2843626592128365
u2 3.938583745923617
u3 -1.4817472053409264
duration 0.0417 0.0031
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO JAHB (collaborate/publish) MOBS
Light curve chart for 0002407
Parameter Value Uncertainty
Am1 0.9791 0.0065
Am2 0.0192 0.0075
a/Rs 5.82 0.084
Rp/Rs 0.09 0.01
ephemeris [JD] 2456923.8554 0.0038
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8267777323907992
u1 -3.282601630823208
u2 3.9369394062306258
u3 -1.4811154491332483
duration 0.1491 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FGIC (collaborate/publish) MOBS
Light curve chart for 0001305
Parameter Value Uncertainty
Am1 1.0251 0.0083
Am2 -0.0213 0.0084
a/Rs 5.546 0.086
Rp/Rs 0.1094 0.008
ephemeris [JD] 2456971.7331 0.0047
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.0514051124345847
u1 -3.761114423745534
u2 4.29510701847087
u3 -1.585397643157839
duration 0.1597 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FTAC (collaborate/publish) MOBS
Light curve chart for 0003064
Parameter Value Uncertainty
Am1 0.994 0.018
Am2 0.002 0.0029
a/Rs 5.568 0.085
Rp/Rs 0.136 0.013
ephemeris [JD] 2457029.7002 0.0052
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8260641948223528
u1 -3.2801933444559457
u2 3.934076460910731
u3 -1.479947252654831
duration 0.1625 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KANH (collaborate/publish) MOBS
Light curve chart for 0002933
Parameter Value Uncertainty
Am1 0.964 0.016
Am2 0.045 0.039
a/Rs 5.753 0.086
Rp/Rs 0.151 0.023
ephemeris [JD] 2457238.8582 0.0076
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8275574981964622
u1 -3.285053849532292
u2 3.939781520664818
u3 -1.4822851106216688
duration 0.116 0.008
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO KKED (collaborate/publish) MOBS
Light curve chart for 0001300
Parameter Value Uncertainty
Am1 1.203 0.032
Am2 -0.163 0.098
a/Rs 5.552 0.088
Rp/Rs 0.16 0.055
ephemeris [JD] 2457248.9448 0.0095
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.050408400409288
u1 -3.7567951234967114
u2 4.289303671675404
u3 -1.582916884672375
duration 0.148 0.01
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO LGEC (collaborate/publish) MOBS
Light curve chart for 0007157
Parameter Value Uncertainty
Am1 1.028 0.019
Am2 -0.032 0.047
a/Rs 5.541 0.083
Rp/Rs 0.159 0.017
ephemeris [JD] 2457301.8231 0.0077
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8265512583037298
u1 -3.2825265967433905
u2 3.9372099194897983
u3 -1.481234522381138
duration 0.1663 0.0037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO JGAB (collaborate/publish) MOBS
Light curve chart for 0007928
Parameter Value Uncertainty
Am1 0.927 0.017
Am2 0.0664 0.0097
a/Rs 5.547 0.085
Rp/Rs 0.177 0.012
ephemeris [JD] 2457306.8925 0.0053
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.827262128901563
u1 -3.282980231301289
u2 3.936662625814867
u3 -1.4809444647542964
duration 0.1695 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DCMA (collaborate/publish) MOBS
Light curve chart for 0001299
Parameter Value Uncertainty
Am1 0.971 0.013
Am2 0.029 0.022
a/Rs 5.832 0.088
Rp/Rs 0.154 0.022
ephemeris [JD] 2457611.8034 0.0061
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.0506012319631757
u1 -3.758486426522962
u2 4.291853524620239
u3 -1.5839682661068526
duration 0.1079 0.0066
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO LGEC (collaborate/publish) MOBS
Light curve chart for 0012670
Parameter Value Uncertainty
Am1 1.017 0.015
Am2 -0.0101 0.0021
a/Rs 5.544 0.086
Rp/Rs 0.098 0.016
ephemeris [JD] 2457727.7083 0.0062
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8262279348902426
u1 -3.280828745319308
u2 3.9348815122977254
u3 -1.4802806432343565
duration 0.1579 0.0034
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DJSA (collaborate/publish) MOBS
Light curve chart for 0001205
Parameter Value Uncertainty
Am1 0.752 0.01
Am2 0.29 0.27
a/Rs 5.556 0.086
Rp/Rs 0.21 0.063
ephemeris [JD] 2457999.853 0.012
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.4433234836326663
u1 -4.389214729748178
u2 4.571558947924183
u3 -1.6256676336871343
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Astrodon ExoPlanet-BB 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO LPAC (collaborate/publish)
Light curve chart for 0012169
Parameter Value Uncertainty
Am1 0.9825 0.0075
Am2 0.0153 0.0059
a/Rs 5.68 0.086
Rp/Rs 0.1102 0.0072
ephemeris [JD] 2458042.7058 0.0034
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.050907516156072
u1 -3.7592115360138583
u2 4.292427790194403
u3 -1.5841237063744589
duration 0.1556 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO LMI (collaborate/publish) MOBS
Light curve chart for 0010797
Parameter Value Uncertainty
Am1 1.0631 0.0082
Am2 -0.052 0.023
a/Rs 5.826 0.082
Rp/Rs 0.135 0.012
ephemeris [JD] 2458047.7516 0.0022
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8272439181473639
u1 -3.283787249245067
u2 3.9383258695318926
u3 -1.4817824797485613
duration 0.1553 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DRAD (collaborate/publish) MOBS
Light curve chart for 0000574
Parameter Value Uncertainty
Am1 1.0289 0.0043
Am2 -0.017 0.0017
a/Rs 5.814 0.079
Rp/Rs 0.1041 0.0039
ephemeris [JD] 2458095.6213 0.0023
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.050656318837023
u1 -3.75833180188049
u2 4.2915623813797845
u3 -1.5838868343870547
duration 0.1512 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO MWAA (collaborate/publish)
Light curve chart for 0012426
Parameter Value Uncertainty
Am1 1.0224 0.0085
Am2 -0.0156 0.0041
a/Rs 5.549 0.085
Rp/Rs 0.1131 0.0083
ephemeris [JD] 2458100.6674 0.0044
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8267138106867273
u1 -3.2824713646642723
u2 3.9368254517787142
u3 -1.4810678391378986
duration 0.1598 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DCMA (collaborate/publish) MOBS
Light curve chart for 0010817
Parameter Value Uncertainty
Am1 0.9779 0.01
Am2 0.019 0.012
a/Rs 5.542 0.084
Rp/Rs 0.091 0.012
ephemeris [JD] 2458420.6806 0.0043
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8261932310748066
u1 -3.280604970866057
u2 3.9344467928410864
u3 -1.4800349944220095
duration 0.1568 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MKEE (collaborate/publish) MOBS
Light curve chart for 0009065
Parameter Value Uncertainty
Am1 1.0695 0.0065
Am2 -0.062 0.057
a/Rs 5.681 0.087
Rp/Rs 0.055 0.063
ephemeris [JD] 2458423.224 0.01
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8259492450562413
u1 -3.279677314360171
u2 3.933151630539272
u3 -1.4794235026268159
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

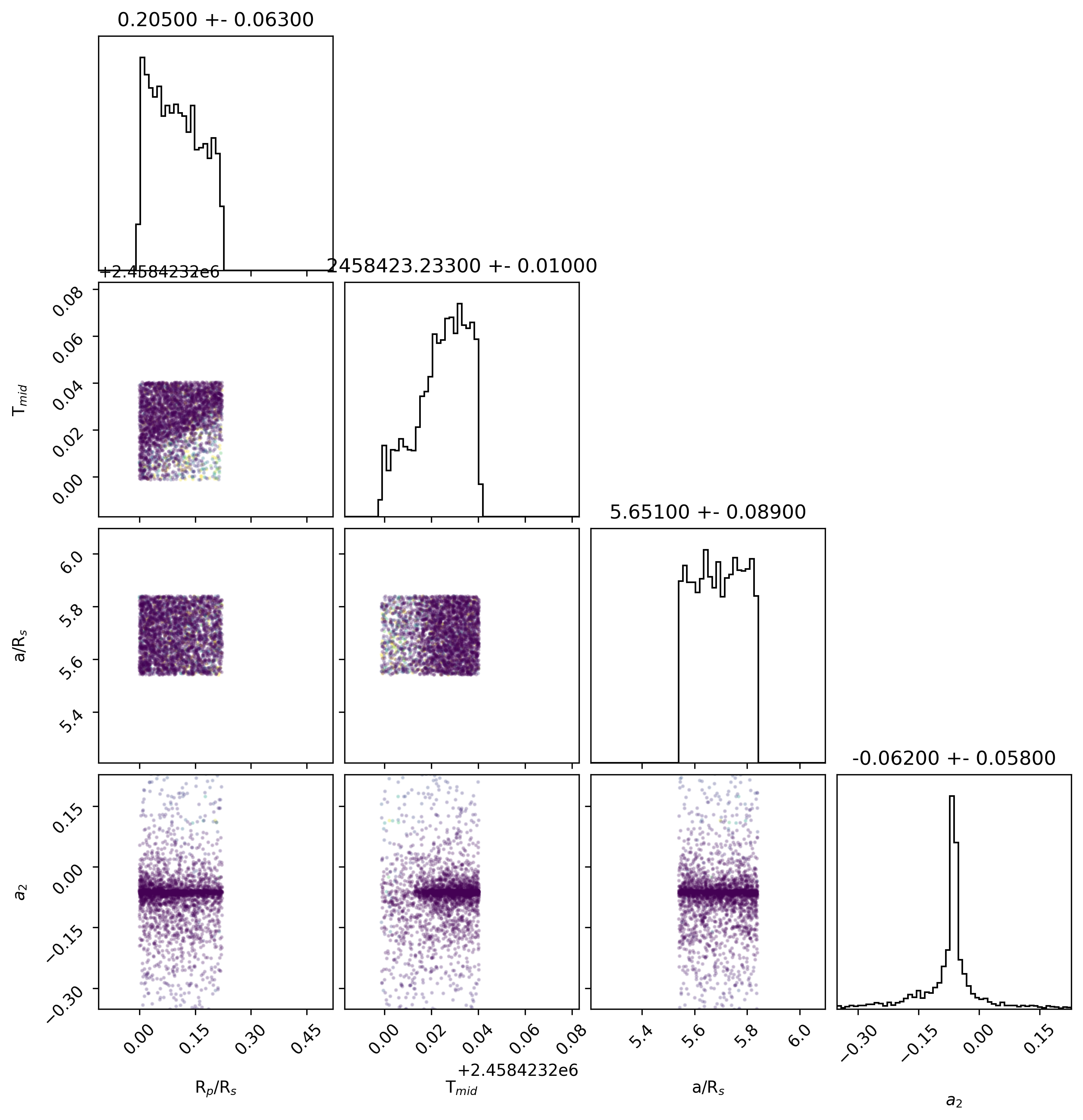

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DJSA (collaborate/publish) MOBS
Light curve chart for 0003046
Parameter Value Uncertainty
Am1 0.8312 0.0094
Am2 0.18 0.1
a/Rs 5.822 0.086
Rp/Rs 0.122 0.031
ephemeris [JD] 2458476.125 0.0082
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.826910772043859
u1 -3.2830186571777578
u2 3.937581488804455
u3 -1.4814735449960192
duration 0.0824 0.0077
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SGDA (collaborate/publish) MOBS

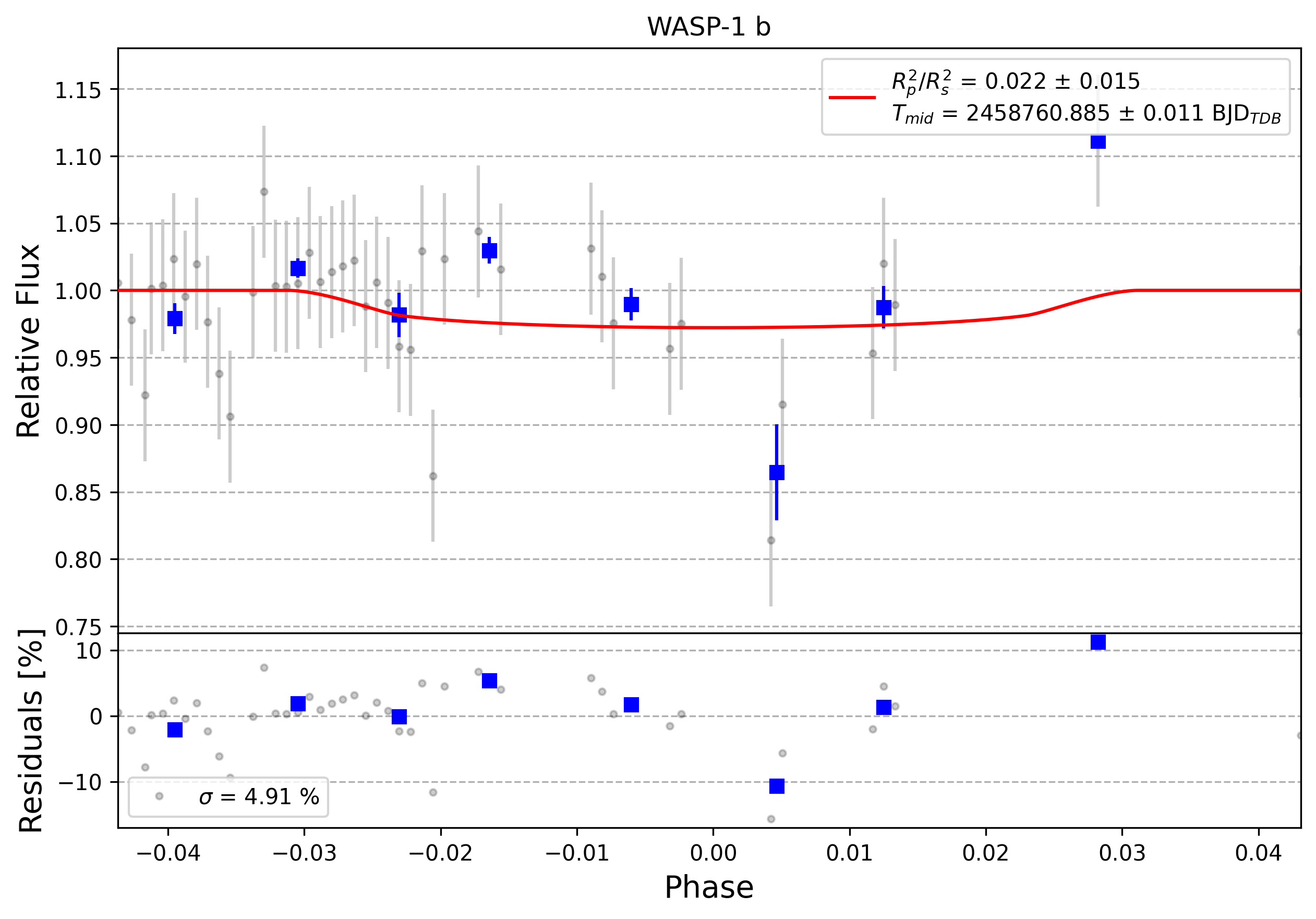

Light curve chart for 0007273
Parameter Value Uncertainty
Am1 1.039 0.052
Am2 -0.04 0.047
a/Rs 5.819 0.088
Rp/Rs 0.151 0.052
ephemeris [JD] 2458760.886 0.011
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.82652865186507
u1 -3.2813039307370233
u2 3.9351536920203625
u3 -1.4803783545100497
duration 0.157 0.0075
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO PANL (collaborate/publish) MOBS

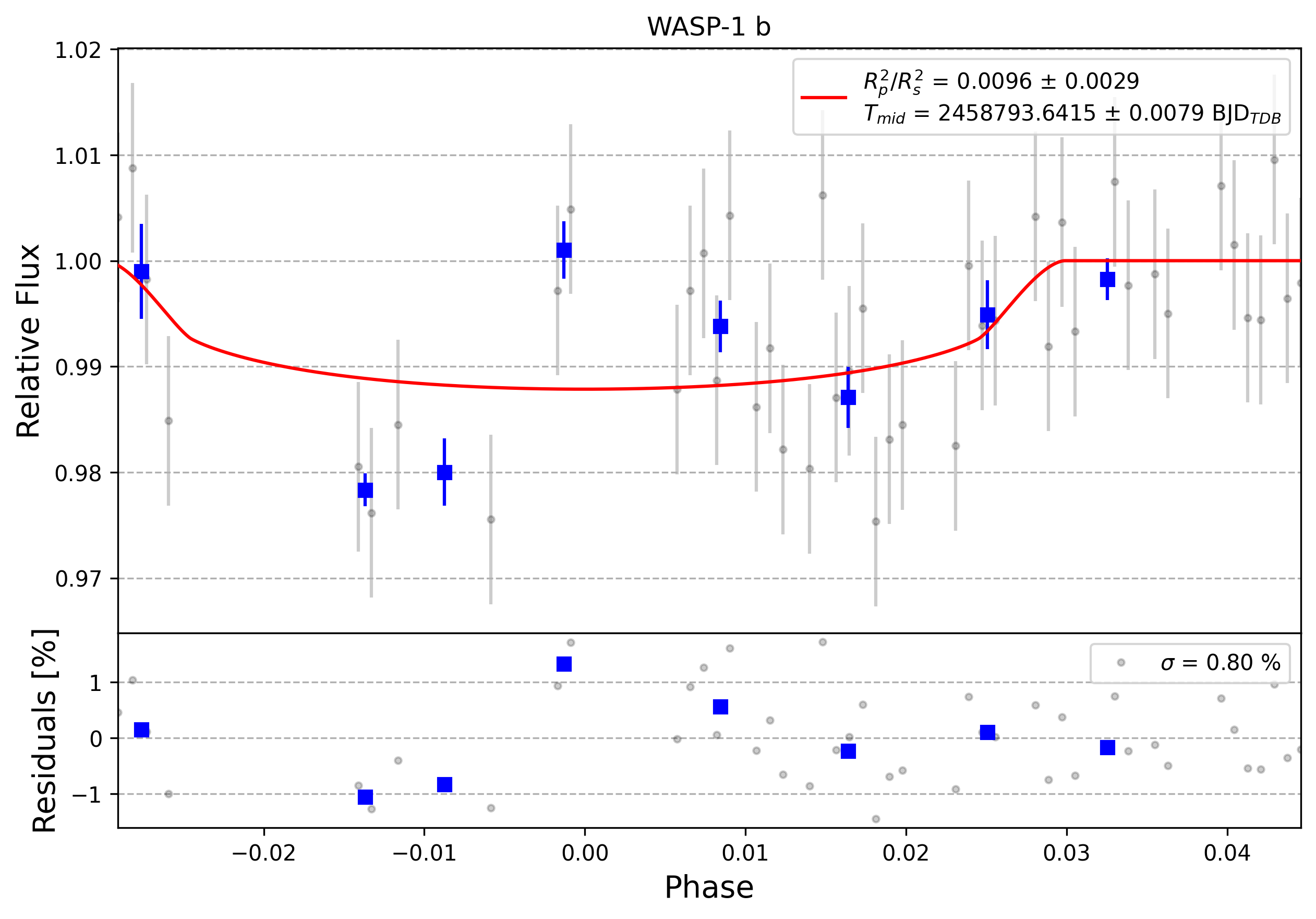

Light curve chart for 0013163
Parameter Value Uncertainty
Am1 0.9697 0.0078
Am2 0.032 0.017
a/Rs 5.832 0.085
Rp/Rs 0.097 0.015
ephemeris [JD] 2458793.6412 0.0075
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.827626409352581
u1 -3.2844960879945915
u2 3.938888770555946
u3 -1.482019033219919
duration 0.1465 0.0053
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LMED (collaborate/publish) MOBS
Light curve chart for 0010967
Parameter Value Uncertainty
Am1 1.607 0.064
Am2 -0.41 0.28
a/Rs 5.833 0.088
Rp/Rs 0.221 0.065
ephemeris [JD] 2458798.671 0.011
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.82710995337014
u1 -3.283278379213189
u2 3.93772447433586
u3 -1.4815559898161443
duration 0.1244 0.007
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

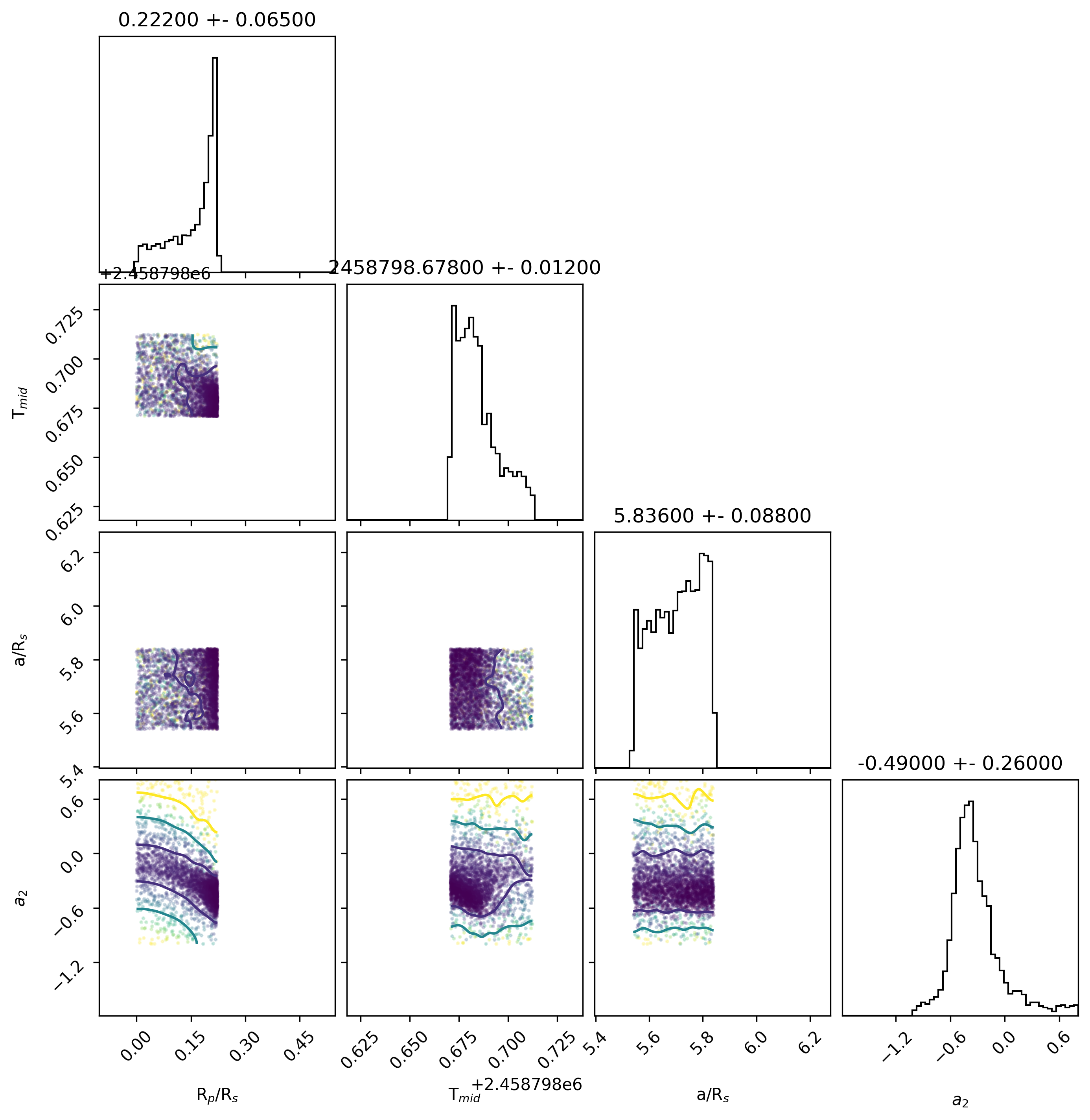

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MJOU (collaborate/publish) MOBS
Light curve chart for 0006607
Parameter Value Uncertainty
Am1 1.107 0.039
Am2 -0.11 0.55
a/Rs 5.826 0.086
Rp/Rs 0.22 0.064
ephemeris [JD] 2458806.245 0.011
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8269674727270153
u1 -3.2827641244474033
u2 3.9369504157822193
u3 -1.4811537053966983
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

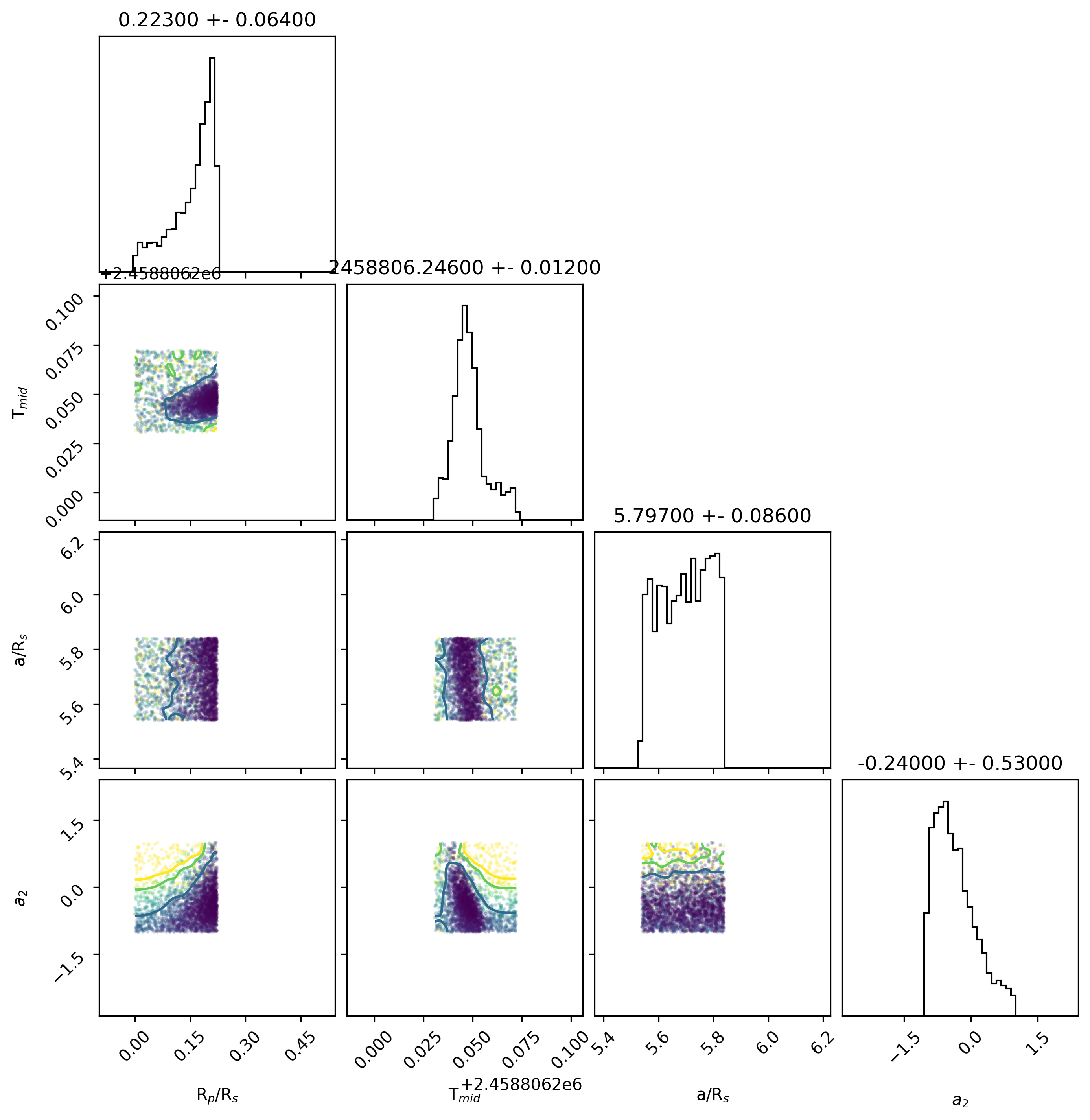

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WGAC (collaborate/publish) MOBS
Light curve chart for 0004128
Parameter Value Uncertainty
Am1 0.9994 0.0034
Am2 0.0006 0.0015
a/Rs 5.545 0.068
Rp/Rs 0.1033 0.0035
ephemeris [JD] 2460151.9004 0.0017
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 1.8270510295558786
u1 -3.283389120692137
u2 3.9376212850637087
u3 -1.4812831352523212
duration 0.1587 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CCHD (collaborate/publish)
Light curve chart for c3e7ea394fa73f944d46f1d262fe4172
Parameter Value Uncertainty
Am1 1.0004 0.004
Am2 0
a/Rs 5.65 0.06
Rp/Rs 0.1035 0.0011
ephemeris [JD] 2459869.6687 0.0007
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.7162221000748628
u1 -4.850476137614892
u2 4.7948954492110305
u3 -1.6606413402214915
duration 0.1559 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b4e6e82021848704754135327724ba1b
Parameter Value Uncertainty
Am1 1.0003 0.0046
Am2 0
a/Rs 5.618 0.054
Rp/Rs 0.1013 0.0012
ephemeris [JD] 2459859.58948 0.00075
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.7167783798658935
u1 -4.852132278207665
u2 4.796541257009099
u3 -1.6611872871932936
duration 0.1559 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for cfada927ad1c635a369a7ef531c3456c
Parameter Value Uncertainty
Am1 1.0019 0.0047
Am2 0
a/Rs 5.696 0.065
Rp/Rs 0.1004 0.0015
ephemeris [JD] 2459867.14826 0.00085
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.7163577583487553
u1 -4.851260232978669
u2 4.795938904011528
u3 -1.6610363579165557
duration 0.154 0.0019
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

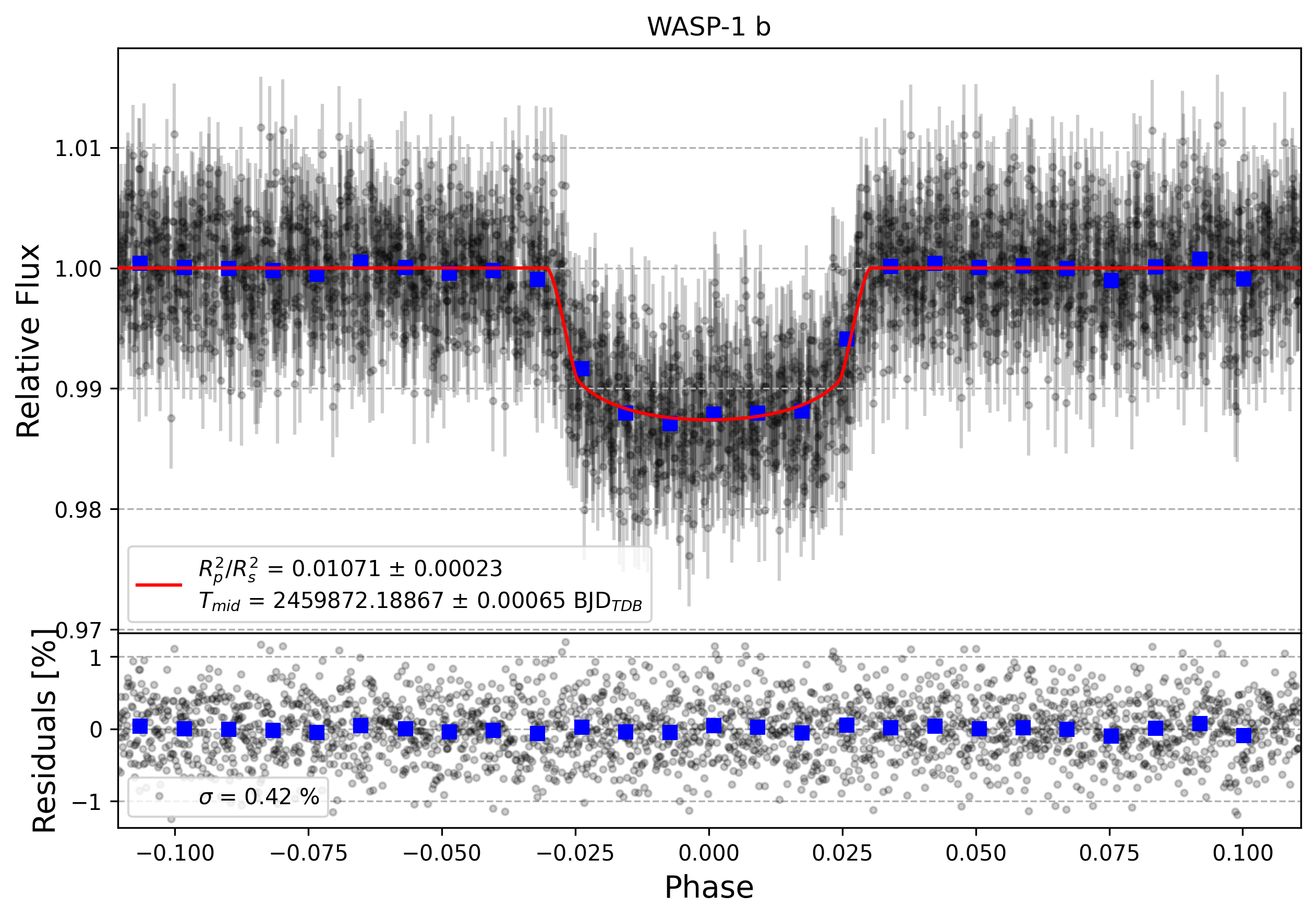

Light curve chart for ea6512bddf3019816350e95e4c8de462
Parameter Value Uncertainty
Am1 1.0001 0.0042
Am2 0
a/Rs 5.747 0.052
Rp/Rs 0.1035 0.0011
ephemeris [JD] 2459872.18869 0.00068
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.7164666180274555
u1 -4.851916662650946
u2 4.796954819596228
u3 -1.6615047034925405
duration 0.1531 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8774396214c72a1b7983ccc2aa760d8e
Parameter Value Uncertainty
Am1 1.0004 0.0042
Am2 0
a/Rs 5.599 0.043
Rp/Rs 0.1035 0.001
ephemeris [JD] 2459854.54853 0.00065
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.715500041388872
u1 -4.848726381907022
u2 4.793264836644179
u3 -1.6600384247008173
duration 0.1571 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9f60d8e3bcd4972e94c6a5561c3b804e
Parameter Value Uncertainty
Am1 1.0001 0.0042
Am2 0
a/Rs 5.668 0.059
Rp/Rs 0.1017 0.0011
ephemeris [JD] 2459857.06921 0.00074
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.7165715291660613
u1 -4.851424950536784
u2 4.795727588808518
u3 -1.6608740959758856
duration 0.1548 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ab9697b3d25cd0207cfa3d737f975b7b
Parameter Value Uncertainty
Am1 0.9999 0.0042
Am2 0
a/Rs 5.695 0.053
Rp/Rs 0.103 0.0011
ephemeris [JD] 2459862.10933 0.00062
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.7150584793015002
u1 -4.84775627968789
u2 4.792461881532381
u3 -1.659764009732744
duration 0.1543 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 66767cc5bd71d43fb97882b119ceaa9d
Parameter Value Uncertainty
Am1 1.0003 0.0042
Am2 0
a/Rs 5.574 0.041
Rp/Rs 0.1018 0.0011
ephemeris [JD] 2459879.74894 0.00067
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.716228364441797
u1 -4.8506090122302865
u2 4.795017599560641
u3 -1.660636880320821
duration 0.1576 0.0012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b07643573394aceeb4810115117f9dea
Parameter Value Uncertainty
Am1 1.0001 0.004
Am2 0
a/Rs 5.716 0.052
Rp/Rs 0.1017 0.001
ephemeris [JD] 2459877.2288 0.00064
eccentricity 0.013
inclination [degrees] 90.0
omega [degrees] 91.1
orbital period [days] 2.51994701
u0 2.715687156886769
u1 -4.848626224151497
u2 4.792641191964968
u3 -1.6597020532843207
duration 0.1536 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
