WASP-35 b

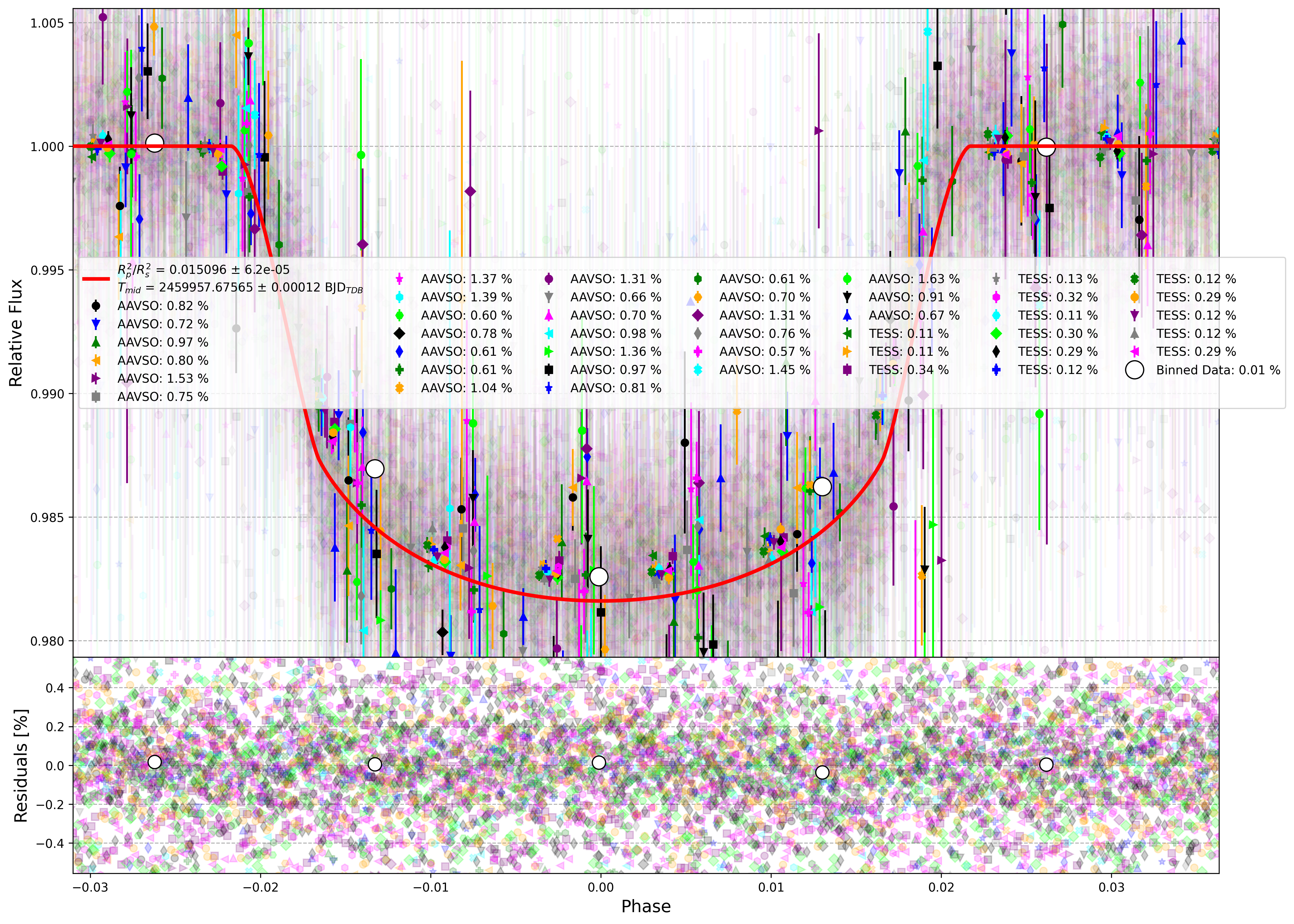

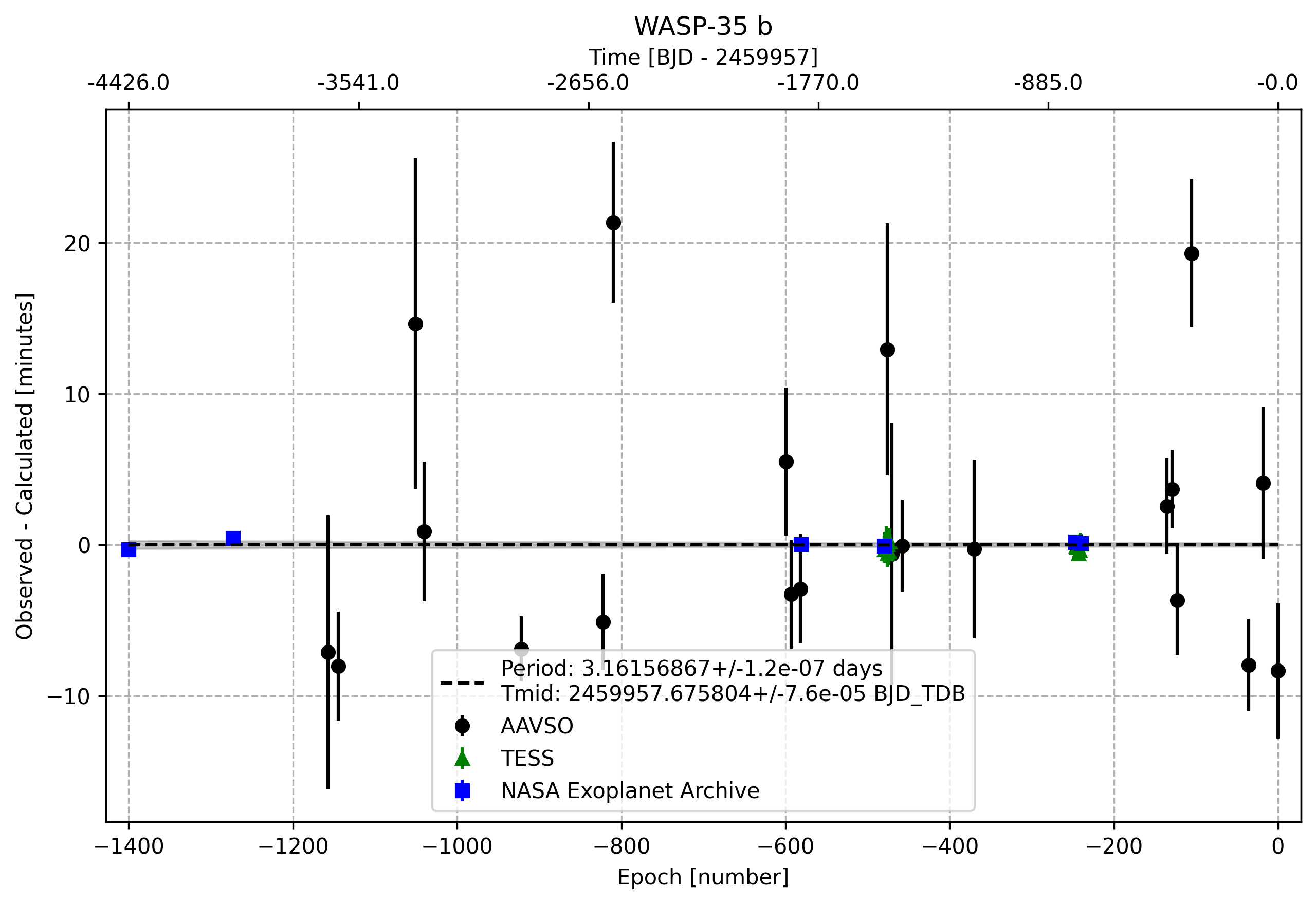

Timing Plot

Total Reductions to Date: 49

Date Processed: 09/06/2025 at 07:00:04 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 3.1615686680975115 1.1831109109844106e-07
Ephemeris (BJD_TDB) 2459957.6758042565 7.895834948077408e-05
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 76.0818912 decimal
DEC -6.2297801 decimal
Host Star Metallicity -0.15 0.09 Patel & Espinoza 2022
Host Star log(g) 4.4 0.01 Log10(cgs) Patel & Espinoza 2022
Host Star Radius [R_Sun] 1.09 0.03 Sol Kokori et al. 2023
Host Star Effective Temperature [K] 5990.0 90.0 K Kokori et al. 2023
a/Rs 8.34 0.07 Kokori et al. 2023
eccentricity 0.028 Bonomo et al. 2017
inclination [degrees] 88.0 0.6 deg Kokori et al. 2023
omega [degrees] 0.0 deg Kokori et al. 2023
orbital period [days] 3.16156853 1.7e-07 day Kokori et al. 2023
Rp 14.86 0.72 R_Earth ExoFOP-TESS TOI
Rp/Rs 0.1322 0 ExoFOP-TESS TOI
ephemeris [JD] 2458120.804421 6.8e-05 BJD-TDB Kokori et al. 2023

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2455531.479455 0.00015 BJD-TDB, HJD-UTC Bonomo et al. 2017, Enoch et al. 2011
2455932.9992 0.00015 BJD-TDB Kokori et al. 2022
2458120.804421 6.8e-05 BJD-TDB Kokori et al. 2023
2458440.122792 8.4e-05 BJD-TDB Ivshina & Winn 2022
2459176.768453 0.00019705 BJD ExoFOP-TESS TOI
2459198.89939 0.0001 BJD Patel & Espinoza 2022

Observations

Light curve chart for 0000924
Parameter Value Uncertainty
Am1 0.992 0.0074
Am2 0.0049 0.0093
a/Rs 7.99 0.2
Rp/Rs 0.098 0.015
ephemeris [JD] 2456299.7358 0.0061
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.0593095689704444
u1 -3.6777815533661347
u2 4.169238211015494
u3 -1.550766164493313
duration 0.1341 0.0042
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0008565
Parameter Value Uncertainty
Am1 0.9939 0.007
Am2 0.0034 0.0024
a/Rs 8.69 0.16
Rp/Rs 0.1266 0.0063
ephemeris [JD] 2456337.6739 0.0025
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8192219660426594
u1 -3.099833468345511
u2 3.672416984751547
u3 -1.391805427725418
duration 0.1259 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO JHAA (collaborate/publish) MOBS
Light curve chart for 0012590
Parameter Value Uncertainty
Am1 1.0129 0.008
Am2 -0.007 0.011
a/Rs 8.67 0.2
Rp/Rs 0.142 0.031
ephemeris [JD] 2456356.6317 0.0066
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8198917538528687
u1 -3.1025782853005035
u2 3.67588048370879
u3 -1.393193897486268
duration 0.1071 0.0072
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

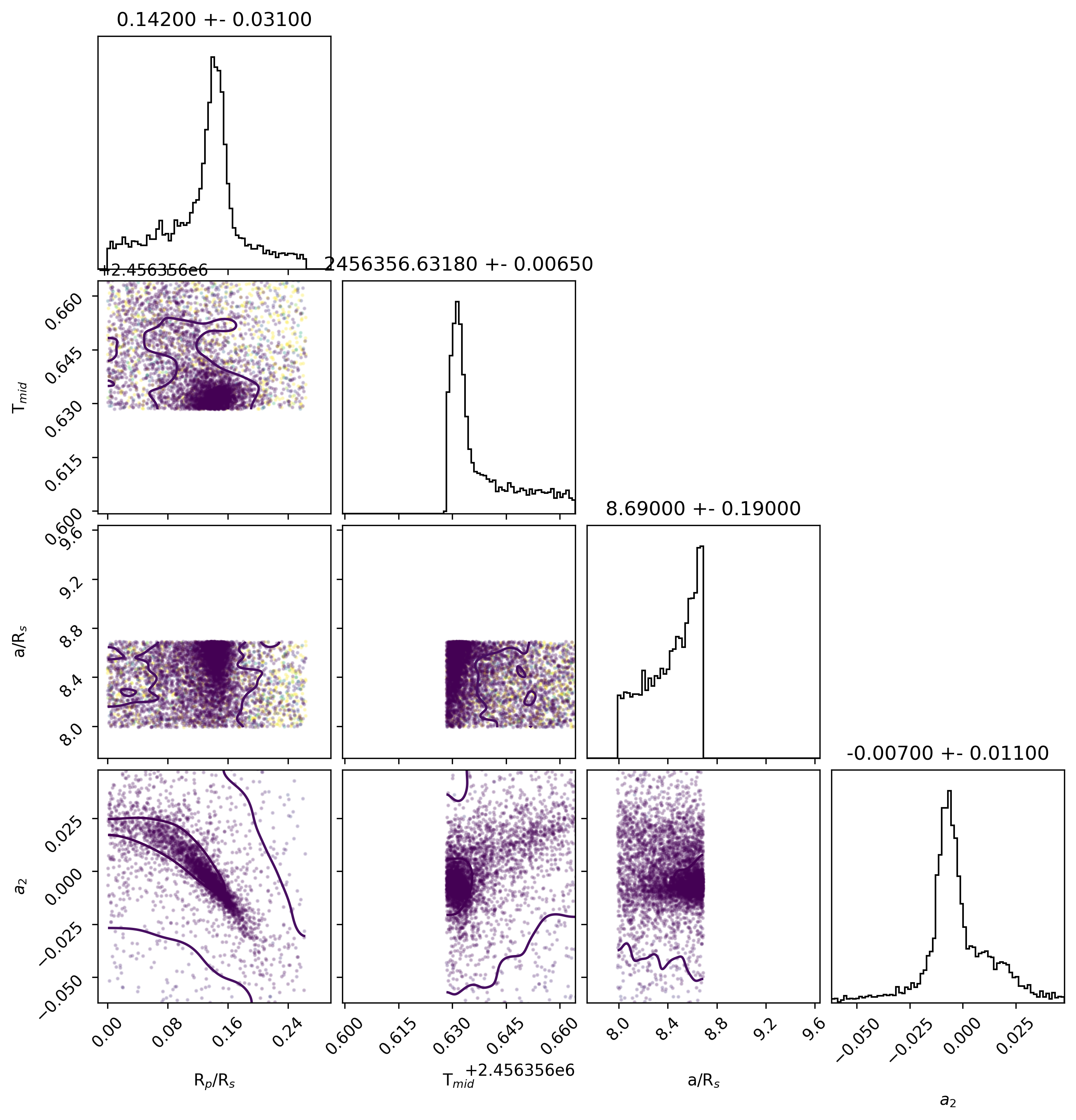

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WMAI (collaborate/publish) MOBS
Light curve chart for 0002341
Parameter Value Uncertainty
Am1 1.2149 0.0086
Am2 -0.124 0.015
a/Rs 8.39 0.2
Rp/Rs 0.132 0.022
ephemeris [JD] 2456615.8964 0.0063
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8194435120457746
u1 -3.1006458242611226
u2 3.673350744299449
u3 -1.392148377346909
duration 0.1316 0.0042
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GMAI (collaborate/publish) MOBS

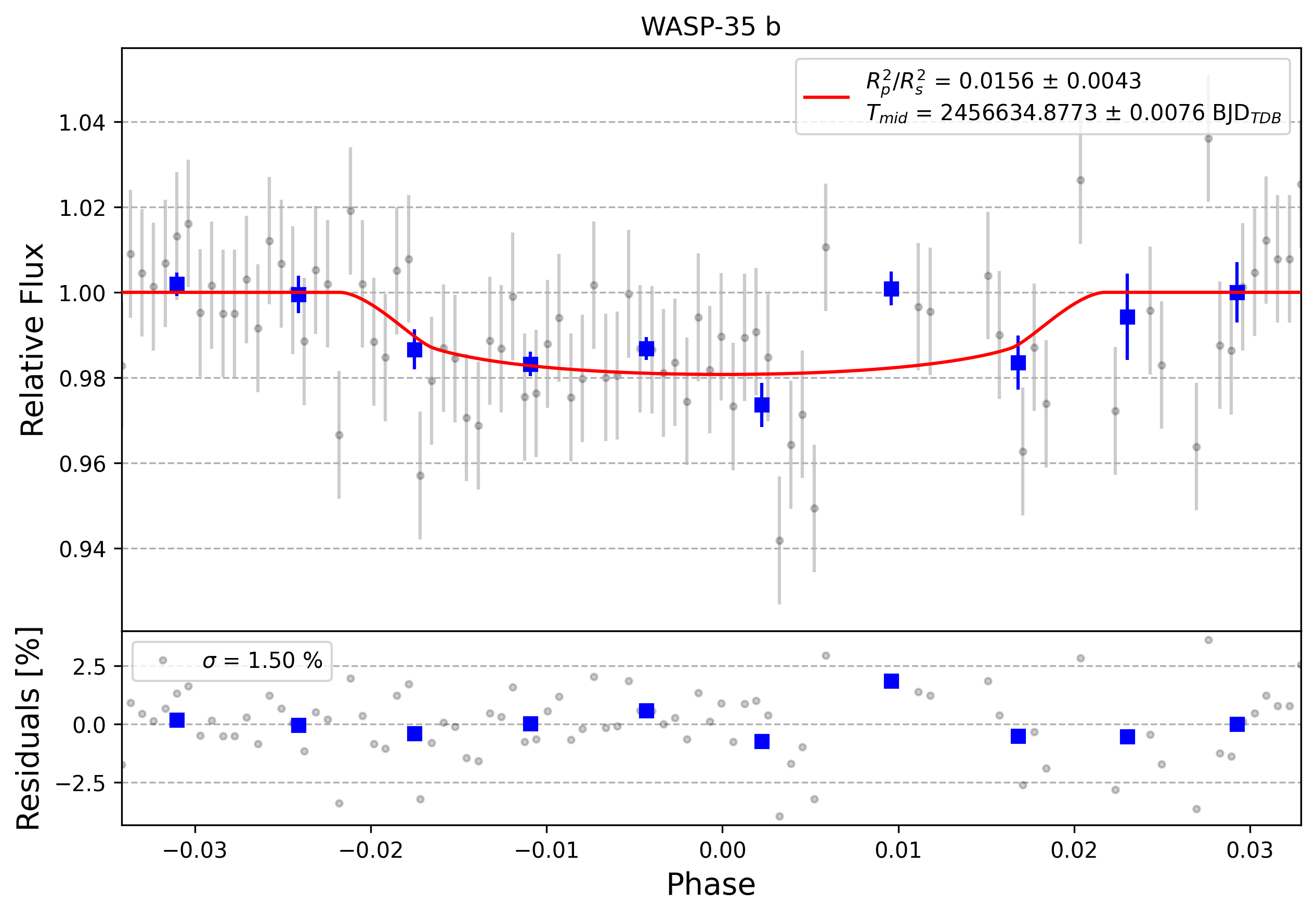

Light curve chart for 0002654
Parameter Value Uncertainty
Am1 1.006 0.015
Am2 -0.005 0.0047
a/Rs 7.99 0.2
Rp/Rs 0.126 0.017
ephemeris [JD] 2456634.8775 0.0078
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8195243169497928
u1 -3.1011115670266753
u2 3.6740618038467225
u3 -1.3924744990220526
duration 0.1379 0.0042
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MANE (collaborate/publish) MOBS

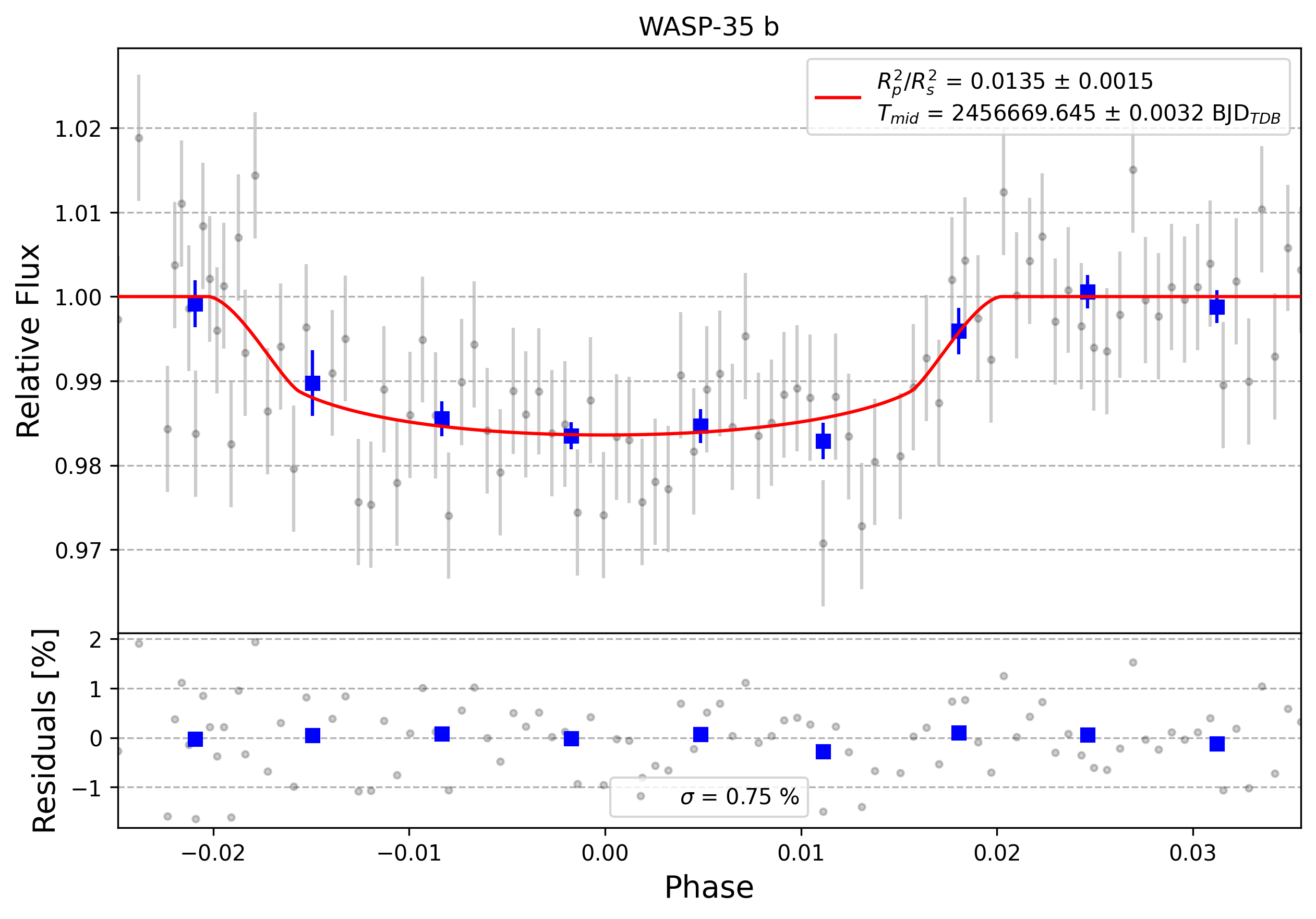

Light curve chart for 0000930
Parameter Value Uncertainty
Am1 0.9962 0.0074
Am2 0.0022 0.0041
a/Rs 8.5 0.19
Rp/Rs 0.1157 0.0068
ephemeris [JD] 2456669.6451 0.0032
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.0594224916738404
u1 -3.6785687998604333
u2 4.170268398112602
u3 -1.5511220277841677
duration 0.1276 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS

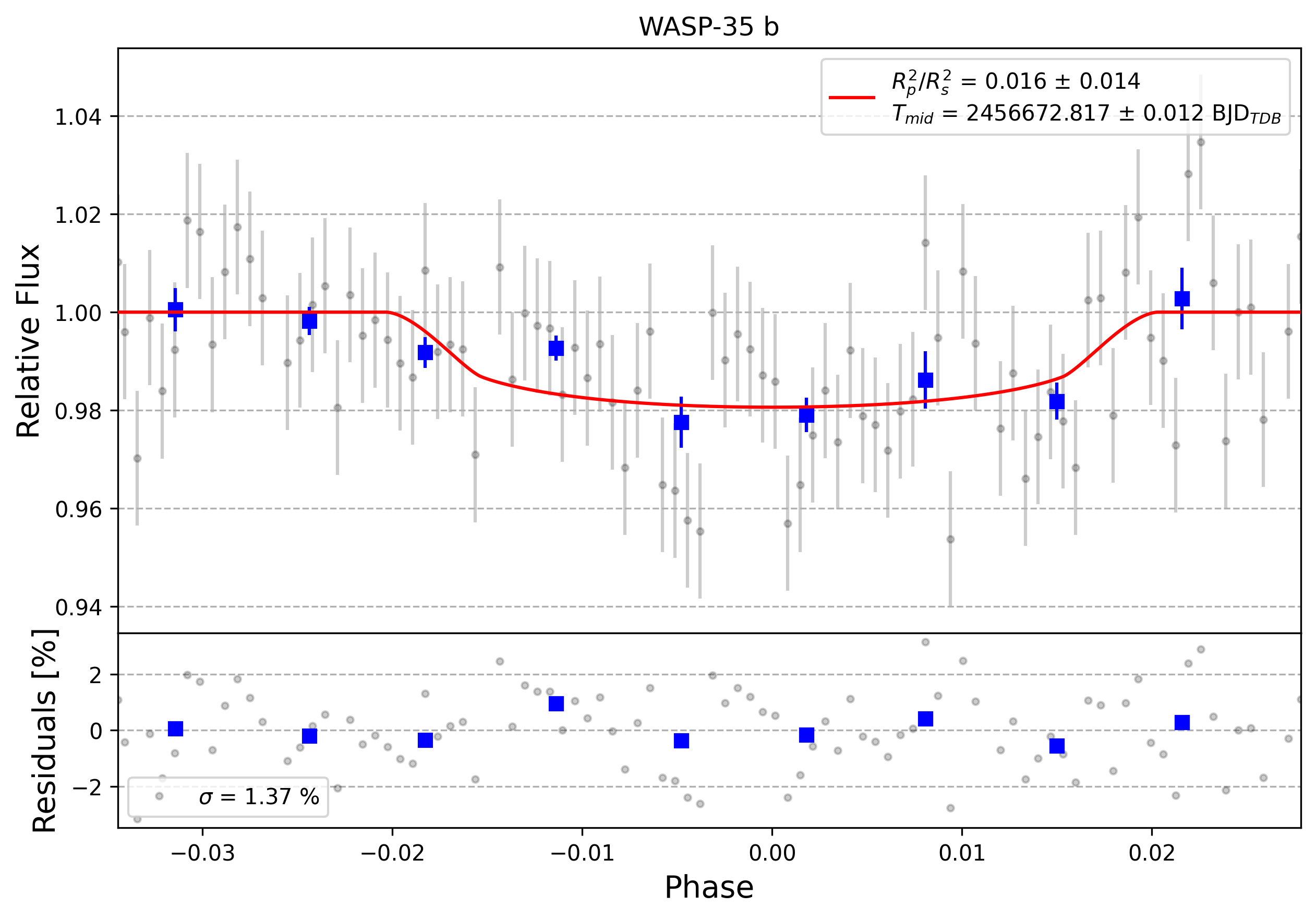

Light curve chart for 0010627
Parameter Value Uncertainty
Am1 1.185 0.017
Am2 -0.111 0.012
a/Rs 8.54 0.2
Rp/Rs 0.126 0.059
ephemeris [JD] 2456672.818 0.012
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.81980663736959
u1 -3.1024960686495557
u2 3.675971948906636
u3 -1.3932824628504195
duration 0.1284 0.0079
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO TARC (collaborate/publish) MOBS
Light curve chart for 0006679
Parameter Value Uncertainty
Am1 0.982 0.013
Am2 0.0074 0.0048
a/Rs 8.12 0.2
Rp/Rs 0.087 0.039
ephemeris [JD] 2456947.869 0.011
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8193280642508658
u1 -3.1010419335408375
u2 3.674401837116324
u3 -1.3926879130734986
duration 0.095 0.012
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO BALN (collaborate/publish) MOBS
Light curve chart for 0009710
Parameter Value Uncertainty
Am1 0.98 0.013
Am2 0.0069 0.0036
a/Rs 8.18 0.2
Rp/Rs 0.046 0.028
ephemeris [JD] 2456947.869 0.011
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.820061868907638
u1 -3.103397974877226
u2 3.6770058867221644
u3 -1.393669725960919
duration 0.094 0.011
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SCMA (collaborate/publish) MOBS

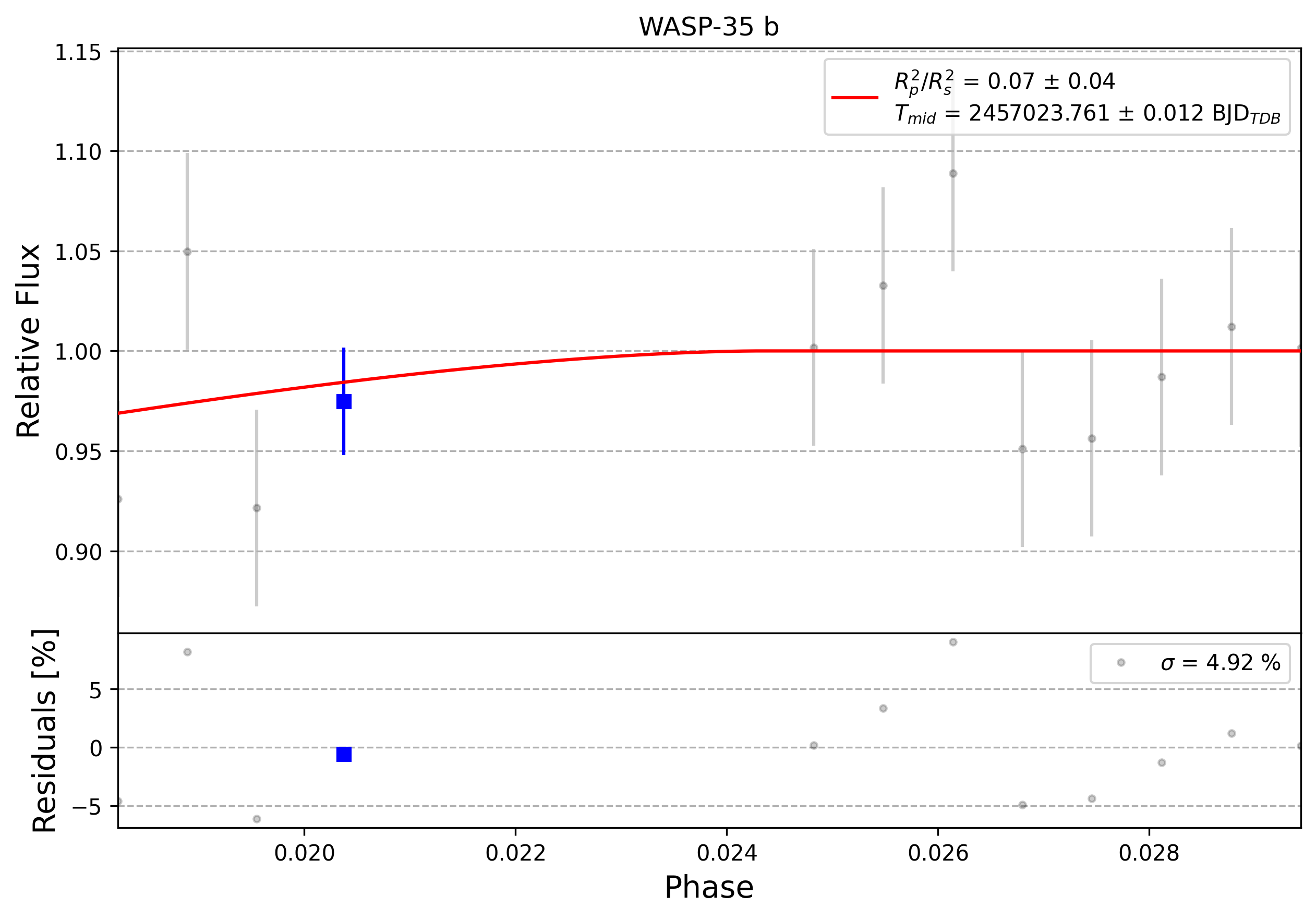

Light curve chart for 0007604
Parameter Value Uncertainty
Am1 1.99 0.095
Am2 -0.43 0.22
a/Rs 8.09 0.2
Rp/Rs 0.263 0.076
ephemeris [JD] 2457023.76 0.012
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.820030786757967
u1 -3.1031294785505765
u2 3.6766152399476653
u3 -1.3935164933692192
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO SMAMA (collaborate/publish) MOBS
Light curve chart for 0000935
Parameter Value Uncertainty
Am1 1.0087 0.0054
Am2 -0.006 0.006
a/Rs 8.55 0.16
Rp/Rs 0.1368 0.0064
ephemeris [JD] 2457042.7047 0.0015
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.059118577254405
u1 -3.677739756146405
u2 4.1693438228319675
u3 -1.550722581811903
duration 0.1297 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS

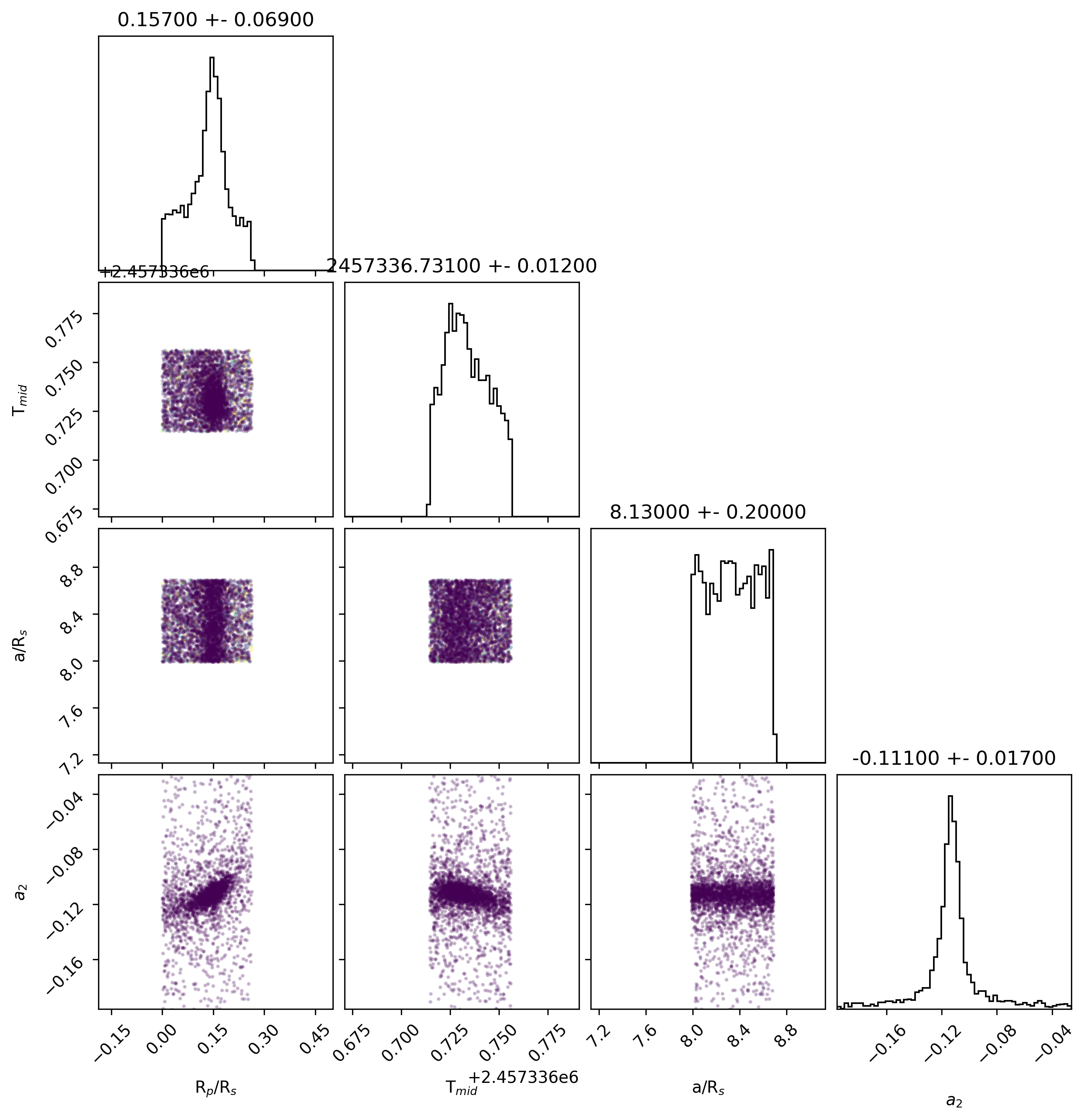

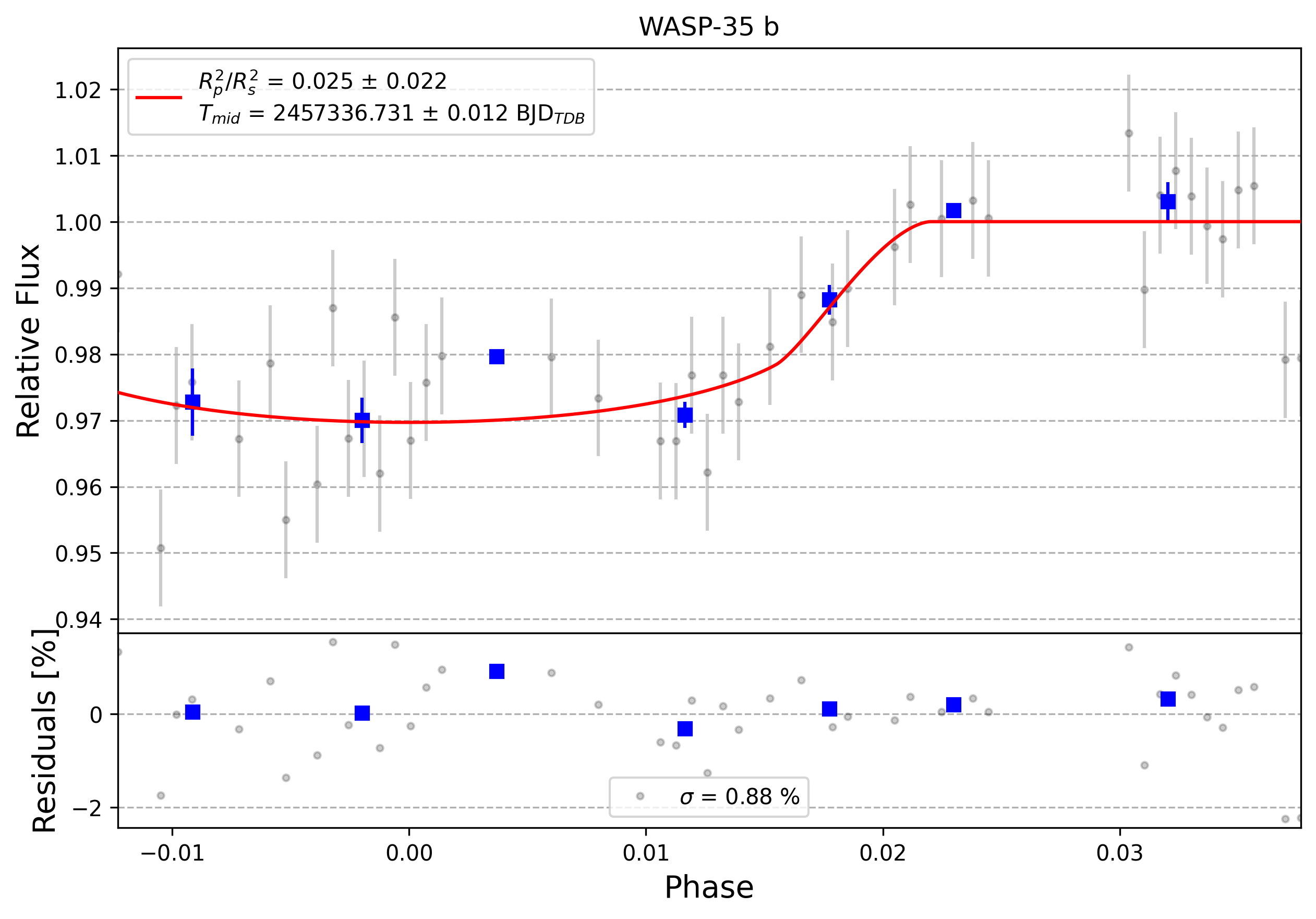

Light curve chart for 0004874
Parameter Value Uncertainty
Am1 1.162 0.011
Am2 -0.111 0.016
a/Rs 8.49 0.2
Rp/Rs 0.157 0.07
ephemeris [JD] 2457336.734 0.012
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8193329427921463
u1 -3.100634876603515
u2 3.673630693098958
u3 -1.3923287045462258
duration 0.109 0.012
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO ADUA (collaborate/publish) MOBS
Light curve chart for 0007340
Parameter Value Uncertainty
Am1 1.1751 0.0077
Am2 -0.114 0.015
a/Rs 8.32 0.2
Rp/Rs 0.148 0.065
ephemeris [JD] 2457336.734 0.012
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8192179532454604
u1 -3.1004476449193383
u2 3.673427807268891
u3 -1.3921980608566735
duration 0.107 0.013
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MANE (collaborate/publish) MOBS

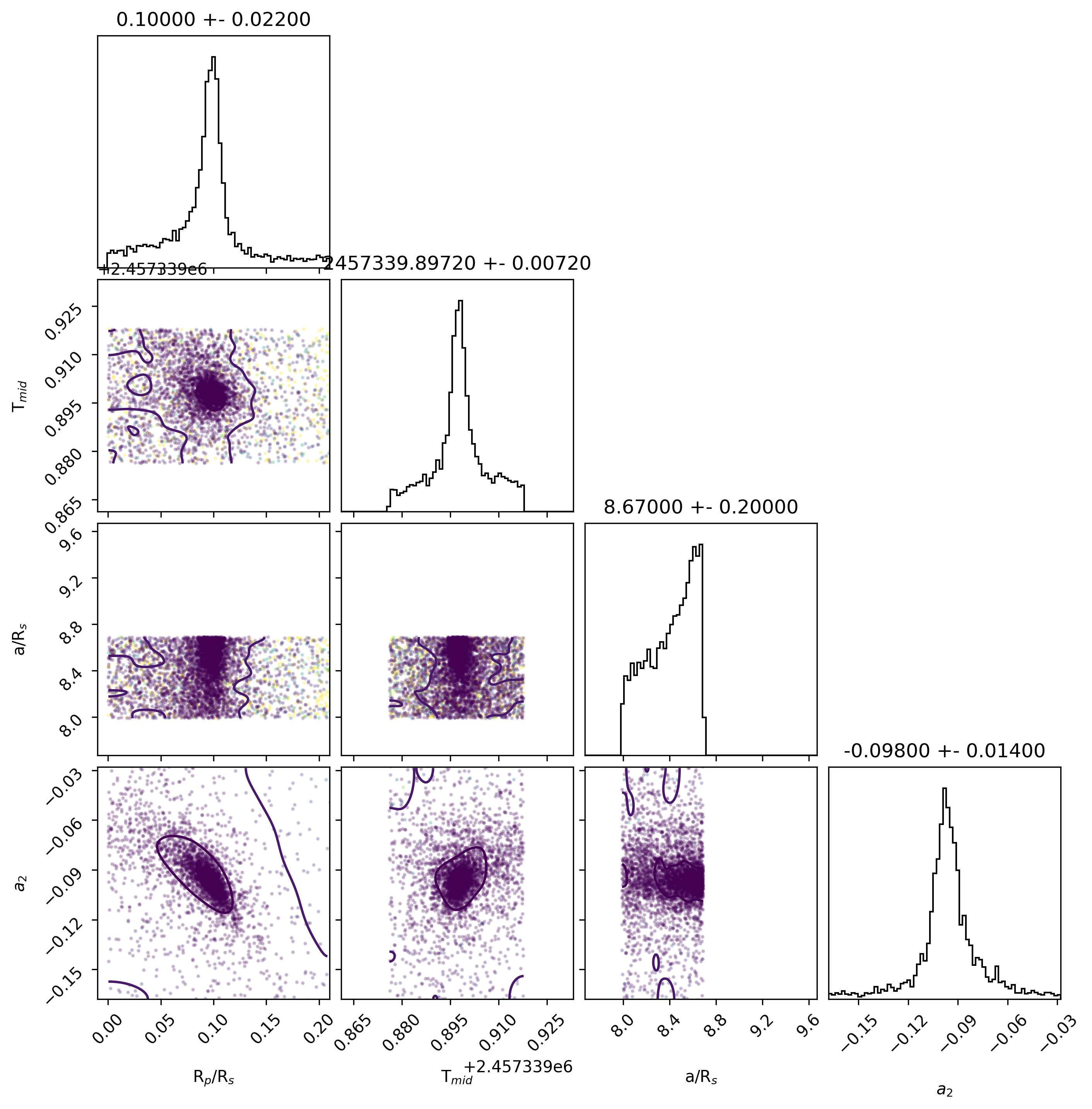

Light curve chart for 0002756
Parameter Value Uncertainty
Am1 1.1557 0.0062
Am2 -0.098 0.014
a/Rs 8.69 0.2
Rp/Rs 0.1 0.022
ephemeris [JD] 2457339.8975 0.0073
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8195258916542925
u1 -3.101479931359499
u2 3.6746981639144702
u3 -1.392744069451994
duration 0.1228 0.004
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO WJEC (collaborate/publish) MOBS

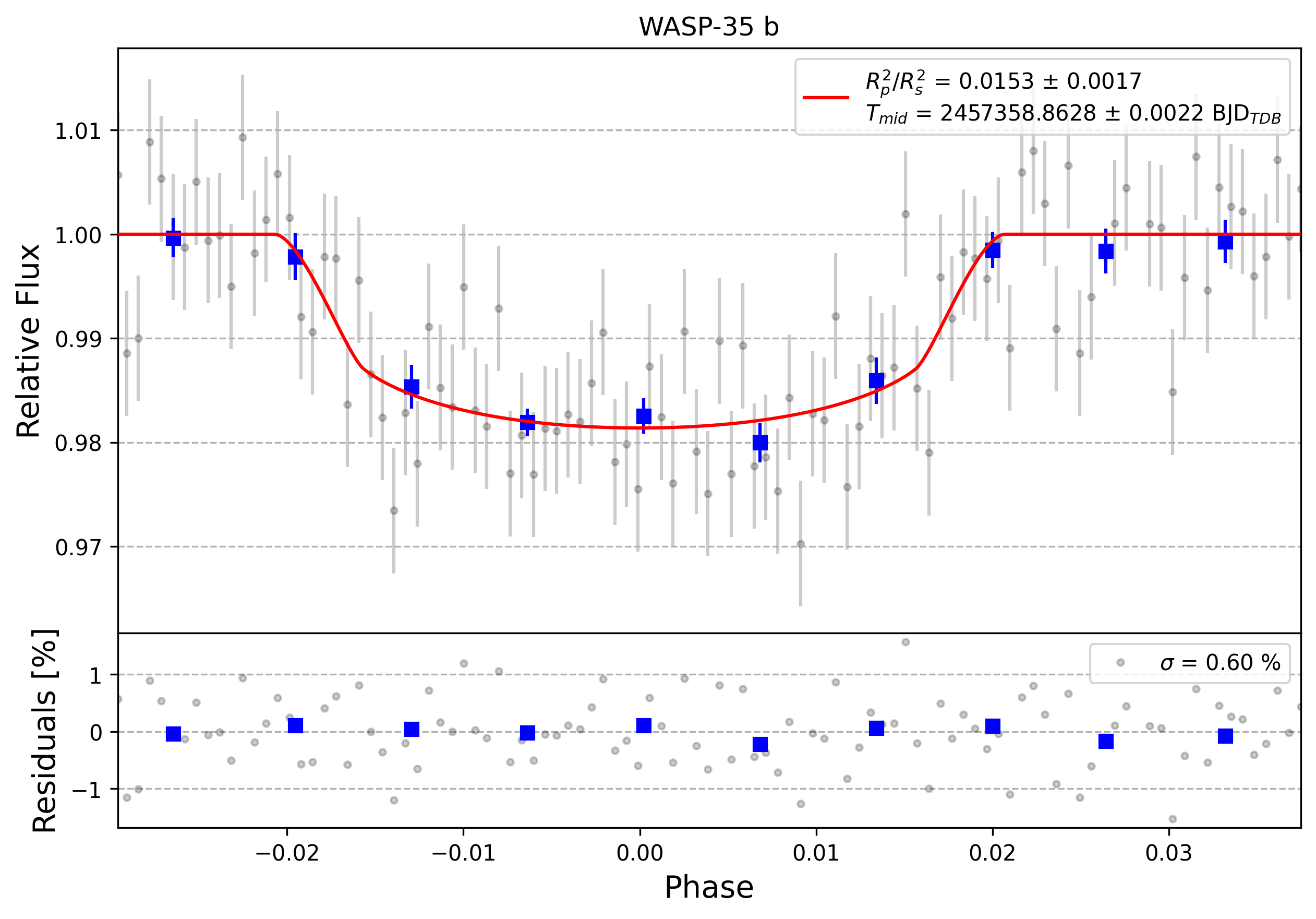

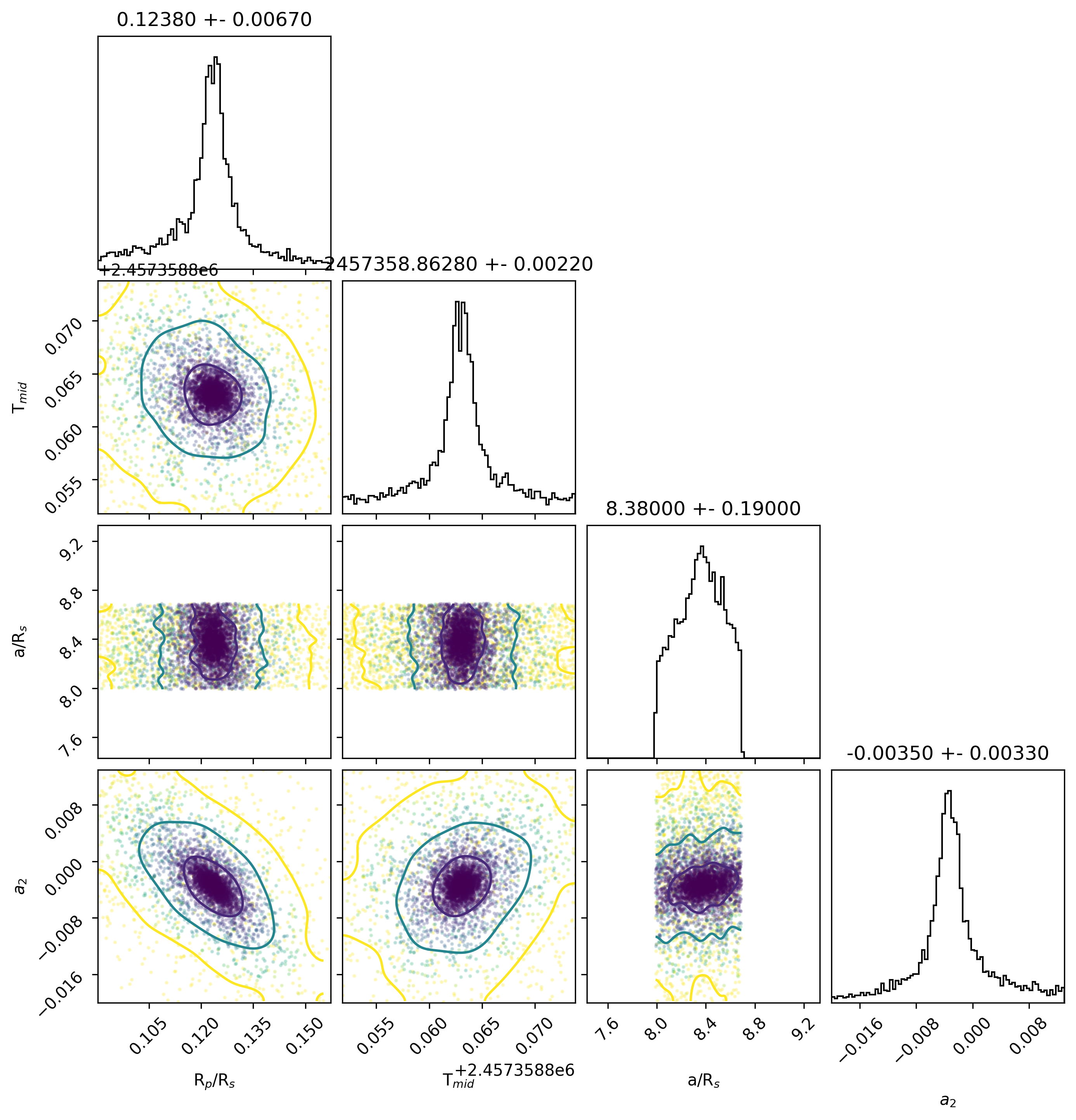

Light curve chart for 0000990
Parameter Value Uncertainty
Am1 1.0045 0.0061
Am2 -0.0032 0.0032
a/Rs 8.4 0.19
Rp/Rs 0.1226 0.0067
ephemeris [JD] 2457358.8629 0.0022
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.0597968699244125
u1 -3.679176763508115
u2 4.170739605842058
u3 -1.5513596501094922
duration 0.1301 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0010211
Parameter Value Uncertainty
Am1 0.9631 0.0084
Am2 0.0132 0.0022
a/Rs 8.29 0.2
Rp/Rs 0.113 0.017
ephemeris [JD] 2457396.8203 0.0037
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8197002462122513
u1 -3.102001908064165
u2 3.6752256497753257
u3 -1.392923933158282
duration 0.1308 0.0039
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FSAF (collaborate/publish) MOBS
Light curve chart for 0000991
Parameter Value Uncertainty
Am1 1.058 0.013
Am2 -0.036 0.025
a/Rs 7.99 0.19
Rp/Rs 0.143 0.021
ephemeris [JD] 2458063.8992 0.0035
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.059550440352187
u1 -3.6789312110421406
u2 4.170687932737071
u3 -1.5513070998990233
duration 0.14 0.0046
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0001027
Parameter Value Uncertainty
Am1 1.0124 0.0066
Am2 -0.0077 0.0035
a/Rs 8.69 0.19
Rp/Rs 0.1273 0.0063
ephemeris [JD] 2458082.8631 0.0024
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.059577825491592
u1 -3.679023883043192
u2 4.170800383723088
u3 -1.551354264021719
duration 0.126 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0001028
Parameter Value Uncertainty
Am1 1.2103 0.0083
Am2 -0.116 0.012
a/Rs 8.63 0.2
Rp/Rs 0.105 0.043
ephemeris [JD] 2458101.834 0.011
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.0593927840154858
u1 -3.6788487765037603
u2 4.170777283984065
u3 -1.5513212293463652
duration 0.1242 0.0061
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0006838
Parameter Value Uncertainty
Am1 0.9999 0.0094
Am2 0.0015 0.0026
a/Rs 8.0 0.16
Rp/Rs 0.1509 0.0084
ephemeris [JD] 2458117.6413 0.0028
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8200749125869344
u1 -3.1028165789827047
u2 3.675993585281038
u3 -1.3932518641086946
duration 0.1407 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LNID (collaborate/publish) MOBS
Light curve chart for 0003747
Parameter Value Uncertainty
Am1 0.953 0.044
Am2 0.043 0.033
a/Rs 8.05 0.2
Rp/Rs 0.176 0.031
ephemeris [JD] 2458120.8069 0.01
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8196912703357722
u1 -3.1008822409914614
u2 3.6733407910701428
u3 -1.3921497656774102
duration 0.1418 0.0063
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO FBIA (collaborate/publish) MOBS
Light curve chart for 0011940
Parameter Value Uncertainty
Am1 1.089 0.013
Am2 -0.053 0.013
a/Rs 7.99 0.17
Rp/Rs 0.153 0.016
ephemeris [JD] 2458452.7786 0.0058
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8190371307691648
u1 -3.0998224937437686
u2 3.6726846297210027
u3 -1.3918992120191334
duration 0.1412 0.0038
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MMAMA (collaborate/publish) MOBS
Light curve chart for 0011080
Parameter Value Uncertainty
Am1 1.184 0.011
Am2 -0.12 0.014
a/Rs 8.57 0.2
Rp/Rs 0.145 0.018
ephemeris [JD] 2458471.738 0.0062
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8198020871358138
u1 -3.101239369958564
u2 3.6737860174155714
u3 -1.3923486798491438
duration 0.1303 0.004
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MJOU (collaborate/publish) MOBS
Light curve chart for 0009824
Parameter Value Uncertainty
Am1 1.0073 0.0077
Am2 -0.005 0.011
a/Rs 8.23 0.19
Rp/Rs 0.1426 0.0098
ephemeris [JD] 2458509.6774 0.0021
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.819432407846657
u1 -3.101439474721517
u2 3.6747764959154545
u3 -1.392769374282158
duration 0.1357 0.0037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO LIGA (collaborate/publish) MOBS
Light curve chart for 0010689
Parameter Value Uncertainty
Am1 1.2562 0.0063
Am2 -0.155 0.02
a/Rs 7.99 0.19
Rp/Rs 0.141 0.015
ephemeris [JD] 2458787.8943 0.004
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8196379751049716
u1 -3.1017764327488786
u2 3.674995738099634
u3 -1.3928572256940233
duration 0.14 0.004
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO JAHB (collaborate/publish) MOBS
Light curve chart for 0003403
Parameter Value Uncertainty
Am1 1.3032 0.0082
Am2 -0.18 0.074
a/Rs 8.6 0.2
Rp/Rs 0.148 0.05
ephemeris [JD] 2458806.8621 0.0072
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.0592827213277234
u1 -3.6781820814319417
u2 4.169927675317433
u3 -1.5510282530764492
duration 0.0922 0.0079
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO YNEA (collaborate/publish) MOBS
Light curve chart for 0010780
Parameter Value Uncertainty
Am1 0.992 0.011
Am2 0.0047 0.0027
a/Rs 8.66 0.2
Rp/Rs 0.088 0.022
ephemeris [JD] 2459176.7832 0.0068
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8195294234141839
u1 -3.10137322558745
u2 3.6744814435102437
u3 -1.3926375865829375
duration 0.1218 0.004
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CCHI (collaborate/publish) MOBS
Light curve chart for 0001004
Parameter Value Uncertainty
Am1 1.0094 0.0079
Am2 -0.0059 0.0096
a/Rs 8.34 0.19
Rp/Rs 0.117 0.01
ephemeris [JD] 2459530.8656 0.0022
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.0592177520032697
u1 -3.6779583399264
u2 4.1695635842074275
u3 -1.5508229341529578
duration 0.1303 0.0036
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0002430
Parameter Value Uncertainty
Am1 1.007 0.0055
Am2 -0.0047 0.01
a/Rs 8.3 0.18
Rp/Rs 0.1235 0.009
ephemeris [JD] 2459549.8359 0.0018
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.0591868486402034
u1 -3.677223835611236
u2 4.168429560267588
u3 -1.5503925111821144
duration 0.1318 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0001151
Parameter Value Uncertainty
Am1 1.078 0.014
Am2 -0.047 0.011
a/Rs 8.28 0.19
Rp/Rs 0.167 0.012
ephemeris [JD] 2459568.8 0.0026
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.058608350693058
u1 -3.6750573995544755
u2 4.165717730324745
u3 -1.549268619389296
duration 0.1378 0.0037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0009163
Parameter Value Uncertainty
Am1 1.195 0.018
Am2 -0.117 0.011
a/Rs 8.25 0.2
Rp/Rs 0.141 0.059
ephemeris [JD] 2459625.732 0.012
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 1.8191311660014045
u1 -3.1014174676010584
u2 3.675247481565649
u3 -1.3929611252005403
duration 0.1353 0.0083
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO MKEE (collaborate/publish) MOBS
Light curve chart for 0002434
Parameter Value Uncertainty
Am1 1.0039 0.0074
Am2 -0.0015 0.0019
a/Rs 7.99 0.16
Rp/Rs 0.133 0.0076
ephemeris [JD] 2459625.7243 0.0034
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.0595073413250407
u1 -3.678770638130326
u2 4.170456613747654
u3 -1.551193254797722
duration 0.1387 0.0031
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0002103
Parameter Value Uncertainty
Am1 0.999 0.038
Am2 0.0021 0.0017
a/Rs 8.69 0.13
Rp/Rs 0.1051 0.0061
ephemeris [JD] 2459843.8539 0.0022
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.058964728584772
u1 -3.676857797688008
u2 4.168130862069215
u3 -1.5502377308559887
duration 0.1234 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO RJUB (collaborate/publish) UNIS
Light curve chart for 0002121
Parameter Value Uncertainty
Am1 1.079 0.023
Am2 -0.0503 0.0086
a/Rs 7.99 0.14
Rp/Rs 0.1682 0.0061
ephemeris [JD] 2459900.7698 0.0033
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.0594424837798915
u1 -3.6777017950735913
u2 4.168794111509898
u3 -1.5505347380963248
duration 0.1433 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO NANF (collaborate/publish)
Light curve chart for 0002301
Parameter Value Uncertainty
Am1 1.0032 0.0066
Am2 -0.0033 0.0028
a/Rs 8.47 0.2
Rp/Rs 0.1209 0.0065
ephemeris [JD] 2459957.6699 0.003
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.0594316196825533
u1 -3.6781352479445353
u2 4.16953778334559
u3 -1.5508340929526536
duration 0.1289 0.0034
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 5bfca8bfef47ed62c0dd3054de8e989e
Parameter Value Uncertainty
Am1 1.0001 0.0011
Am2 0
a/Rs 8.399 0.092
Rp/Rs 0.1225 0.0013
ephemeris [JD] 2458440.12263 0.00061
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.7577170331275402
u1 -4.959900618317733
u2 4.919517709900078
u3 -1.717334051403359
duration 0.1304 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

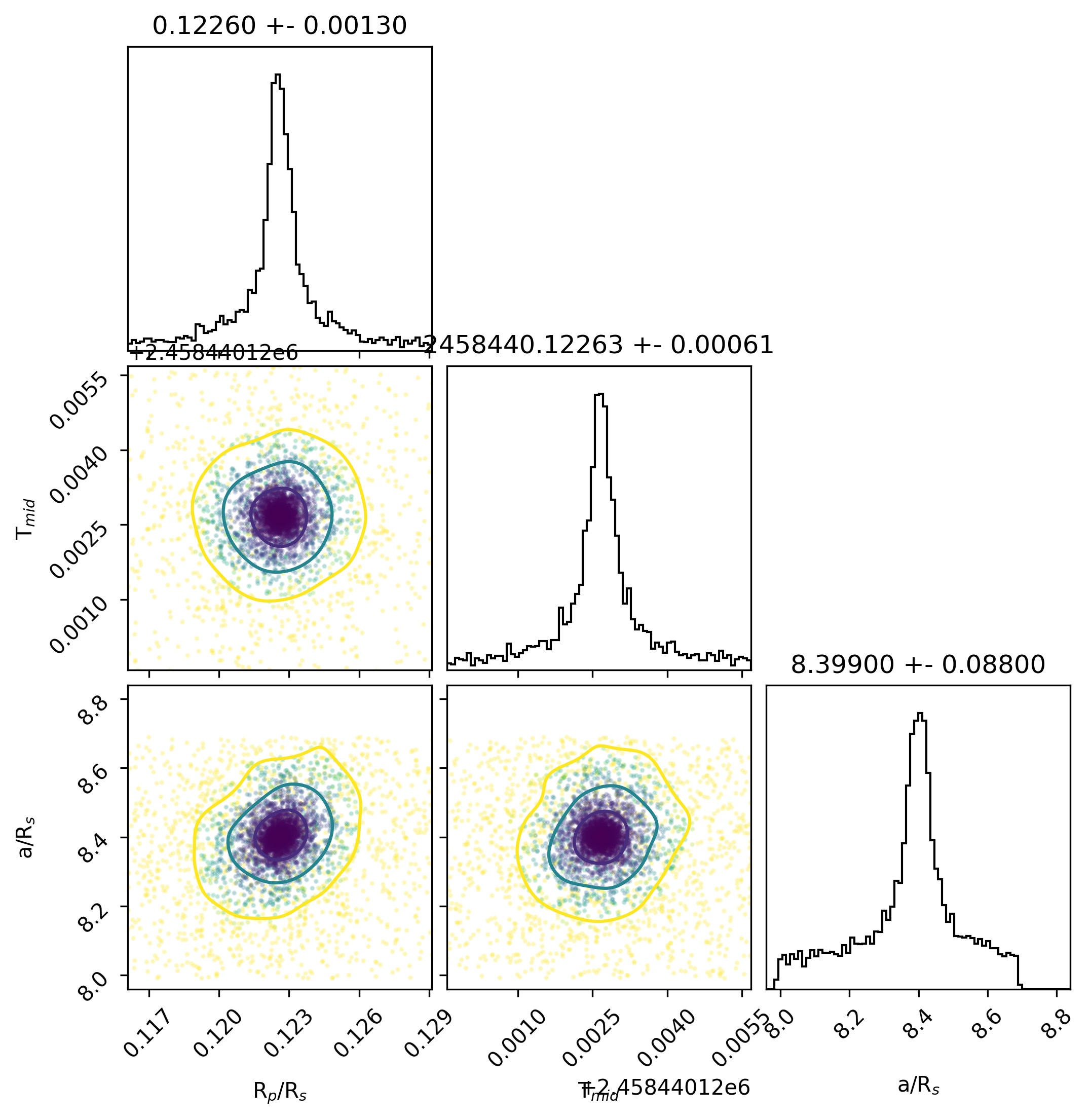

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 123d8cf3c87d1c959844a23dc43c3a58
Parameter Value Uncertainty
Am1 1.0 0.0011
Am2 0
a/Rs 8.336 0.085
Rp/Rs 0.1223 0.0013
ephemeris [JD] 2458446.44584 0.00059
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.757685932182441
u1 -4.959003328721348
u2 4.917937641599908
u3 -1.7166201717780192
duration 0.1316 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a5c1f627c7cb6ef270048ad880fc5d25
Parameter Value Uncertainty
Am1 0.9999 0.0034
Am2 0
a/Rs 8.345 0.062
Rp/Rs 0.12086 0.00086
ephemeris [JD] 2459198.89932 0.00042
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.7573654501861666
u1 -4.957995414604319
u2 4.916797865428621
u3 -1.7161678277444707
duration 0.1311 0.0011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

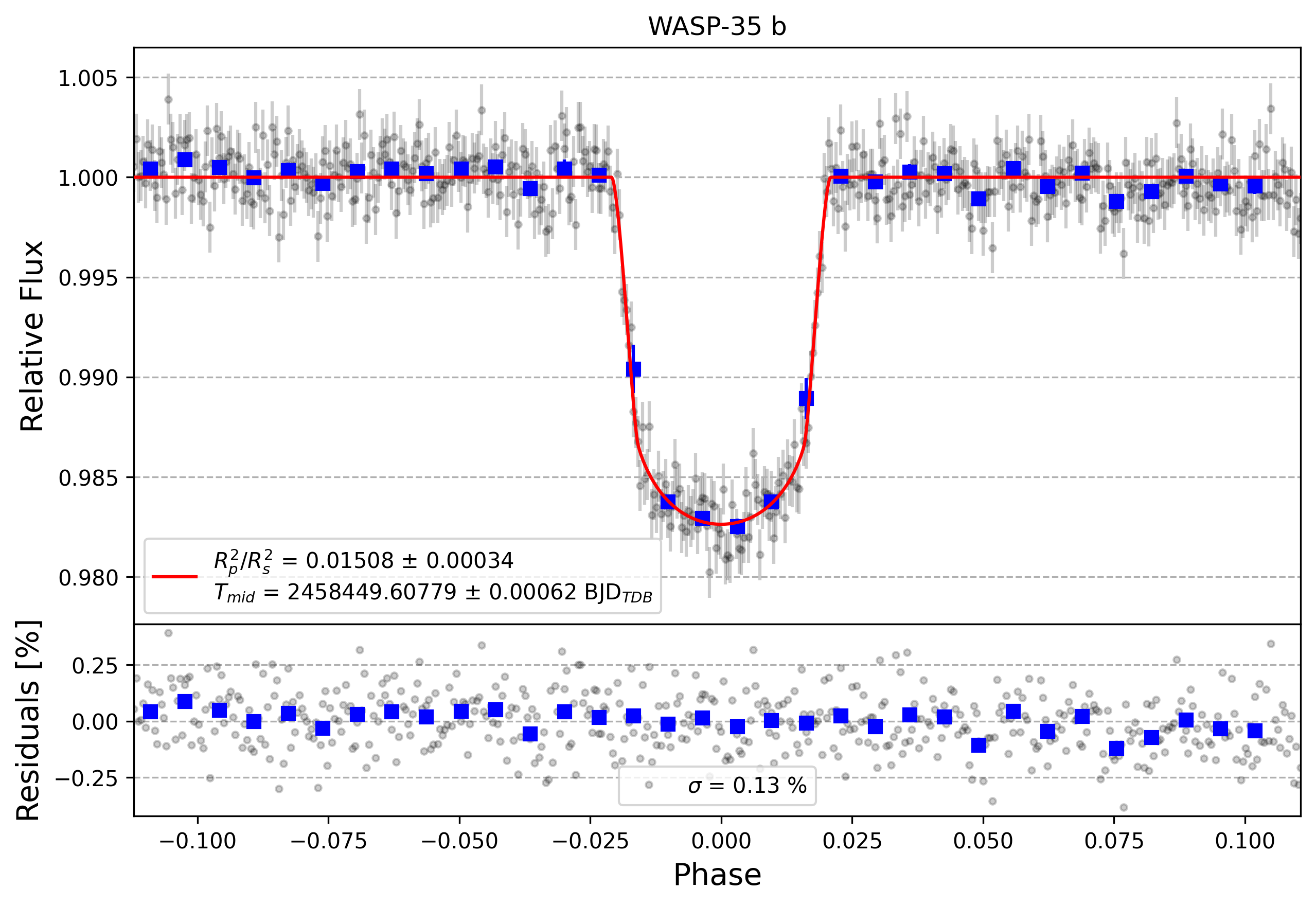

Light curve chart for 06b2e78431cbd6a4af8c0f9a9b5cf802
Parameter Value Uncertainty
Am1 0.9999 0.0013
Am2 0
a/Rs 8.285 0.089
Rp/Rs 0.1227 0.0014
ephemeris [JD] 2458449.60772 0.00062
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.757532751328295
u1 -4.958839569566547
u2 4.91799057139479
u3 -1.7166836798727676
duration 0.1325 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 97494cb28ef35bc7ba93fb065b232d27
Parameter Value Uncertainty
Am1 0.9999 0.0032
Am2 0
a/Rs 8.376 0.057
Rp/Rs 0.12255 0.00083
ephemeris [JD] 2459192.57592 0.00039
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.7577235511669524
u1 -4.95966046305995
u2 4.919041562146785
u3 -1.7171045769543563
duration 0.13044 0.00098
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8b6102714c945da2ccb43992a49e6388
Parameter Value Uncertainty
Am1 1.0003 0.0011
Am2 0
a/Rs 8.327 0.086
Rp/Rs 0.1233 0.0013
ephemeris [JD] 2458462.25396 0.00062
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.757658120807962
u1 -4.959456368934866
u2 4.918841592401913
u3 -1.7170432709785572
duration 0.1318 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3bde084b2aa7e2bebd163b85fca0e96e
Parameter Value Uncertainty
Am1 1.0 0.003
Am2 0
a/Rs 8.281 0.057
Rp/Rs 0.12348 0.00077
ephemeris [JD] 2459195.73787 0.0004
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.7576248108529873
u1 -4.958221697920627
u2 4.9166351455630775
u3 -1.7160381852318647
duration 0.1326 0.0011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6d29b52a5a88ca8bbb650b2fa7f7f826
Parameter Value Uncertainty
Am1 1.0 0.0029
Am2 0
a/Rs 8.366 0.052
Rp/Rs 0.12284 0.00079
ephemeris [JD] 2459189.41425 0.00036
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.757670431315469
u1 -4.959367810193685
u2 4.918666067188081
u3 -1.7169686150160293
duration 0.13044 0.00094
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

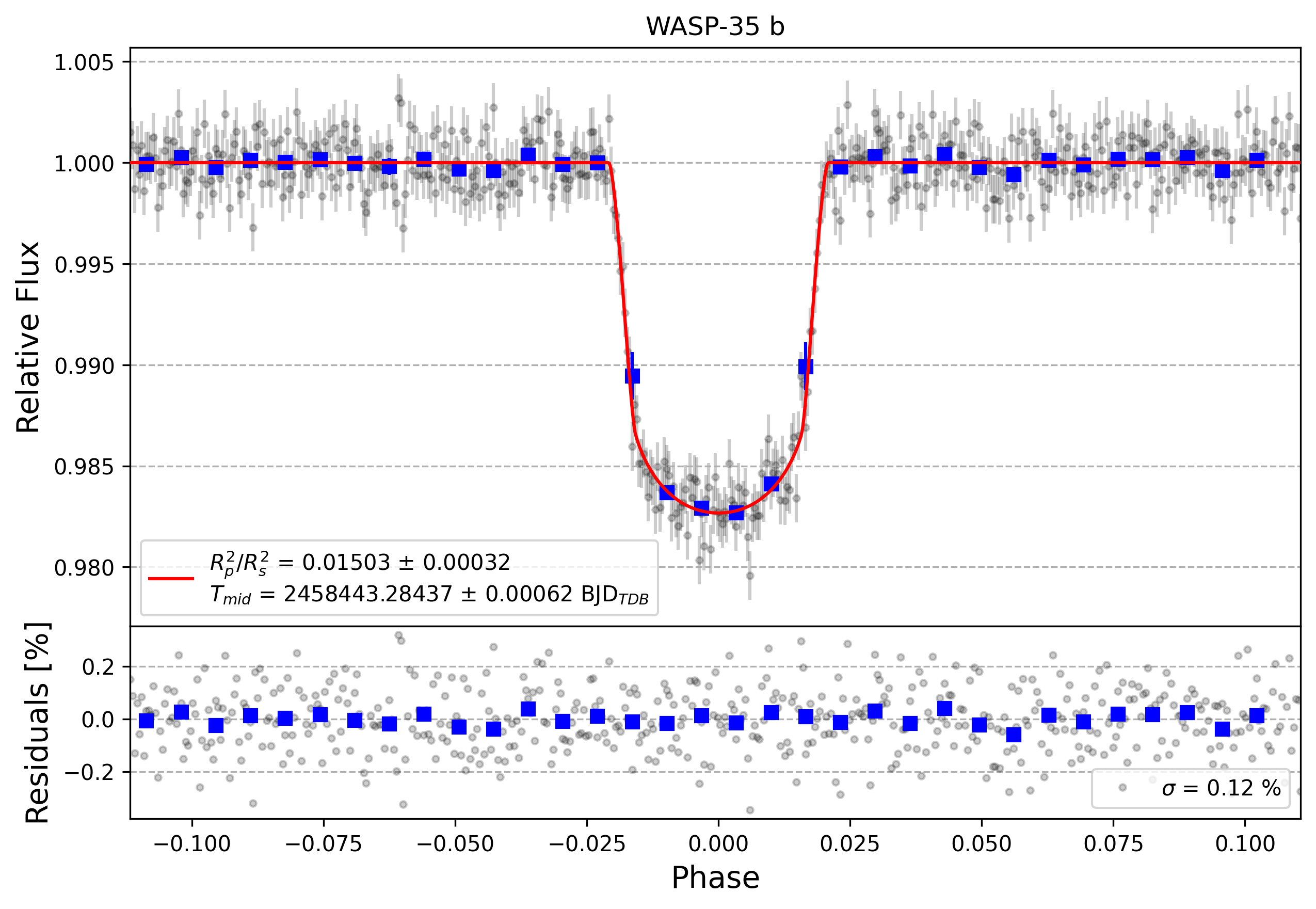

Light curve chart for 8f36954294841bd4eedd31602dede293
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 8.312 0.092
Rp/Rs 0.1226 0.0013
ephemeris [JD] 2458443.28439 0.00064
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.7575924936647542
u1 -4.959547154488222
u2 4.91913142403135
u3 -1.7171766899071113
duration 0.1316 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4f4e03b2006855820d8b6b0451cbbdef
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 8.303 0.092
Rp/Rs 0.1228 0.0013
ephemeris [JD] 2458452.76875 0.00065
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.7571500686327477
u1 -4.958535491889356
u2 4.918256313717276
u3 -1.7168708171729374
duration 0.1318 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b90ae8f8c13972c0ea0d3c17845fe833
Parameter Value Uncertainty
Am1 1.0 0.0029
Am2 0
a/Rs 8.379 0.055
Rp/Rs 0.12303 0.00077
ephemeris [JD] 2459179.92984 0.00038
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.757844500855218
u1 -4.959097661353576
u2 4.917765717719843
u3 -1.7165124839410657
duration 0.13045 0.00098
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a89ee16bc4bf118fddc89a78889905b8
Parameter Value Uncertainty
Am1 1.0001 0.0012
Am2 0
a/Rs 8.351 0.088
Rp/Rs 0.1229 0.0013
ephemeris [JD] 2458459.09196 0.00062
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.7572513675043258
u1 -4.958245665515664
u2 4.917507836334417
u3 -1.7165134650465026
duration 0.1308 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f3dc73a25557810cb4404129fc5395ed
Parameter Value Uncertainty
Am1 1.0001 0.0012
Am2 0
a/Rs 8.38 0.092
Rp/Rs 0.1232 0.0013
ephemeris [JD] 2458455.93071 0.00063
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.757104797306838
u1 -4.958082101441683
u2 4.91758589740047
u3 -1.716608519987885
duration 0.1308 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9d721aa44cf1a6dc1274c11e818bc61a
Parameter Value Uncertainty
Am1 1.0002 0.0029
Am2 0
a/Rs 8.326 0.048
Rp/Rs 0.12329 0.00077
ephemeris [JD] 2459183.09142 0.00035
eccentricity 0.028
inclination [degrees] 88.0
omega [degrees] 0.0
orbital period [days] 3.16156853
u0 2.758222920668567
u1 -4.961160635856261
u2 4.920654998113613
u3 -1.7177172096024451
duration 0.13186 0.00088
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
