WASP-77 A b

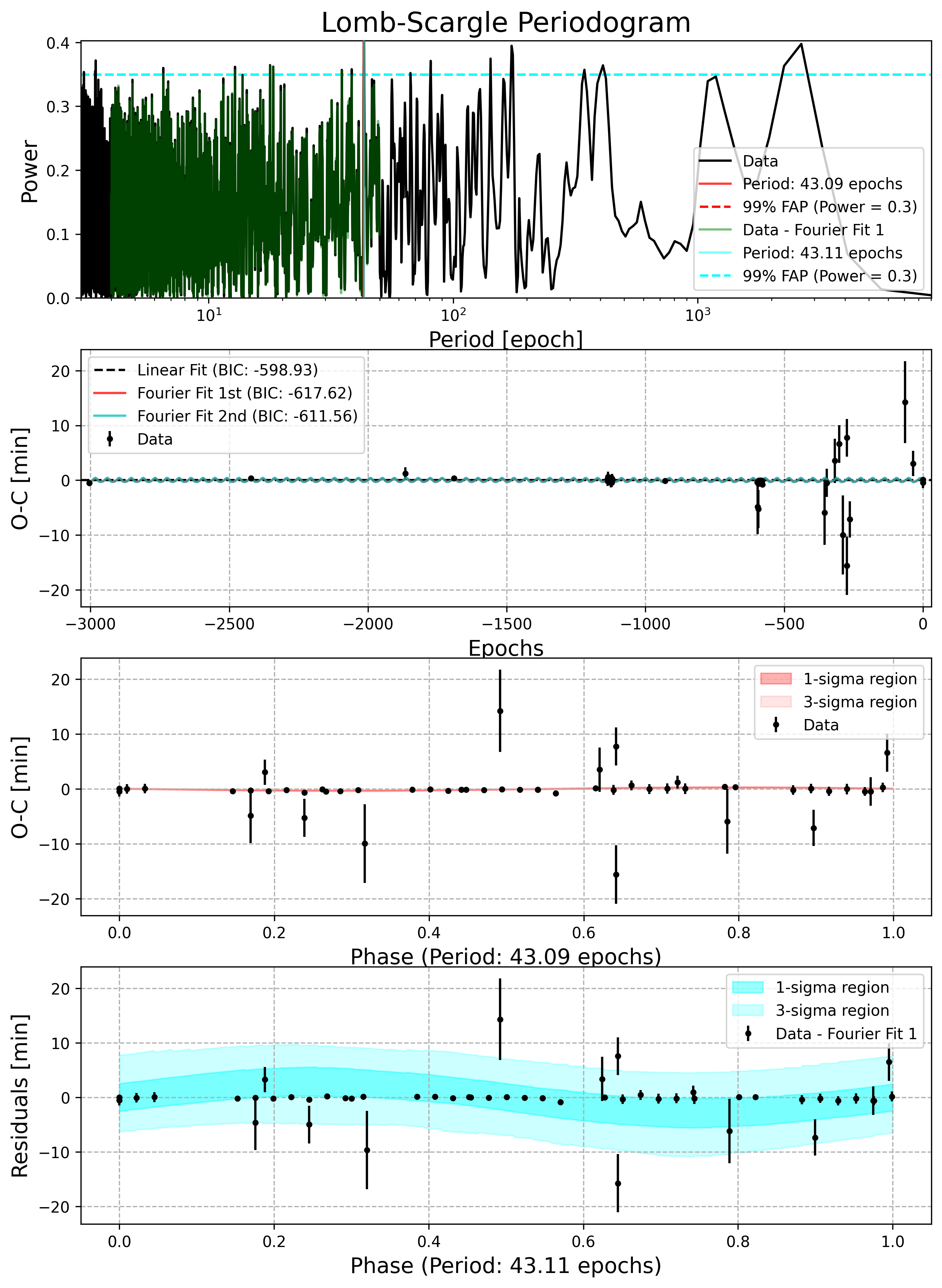

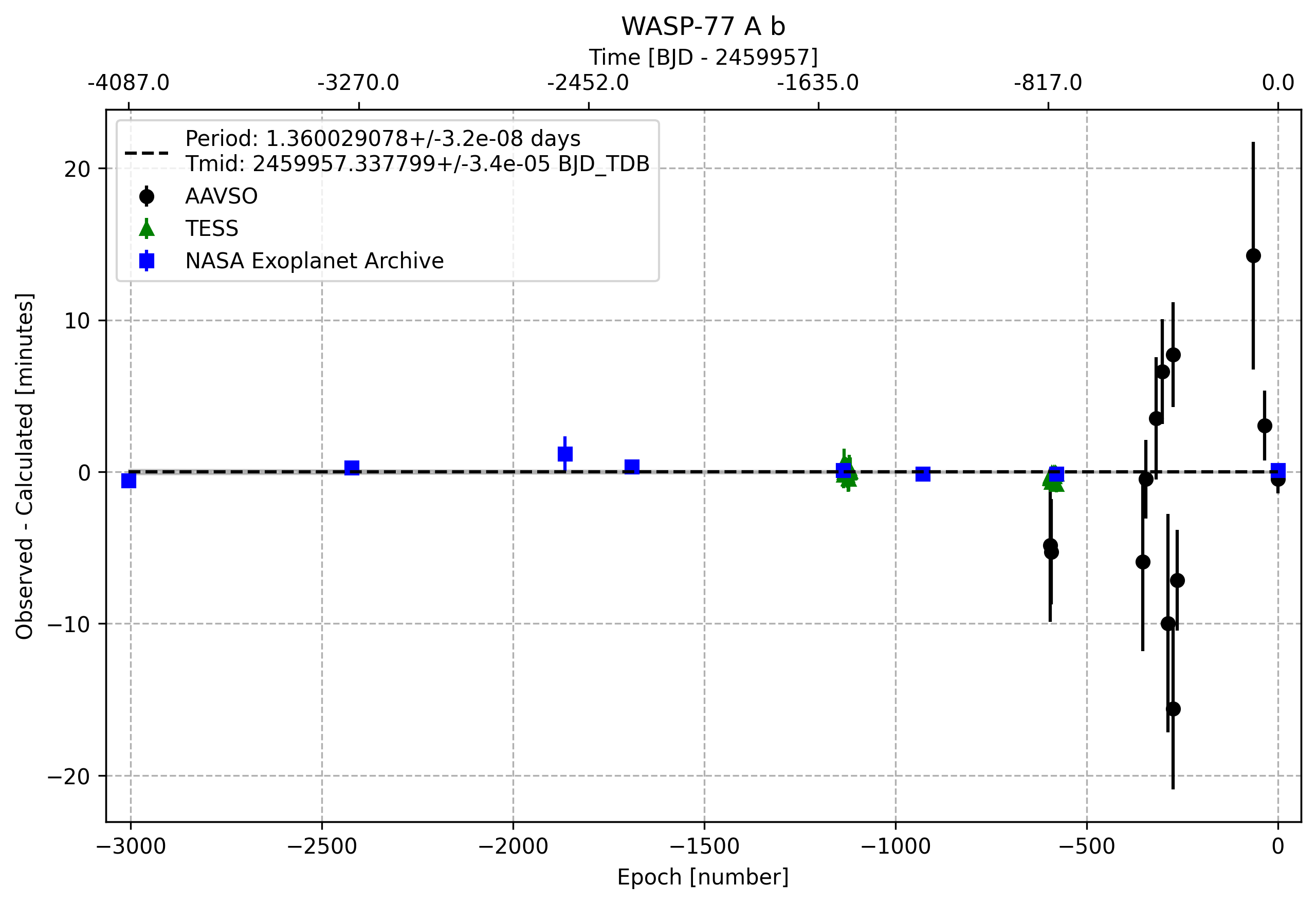

Timing Plot

Total Reductions to Date: 52

Date Processed: 09/06/2025 at 07:00:04 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 1.3600290781983868 3.209558076520149e-08
Ephemeris (BJD_TDB) 2459957.3377985684 3.359286976314694e-05
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 37.1555223 decimal
DEC -7.0606675 decimal
Host Star Metallicity -0.1 0.1 Noguer et al. 2024
Host Star log(g) 4.476 0.014 Log10(cgs) Noguer et al. 2024
Host Star Radius [R_Sun] 0.91 0.025 Sol Noguer et al. 2024
Host Star Effective Temperature [K] 5617.0 72.0 K Noguer et al. 2024
a/Rs 5.490086 9e-06 Noguer et al. 2024
eccentricity 0.01353 0.0006 Noguer et al. 2024
inclination [degrees] 89.99 0.1 deg Noguer et al. 2024
omega [degrees] -88.29 0.24 deg Noguer et al. 2024
orbital period [days] 1.360029395 5.7e-08 day Noguer et al. 2024
Rp 13.79 0.35 R_Earth Cortés-Zuleta et al. 2020
Rp/Rs 0.1335 0 Cortés-Zuleta et al. 2020
ephemeris [JD] 2459957.33786 4.3e-05 BJD-TDB Noguer et al. 2024

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2455870.4500266667 0.00014 BJD, BJD-TDB Bonomo et al. 2017, Turner et al. 2016, Maxted et al. 2013
2456663.34757 0.00012 BJD-TDB Kokori et al. 2022
2457420.88439 0.0008 BJD-TDB Cortés-Zuleta et al. 2020
2457658.8889 0.00014 BJD-TDB Ivshina & Winn 2022
2458410.984807 2.8e-05 BJD-TDB Yalçınkaya et al. 2024
2458693.870688 3.9e-05 BJD-TDB Kokori et al. 2023
2459168.520849 5.56e-05 BJD ExoFOP-TESS TOI
2459957.33786 4.3e-05 BJD-TDB Noguer et al. 2024

Observations

Light curve chart for 0000529
Parameter Value Uncertainty
Am1 23103.68 102.47
Am2 -0.136 0.015
a/Rs 5.490128 2.6e-05
Rp/Rs 0.134 0.048
ephemeris [JD] 2458802.672 0.011
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.995509033201196
u1 -3.616568414692883
u2 4.145251337726491
u3 -1.524191894465746
duration 0.0914 0.0038
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)

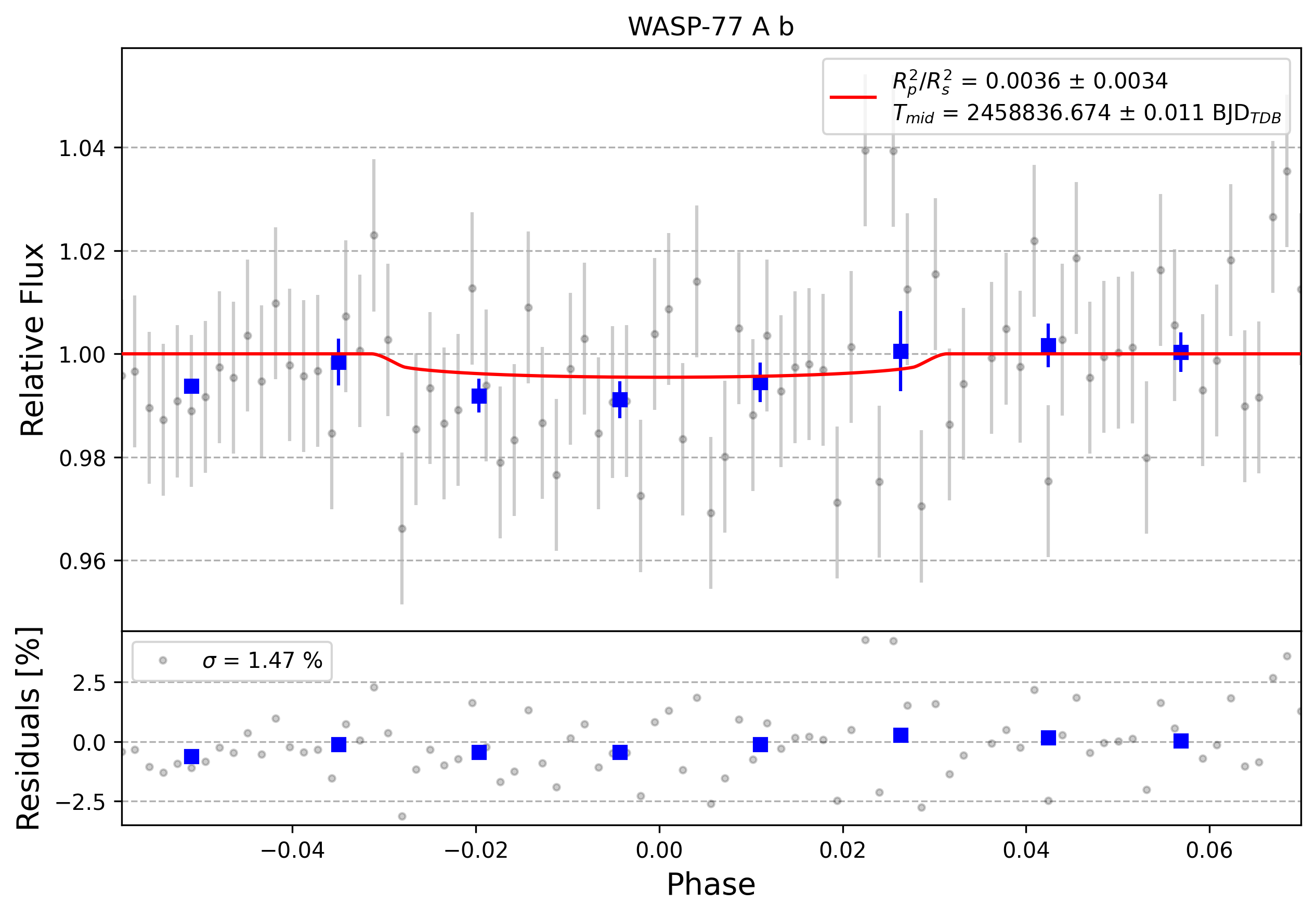

Light curve chart for 0000523
Parameter Value Uncertainty
Am1 1.921 0.028
Am2 0.065 0.033
a/Rs 5.490045 2.6e-05
Rp/Rs 0.06 0.028
ephemeris [JD] 2458836.674 0.011
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.9957480513444668
u1 -3.6169003635198433
u2 4.1455851332805915
u3 -1.5244327593311828
duration 0.0851 0.0022
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)

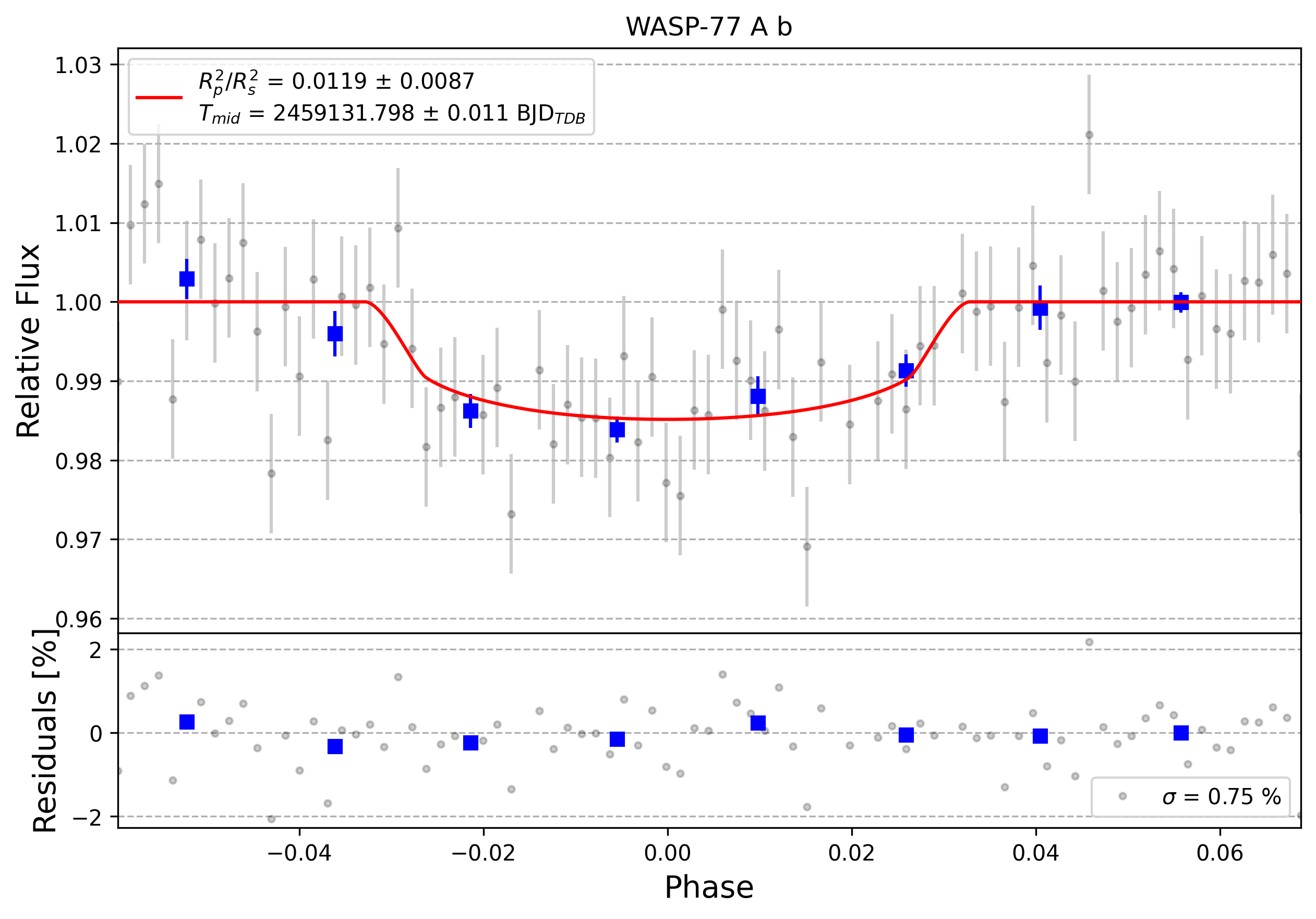

Light curve chart for 0000511
Parameter Value Uncertainty
Am1 18521.3 142.25
Am2 -0.126 0.015
a/Rs 5.490107 2.6e-05
Rp/Rs 0.109 0.04
ephemeris [JD] 2459131.798 0.011
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.9920346351505267
u1 -3.6045599893901503
u2 4.131978409013775
u3 -1.5194529932028744
duration 0.0892 0.0033
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0000517
Parameter Value Uncertainty
Am1 0.928 0.0086
Am2 0.0045 0.005
a/Rs 5.490122 2.5e-05
Rp/Rs 0.1242 0.0086
ephemeris [JD] 2459146.7571 0.0035
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.9918915561282458
u1 -3.6041620439834205
u2 4.1315152837470155
u3 -1.519244734327465
duration 0.09047 0.00071
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)
Light curve chart for 0000522
Parameter Value Uncertainty
Am1 1.949 0.013
Am2 0.0139 0.0077
a/Rs 5.490075 2.6e-05
Rp/Rs 0.1241 0.0073
ephemeris [JD] 2459150.8369 0.0024
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.9920397157005916
u1 -3.6046897497409587
u2 4.132163622903477
u3 -1.5195135272890736
duration 0.09041 0.00059
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)

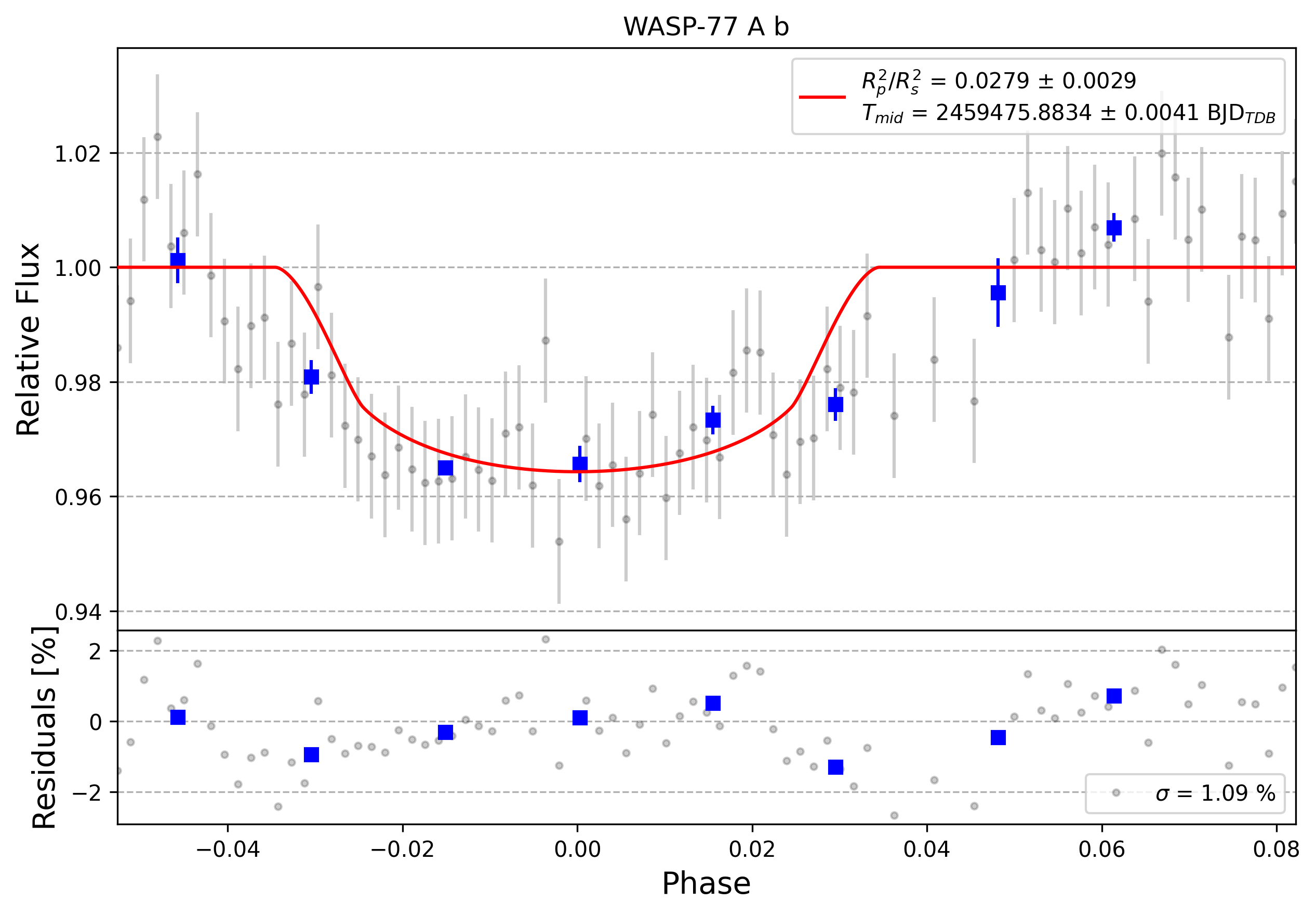

Light curve chart for 0001051
Parameter Value Uncertainty
Am1 1.101 0.012
Am2 -0.075 0.019
a/Rs 5.490044 2.6e-05
Rp/Rs 0.1669 0.0087
ephemeris [JD] 2459475.8834 0.0041
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.721254689289075
u1 -2.9961291894021036
u2 3.644919888752781
u3 -1.3700453343262136
duration 0.09397 0.0007
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO BTSB (collaborate/publish) MOBS
Light curve chart for 0002408
Parameter Value Uncertainty
Am1 1.0034 0.007
Am2 -0.0017 0.0012
a/Rs 5.49011 2.6e-05
Rp/Rs 0.1282 0.0062
ephemeris [JD] 2459486.7674 0.0018
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.9957373810037633
u1 -3.617534630149678
u2 4.146605967223285
u3 -1.5248086562881262
duration 0.09081 0.00051
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0001138
Parameter Value Uncertainty
Am1 0.9386 0.0079
Am2 0.039 0.0056
a/Rs 5.490119 2.6e-05
Rp/Rs 0.109 0.012
ephemeris [JD] 2459524.851 0.0028
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.9953476091968054
u1 -3.615730361377175
u2 4.144187225334036
u3 -1.523804411400465
duration 0.0893 0.00094
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS

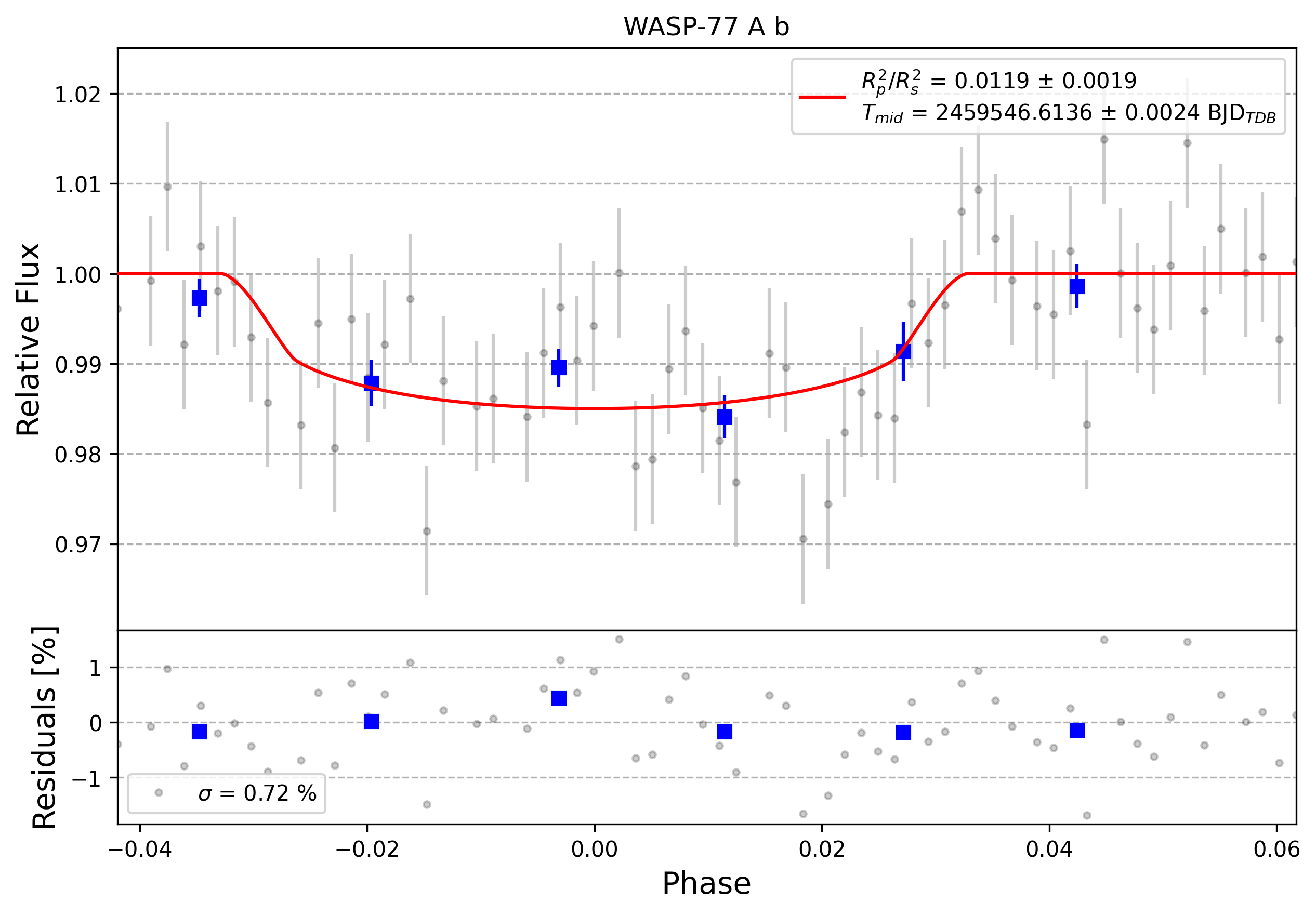

Light curve chart for 0002409
Parameter Value Uncertainty
Am1 0.9994 0.0072
Am2 -0.0 0.0031
a/Rs 5.490111 2.6e-05
Rp/Rs 0.109 0.0088
ephemeris [JD] 2459546.6136 0.0024
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.9919886264650903
u1 -3.6052673053451336
u2 4.133074523911344
u3 -1.5197957834436915
duration 0.0892 0.00069
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS

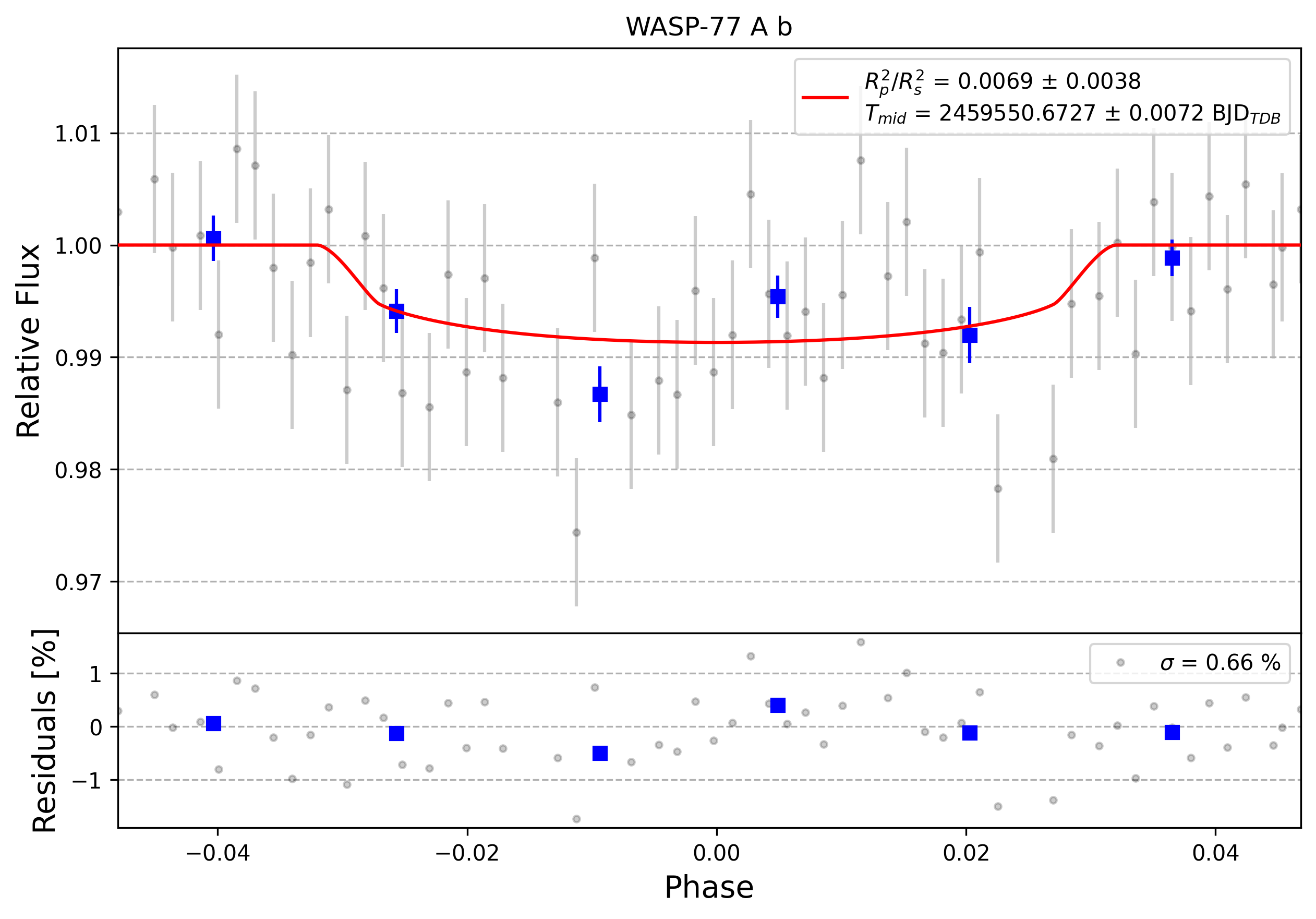

Light curve chart for 0002410
Parameter Value Uncertainty
Am1 0.9907 0.0066
Am2 0.008 0.012
a/Rs 5.490046 2.6e-05
Rp/Rs 0.083 0.023
ephemeris [JD] 2459550.6727 0.0072
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.992168083513055
u1 -3.6048350612406765
u2 4.132300101281828
u3 -1.5196330619781362
duration 0.0872 0.0019
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0001530
Parameter Value Uncertainty
Am1 1.1332 0.0097
Am2 -0.082 0.028
a/Rs 5.490067 2.6e-05
Rp/Rs 0.078 0.036
ephemeris [JD] 2459550.687 0.011
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.7211794957286966
u1 -2.9948919900463378
u2 3.6431070005019386
u3 -1.3693944518977728
duration 0.068 0.011
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

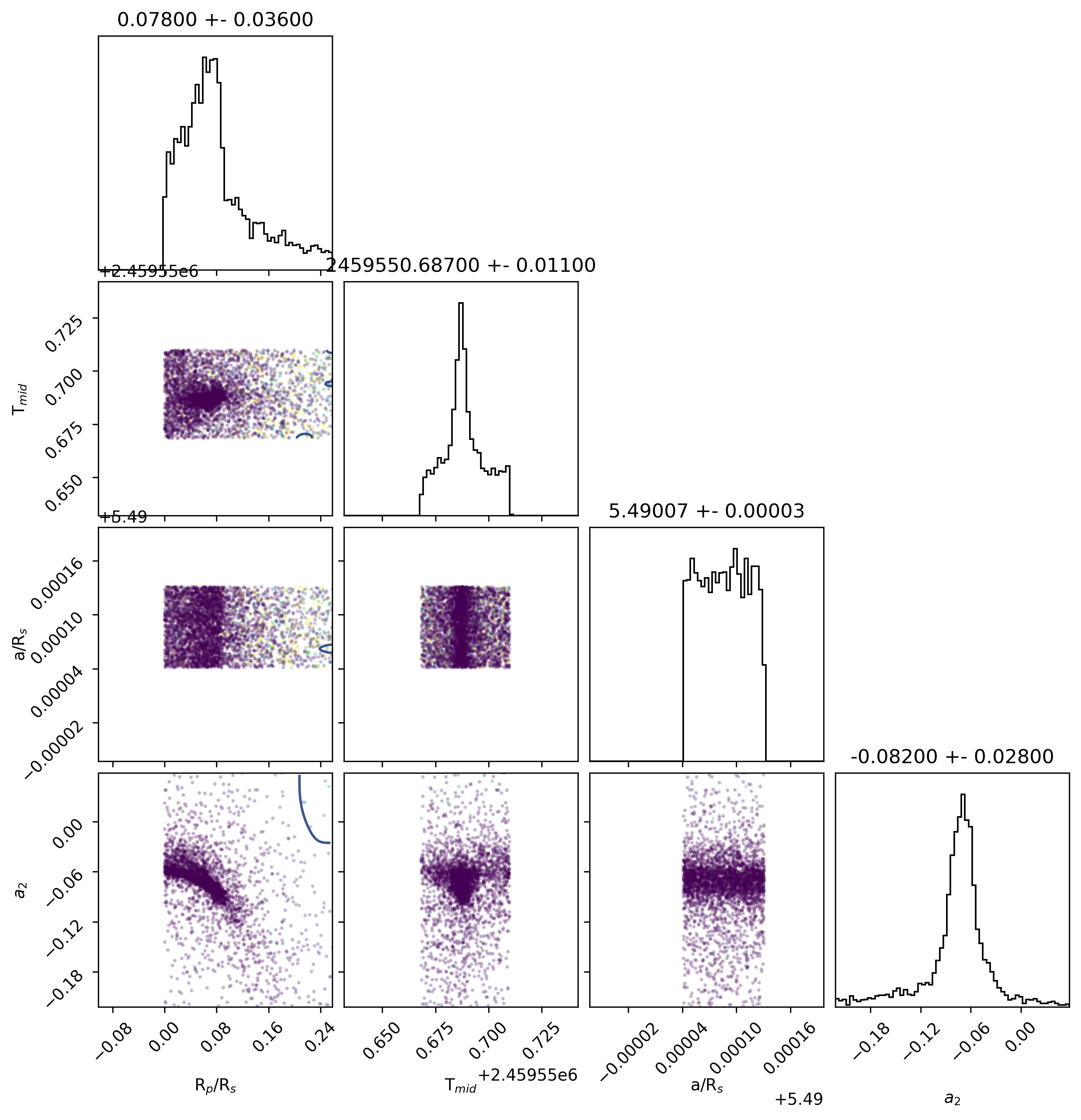

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO GSAD (collaborate/publish) MOBS

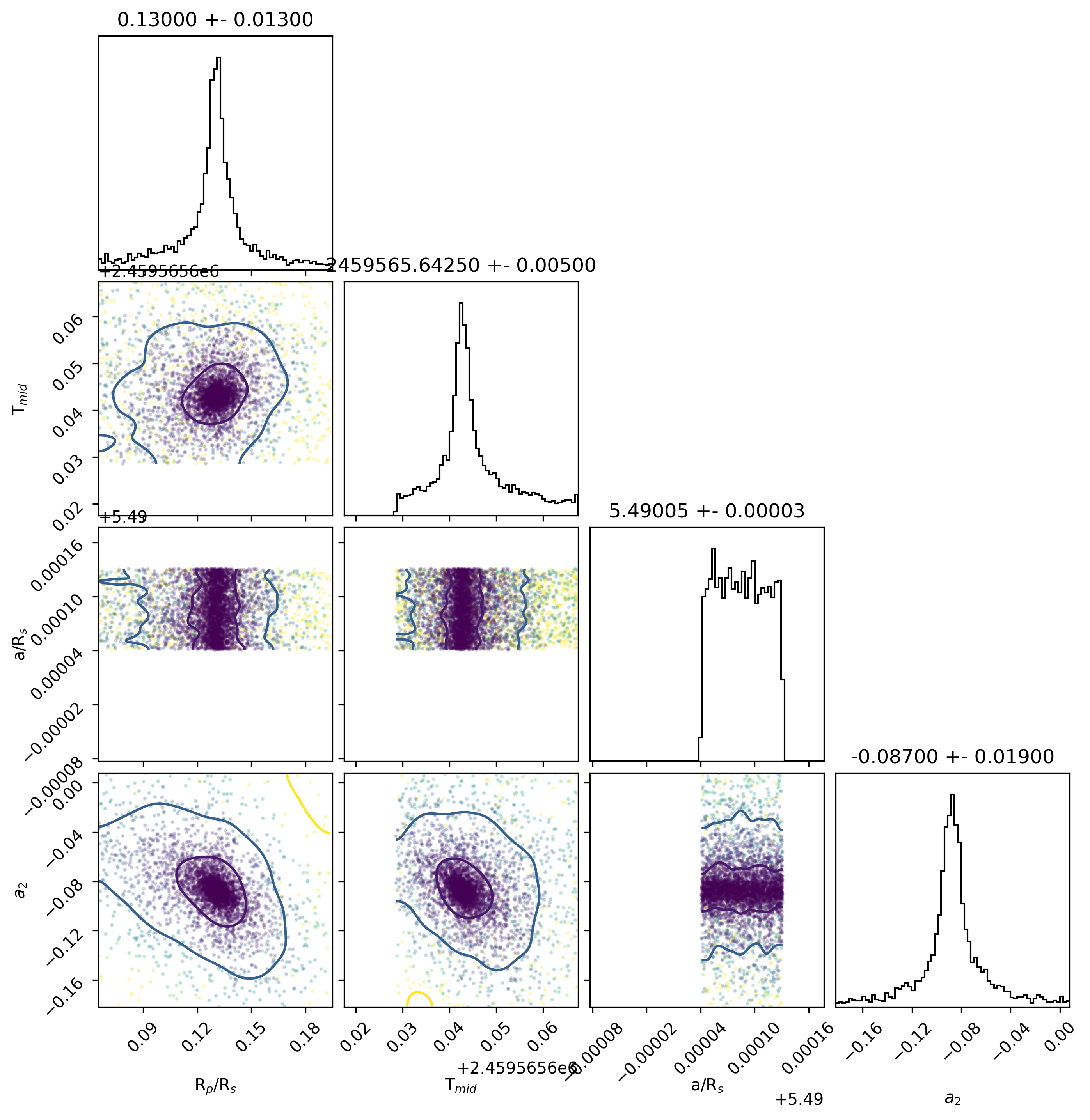

Light curve chart for 0001164
Parameter Value Uncertainty
Am1 1.134 0.011
Am2 -0.087 0.019
a/Rs 5.490047 2.6e-05
Rp/Rs 0.13 0.013
ephemeris [JD] 2459565.6425 0.005
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.9955117236672129
u1 -3.6165256149753553
u2 4.145234342767464
u3 -1.524220389690516
duration 0.0909 0.0011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0001176
Parameter Value Uncertainty
Am1 0.9669 0.0075
Am2 0.0214 0.0048
a/Rs 5.490123 2.6e-05
Rp/Rs 0.1338 0.0072
ephemeris [JD] 2459584.6952 0.0024
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.9954999529692925
u1 -3.615886350297496
u2 4.144313257864782
u3 -1.5239267987814995
duration 0.09126 0.00058
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0001165
Parameter Value Uncertainty
Am1 0.99 0.013
Am2 0.0066 0.0056
a/Rs 5.49005 2.6e-05
Rp/Rs 0.138 0.012
ephemeris [JD] 2459584.679 0.0037
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.995924952520577
u1 -3.617694549180457
u2 4.146669230412534
u3 -1.5248995719624663
duration 0.09155 0.00097
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish) MOBS
Light curve chart for 0002411
Parameter Value Uncertainty
Am1 1.0012 0.0075
Am2 -0.0001 0.0065
a/Rs 5.490063 2.6e-05
Rp/Rs 0.1339 0.0059
ephemeris [JD] 2459599.6452 0.0023
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.9953580550824441
u1 -3.6158267839722162
u2 4.1442535694239995
u3 -1.523784778780036
duration 0.09122 0.00049
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0002086
Parameter Value Uncertainty
Am1 0.984 0.062
Am2 0.02 0.14
a/Rs 5.490115 2.6e-05
Rp/Rs 0.202 0.068
ephemeris [JD] 2459867.5817 0.0086
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.721783401541542
u1 -2.996702222685262
u2 3.6451303368579944
u3 -1.3702114613975995
duration 0.0969 0.0056
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO DJEI (collaborate/publish)
Light curve chart for 0004790
Parameter Value Uncertainty
Am1 0.967 0.022
Am2 0.0192 0.0063
a/Rs 5.490109 2.6e-05
Rp/Rs 0.12 0.012
ephemeris [JD] 2459868.9458 0.0052
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.535971938068427
u1 -4.534713243911504
u2 4.627442431241565
u3 -1.6287010564442226
duration 0.0902 0.00098
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
SI Sloan i 697.5 nm 827.5 nm
Organization Observer Code Secondary Observers
AAVSO QMAA (collaborate/publish)

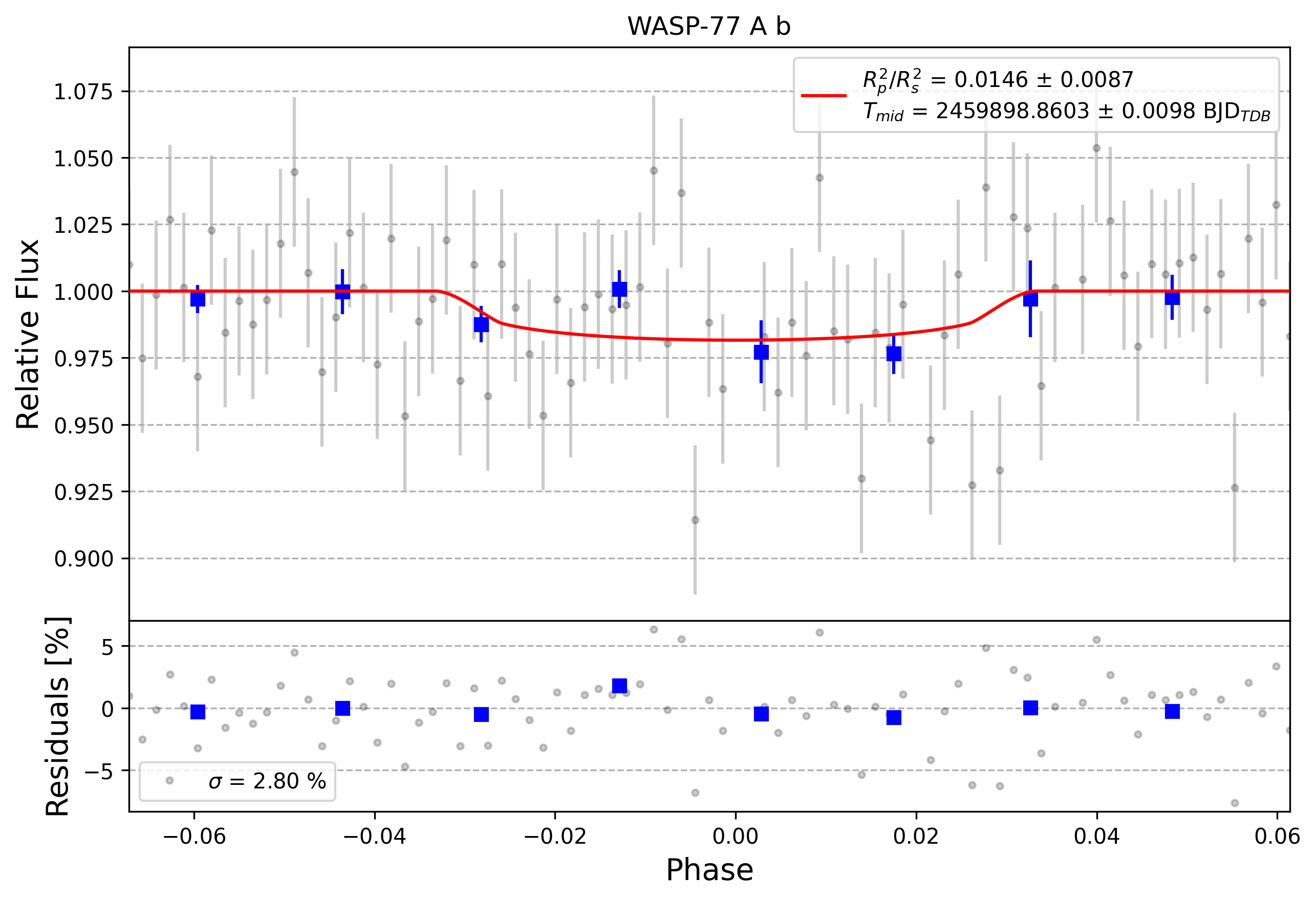

Light curve chart for 0002125
Parameter Value Uncertainty
Am1 0.954 0.027
Am2 0.0227 0.0066
a/Rs 5.490041 2.6e-05
Rp/Rs 0.121 0.036
ephemeris [JD] 2459898.8603 0.0098
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.992274658576928
u1 -3.605667256719105
u2 4.133410758212584
u3 -1.5200180984777871
duration 0.0902 0.0028
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO OAS (collaborate/publish) MOBS
Light curve chart for 0002313
Parameter Value Uncertainty
Am1 1.155 0.0071
Am2 -0.098 0.022
a/Rs 5.490048 2.6e-05
Rp/Rs 0.066 0.02
ephemeris [JD] 2459905.6537 0.0074
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.641547481756986
u1 -4.753766298699016
u2 4.787907858015777
u3 -1.6756889697283595
duration 0.0847 0.0039
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
AAVSO DLMA (collaborate/publish) RWEA
Light curve chart for 0002216
Parameter Value Uncertainty
Am1 1.239 0.012
Am2 -0.132 0.01
a/Rs 5.49006 2.5e-05
Rp/Rs 0.1401 0.0077
ephemeris [JD] 2459909.7389 0.0016
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 1.9955823378787898
u1 -3.6164002949284493
u2 4.144991158384411
u3 -1.5241731395695695
duration 0.09175 0.00064
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO PJAE (collaborate/publish)
Light curve chart for 0002931
Parameter Value Uncertainty
Am1 1.0222 0.0033
Am2 -0.0135 0.0025
a/Rs 5.490052 2.6e-05
Rp/Rs 0.1333 0.0025
ephemeris [JD] 2459957.33748 0.00067
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.038046492183
u1 -3.530092221151489
u2 3.923341116768672
u3 -1.431295329337845
duration 0.09127 0.00022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
SR Sloan r 553.1 nm 693.1 nm
Organization Observer Code Secondary Observers
AAVSO SAJB (collaborate/publish)
Light curve chart for 0004709
Parameter Value Uncertainty
Am1 0.9996 0.0072
Am2 -0.0046 0.0069
a/Rs 5.490046 2.6e-05
Rp/Rs 0.1233 0.0034
ephemeris [JD] 2460170.8509 0.0023
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.2816291057433062
u1 -3.9815865141537423
u2 4.1989681823810105
u3 -1.499010711401073
duration 0.0904 0.00029
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
RJ Johnson R 590.0 nm 810.0 nm
Organization Observer Code Secondary Observers
AAVSO HTAA (collaborate/publish)

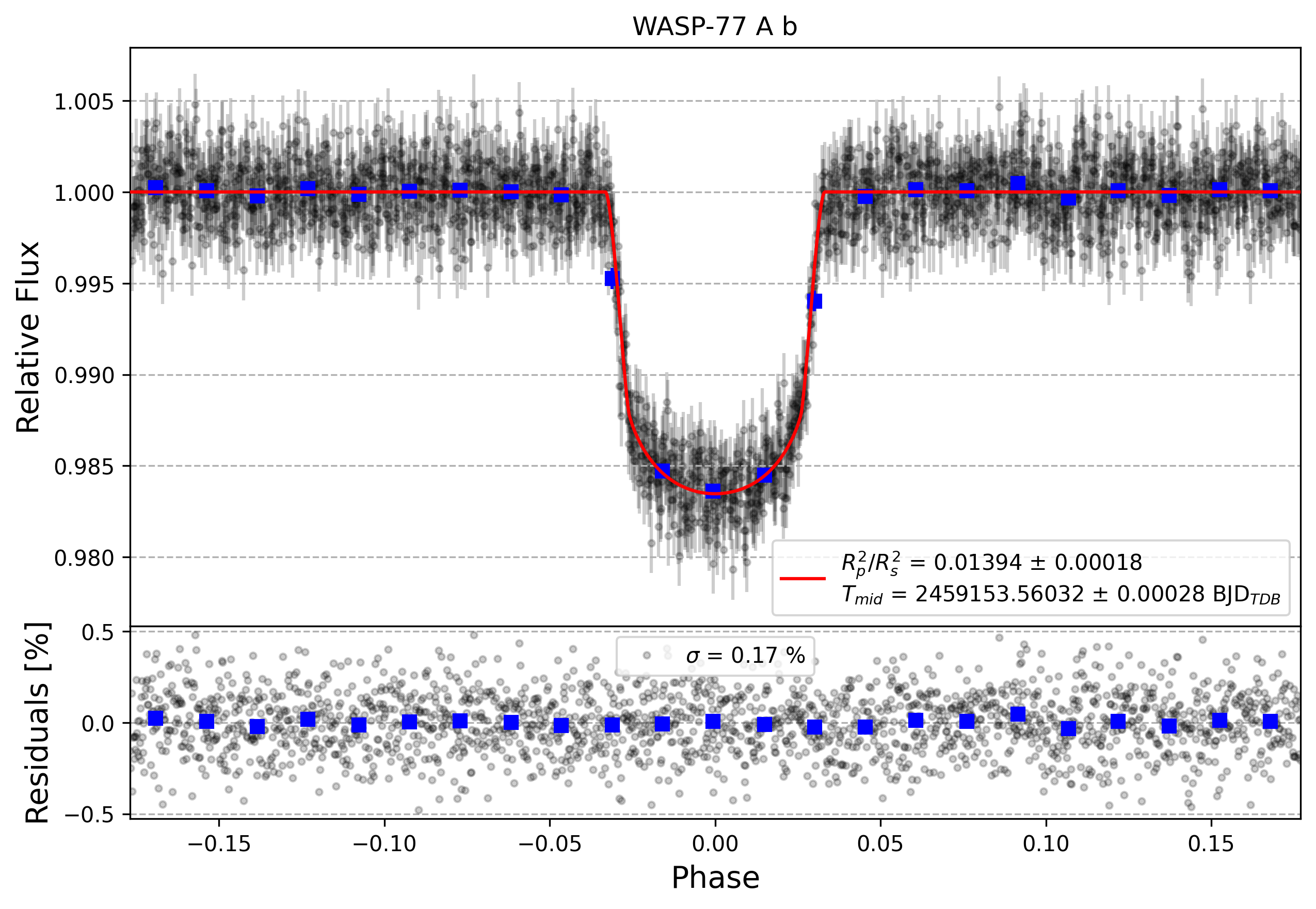

Light curve chart for 67076b307befc340f13c66310a263f22
Parameter Value Uncertainty
Am1 0.9999 0.0017
Am2 0
a/Rs 5.490051 2.6e-05
Rp/Rs 0.11807 0.00078
ephemeris [JD] 2459153.56032 0.00028
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.641686275074919
u1 -4.754250201087011
u2 4.788513022858139
u3 -1.6759490254916423
duration 0.09008 0.0002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 97d785eee93c716b113bf255315b8caf
Parameter Value Uncertainty
Am1 1.0001 0.0016
Am2 0
a/Rs 5.490058 2.6e-05
Rp/Rs 0.11675 0.00078
ephemeris [JD] 2459148.1202 0.00027
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.643189862952986
u1 -4.758978036515652
u2 4.793937853483717
u3 -1.6781496084858105
duration 0.09013 0.00024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0b53af99bb05f7e32323c2d46a3f2f2f
Parameter Value Uncertainty
Am1 1.0002 0.0017
Am2 0
a/Rs 5.490075 2.6e-05
Rp/Rs 0.11722 0.00076
ephemeris [JD] 2459152.20054 0.00027
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6421649892010217
u1 -4.755829630155914
u2 4.790343397622235
u3 -1.6766786852856628
duration 0.09013 0.00024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a50e326d84c154d9f27f26b77e980cb6
Parameter Value Uncertainty
Am1 0.9998 0.0017
Am2 0
a/Rs 5.490095 2.6e-05
Rp/Rs 0.11812 0.00076
ephemeris [JD] 2459154.92052 0.00027
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6433141415119707
u1 -4.758715780064547
u2 4.793358395825624
u3 -1.6779566858464423
duration 0.09013 0.00022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 9a51c38fde6796135172e53d90554a80
Parameter Value Uncertainty
Am1 0.99996 0.00077
Am2 0
a/Rs 5.490064 2.6e-05
Rp/Rs 0.116 0.0016
ephemeris [JD] 2458435.46529 0.00062
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6427015700733603
u1 -4.7574459521664885
u2 4.792181203563137
u3 -1.6774367500609446
duration 0.08969 0.00024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0b11e9aff85058d05e6ddf1b373248e1
Parameter Value Uncertainty
Am1 1.00003 0.00076
Am2 0
a/Rs 5.490077 2.6e-05
Rp/Rs 0.1173 0.0016
ephemeris [JD] 2458413.70522 0.00063
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6418400413292815
u1 -4.75491556534288
u2 4.789319589446285
u3 -1.6762439940662643
duration 0.08987 0.00022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

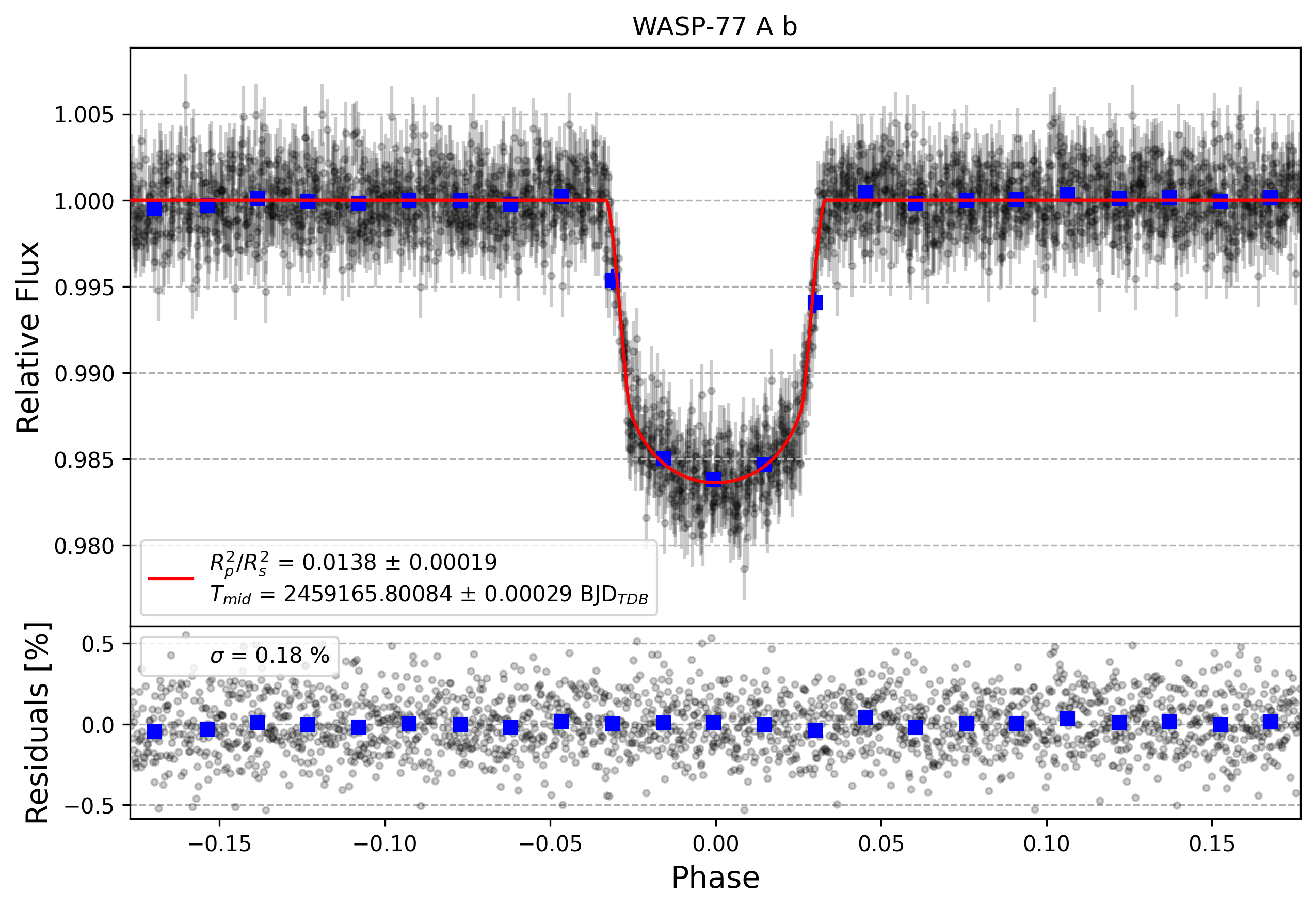

Light curve chart for 4a124af5db0b7a05e580bdc35ffe13db
Parameter Value Uncertainty
Am1 1.0 0.0018
Am2 0
a/Rs 5.490103 2.6e-05
Rp/Rs 0.11749 0.0008
ephemeris [JD] 2459165.80084 0.00029
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6425094205328246
u1 -4.75657517061287
u2 4.791046346286359
u3 -1.6769805248141592
duration 0.09008 0.00022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 67591796601d377cb31a0128bd6c4c7a
Parameter Value Uncertainty
Am1 0.99984 0.00081
Am2 0
a/Rs 5.490118 2.6e-05
Rp/Rs 0.1171 0.0016
ephemeris [JD] 2458430.02511 0.00067
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.641608683876084
u1 -4.753884076742355
u2 4.787986026416269
u3 -1.6757105622034465
duration 0.08969 0.00024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

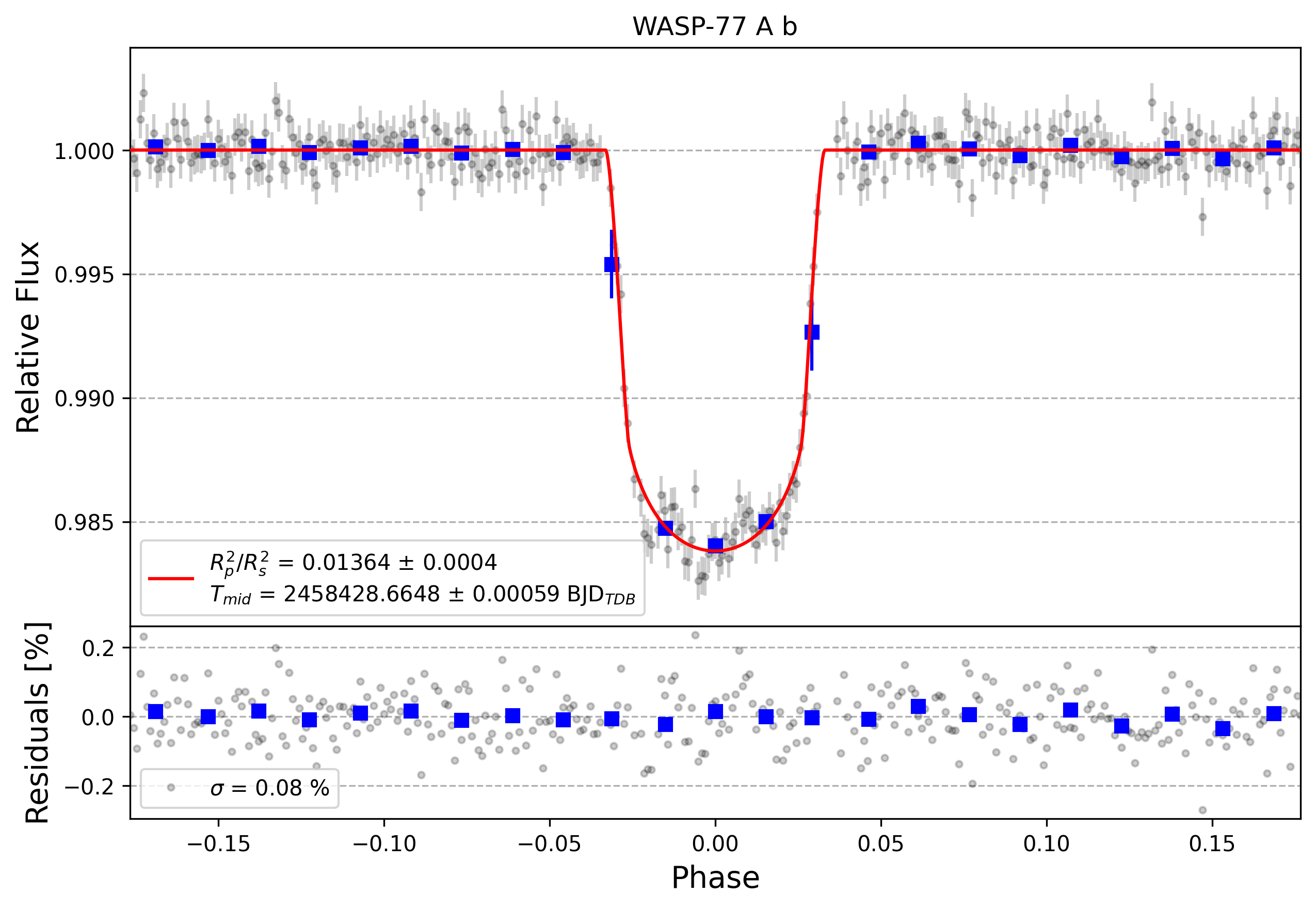

Light curve chart for dbfe43ca243955b811aee3fea7114dbb
Parameter Value Uncertainty
Am1 0.99975 0.00077
Am2 0
a/Rs 5.490107 2.6e-05
Rp/Rs 0.1168 0.0017
ephemeris [JD] 2458428.6648 0.00059
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6420754847059684
u1 -4.755376458248667
u2 4.7897799293715115
u3 -1.67647888445553
duration 0.08995 0.00023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for bd26bf621727514aade86634dfcc74b8
Parameter Value Uncertainty
Am1 1.00028 0.00079
Am2 0
a/Rs 5.490046 2.6e-05
Rp/Rs 0.1173 0.0017
ephemeris [JD] 2458425.94492 0.0006
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6429850209429477
u1 -4.75808591508989
u2 4.792806890618704
u3 -1.6777059250533726
duration 0.08995 0.00023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 624b78cc0fb3bbf59d20fcfc6ef18198
Parameter Value Uncertainty
Am1 1.0001 0.0017
Am2 0
a/Rs 5.490099 2.6e-05
Rp/Rs 0.11711 0.00079
ephemeris [JD] 2459146.76029 0.00028
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.643170161613458
u1 -4.75847554589288
u2 4.793279649176867
u3 -1.6779741934720125
duration 0.09008 0.00023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 53c39cb36e0aabad65c997636e218f75
Parameter Value Uncertainty
Am1 1.0 0.0017
Am2 0
a/Rs 5.490046 2.6e-05
Rp/Rs 0.1173 0.001
ephemeris [JD] 2459159.00064 0.00034
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6424921407314814
u1 -4.756732637371962
u2 4.791305779105535
u3 -1.677065211069035
duration 0.08981 0.00017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

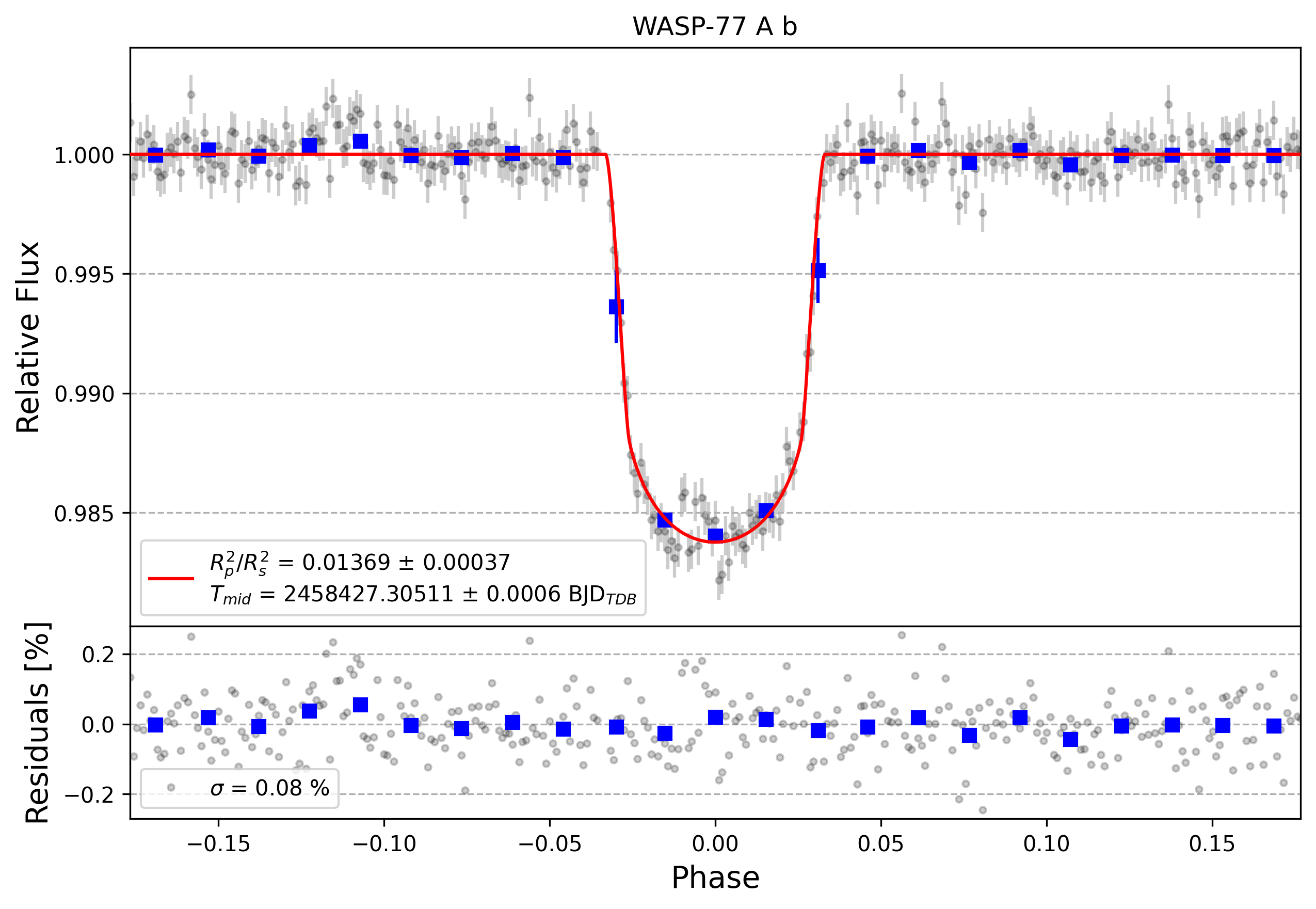

Light curve chart for f4af6efc3b8e29944e52b16be2a6e883
Parameter Value Uncertainty
Am1 0.99989 0.00082
Am2 0
a/Rs 5.490043 2.5e-05
Rp/Rs 0.117 0.0016
ephemeris [JD] 2458427.30511 0.0006
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6422427048912644
u1 -4.756202970388669
u2 4.79086486954623
u3 -1.6769045326593761
duration 0.08995 0.00024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for bb148467d4d72d70884667216caa6e4f
Parameter Value Uncertainty
Am1 0.99975 0.00087
Am2 0
a/Rs 5.490042 2.6e-05
Rp/Rs 0.1176 0.0017
ephemeris [JD] 2458412.34463 0.00062
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6421476332749942
u1 -4.755578400377704
u2 4.789941012162944
u3 -1.6765101736845511
duration 0.09017 0.00025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 191e48c1e61df9a28a192a9ca39a7b9f
Parameter Value Uncertainty
Am1 0.9998 0.0016
Am2 0
a/Rs 5.490124 2.6e-05
Rp/Rs 0.11771 0.00077
ephemeris [JD] 2459145.40016 0.00027
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6414555143022174
u1 -4.753316038944028
u2 4.787249269144605
u3 -1.6753886731672214
duration 0.09004 0.0002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 792f355ede31a3e762b7c5d62924a302
Parameter Value Uncertainty
Am1 1.00025 0.00075
Am2 0
a/Rs 5.490097 2.6e-05
Rp/Rs 0.1183 0.0017
ephemeris [JD] 2458434.10522 0.00061
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6419279330222603
u1 -4.75437226160252
u2 4.7883302420954985
u3 -1.6758858421635576
duration 0.08995 0.00023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3fe225be218c7f787d11c22149779bd2
Parameter Value Uncertainty
Am1 1.0002 0.0017
Am2 0
a/Rs 5.490048 2.6e-05
Rp/Rs 0.11788 0.00077
ephemeris [JD] 2459163.0807 0.00028
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.642045308431187
u1 -4.7554405417662755
u2 4.790031050384172
u3 -1.6766357456720593
duration 0.09008 0.00021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 055851241cfc04c37cf448d78f3a00eb
Parameter Value Uncertainty
Am1 0.99997 0.00083
Am2 0
a/Rs 5.490062 2.7e-05
Rp/Rs 0.1182 0.0017
ephemeris [JD] 2458415.0648 0.00063
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.642330102957383
u1 -4.756384945535897
u2 4.791128643771774
u3 -1.6770737297998797
duration 0.08995 0.00023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 067c925ef4db32cd8140c56741f5d24d
Parameter Value Uncertainty
Am1 0.9999 0.0016
Am2 0
a/Rs 5.490103 2.6e-05
Rp/Rs 0.11696 0.00077
ephemeris [JD] 2459160.36071 0.00027
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.643072500784918
u1 -4.758250877689244
u2 4.792965231370037
u3 -1.6777867830449629
duration 0.09008 0.00024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

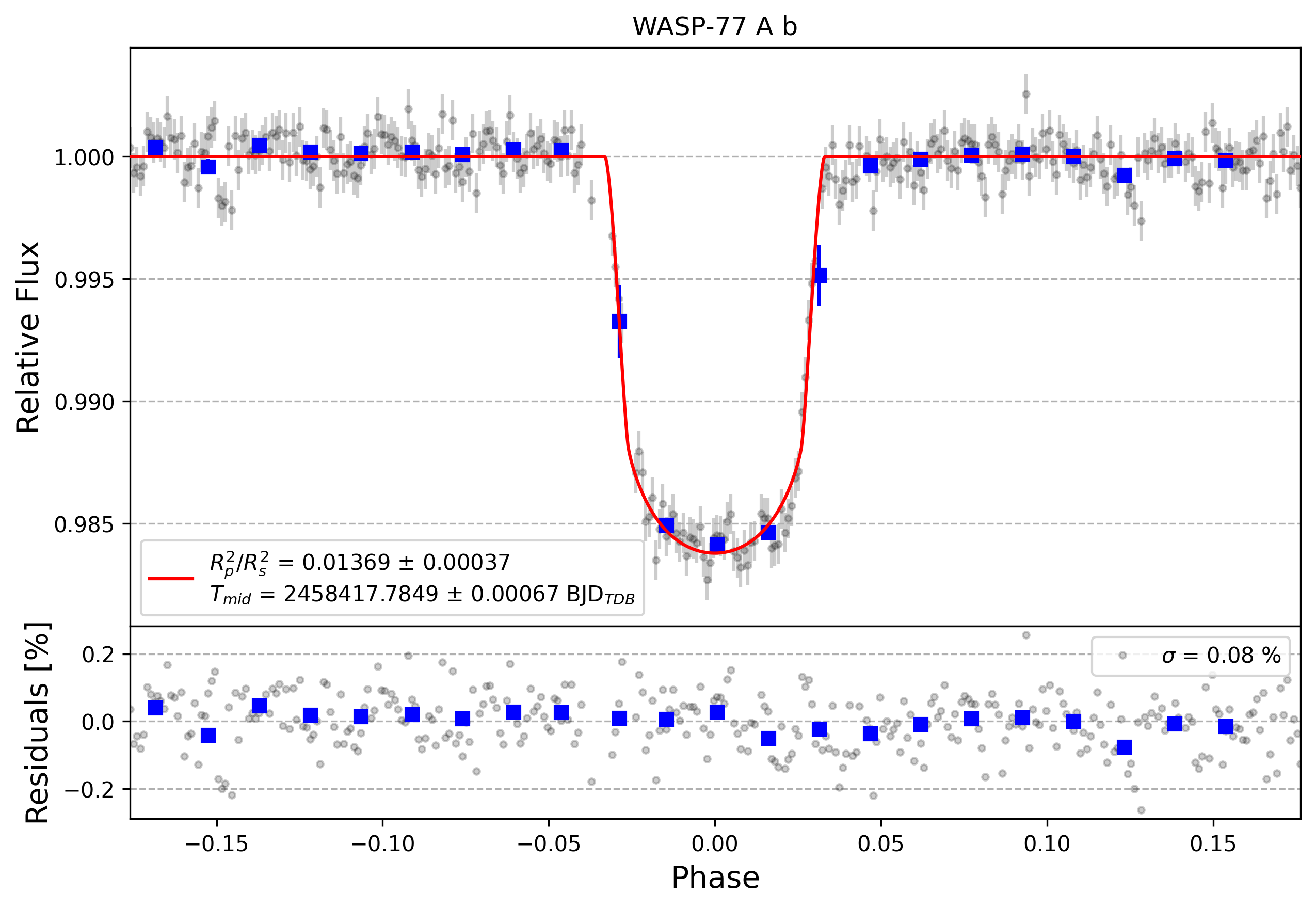

Light curve chart for 0fbf8be7aaed7397599468c1b8bde5b7
Parameter Value Uncertainty
Am1 0.99994 0.00082
Am2 0
a/Rs 5.49012 2.6e-05
Rp/Rs 0.117 0.0016
ephemeris [JD] 2458417.7849 0.00067
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.642847060038934
u1 -4.75720297518254
u2 4.791506392288348
u3 -1.6771504057457327
duration 0.08969 0.00025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fd62b136ced394ad3dbd3bae7354cbd4
Parameter Value Uncertainty
Am1 1.0 0.0017
Am2 0
a/Rs 5.490129 2.6e-05
Rp/Rs 0.11678 0.00079
ephemeris [JD] 2459150.84009 0.00028
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.641982771280792
u1 -4.754786600631152
u2 4.7889468078460045
u3 -1.6761429071347762
duration 0.09008 0.00024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 7d4a650f4d9be371b1b0d5d292bdaec1
Parameter Value Uncertainty
Am1 1.0001 0.0017
Am2 0
a/Rs 5.490109 2.5e-05
Rp/Rs 0.11792 0.00074
ephemeris [JD] 2459161.72057 0.00028
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.641934489244626
u1 -4.754568925012844
u2 4.788643046434892
u3 -1.6760085393103328
duration 0.09013 0.00022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

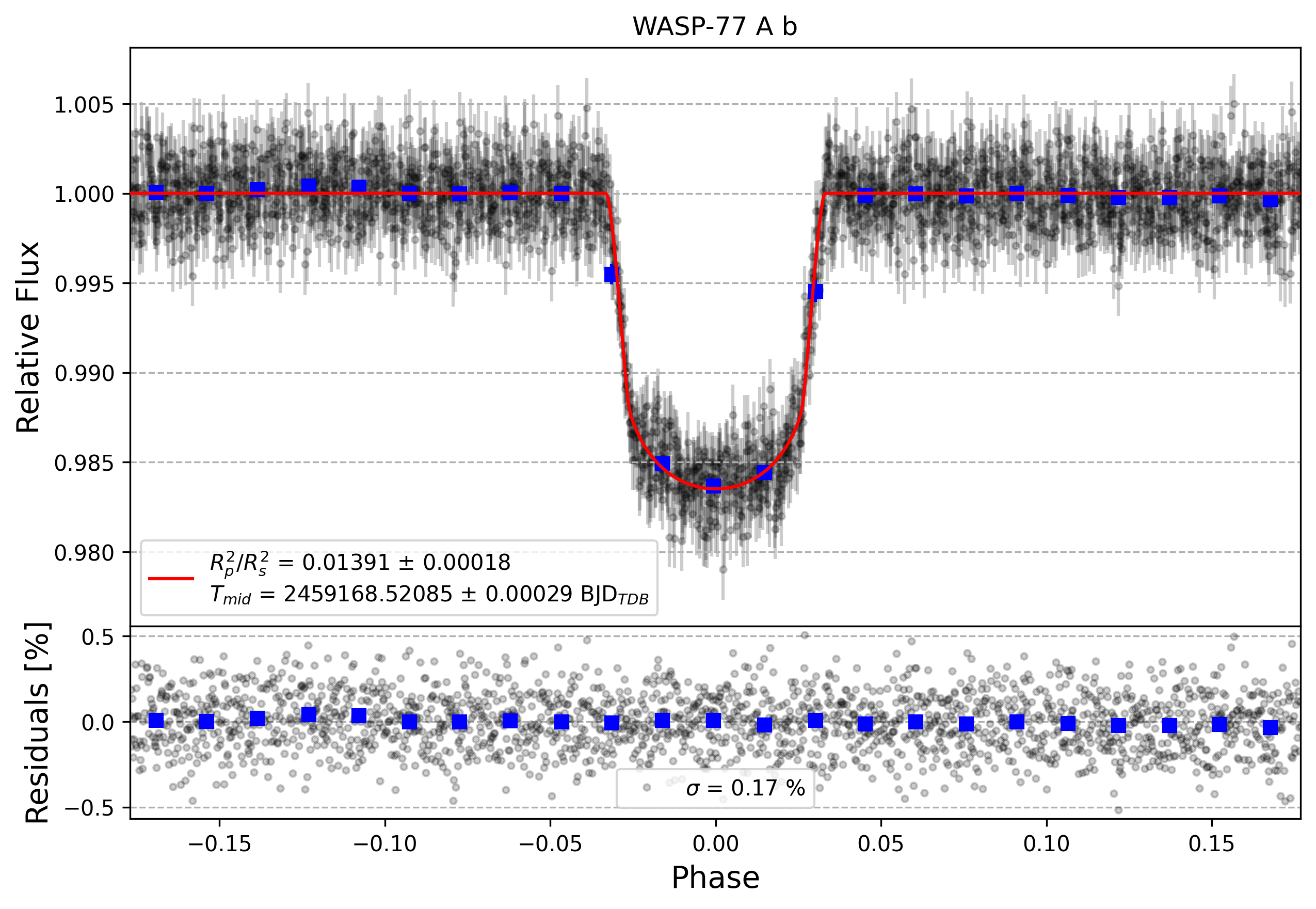

Light curve chart for 9fdc7c8351eafddab75e0dfc29a306f2
Parameter Value Uncertainty
Am1 1.0002 0.0017
Am2 0
a/Rs 5.490069 2.6e-05
Rp/Rs 0.11793 0.00078
ephemeris [JD] 2459168.52085 0.00029
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6417640109729597
u1 -4.754237892487917
u2 4.7883263956879745
u3 -1.6758524428213937
duration 0.09008 0.0002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 99b5858a11bf8f0752e82d28a3590633
Parameter Value Uncertainty
Am1 1.0004 0.00075
Am2 0
a/Rs 5.490128 2.6e-05
Rp/Rs 0.1177 0.0016
ephemeris [JD] 2458416.42488 0.00063
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.642474015057307
u1 -4.756413035037841
u2 4.790916050417002
u3 -1.676976959046255
duration 0.08995 0.00022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8da4e2060d373c5fcd1ec6e5e0dcb8b0
Parameter Value Uncertainty
Am1 1.0 0.0017
Am2 0
a/Rs 5.490053 2.6e-05
Rp/Rs 0.11656 0.00078
ephemeris [JD] 2459167.16081 0.00028
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.642594683546637
u1 -4.756777666516383
u2 4.7913256653716445
u3 -1.677142611005583
duration 0.08964 0.00024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 56a2d8f42e1b9f65f19bb3a791cc6286
Parameter Value Uncertainty
Am1 0.9996 0.0018
Am2 0
a/Rs 5.490088 2.6e-05
Rp/Rs 0.1169 0.0011
ephemeris [JD] 2459169.8804 0.00037
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.643020874449708
u1 -4.758086904592567
u2 4.792653300748142
u3 -1.677587199189185
duration 0.09004 0.00016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 975c55c6af0980774e2a1b3233fc86a2
Parameter Value Uncertainty
Am1 1.0 0.0016
Am2 0
a/Rs 5.490071 2.6e-05
Rp/Rs 0.11604 0.00078
ephemeris [JD] 2459149.48038 0.00031
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.643287962839041
u1 -4.75909319384407
u2 4.794007953553566
u3 -1.6782026511122514
duration 0.0896 0.00024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 562ff60b3178ac7e86b2cd564559c178
Parameter Value Uncertainty
Am1 0.9998 0.0019
Am2 0
a/Rs 5.490048 2.6e-05
Rp/Rs 0.11765 0.00079
ephemeris [JD] 2459164.44072 0.00027
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.643323442875101
u1 -4.758862247717421
u2 4.793489770167561
u3 -1.6779508938966763
duration 0.09012 0.00023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3b2e2275fbf8ba20de60dbd6886540d2
Parameter Value Uncertainty
Am1 1.00027 0.00079
Am2 0
a/Rs 5.490101 2.6e-05
Rp/Rs 0.1172 0.0016
ephemeris [JD] 2458432.74537 0.00061
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6418641895924013
u1 -4.754655785177877
u2 4.7888550760625845
u3 -1.6760634091176074
duration 0.08995 0.00023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 22de58f04148a753e977a577dc231dec
Parameter Value Uncertainty
Am1 1.00017 0.00078
Am2 0
a/Rs 5.490078 2.6e-05
Rp/Rs 0.1177 0.0016
ephemeris [JD] 2458431.38485 0.00056
eccentricity 0.01353
inclination [degrees] 89.99
omega [degrees] -88.29
orbital period [days] 1.360029395
u0 2.6423583125485868
u1 -4.756428933623811
u2 4.791137179729678
u3 -1.6770664872609462
duration 0.08995 0.00022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
