HAT-P-23 b

Timing Plot

Total Reductions to Date: 57

Date Processed: 09/06/2025 at 07:00:04 (PDT)

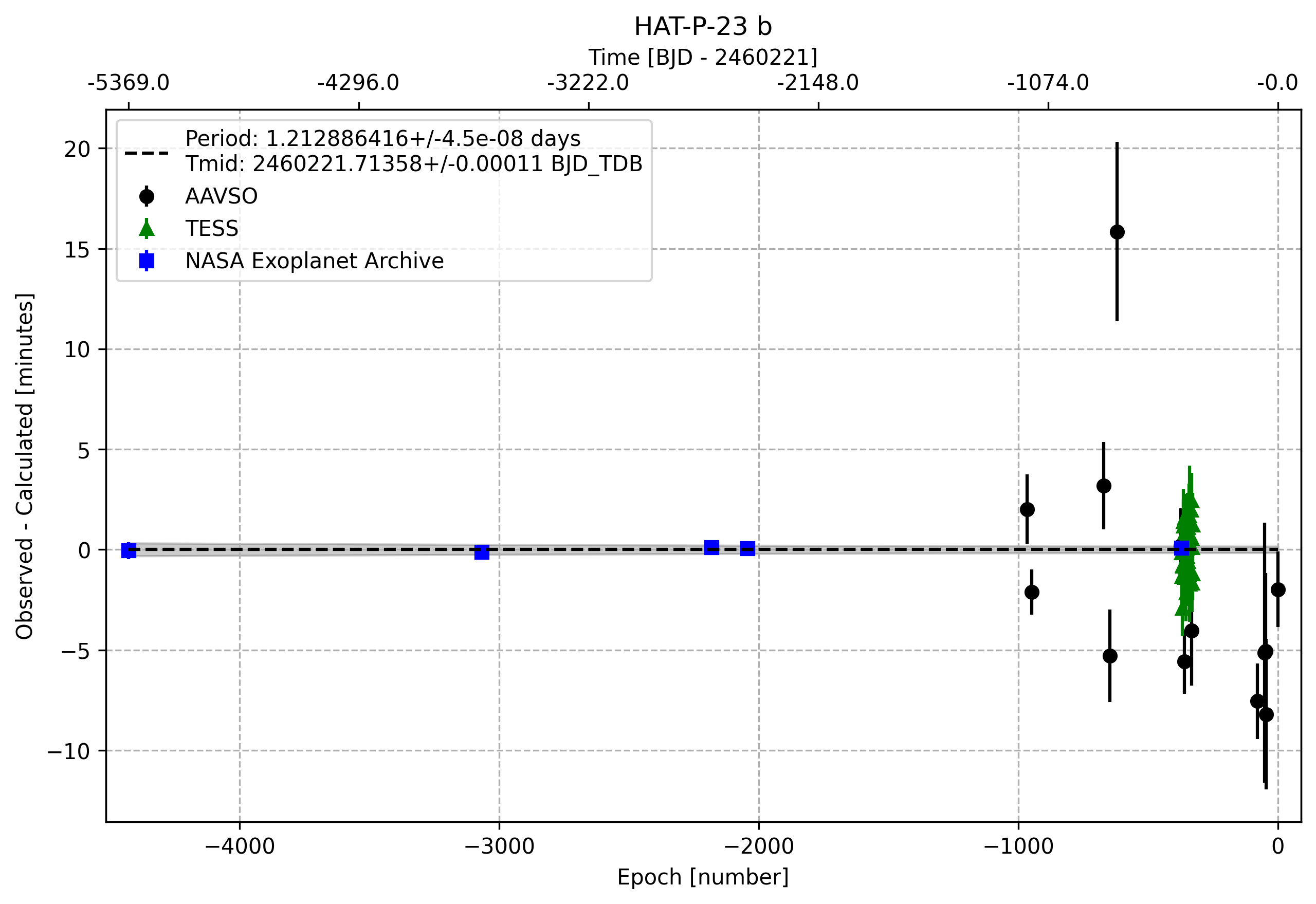

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 1.2128864156096704 4.45116180335478e-08
Ephemeris (BJD_TDB) 2460221.7135750735 0.00011035844191501717
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 306.1239076 decimal
DEC 16.7621462 decimal
Host Star Metallicity 0.15 0.04 Kokori et al. 2023
Host Star log(g) 4.33 0.05 Log10(cgs) Kokori et al. 2023
Host Star Radius [R_Sun] 1.203 0.074 Sol Kokori et al. 2023
Host Star Effective Temperature [K] 5905.0 80.0 K Kokori et al. 2023
a/Rs 4.55 0.09 Kokori et al. 2023
eccentricity 0.052 0.04 Bonomo et al. 2017
inclination [degrees] 85.7 0.9 deg Kokori et al. 2023
omega [degrees] 121.0 11.0 deg Sada & Ramón-Fox 2016
orbital period [days] 1.212886397 7.4e-08 day Kokori et al. 2023
Rp 14.1 0.74 R_Earth ExoFOP-TESS TOI
Rp/Rs 0.1209 0 ExoFOP-TESS TOI
ephemeris [JD] 2457742.57379 7.2e-05 BJD-TDB Kokori et al. 2023

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2454852.2653825 0.0001875 BJD-TDB, BJD-UTC, nan Bonomo et al. 2017, Sada & Ramón-Fox 2016, Ciceri et al. 2015, Bakos et al. 2010
2456500.57797 8.1e-05 BJD-TDB Ivshina & Winn 2022
2457575.19549 8e-05 BJD-TDB Kokori et al. 2022
2457742.57379 7.2e-05 BJD-TDB Kokori et al. 2023
2459770.519892 0.00034024 BJD ExoFOP-TESS TOI

Observations

Light curve chart for 0000367
Parameter Value Uncertainty
Am1 1.0487 0.0061
Am2 -0.0058 0.01
a/Rs 4.21 0.12
Rp/Rs 0.1151 0.0058
ephemeris [JD] 2459048.8538 0.0012
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.165146868308808
u1 -3.7449760555514695
u2 4.040562263060972
u3 -1.4607330156092404
duration 0.0956 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
R Cousins R 561.7 nm 719.7 nm
Organization Observer Code Secondary Observers
AAVSO JBEB (collaborate/publish)
Light curve chart for 0000420
Parameter Value Uncertainty
Am1 0.555 0.011
Am2 0.08 0.035
a/Rs 4.28 0.26
Rp/Rs 0.086 0.03
ephemeris [JD] 2459048.8505 0.0098
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 1.7887134391042296
u1 -3.0862759537981663
u2 3.676953919228327
u3 -1.3793913497435075
duration 0.091 0.0068
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO RDMA (collaborate/publish)

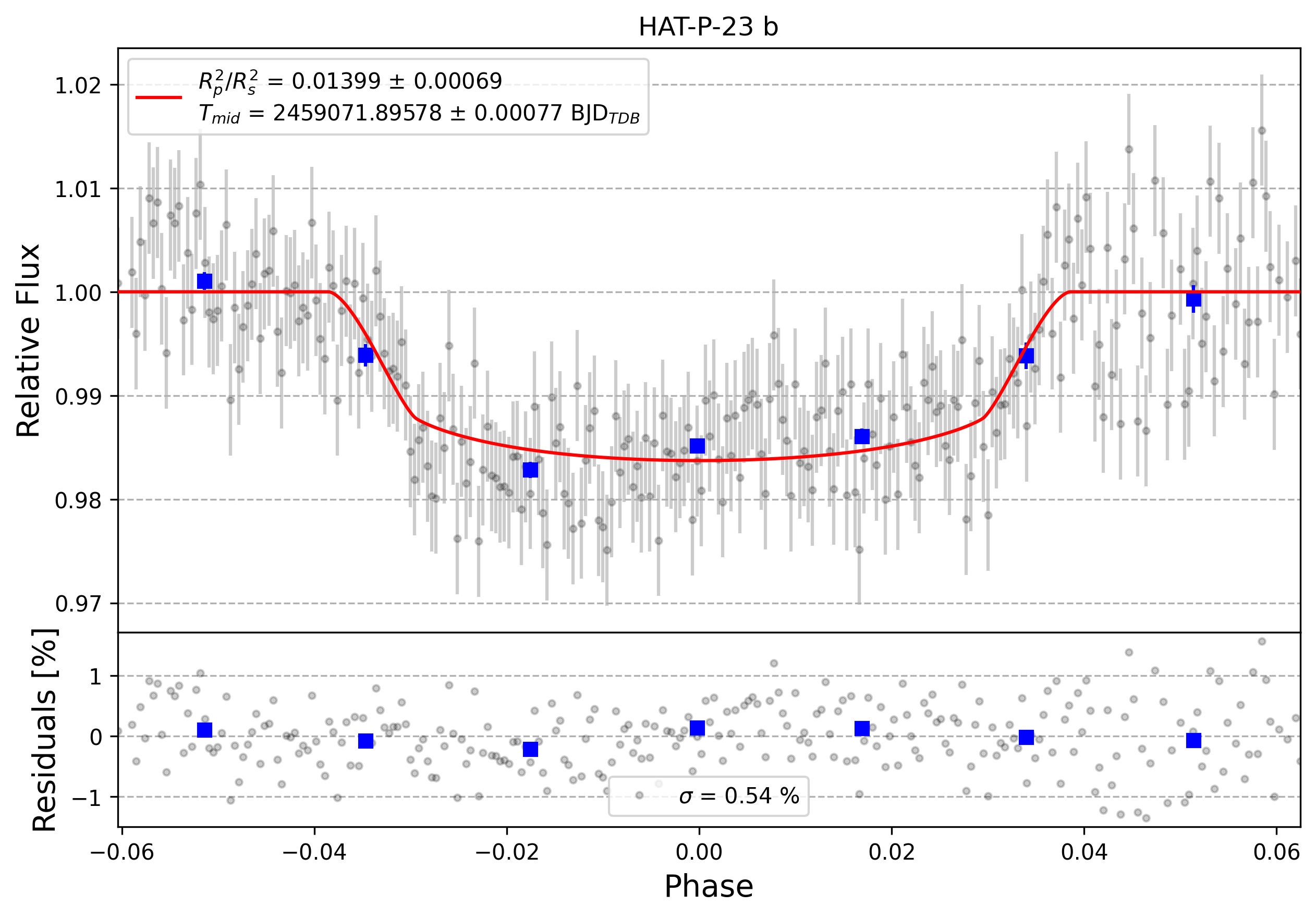

Light curve chart for 0002120
Parameter Value Uncertainty
Am1 1.0043 0.0054
Am2 -0.0029 0.0015
a/Rs 4.305 0.075
Rp/Rs 0.1183 0.0029
ephemeris [JD] 2459071.89578 0.00077
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.601551155841576
u1 -4.629133672351988
u2 4.658999748590604
u3 -1.6314171626556861
duration 0.0934 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
SI Sloan i 697.5 nm 827.5 nm
Organization Observer Code Secondary Observers
AAVSO BPG (collaborate/publish) BPAG

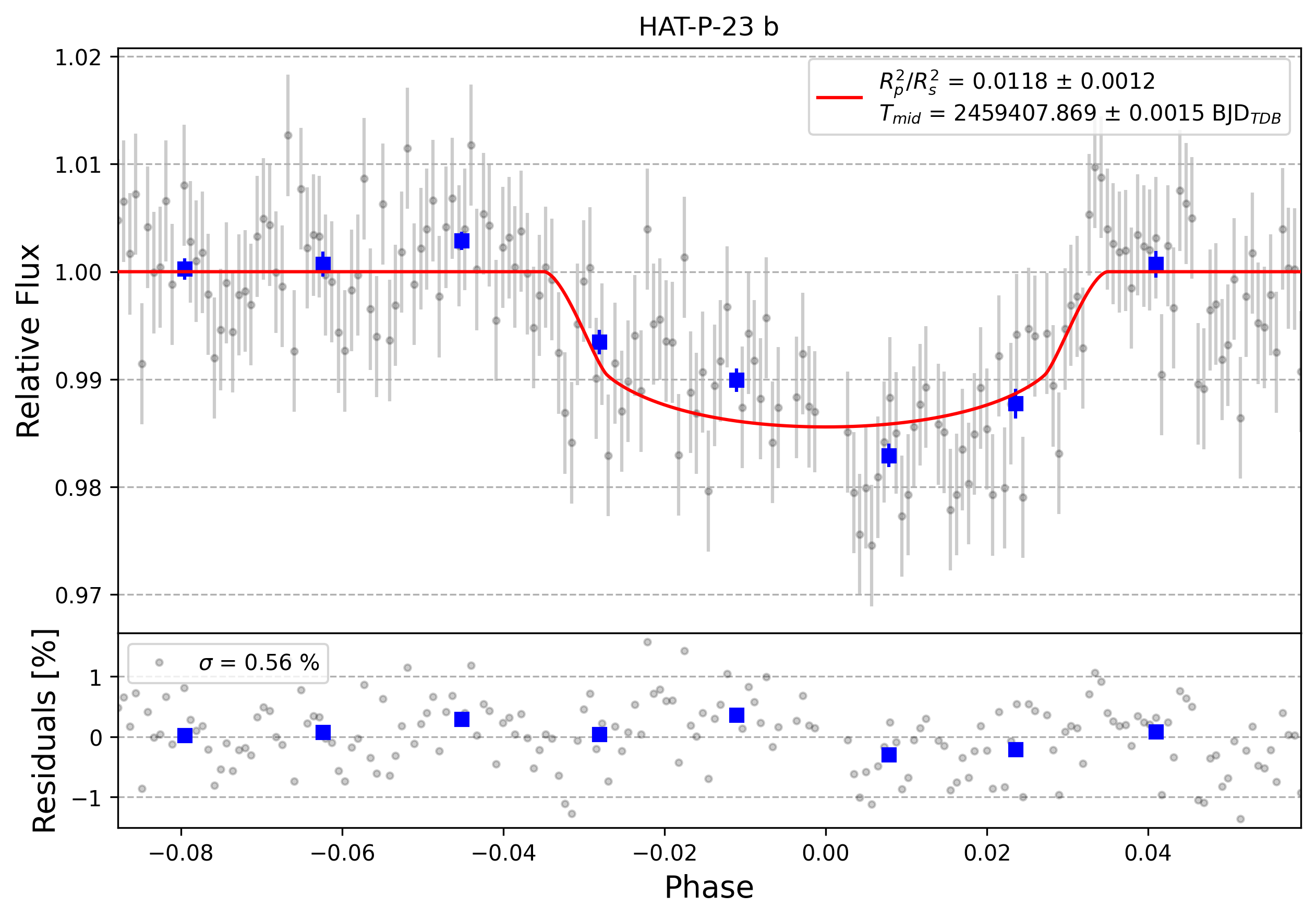

Light curve chart for 0000755
Parameter Value Uncertainty
Am1 0.974 0.0055
Am2 0.023 0.011
a/Rs 4.66 0.17
Rp/Rs 0.1088 0.0055
ephemeris [JD] 2459407.869 0.0015
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 1.8980333631004997
u1 -3.297448954601121
u2 3.81942748330031
u3 -1.4200118348857842
duration 0.0848 0.0034
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
NA Custom 450.0 nm 700.0 nm
Organization Observer Code Secondary Observers
AAVSO CMIA (collaborate/publish)
Light curve chart for 0000842
Parameter Value Uncertainty
Am1 1.014 0.0074
Am2 -0.0122 0.0066
a/Rs 4.27 0.15
Rp/Rs 0.1147 0.005
ephemeris [JD] 2459435.7595 0.0016
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 1.5071135831622215
u1 -2.6965153110938243
u2 3.5678564863149727
u3 -1.3784547052181653
duration 0.0941 0.0036
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
SG Sloan g 402.5 nm 551.5 nm
Organization Observer Code Secondary Observers
AAVSO DSCC (collaborate/publish) WDAD, HJED

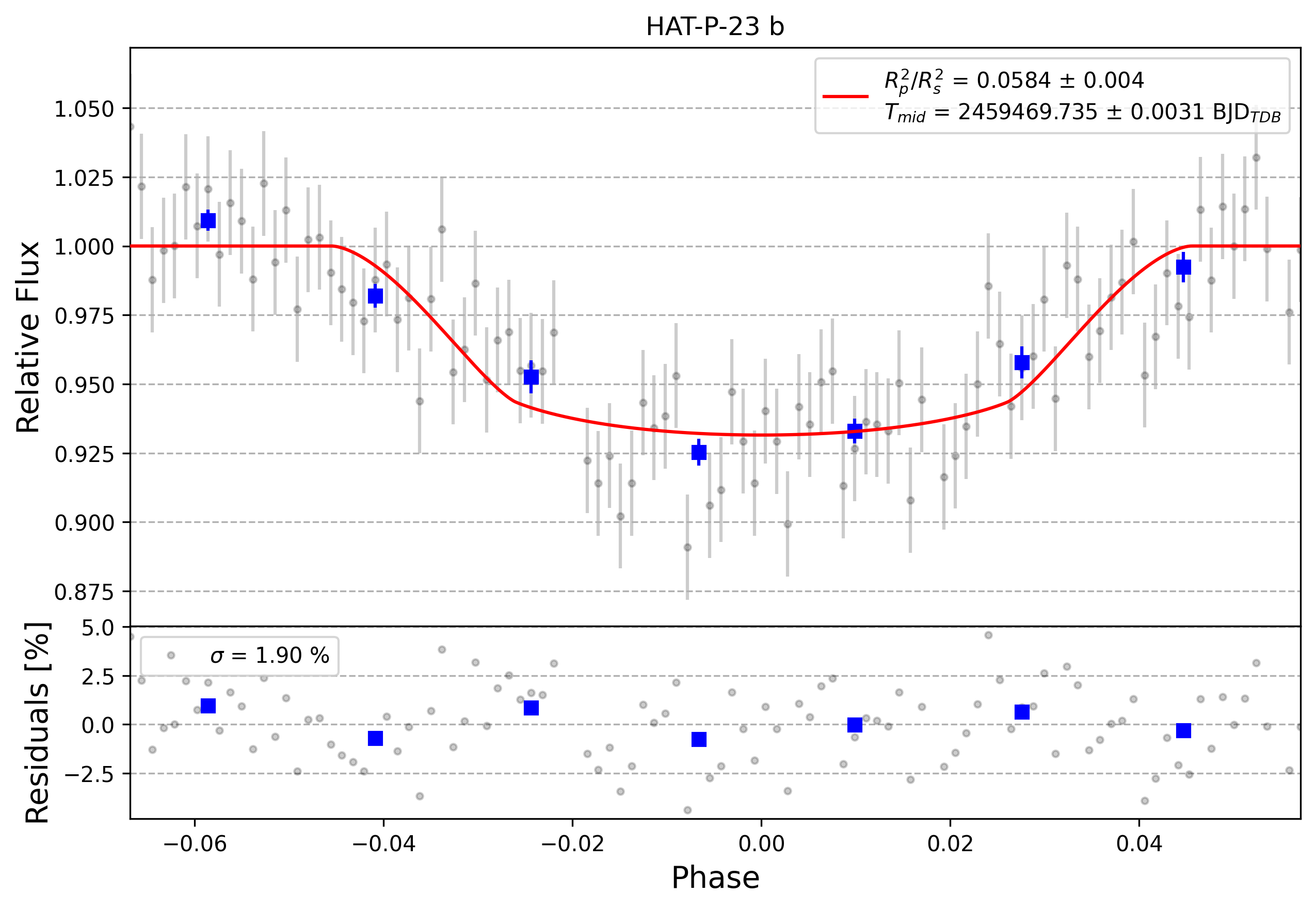

Light curve chart for 0000857
Parameter Value Uncertainty
Am1 1.675 0.032
Am2 -0.464 0.071
a/Rs 4.11 0.24
Rp/Rs 0.2416 0.0082
ephemeris [JD] 2459469.735 0.0031
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.4421849048742326
u1 -4.357921444047641
u2 4.526162075992063
u3 -1.6104254693735838
duration 0.1107 0.0074
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Astrodon ExoPlanet-BB 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO LPAC (collaborate/publish)
Light curve chart for 0001646
Parameter Value Uncertainty
Am1 0.9929 0.0061
Am2 0.0059 0.0097
a/Rs 4.29 0.13
Rp/Rs 0.1187 0.0063
ephemeris [JD] 2459766.8813 0.0013
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.442841906695092
u1 -4.361553714170963
u2 4.531198125196873
u3 -1.612486250200889
duration 0.0938 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Astrodon ExoPlanet-BB 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)

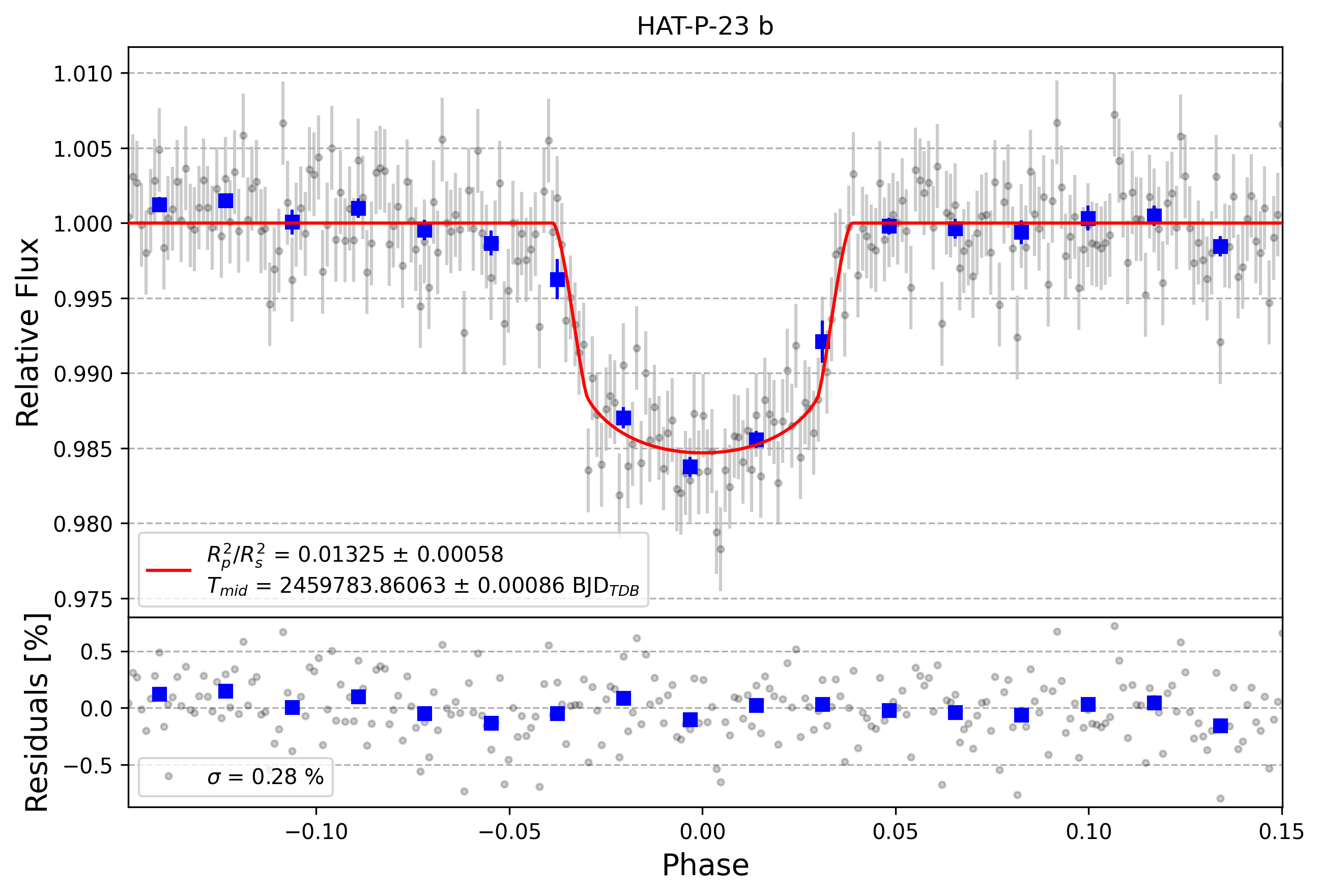

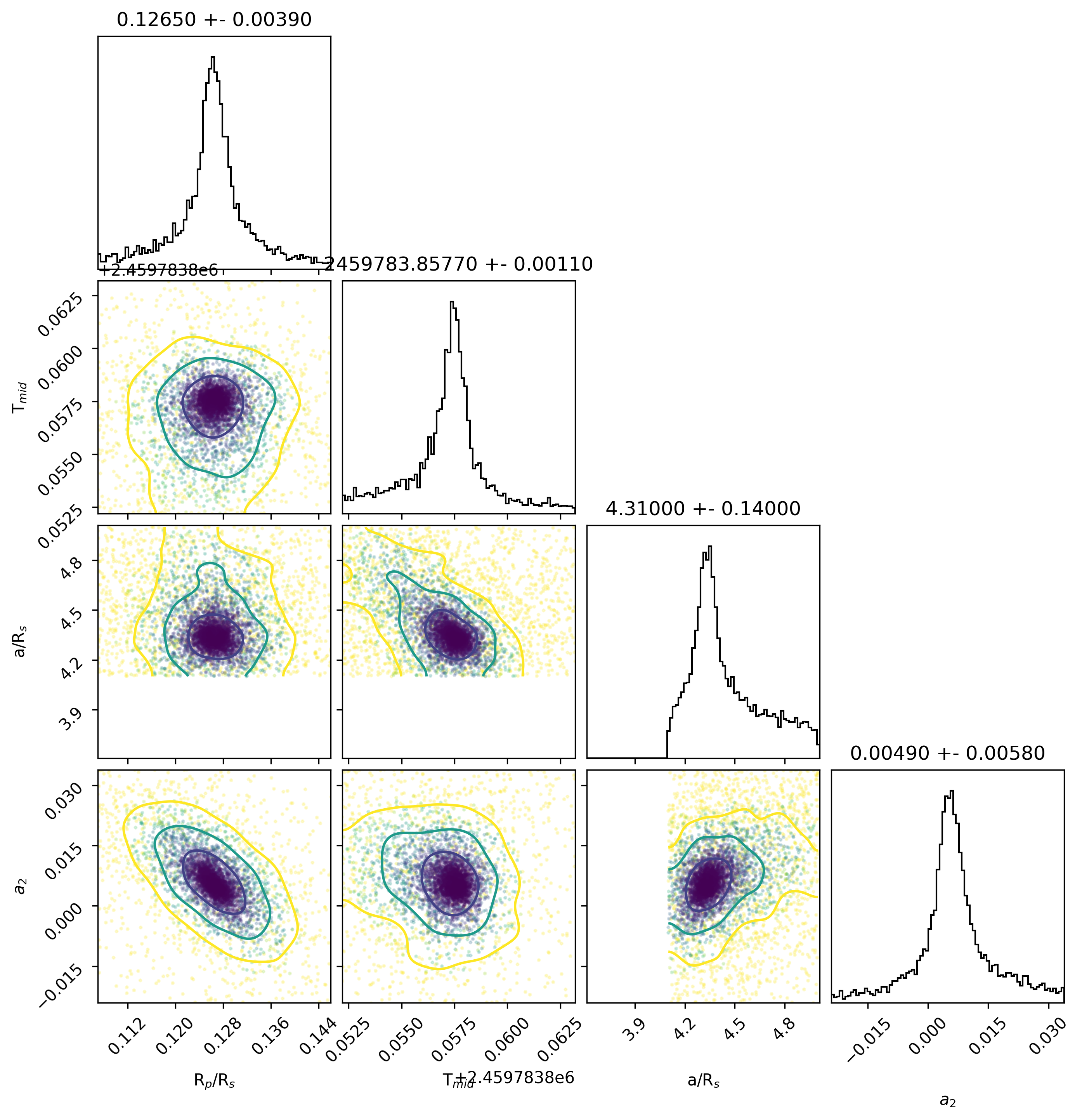

Light curve chart for 0001828
Parameter Value Uncertainty
Am1 0.9941 0.0049
Am2 0.0049 0.0058
a/Rs 4.31 0.14
Rp/Rs 0.1265 0.0039
ephemeris [JD] 2459783.8577 0.0011
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 1.7892728626709085
u1 -3.0893435435390293
u2 3.680967552172524
u3 -1.380896816453712
duration 0.0941 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO JMAH (collaborate/publish)

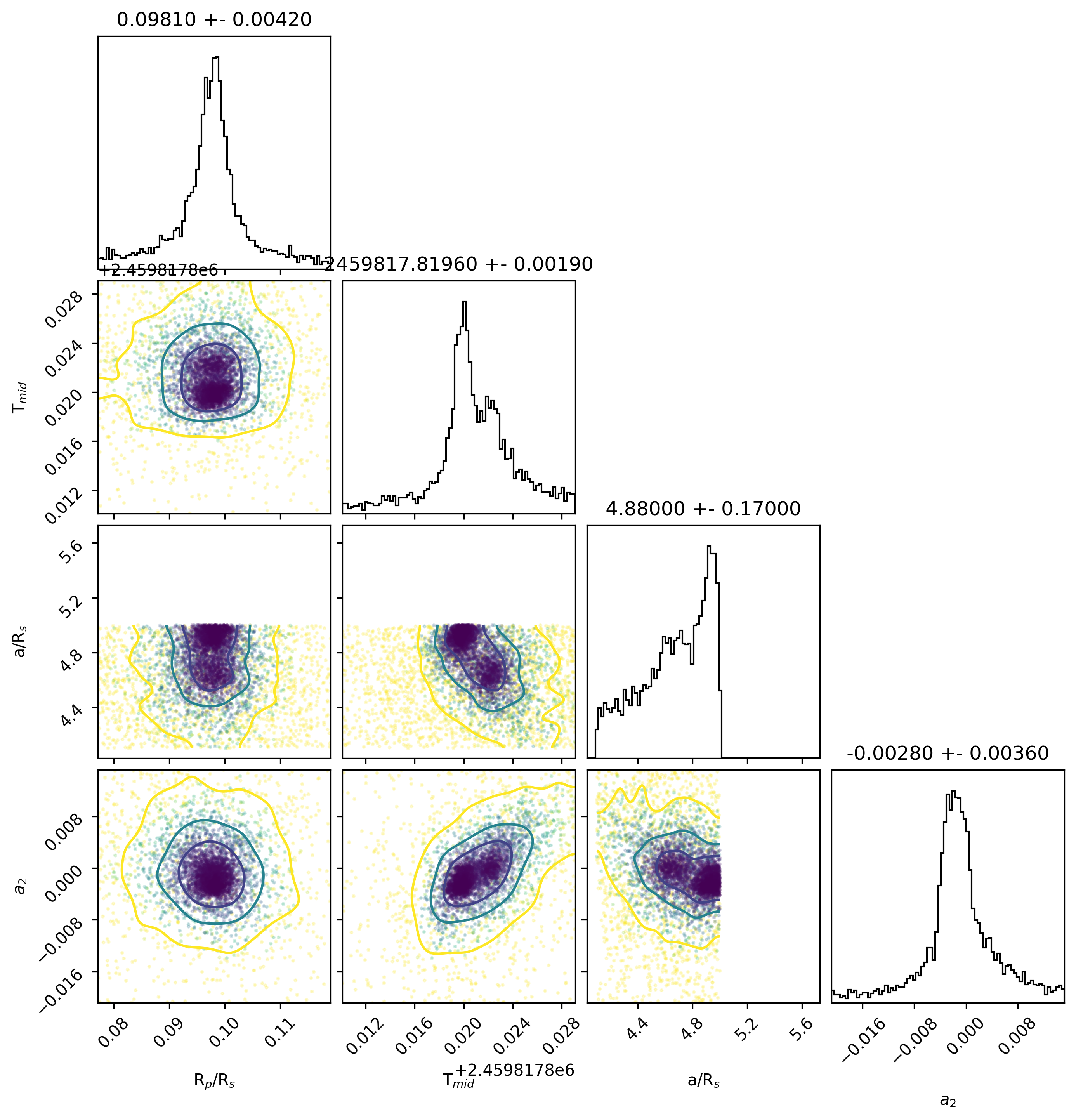

Light curve chart for 0002026
Parameter Value Uncertainty
Am1 1.0036 0.0055
Am2 -0.0028 0.0036
a/Rs 4.88 0.17
Rp/Rs 0.0981 0.0042
ephemeris [JD] 2459817.8196 0.0019
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.4424663399343216
u1 -4.359318738096612
u2 4.52791764078994
u3 -1.6110651751564178
duration 0.0797 0.0032
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Clear with blue-blocking 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO SGCA (collaborate/publish)

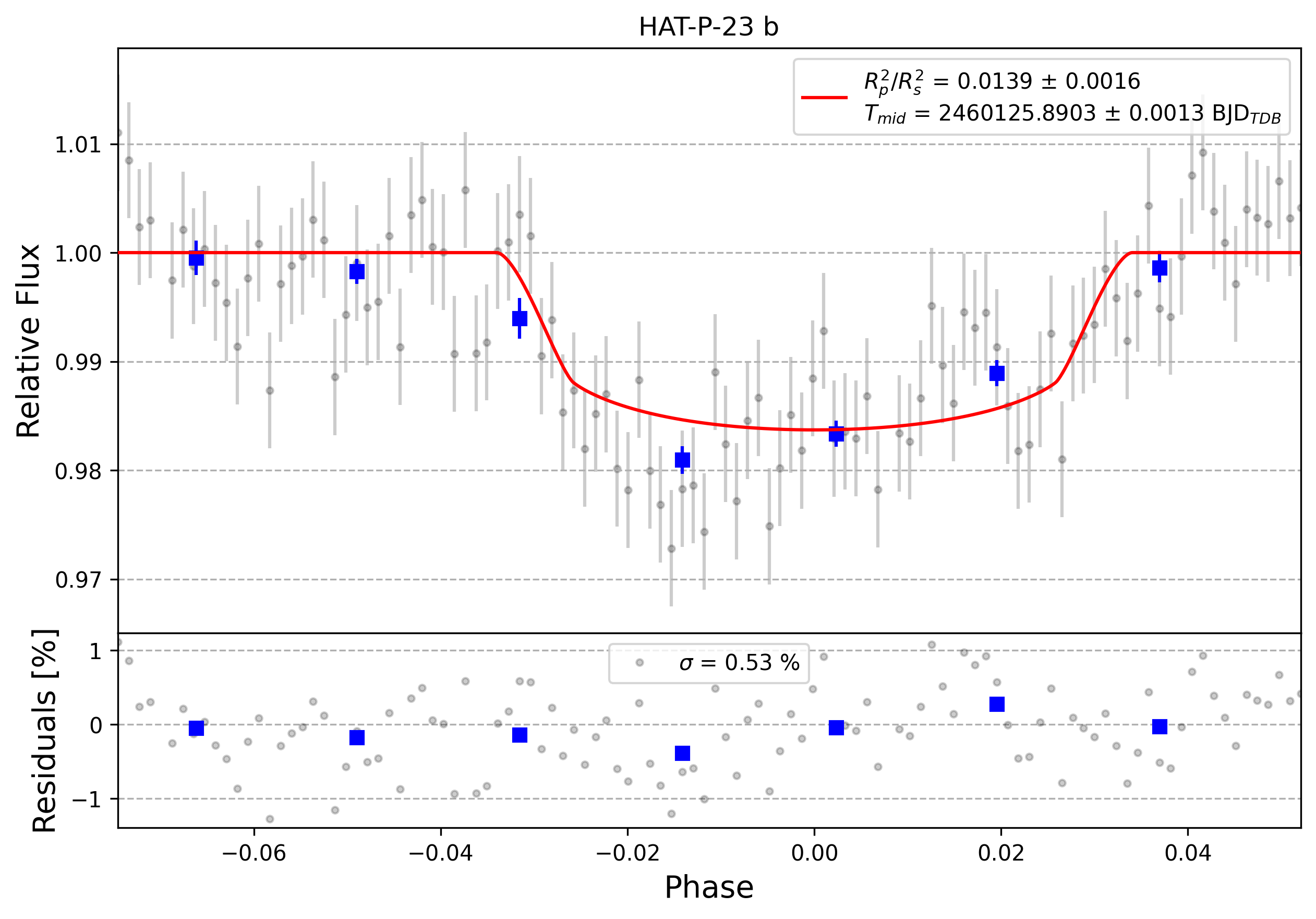

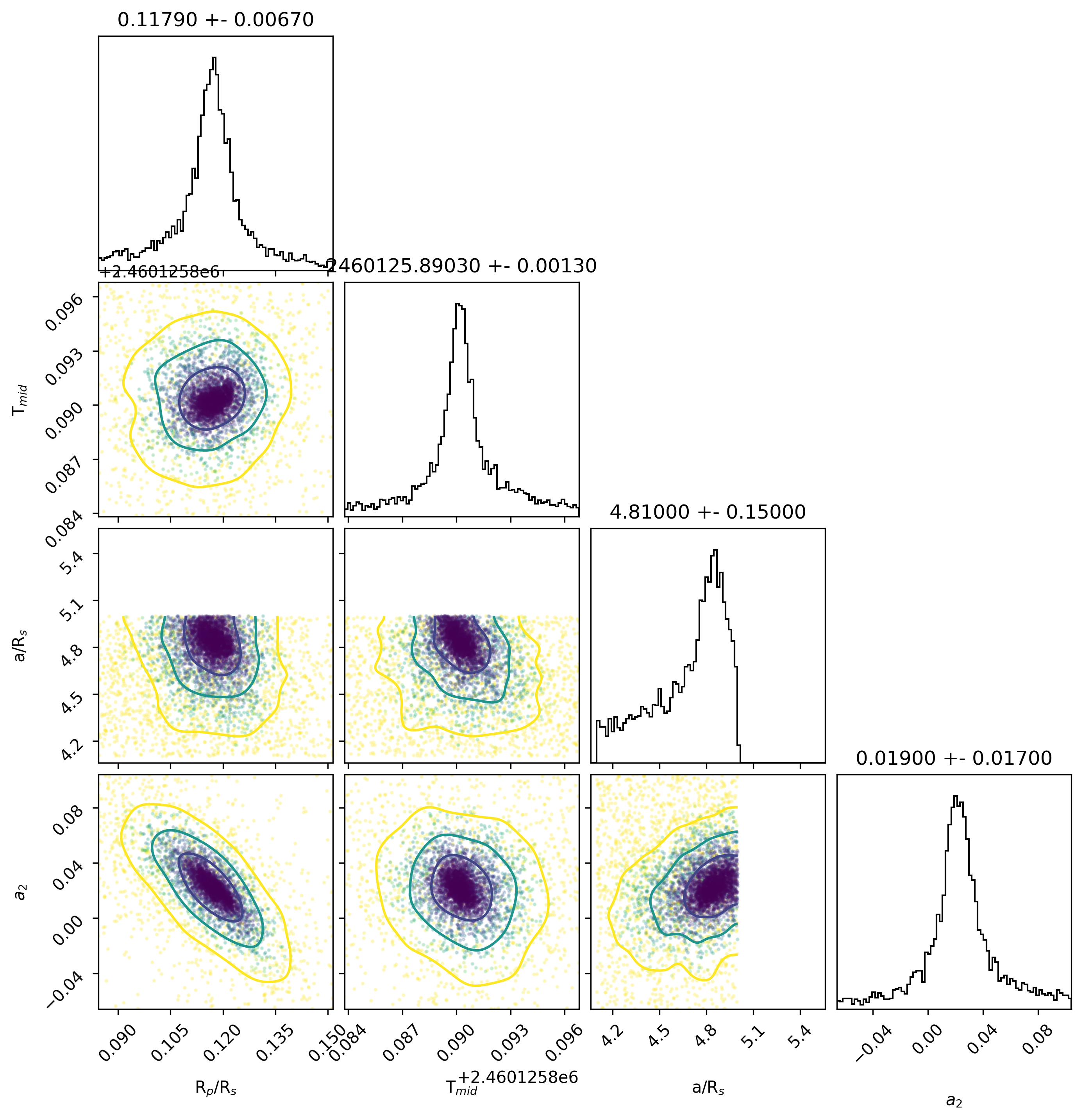

Light curve chart for 0003928
Parameter Value Uncertainty
Am1 0.9786 0.0052
Am2 0.019 0.017
a/Rs 4.81 0.15
Rp/Rs 0.1179 0.0067
ephemeris [JD] 2460125.8903 0.0013
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.3760884371743765
u1 -4.168950561108923
u2 4.334395482515649
u3 -1.5415332939935777
duration 0.0826 0.003
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
RJ Johnson R 590.0 nm 810.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 0004170
Parameter Value Uncertainty
Am1 1.271 0.014
Am2 -0.184 0.023
a/Rs 4.24 0.24
Rp/Rs 0.141 0.021
ephemeris [JD] 2460159.8528 0.0045
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.375747565453992
u1 -4.167503978103895
u2 4.332357340459289
u3 -1.5406008632522314
duration 0.0962 0.0058
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
RJ Johnson R 590.0 nm 810.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)

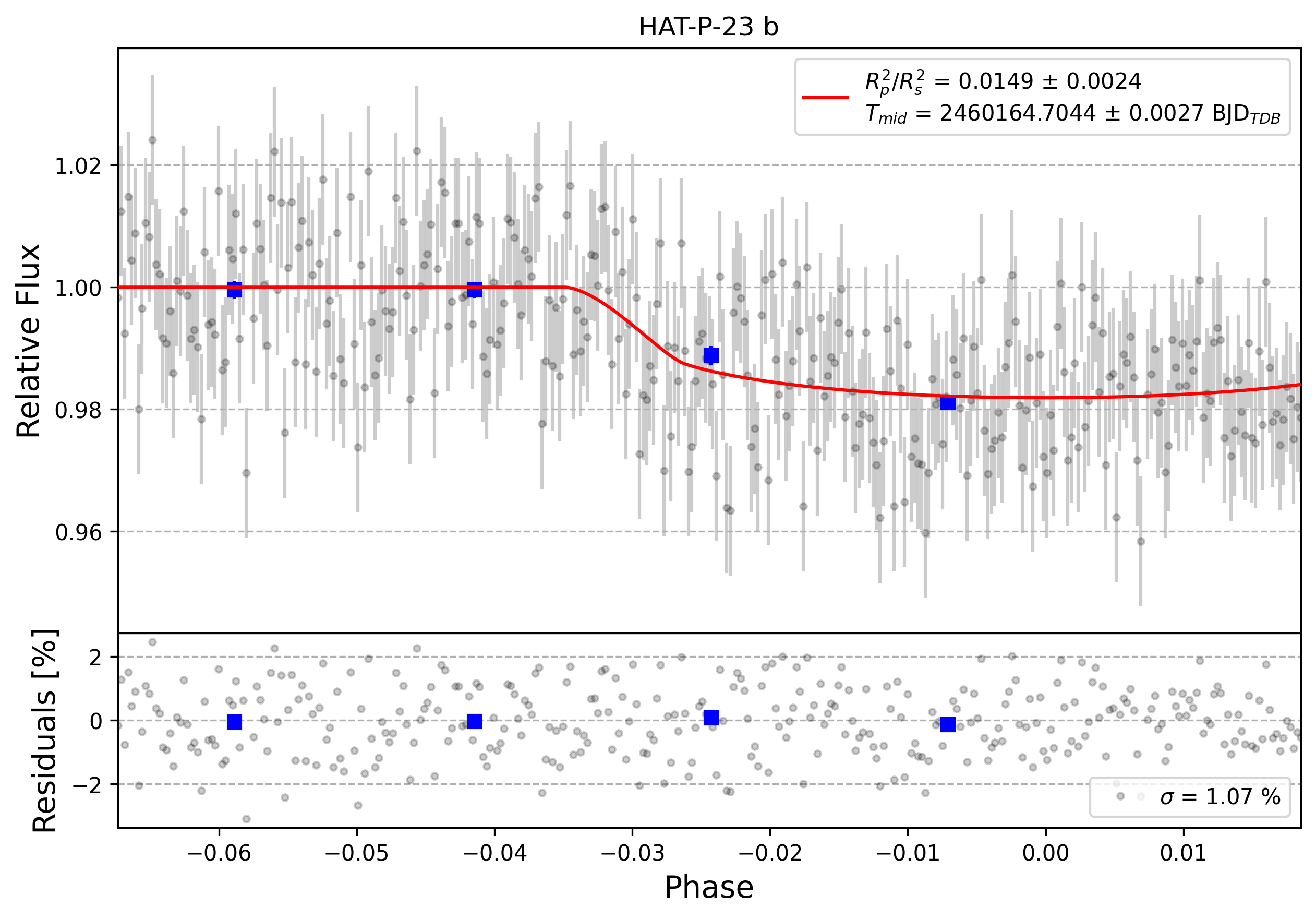

Light curve chart for 0004209
Parameter Value Uncertainty
Am1 0.9262 0.0099
Am2 0.066 0.021
a/Rs 4.72 0.26
Rp/Rs 0.122 0.01
ephemeris [JD] 2460164.7044 0.0027
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.0405609482428195
u1 -3.6625075629978507
u2 4.146725730601953
u3 -1.5247790540558928
duration 0.0648 0.0037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO NANF (collaborate/publish)
Light curve chart for 0004217
Parameter Value Uncertainty
Am1 0.9692 0.0062
Am2 0.029 0.012
a/Rs 4.82 0.25
Rp/Rs 0.1331 0.008
ephemeris [JD] 2460165.9151 0.0026
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 1.788489422450278
u1 -3.085746492322594
u2 3.6764239818817006
u3 -1.3791668572263984
duration 0.0701 0.0037
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

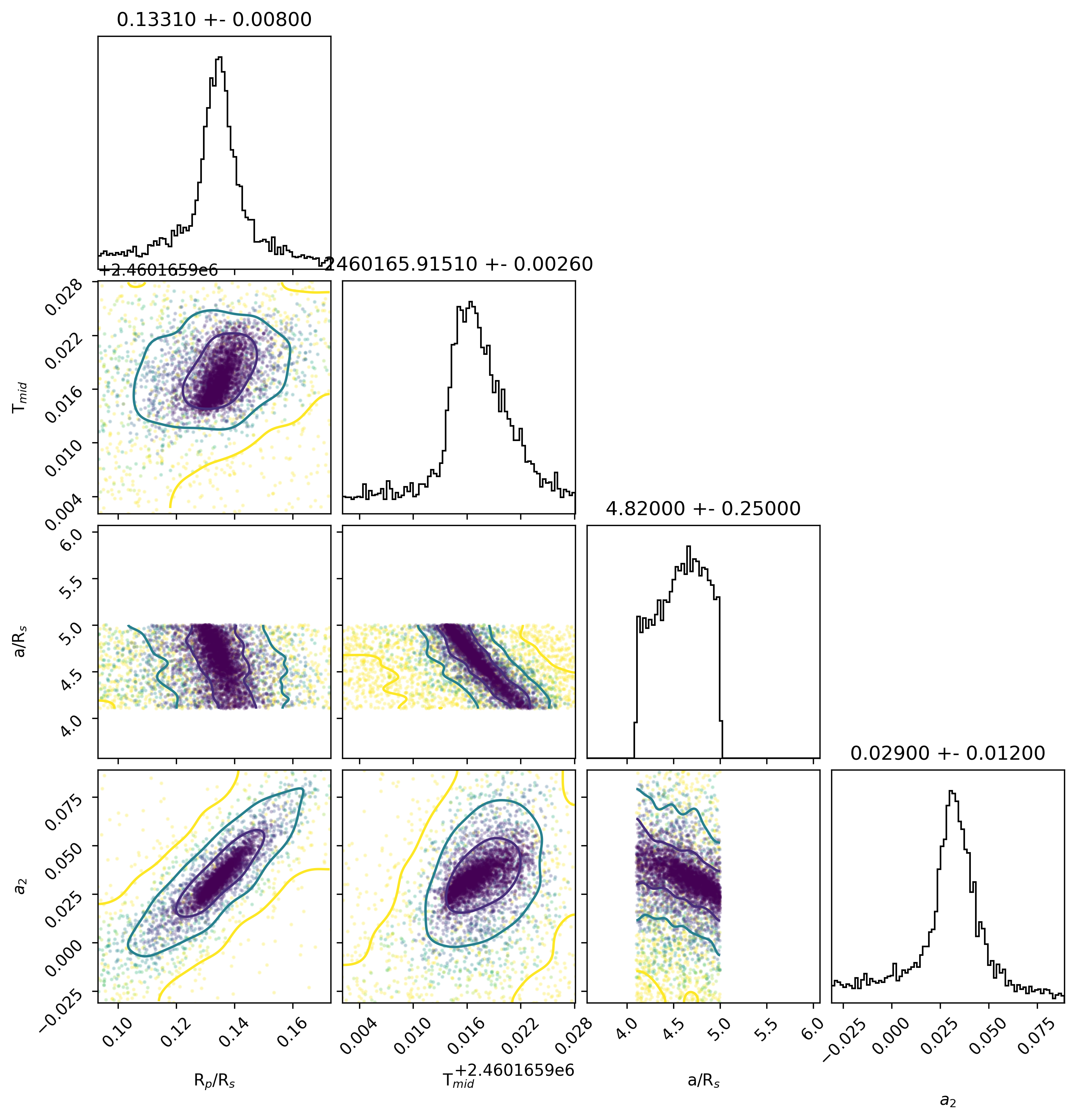

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CCHD (collaborate/publish)

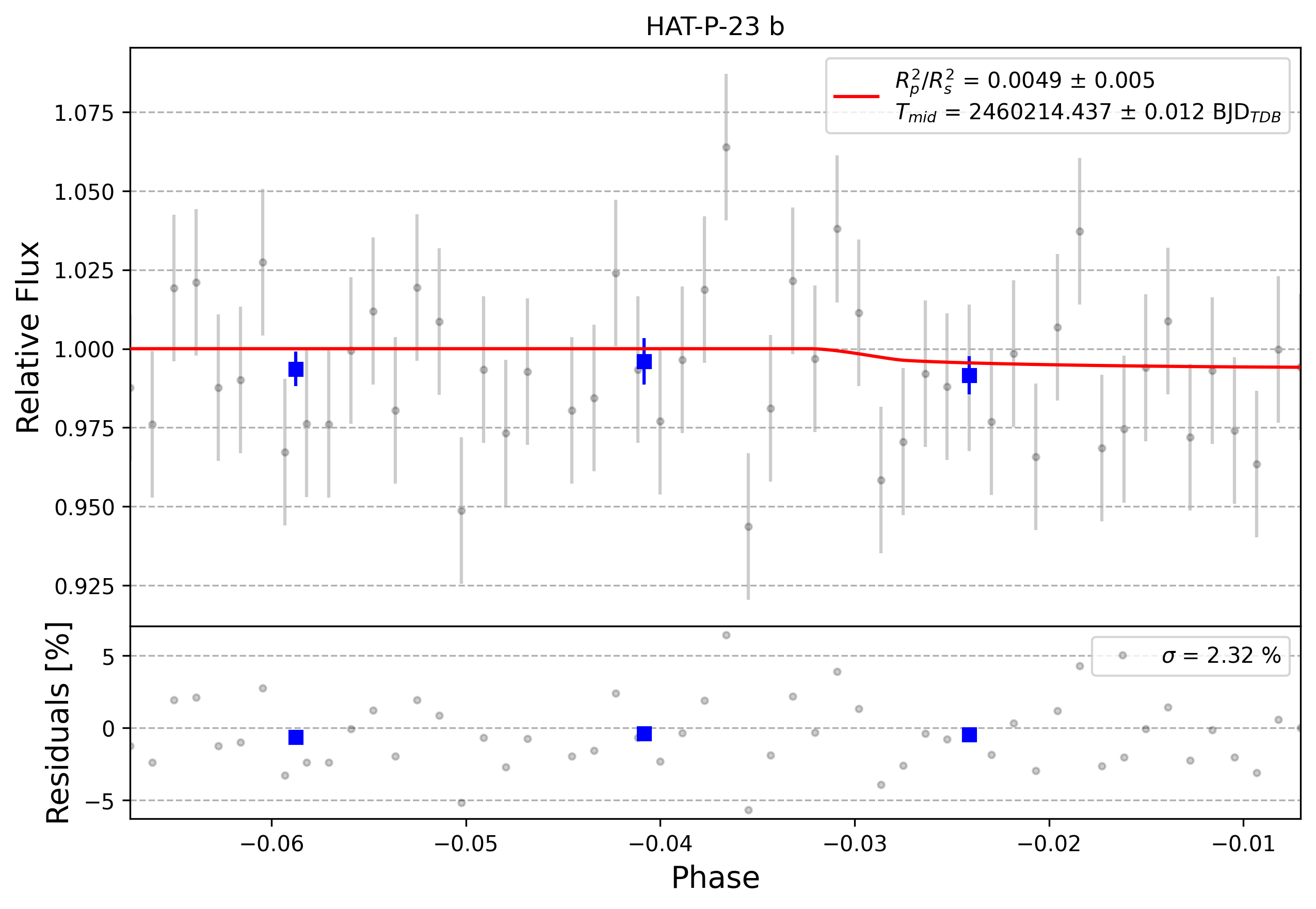

Light curve chart for 0005173
Parameter Value Uncertainty
Am1 1.207 0.028
Am2 -0.17 0.39
a/Rs 4.82 0.26
Rp/Rs 0.07 0.036
ephemeris [JD] 2460214.437 0.012
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.0418167538537264
u1 -3.6671812218625877
u2 4.152581348098729
u3 -1.527216818211584
duration 0 0
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO PMIF (collaborate/publish) UNIS
Light curve chart for 0004689
Parameter Value Uncertainty
Am1 1.01 0.0053
Am2 -0.0076 0.003
a/Rs 4.57 0.15
Rp/Rs 0.1262 0.0043
ephemeris [JD] 2460221.7122 0.0013
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.3756741578030685
u1 -4.166873870298258
u2 4.331334727711964
u3 -1.5401349506748563
duration 0.0883 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
RJ Johnson R 590.0 nm 810.0 nm
Organization Observer Code Secondary Observers
AAVSO MBEB (collaborate/publish)
Light curve chart for 089d849e3dffa0272aa6398b1018eab8
Parameter Value Uncertainty
Am1 0.9996 0.0032
Am2 0
a/Rs 4.363 0.085
Rp/Rs 0.113 0.0026
ephemeris [JD] 2459820.24825 0.00087
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.709256775174516
u1 -4.851674191335459
u2 4.820737337433076
u3 -1.6783198494375502
duration 0.0914 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c72a77175c9ed5ea71978348d63b8c69
Parameter Value Uncertainty
Am1 1.0005 0.0029
Am2 0
a/Rs 4.31 0.11
Rp/Rs 0.1093 0.0027
ephemeris [JD] 2459804.4798 0.0011
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7090090764571872
u1 -4.850790192322905
u2 4.819703499278178
u3 -1.6779223115932824
duration 0.0925 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6f687f5a93264552a926c27d3099e9ff
Parameter Value Uncertainty
Am1 1.0008 0.0028
Am2 0
a/Rs 4.329 0.097
Rp/Rs 0.1119 0.0026
ephemeris [JD] 2459811.75888 0.00095
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.708958493640394
u1 -4.849919154336217
u2 4.818204969000308
u3 -1.677244236507636
duration 0.0922 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 71569c4381a2e463bbf1b35860332787
Parameter Value Uncertainty
Am1 1.0007 0.0034
Am2 0
a/Rs 4.198 0.088
Rp/Rs 0.1074 0.003
ephemeris [JD] 2459806.9076 0.0011
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.709571385957924
u1 -4.852106628056507
u2 4.820873490771256
u3 -1.6783381768360597
duration 0.0951 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c8ae6d3caa7d9826d51f57a7aca5030b
Parameter Value Uncertainty
Am1 0.9995 0.0026
Am2 0
a/Rs 4.301 0.083
Rp/Rs 0.1109 0.0024
ephemeris [JD] 2459787.49983 0.00085
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7090433140441865
u1 -4.8515435819026855
u2 4.82098523710655
u3 -1.6784848974097732
duration 0.0929 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

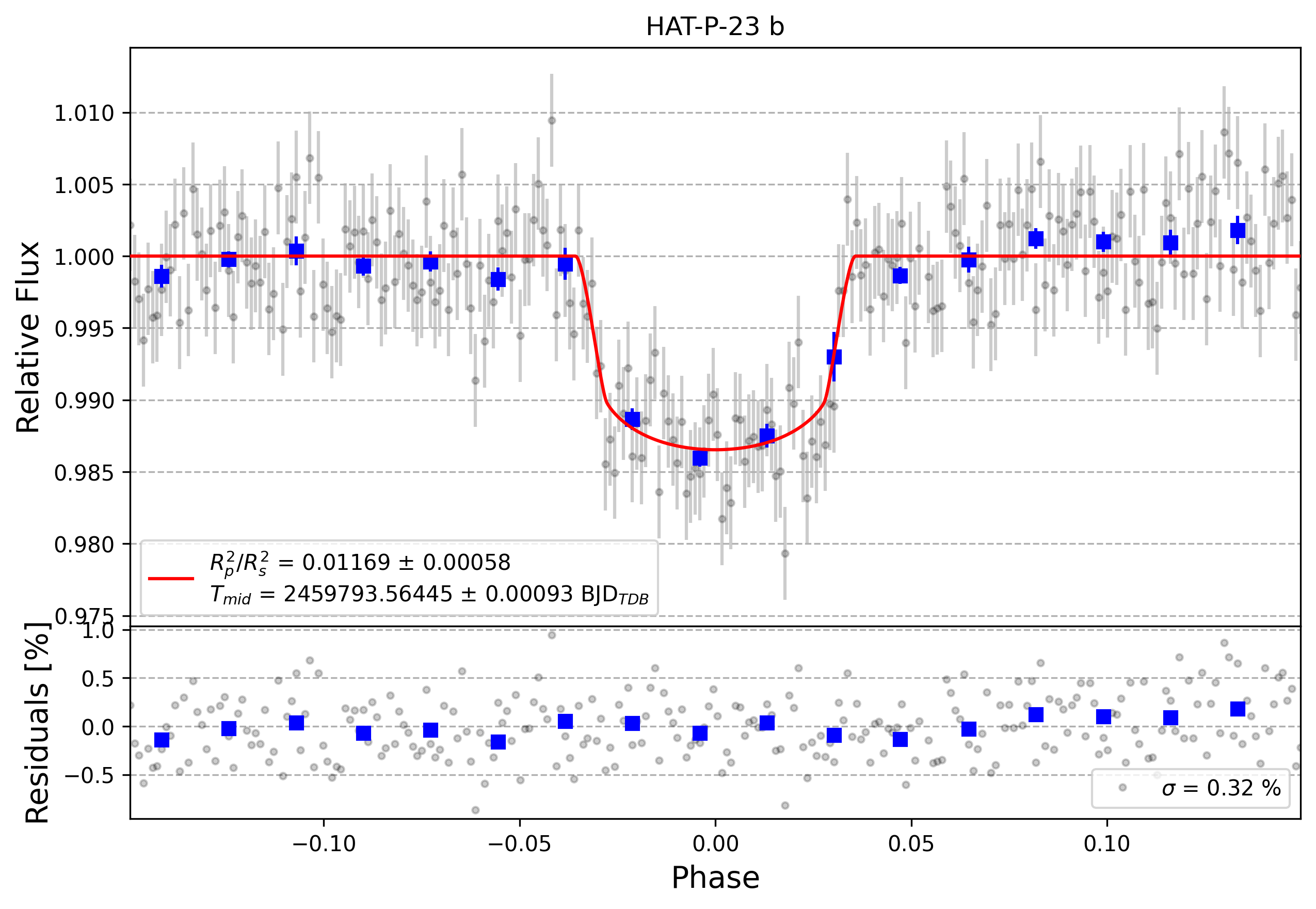

Light curve chart for ebee557688181a8d9bfbef20765ed71c
Parameter Value Uncertainty
Am1 1.0 0.0032
Am2 0
a/Rs 4.57 0.1
Rp/Rs 0.1081 0.0027
ephemeris [JD] 2459793.56445 0.00093
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7092983140396014
u1 -4.851646151435197
u2 4.820683160206798
u3 -1.6783352509774256
duration 0.0867 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a20020ce1503cb1335373846d1cc46d3
Parameter Value Uncertainty
Am1 1.0015 0.003
Am2 0
a/Rs 4.52 0.12
Rp/Rs 0.1126 0.0033
ephemeris [JD] 2459797.2031 0.0011
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7089607082574316
u1 -4.850708615448305
u2 4.819730537960157
u3 -1.6779825589497017
duration 0.088 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4ca726654d6fe6ef531d830f9d202ada
Parameter Value Uncertainty
Am1 0.9999 0.0031
Am2 0
a/Rs 4.3 0.11
Rp/Rs 0.1104 0.0031
ephemeris [JD] 2459808.1211 0.0011
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7094945431285113
u1 -4.8535337515895645
u2 4.823695838600854
u3 -1.679656558261132
duration 0.0929 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 51f0781e77abd57cc640f9efe9f86bb5
Parameter Value Uncertainty
Am1 1.0002 0.0033
Am2 0
a/Rs 4.47 0.13
Rp/Rs 0.1121 0.0028
ephemeris [JD] 2459780.2239 0.0011
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7089896291853455
u1 -4.851411694326805
u2 4.820936774969289
u3 -1.6785146379902747
duration 0.0893 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3e8213900ad7423351f1c23ee3a2afb7
Parameter Value Uncertainty
Am1 1.0011 0.0031
Am2 0
a/Rs 4.5 0.11
Rp/Rs 0.1109 0.0028
ephemeris [JD] 2459789.9252 0.001
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.709501434930585
u1 -4.852733554092692
u2 4.822245421516256
u3 -1.6790132304970924
duration 0.0885 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

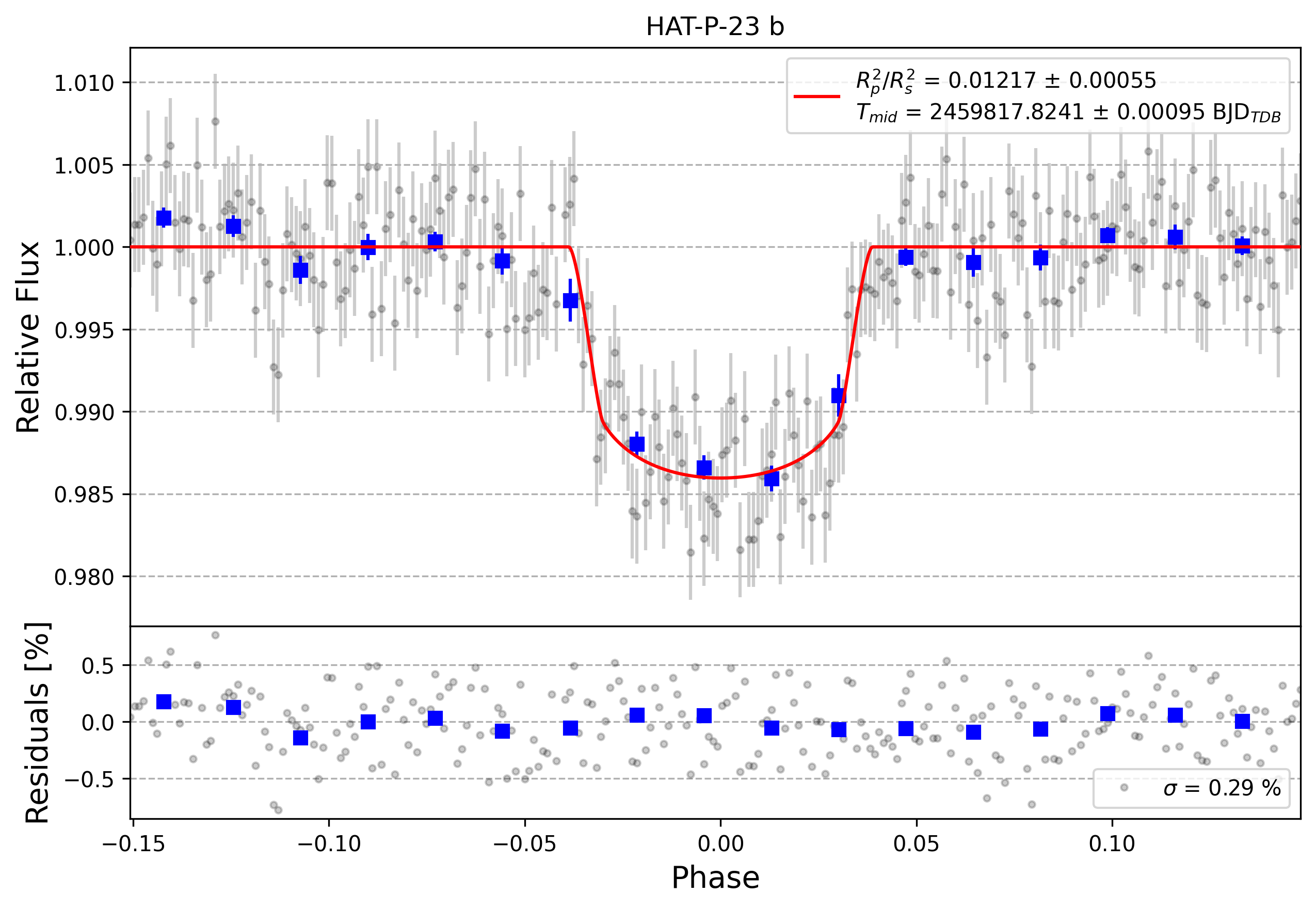

Light curve chart for 224a5d876638ac3384fda893d95d83a2
Parameter Value Uncertainty
Am1 1.0006 0.0029
Am2 0
a/Rs 4.254 0.084
Rp/Rs 0.1103 0.0025
ephemeris [JD] 2459817.8241 0.00095
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7088751828638946
u1 -4.849986224538059
u2 4.818569046073356
u3 -1.6774579325969183
duration 0.094 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

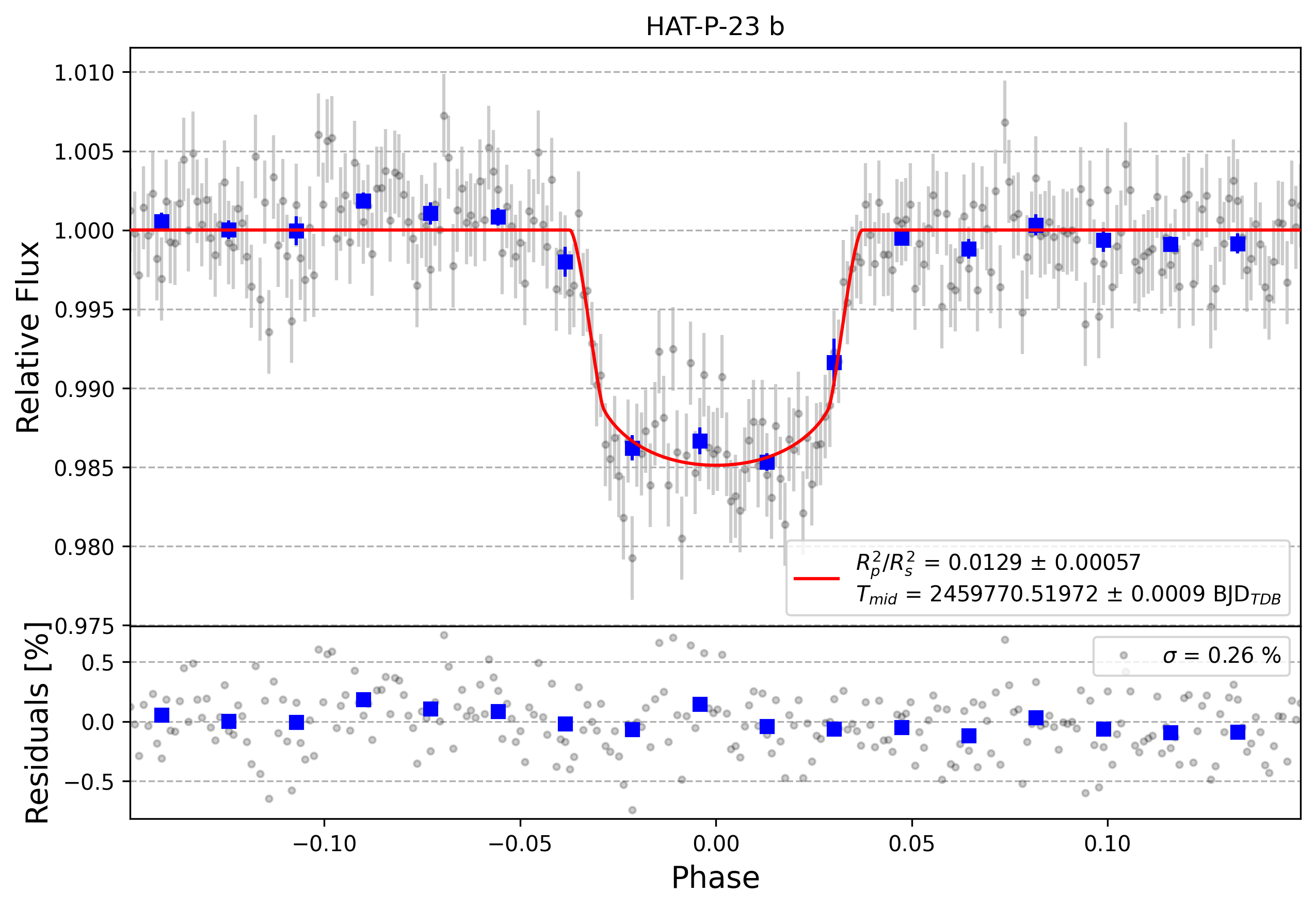

Light curve chart for 77fa7324c7f2eb8a0e188f809f8c55ef
Parameter Value Uncertainty
Am1 1.0006 0.0026
Am2 0
a/Rs 4.415 0.098
Rp/Rs 0.1136 0.0025
ephemeris [JD] 2459770.51972 0.0009
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7082836646601582
u1 -4.847516349424911
u2 4.815321167805861
u3 -1.6760884112872305
duration 0.0904 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 05687423d023e76716ab1bc37a6f8b39
Parameter Value Uncertainty
Am1 0.9999 0.0032
Am2 0
a/Rs 4.262 0.09
Rp/Rs 0.1073 0.0027
ephemeris [JD] 2459803.268 0.001
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.708765628118502
u1 -4.850534137390014
u2 4.819830900274068
u3 -1.6780623191814796
duration 0.0934 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

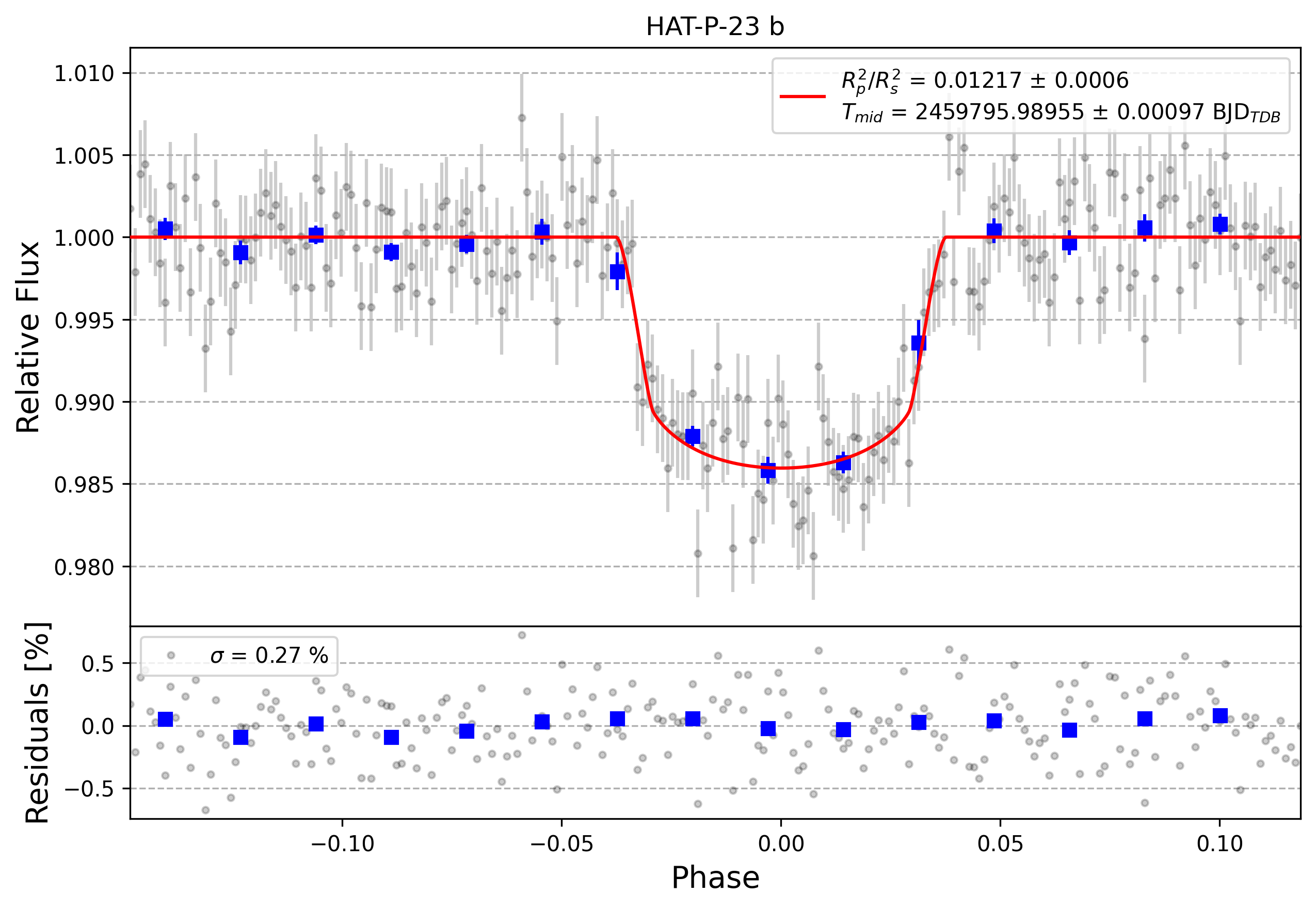

Light curve chart for e7ade6ec0ff1e629efcc40ee4bfa608f
Parameter Value Uncertainty
Am1 1.002 0.0027
Am2 0
a/Rs 4.37 0.1
Rp/Rs 0.1103 0.0027
ephemeris [JD] 2459795.98955 0.00097
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.709606768440441
u1 -4.852406135416166
u2 4.821418326559541
u3 -1.678618887739085
duration 0.091 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 06cddb93ed4c755e6f64a191f4179112
Parameter Value Uncertainty
Am1 0.9996 0.0027
Am2 0
a/Rs 4.288 0.083
Rp/Rs 0.1083 0.0024
ephemeris [JD] 2459781.43527 0.00089
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7093845026920618
u1 -4.8522107669401935
u2 4.821512115974895
u3 -1.678685779880634
duration 0.0929 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for dfdf408f7d7e0c94cf435b6b00532d41
Parameter Value Uncertainty
Am1 1.0 0.0031
Am2 0
a/Rs 4.266 0.083
Rp/Rs 0.1143 0.0027
ephemeris [JD] 2459772.94578 0.00092
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7093264657802045
u1 -4.851919908959001
u2 4.821022897671668
u3 -1.6784293826540315
duration 0.094 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a41e8b410076f103118753d912e0b461
Parameter Value Uncertainty
Am1 0.9992 0.0029
Am2 0
a/Rs 4.371 0.099
Rp/Rs 0.1108 0.0026
ephemeris [JD] 2459812.97132 0.00094
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7093327647353953
u1 -4.851825422985843
u2 4.820958929700969
u3 -1.6784661996126347
duration 0.0911 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for e5639ac7c03646f311909318fba3a7da
Parameter Value Uncertainty
Am1 0.9997 0.0032
Am2 0
a/Rs 4.307 0.093
Rp/Rs 0.1095 0.0028
ephemeris [JD] 2459821.4599 0.001
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7099577116917026
u1 -4.854365360634363
u2 4.824223701263815
u3 -1.6798159804346198
duration 0.0925 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6f093d02cbbece020ba73da08c07e10c
Parameter Value Uncertainty
Am1 1.0008 0.0027
Am2 0
a/Rs 4.38 0.095
Rp/Rs 0.105 0.0024
ephemeris [JD] 2459816.61088 0.00089
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.708543863928484
u1 -4.850218383116453
u2 4.8196534018840165
u3 -1.6779788108776152
duration 0.0903 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 588e0834f1a8ba551250dcb1d318d94e
Parameter Value Uncertainty
Am1 0.9995 0.0029
Am2 0
a/Rs 4.349 0.098
Rp/Rs 0.11 0.0026
ephemeris [JD] 2459802.05447 0.00094
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7091585770895543
u1 -4.850586701409267
u2 4.819026449754476
u3 -1.677598253625674
duration 0.0918 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a08013eea4116108e0bca19a3645d61b
Parameter Value Uncertainty
Am1 0.9996 0.0029
Am2 0
a/Rs 4.338 0.088
Rp/Rs 0.1082 0.0026
ephemeris [JD] 2459823.886 0.0009
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7092412345312566
u1 -4.851025089547872
u2 4.819628759907763
u3 -1.6778448330730833
duration 0.0918 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f250ea8074b84c5a4497433893881e53
Parameter Value Uncertainty
Am1 0.9997 0.0035
Am2 0
a/Rs 4.37 0.11
Rp/Rs 0.1138 0.0029
ephemeris [JD] 2459791.1392 0.001
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7097018084911473
u1 -4.8535088273198355
u2 4.823240235568104
u3 -1.6794331448675348
duration 0.0914 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c5f763aecf82c1ac66678251eeb4ecb6
Parameter Value Uncertainty
Am1 1.0 0.0029
Am2 0
a/Rs 4.242 0.079
Rp/Rs 0.1128 0.0025
ephemeris [JD] 2459786.28797 0.00094
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.708451353472836
u1 -4.849014855093103
u2 4.8177310032605085
u3 -1.6771674298504555
duration 0.0943 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4ad63b3752003749e752872f98ca5584
Parameter Value Uncertainty
Am1 1.0002 0.0032
Am2 0
a/Rs 4.39 0.11
Rp/Rs 0.1067 0.0031
ephemeris [JD] 2459792.3503 0.001
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7094356902962433
u1 -4.853231502947581
u2 4.823197173634549
u3 -1.679401289111972
duration 0.0904 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4f0d6e4f45399f73c898b84c0440ddb4
Parameter Value Uncertainty
Am1 1.0004 0.003
Am2 0
a/Rs 4.239 0.085
Rp/Rs 0.115 0.0028
ephemeris [JD] 2459800.84276 0.0009
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7092425857158595
u1 -4.850050584702773
u2 4.817785881168555
u3 -1.6769778103910369
duration 0.0947 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 7ee62d172568325ad0f9847c42b1fcbd
Parameter Value Uncertainty
Am1 1.0003 0.0028
Am2 0
a/Rs 4.484 0.099
Rp/Rs 0.1102 0.0026
ephemeris [JD] 2459814.18465 0.00092
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.708750252382088
u1 -4.849705365926503
u2 4.8182998087658095
u3 -1.6773446234231333
duration 0.0885 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 94214de6ef10b4889e3067db069fb2d9
Parameter Value Uncertainty
Am1 1.0005 0.0029
Am2 0
a/Rs 4.27 0.12
Rp/Rs 0.1103 0.0027
ephemeris [JD] 2459809.331 0.0013
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.709437994815709
u1 -4.851832709463227
u2 4.820679833445229
u3 -1.678285046963984
duration 0.0936 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4ad6ddd5ed0782dee61b090928cd4269
Parameter Value Uncertainty
Am1 0.9995 0.0033
Am2 0
a/Rs 4.51 0.1
Rp/Rs 0.1103 0.0028
ephemeris [JD] 2459805.69455 0.00097
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.709525645958419
u1 -4.852788464126855
u2 4.822286460007738
u3 -1.6790235699816347
duration 0.088 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b8ce1ebf944bc3f199ede1f5bcaa73db
Parameter Value Uncertainty
Am1 1.0003 0.0034
Am2 0
a/Rs 4.37 0.099
Rp/Rs 0.1118 0.0028
ephemeris [JD] 2459775.36935 0.00097
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7092091741393625
u1 -4.851330949524752
u2 4.820228867915378
u3 -1.678107020702981
duration 0.0914 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0f32e7d345ea2281aea6f593002c4e20
Parameter Value Uncertainty
Am1 1.0005 0.0028
Am2 0
a/Rs 4.36 0.11
Rp/Rs 0.1053 0.0027
ephemeris [JD] 2459771.7318 0.001
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7094594859145427
u1 -4.8523510569518375
u2 4.821566119128277
u3 -1.6786744762440482
duration 0.0911 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ce6fa1619096eb662816b44ac4bfb9ee
Parameter Value Uncertainty
Am1 1.0003 0.0028
Am2 0
a/Rs 4.273 0.083
Rp/Rs 0.1151 0.0025
ephemeris [JD] 2459783.86063 0.00086
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.709649777631858
u1 -4.853545057563896
u2 4.823439257753299
u3 -1.6795439059464146
duration 0.094 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for eadbc109c92b6993ea8b3b7e6ad786f9
Parameter Value Uncertainty
Am1 1.0002 0.0032
Am2 0
a/Rs 4.32 0.11
Rp/Rs 0.1061 0.0028
ephemeris [JD] 2459822.6748 0.0011
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7092123619144197
u1 -4.851516037314807
u2 4.8206610504847855
u3 -1.6783573032509511
duration 0.0918 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ab3818029b22e591649ea844446a54f2
Parameter Value Uncertainty
Am1 1.0003 0.003
Am2 0
a/Rs 4.39 0.094
Rp/Rs 0.11 0.0028
ephemeris [JD] 2459799.62851 0.00089
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7088572766429033
u1 -4.850105760803496
u2 4.818823604952463
u3 -1.677575048985803
duration 0.0907 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d3d334a5820c33f39cd4cd04d6f9233f
Parameter Value Uncertainty
Am1 0.9996 0.0029
Am2 0
a/Rs 4.219 0.087
Rp/Rs 0.1081 0.0027
ephemeris [JD] 2459798.4172 0.00097
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.708895328645969
u1 -4.850227494913725
u2 4.818898660165397
u3 -1.6775664220904556
duration 0.0947 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ddebd061db0c1bbf7362ada537e58516
Parameter Value Uncertainty
Am1 0.9996 0.003
Am2 0
a/Rs 4.282 0.091
Rp/Rs 0.112 0.0027
ephemeris [JD] 2459815.39673 0.00093
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.709055667091589
u1 -4.850537609434014
u2 4.819223797433149
u3 -1.677741783278694
duration 0.0933 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for cc084e36619b9b89ed6c74bb8095f1f4
Parameter Value Uncertainty
Am1 1.0003 0.0025
Am2 0
a/Rs 4.395 0.089
Rp/Rs 0.1091 0.0023
ephemeris [JD] 2459785.07557 0.00082
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.709238101535023
u1 -4.851402282154575
u2 4.8203116520234275
u3 -1.6781473995756349
duration 0.0907 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4672bbdb4a12b8e919f16fac57331ffe
Parameter Value Uncertainty
Am1 1.0002 0.0032
Am2 0
a/Rs 4.35 0.1
Rp/Rs 0.1105 0.0028
ephemeris [JD] 2459788.71252 0.00096
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.708789421286932
u1 -4.849042645453091
u2 4.817005743176263
u3 -1.6767524472311246
duration 0.0914 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for da7291cfa7cf8357507145ec83646f99
Parameter Value Uncertainty
Am1 1.0001 0.003
Am2 0
a/Rs 4.209 0.081
Rp/Rs 0.1081 0.0026
ephemeris [JD] 2459819.03569 0.00098
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.708918243950382
u1 -4.8512684523984815
u2 4.820771036352354
u3 -1.6784207560691677
duration 0.0947 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 61273a8dc9e44ff7d5f294461e60ef12
Parameter Value Uncertainty
Am1 1.0 0.0031
Am2 0
a/Rs 4.426 0.097
Rp/Rs 0.1156 0.0028
ephemeris [JD] 2459779.01085 0.00093
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7092858333402914
u1 -4.851859539351961
u2 4.821116392443544
u3 -1.6785426145916427
duration 0.0904 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 7b110353319d5bb4527ccd38a2f3c452
Parameter Value Uncertainty
Am1 0.9994 0.0029
Am2 0
a/Rs 4.375 0.091
Rp/Rs 0.1106 0.0022
ephemeris [JD] 2459774.15794 0.00088
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7092095308120063
u1 -4.852709006081263
u2 4.822749945101841
u3 -1.6792503979680102
duration 0.0911 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a8e4beddd83deaa8d6f7cae0b3ddd742
Parameter Value Uncertainty
Am1 0.9998 0.0035
Am2 0
a/Rs 4.147 0.095
Rp/Rs 0.1092 0.003
ephemeris [JD] 2459776.5837 0.0013
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.709031238377322
u1 -4.85057450342463
u2 4.819312217334939
u3 -1.6777688804742832
duration 0.0965 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b070c180085e8f92864804fcec1b9cc6
Parameter Value Uncertainty
Am1 0.999 0.0031
Am2 0
a/Rs 4.362 0.096
Rp/Rs 0.1106 0.0027
ephemeris [JD] 2459794.77762 0.00095
eccentricity 0.052
inclination [degrees] 85.7
omega [degrees] 121.0
orbital period [days] 1.212886397
u0 2.7088716456381507
u1 -4.850368565950269
u2 4.819229896715675
u3 -1.6777329045914349
duration 0.0914 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
