HAT-P-20 b

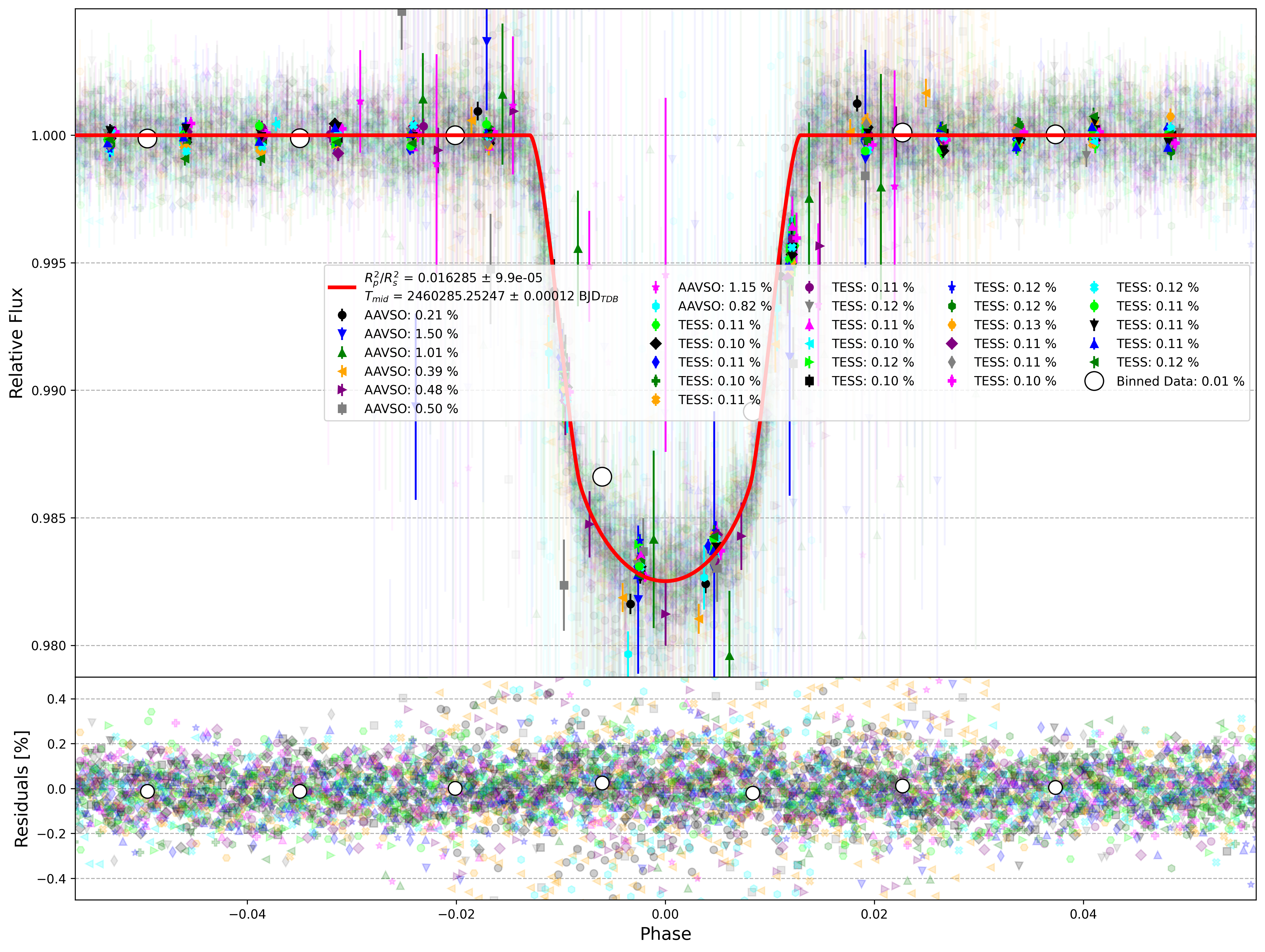

Timing Plot

Total Reductions to Date: 30

Date Processed: 09/06/2025 at 07:00:04 (PDT)

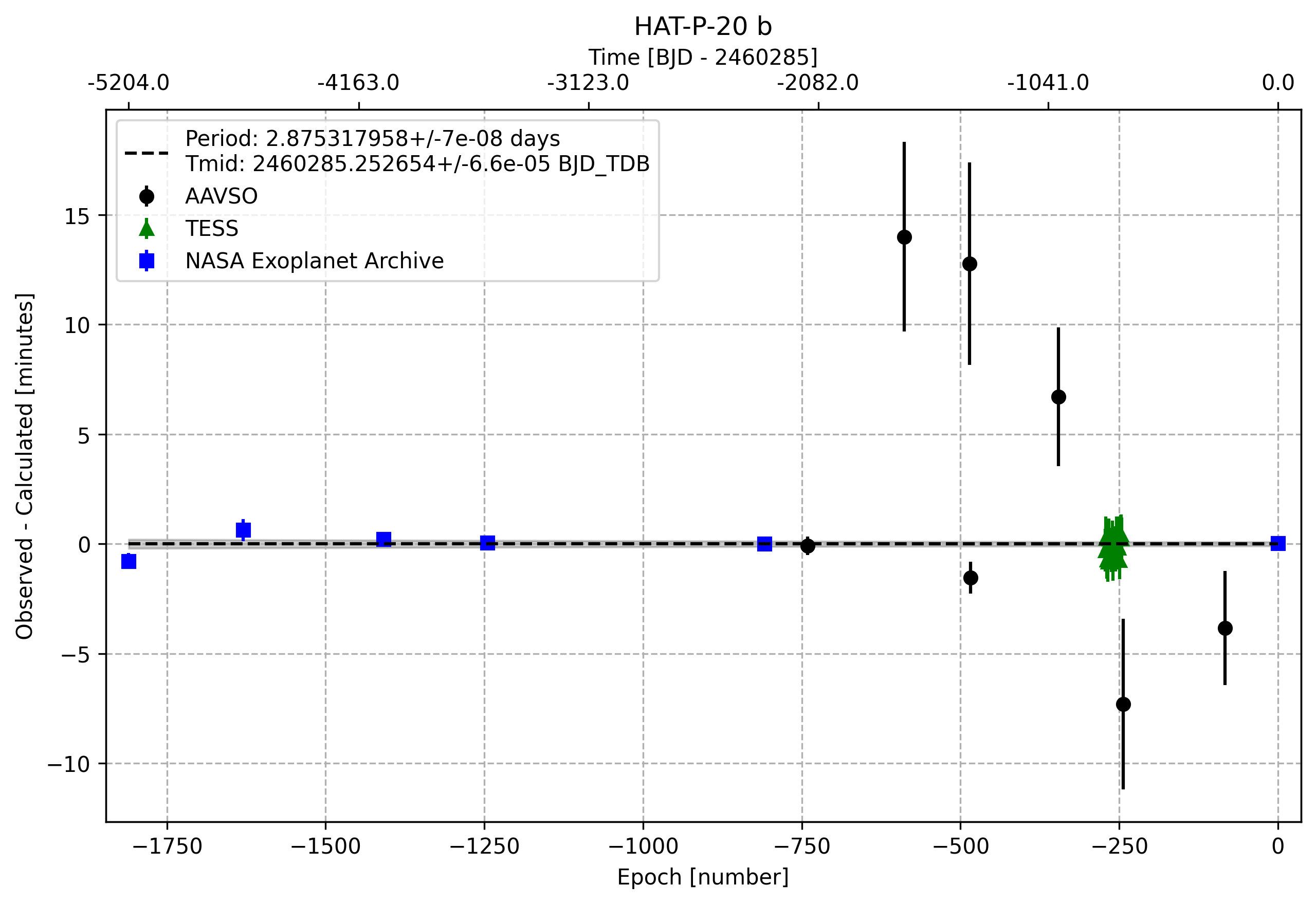

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 2.8753179570978964 6.96817640560232e-08
Ephemeris (BJD_TDB) 2460285.2526528514 6.508635826882583e-05
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 111.9164295 decimal
DEC 24.3361185 decimal
Host Star Metallicity 0.35 0.08 Kokori et al. 2023
Host Star log(g) 4.63 0.02 Log10(cgs) Kokori et al. 2023
Host Star Radius [R_Sun] 0.694 0.021 Sol Kokori et al. 2023
Host Star Effective Temperature [K] 4595.0 80.0 K Kokori et al. 2023
a/Rs 11.2 0.3 Kokori et al. 2023
eccentricity 0.015 0.005 Kokori et al. 2023
inclination [degrees] 86.8 0.2 deg Kokori et al. 2023
omega [degrees] 317.0 130.0 deg Kokori et al. 2023
orbital period [days] 2.87531773 1.1e-07 day Kokori et al. 2023
Rp 11.13 0.87 R_Earth ExoFOP-TESS TOI
Rp/Rs 0.1539 0 ExoFOP-TESS TOI
ephemeris [JD] 2457959.12043 5.6e-05 BJD-TDB Kokori et al. 2023

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2457959.12043 5.6e-05 BJD-TDB Kokori et al. 2023
2456233.9298 0.00016 BJD-TDB Ivshina & Winn 2022
2456705.48183 7e-05 BJD-TDB Kokori et al. 2022
2460285.252669 8.1e-05 BJD ExoFOP-TESS TOI
2455598.48482 0.00032 BJD-TDB Bonomo et al. 2017
2455080.92661 0.00021 BJD-UTC Bakos et al. 2010

Observations

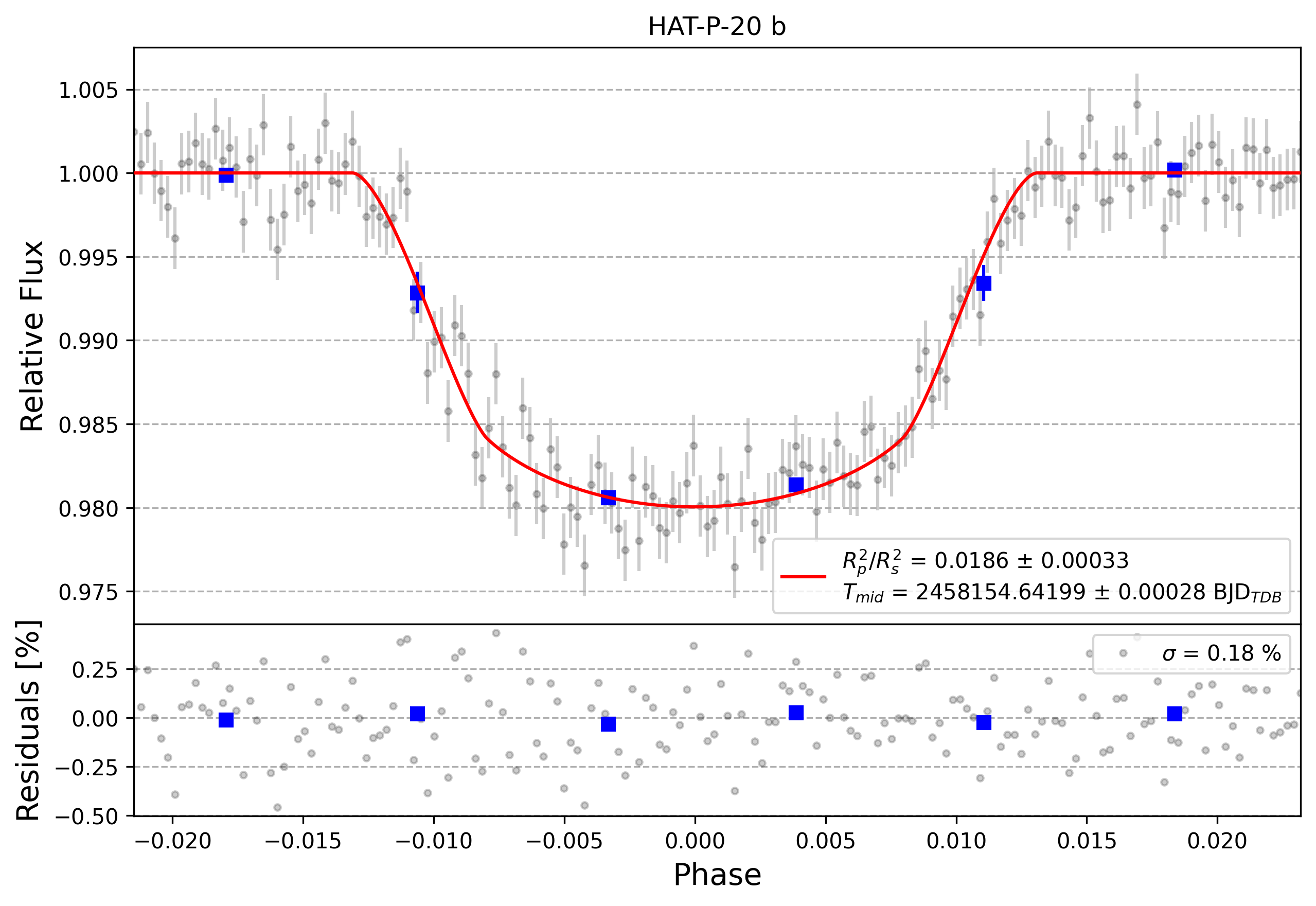

Light curve chart for 0000451
Parameter Value Uncertainty
Am1 0.9929 0.0018
Am2 0.0059 0.0011
a/Rs 11.507 0.071
Rp/Rs 0.1363 0.0012
ephemeris [JD] 2458154.642 0.00029
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.016754233262846
u1 -3.4999858541532616
u2 3.785782277152011
u3 -1.3025505998490434
duration 0.0752 0.00069
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Clear with blue-blocking 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO DJOC (collaborate/publish)
Light curve chart for 0000280
Parameter Value Uncertainty
Am1 1.534 0.021
Am2 0.0212 0.0036
a/Rs 12.14 0.53
Rp/Rs 0.141 0.017
ephemeris [JD] 2458591.7006 0.0029
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 1.6868050887010213
u1 -2.8878412088616345
u2 3.3303568054622246
u3 -1.1293206356754277
duration 0.0697 0.005
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

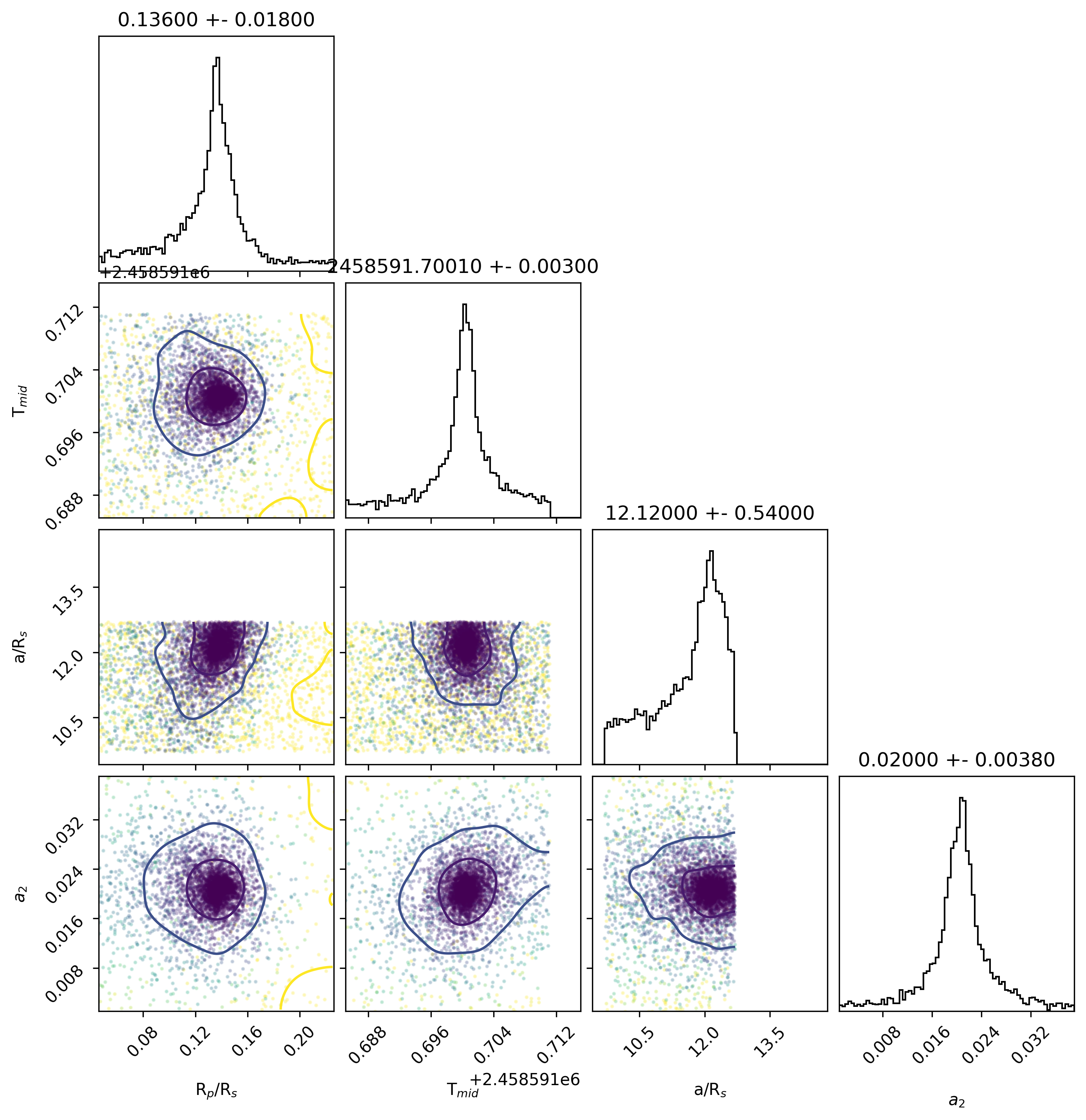

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)

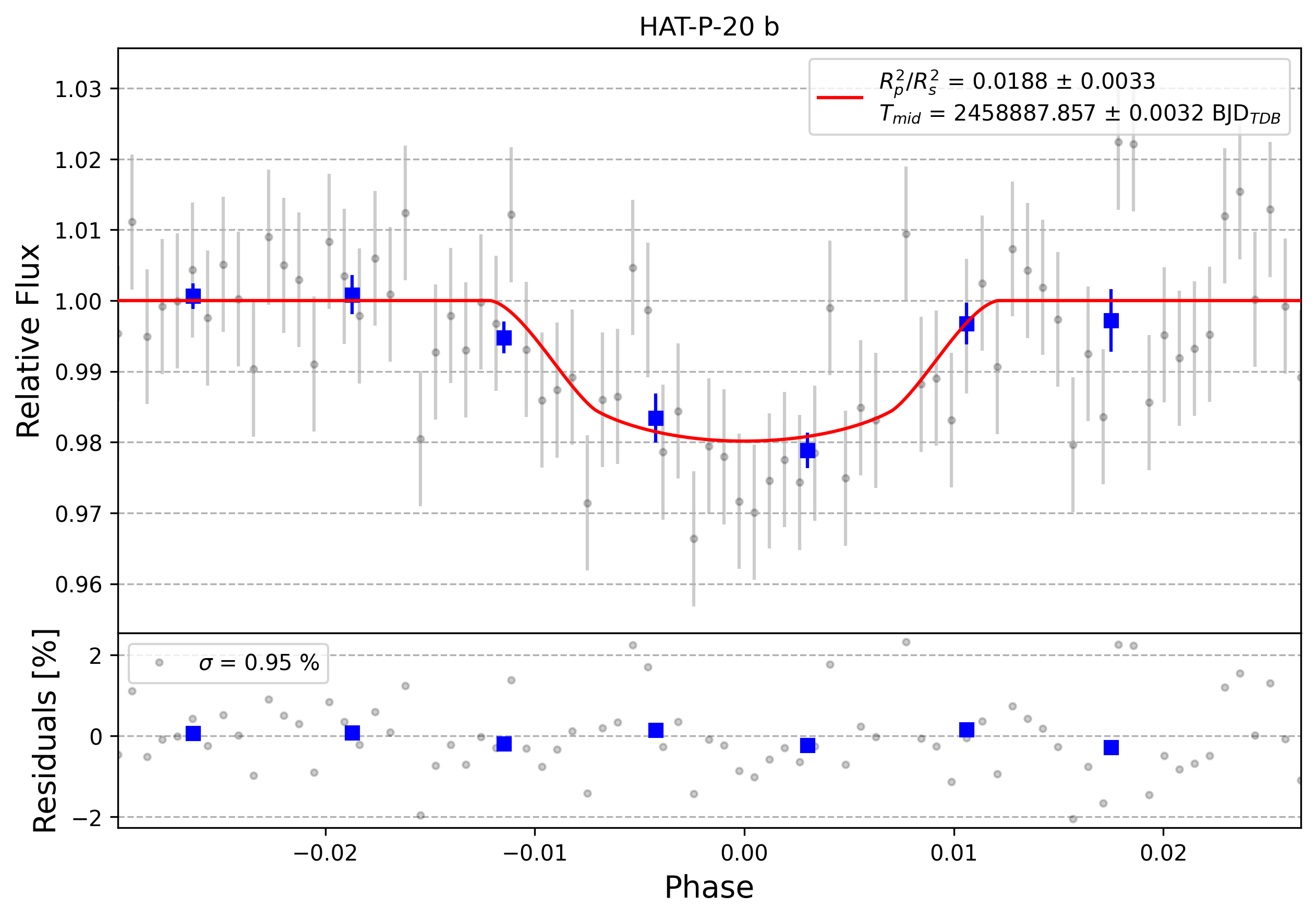

Light curve chart for 0000257
Parameter Value Uncertainty
Am1 1.529 0.015
Am2 0.0083 0.0045
a/Rs 12.07 0.66
Rp/Rs 0.139 0.012
ephemeris [JD] 2458887.8569 0.0032
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 1.687282808783129
u1 -2.8891483608153385
u2 3.3316801757399572
u3 -1.1298145740618444
duration 0.0699 0.0061
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO FMAA (collaborate/publish)

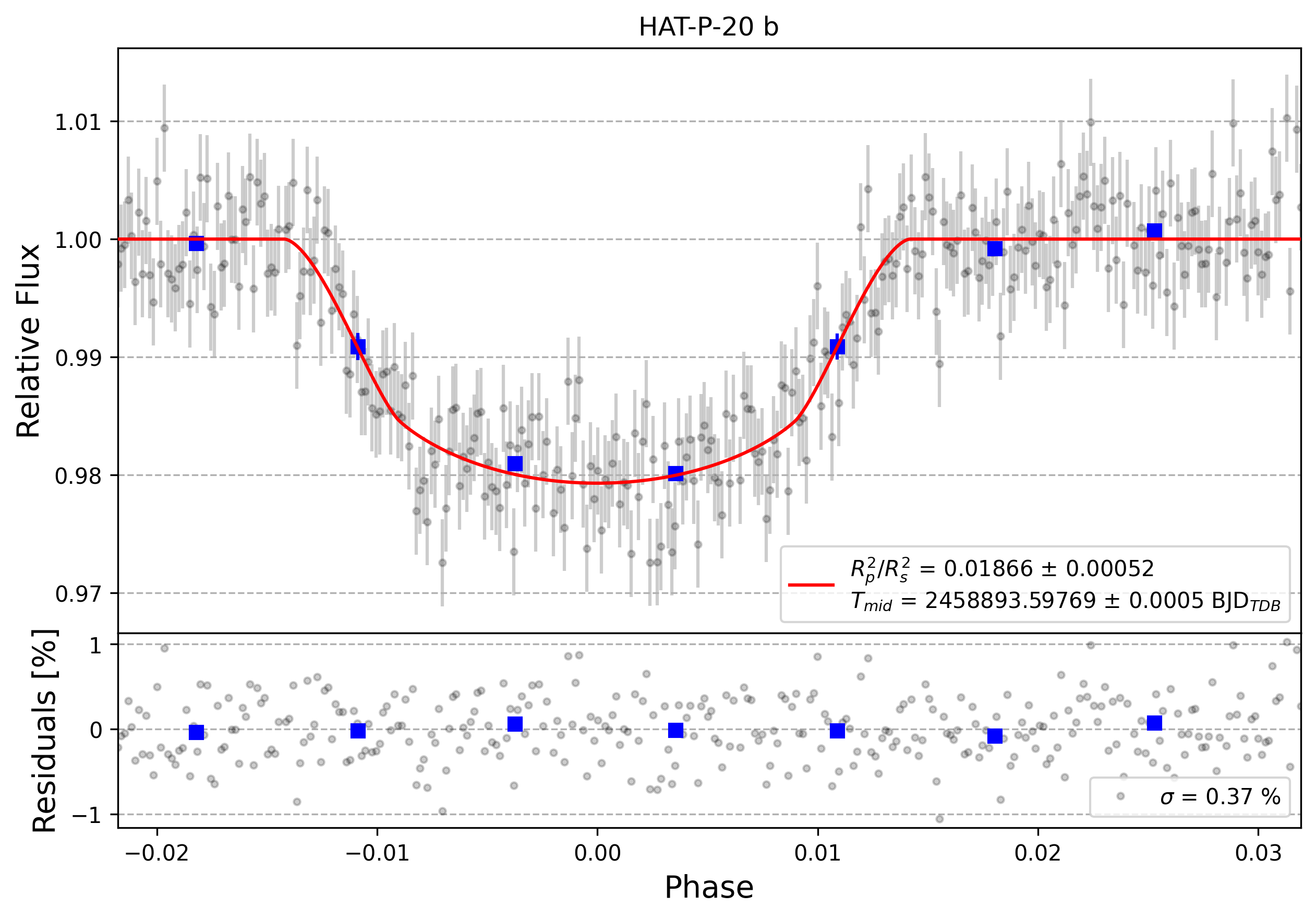

Light curve chart for 0000251
Parameter Value Uncertainty
Am1 0.9691 0.0036
Am2 0.0379 0.0044
a/Rs 10.87 0.12
Rp/Rs 0.1366 0.0019
ephemeris [JD] 2458893.59768 0.0005
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 1.6875271093855355
u1 -2.8900522754157487
u2 3.33293072651424
u3 -1.1304055108194886
duration 0.0816 0.0013
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV Clear (unfiltered) reduced to V sequence 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO DKS (collaborate/publish)
Light curve chart for 0000625
Parameter Value Uncertainty
Am1 1.0064 0.0043
Am2 -0.0044 0.0026
a/Rs 10.52 0.48
Rp/Rs 0.1356 0.0034
ephemeris [JD] 2459290.3973 0.0023
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 1.6081687937732532
u1 -2.667720927001999
u2 3.1513222725738848
u3 -1.0917700923867781
duration 0.0854 0.0054
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
R Cousins R 561.7 nm 719.7 nm
Organization Observer Code Secondary Observers
AAVSO PJEF (collaborate/publish)
Light curve chart for 0002709
Parameter Value Uncertainty
Am1 1.0558 0.005
Am2 -0.0324 0.0067
a/Rs 9.71 0.22
Rp/Rs 0.1249 0.0083
ephemeris [JD] 2459583.6701 0.0027
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 1.6868830148726532
u1 -2.8877766312166218
u2 3.3300651426241874
u3 -1.1291714766583811
duration 0.0937 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CV MObs CV 350.0 nm 850.0 nm
Organization Observer Code Secondary Observers
AAVSO KADB (collaborate/publish) MOBS
Light curve chart for 0002151
Parameter Value Uncertainty
Am1 0.906 0.008
Am2 0.078 0.012
a/Rs 12.67 0.91
Rp/Rs 0.138 0.04
ephemeris [JD] 2459876.978 0.01
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1754706421021175
u1 -3.737934628381093
u2 3.9006061654905197
u3 -1.3381421210879827
duration 0.0643 0.0085
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
AAVSO LPAC (collaborate/publish)
Light curve chart for 0003261
Parameter Value Uncertainty
Am1 1.0277 0.0079
Am2 -0.017 0.014
a/Rs 10.71 0.35
Rp/Rs 0.15 0.011
ephemeris [JD] 2460046.5983 0.0018
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1756114785151675
u1 -3.7376816651645646
u2 3.899992673895372
u3 -1.3379224291315555
duration 0.0812 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

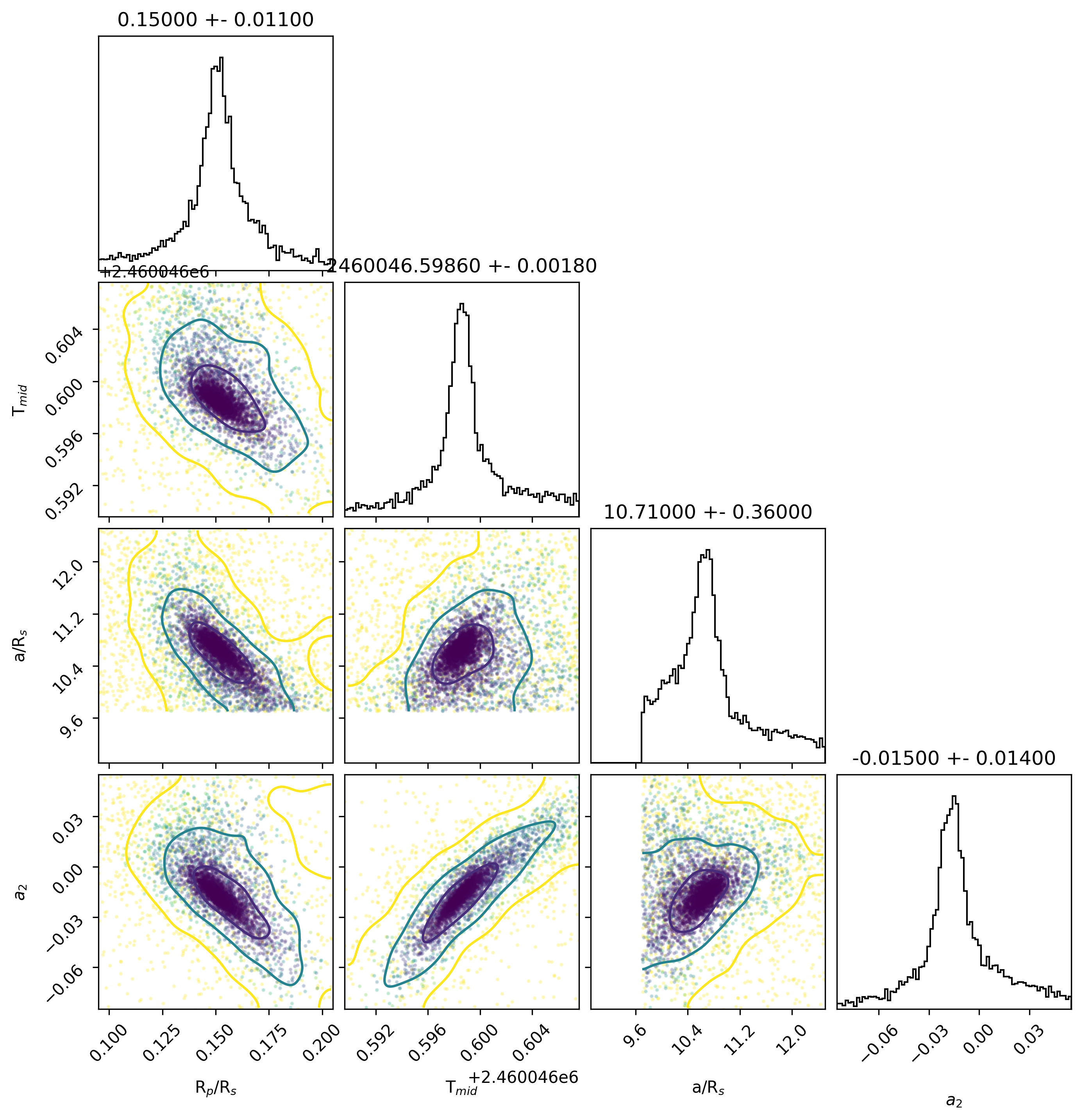

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
AAVSO MNEE (collaborate/publish) RWEA
Light curve chart for d121e0e65ecab344b76626fa23365bc0
Parameter Value Uncertainty
Am1 0.9997 0.0011
Am2 0
a/Rs 11.14 0.16
Rp/Rs 0.1253 0.0023
ephemeris [JD] 2459506.04166 0.00065
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.176223214101146
u1 -3.7399583881582505
u2 3.902751172416803
u3 -1.339015940204174
duration 0.0778 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

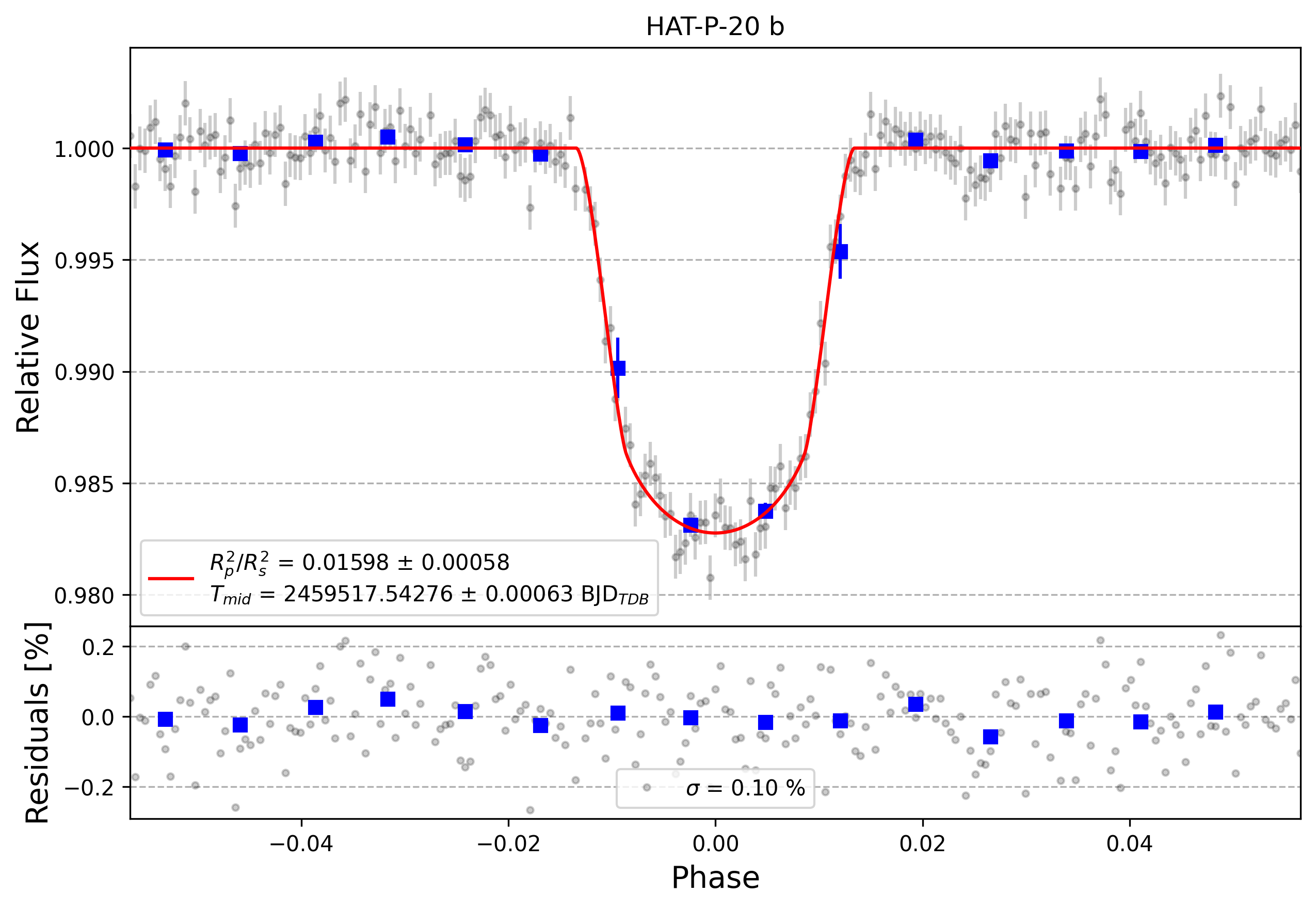

Light curve chart for 20f6688d9e723d54acdc71fbceb0c2f9
Parameter Value Uncertainty
Am1 0.99915 0.00099
Am2 0
a/Rs 11.21 0.15
Rp/Rs 0.1264 0.0021
ephemeris [JD] 2459517.54276 0.00063
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.175542664180876
u1 -3.7377096367718305
u2 3.900099729692988
u3 -1.3379326989860187
duration 0.0771 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for e6dad01e584371da2e6a250a3f5495b9
Parameter Value Uncertainty
Am1 1.0 0.0011
Am2 0
a/Rs 11.17 0.16
Rp/Rs 0.1258 0.0022
ephemeris [JD] 2459549.17102 0.00064
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1749553080782835
u1 -3.7359737757179934
u2 3.898204591659437
u3 -1.3371860659319519
duration 0.0774 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 53856c77d08a1ec7894dda29d3c6b067
Parameter Value Uncertainty
Am1 1.0004 0.001
Am2 0
a/Rs 11.18 0.16
Rp/Rs 0.1249 0.0022
ephemeris [JD] 2459529.0439 0.00062
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.174913361775148
u1 -3.735357484446167
u2 3.8971947372603024
u3 -1.3367505565165563
duration 0.0771 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 7e709e979f39d81d5fb572708e097013
Parameter Value Uncertainty
Am1 1.0003 0.0011
Am2 0
a/Rs 11.22 0.15
Rp/Rs 0.1253 0.0022
ephemeris [JD] 2459543.42052 0.00063
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1763871575626927
u1 -3.740010959362304
u2 3.9025491497518616
u3 -1.3389252897997364
duration 0.0768 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 449dcca0a29516fca84fcf8befb739d0
Parameter Value Uncertainty
Am1 1.0012 0.001
Am2 0
a/Rs 11.25 0.15
Rp/Rs 0.1261 0.0023
ephemeris [JD] 2459514.66687 0.00064
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1748798337626725
u1 -3.7361933906166405
u2 3.898659555481158
u3 -1.3373459405326353
duration 0.0768 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for e5fe3bd8dacb3004e40cb1e924441cb4
Parameter Value Uncertainty
Am1 1.0003 0.0012
Am2 0
a/Rs 11.13 0.16
Rp/Rs 0.1265 0.0023
ephemeris [JD] 2459572.17402 0.00067
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.175191651629752
u1 -3.736537390662452
u2 3.898736868271152
u3 -1.3373910711427452
duration 0.0778 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

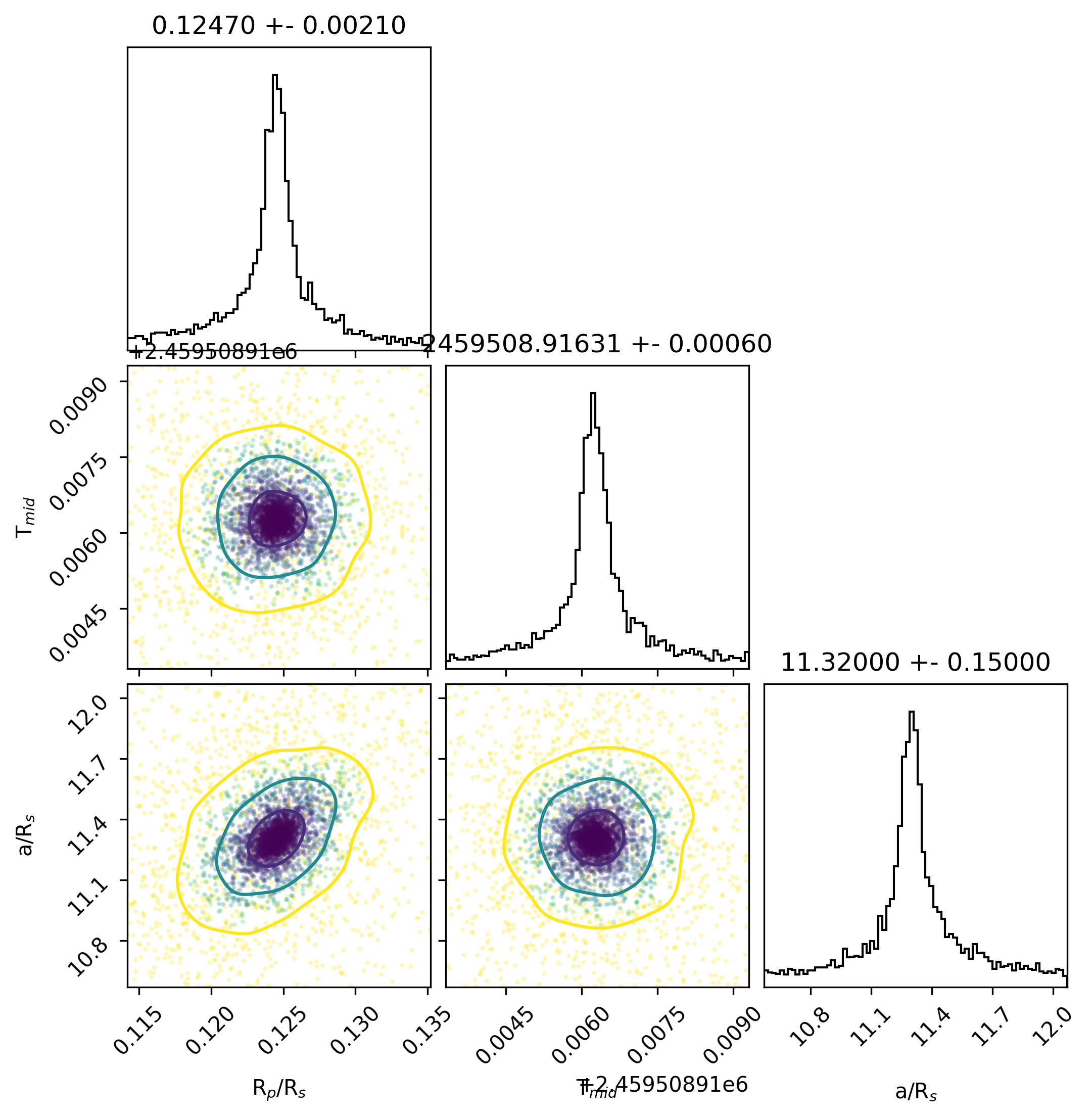

Light curve chart for 19d478d403ebc821d681e6cca0ff5a38
Parameter Value Uncertainty
Am1 1.0006 0.001
Am2 0
a/Rs 11.32 0.15
Rp/Rs 0.1247 0.0022
ephemeris [JD] 2459508.91625 0.0006
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.175191114142683
u1 -3.736095520070008
u2 3.8980056694508463
u3 -1.3371012054387106
duration 0.0758 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

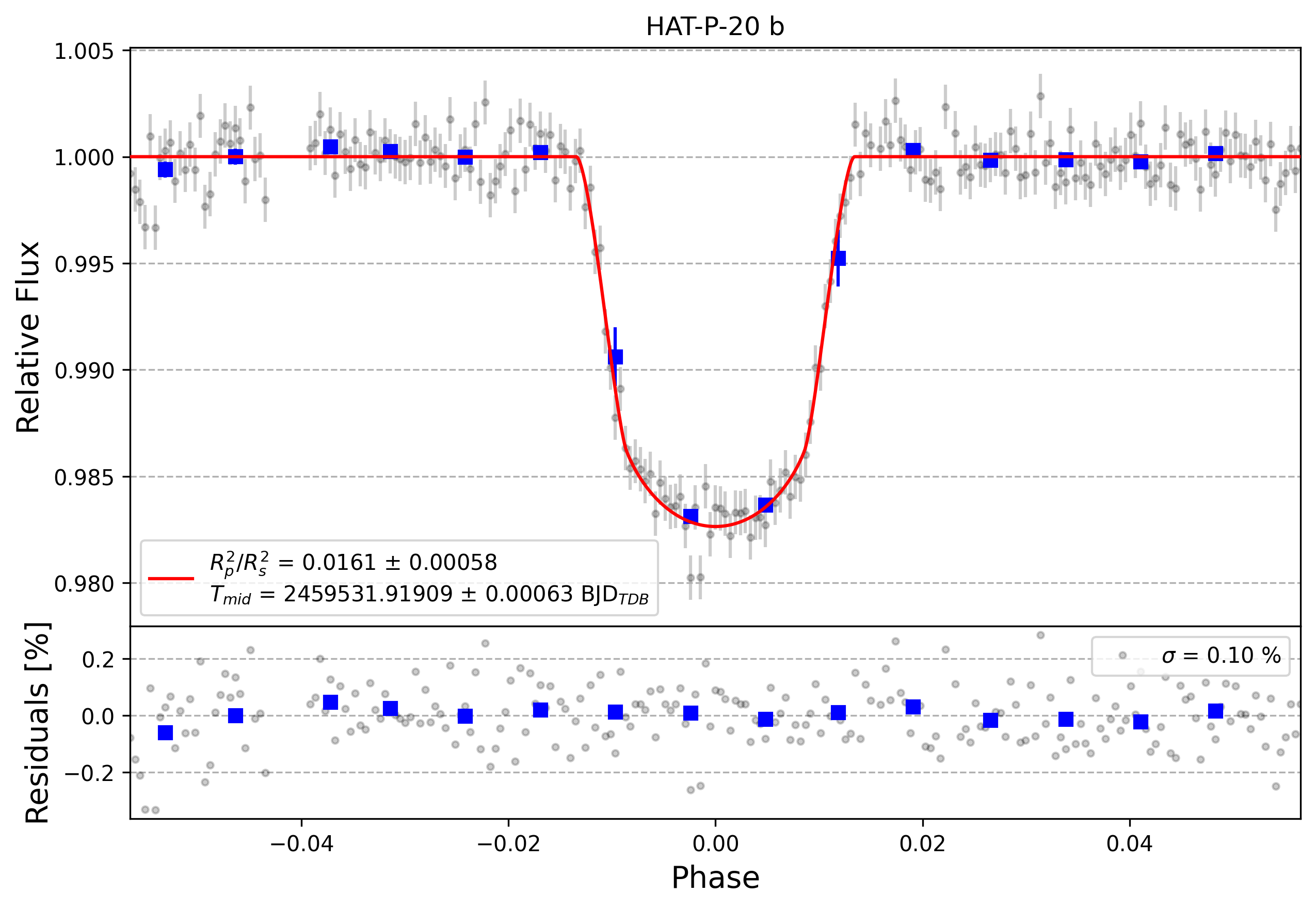

Light curve chart for 1439014af4b966a6bf546ca71bbcf356
Parameter Value Uncertainty
Am1 0.9994 0.0011
Am2 0
a/Rs 11.21 0.15
Rp/Rs 0.1265 0.0023
ephemeris [JD] 2459531.91904 0.00062
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1760913863601243
u1 -3.739482629366721
u2 3.9021780739883867
u3 -1.3387867728348053
duration 0.0771 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 5b7d65c5e1881d0fd8dfc425fb1da196
Parameter Value Uncertainty
Am1 1.0012 0.0012
Am2 0
a/Rs 11.19 0.16
Rp/Rs 0.1252 0.0022
ephemeris [JD] 2459537.66948 0.00064
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1757293768799277
u1 -3.738220277335265
u2 3.9006715799049925
u3 -1.3381806213251188
duration 0.0771 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 585c8c79d39b606d0a964e3ca8bbda91
Parameter Value Uncertainty
Am1 1.0001 0.001
Am2 0
a/Rs 11.28 0.17
Rp/Rs 0.1264 0.0022
ephemeris [JD] 2459554.92207 0.00064
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1755236087345637
u1 -3.737359353016064
u2 3.8995644449937323
u3 -1.3377286426041937
duration 0.0765 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 47d4c6601a550f0db72cb2279aafc425
Parameter Value Uncertainty
Am1 1.0006 0.0011
Am2 0
a/Rs 11.11 0.16
Rp/Rs 0.1228 0.0022
ephemeris [JD] 2459523.29328 0.00065
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.175616166298936
u1 -3.737753689128466
u2 3.900061013383013
u3 -1.3379234324380453
duration 0.0778 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for cc4e1298f2374657873c53a98febdfdc
Parameter Value Uncertainty
Am1 0.9993 0.0012
Am2 0
a/Rs 11.14 0.16
Rp/Rs 0.1252 0.0022
ephemeris [JD] 2459575.0494 0.00062
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.175269487389872
u1 -3.7367279335536256
u2 3.898942194048393
u3 -1.3374836897858735
duration 0.0774 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

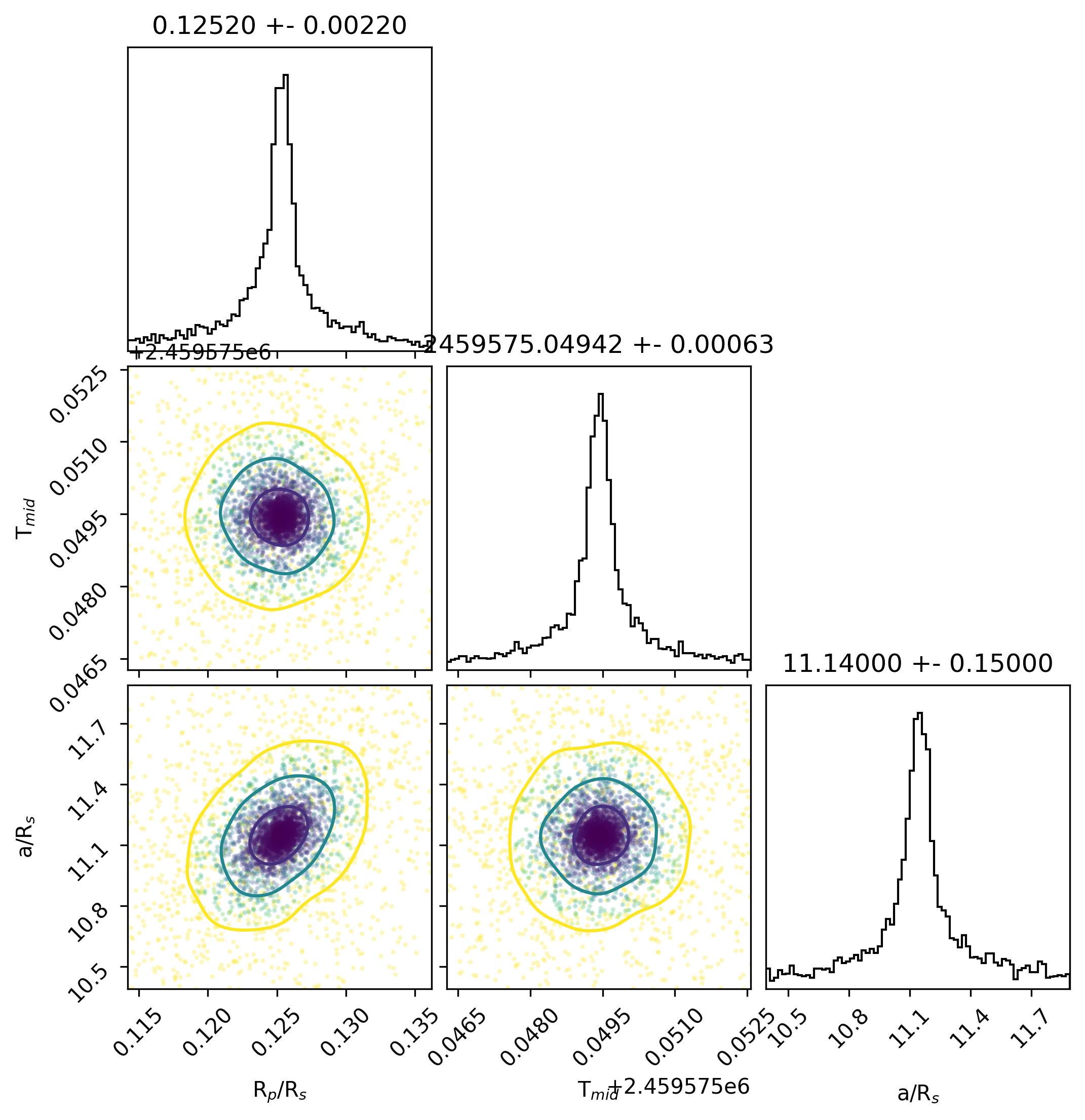

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 05e5414f970f30fae2629d1baac2eeb0
Parameter Value Uncertainty
Am1 1.0016 0.0013
Am2 0
a/Rs 11.09 0.16
Rp/Rs 0.1264 0.0022
ephemeris [JD] 2459577.92461 0.00066
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1752567926389905
u1 -3.7366793415521604
u2 3.898868634452261
u3 -1.337446027441421
duration 0.0784 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 89ca73c00fadb2faf70cb8ac23ec93ec
Parameter Value Uncertainty
Am1 0.9994 0.0011
Am2 0
a/Rs 11.11 0.16
Rp/Rs 0.1264 0.0023
ephemeris [JD] 2459503.16595 0.00065
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1744671848517045
u1 -3.7345901123872776
u2 3.8966607306827505
u3 -1.336537745082408
duration 0.0781 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b90b511206fde0c29e3a1c4d818890ac
Parameter Value Uncertainty
Am1 1.0004 0.0011
Am2 0
a/Rs 11.31 0.15
Rp/Rs 0.1275 0.0022
ephemeris [JD] 2459534.79478 0.0006
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1756203484214844
u1 -3.738304824852144
u2 3.900963546191549
u3 -1.3382790116320025
duration 0.0761 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for cc7d8123af9090c9fc984f7e0ce1a4bc
Parameter Value Uncertainty
Am1 0.9997 0.001
Am2 0
a/Rs 11.32 0.16
Rp/Rs 0.1284 0.0023
ephemeris [JD] 2459560.67275 0.00064
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1764104179944157
u1 -3.7406218924455987
u2 3.9035167491384875
u3 -1.3393052165203718
duration 0.0761 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

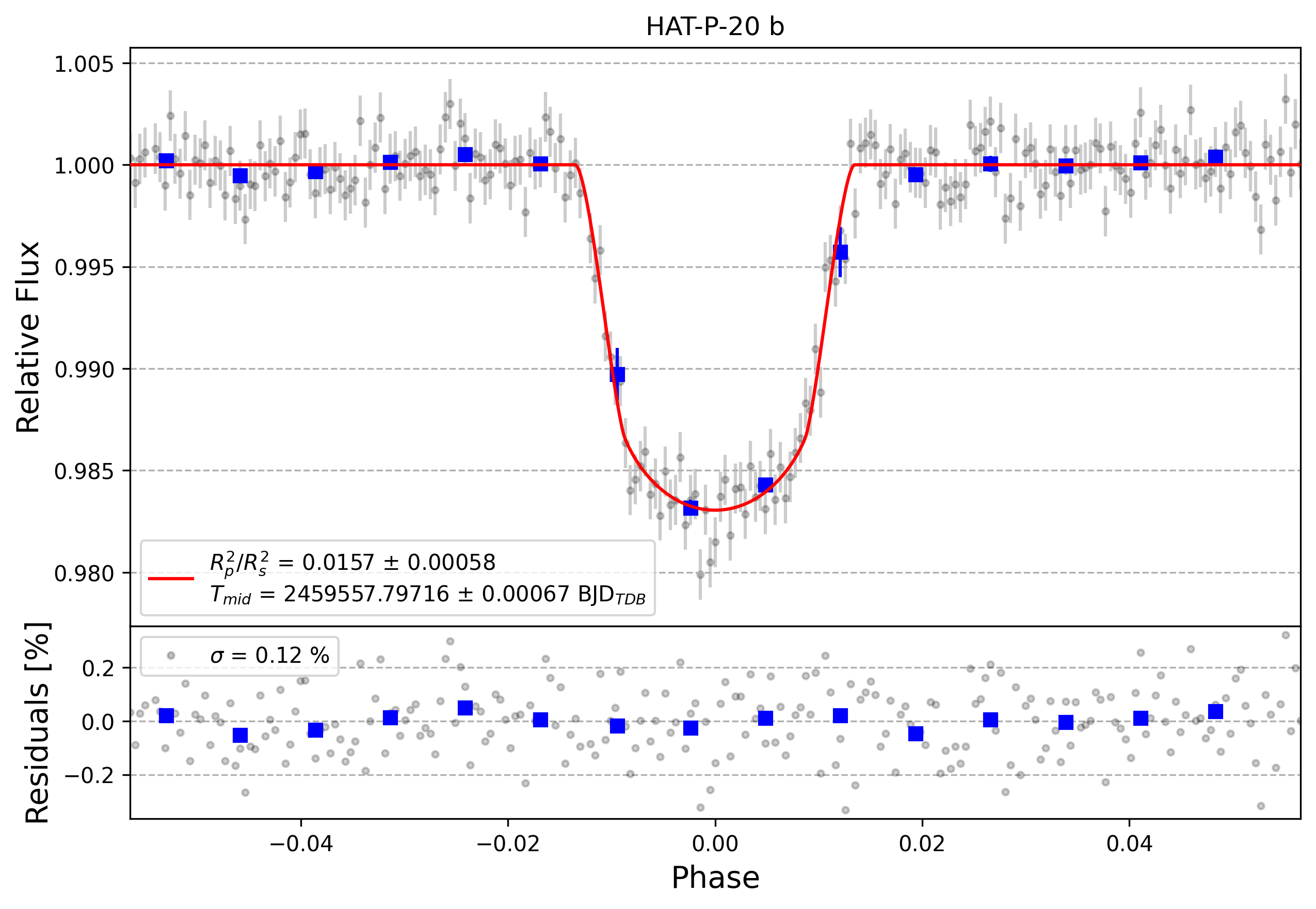

Light curve chart for 41e7e61d47d8dd0e4c813e428308822a
Parameter Value Uncertainty
Am1 0.9998 0.0012
Am2 0
a/Rs 11.18 0.17
Rp/Rs 0.1254 0.0023
ephemeris [JD] 2459557.79711 0.00068
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1754706790466747
u1 -3.737370040065634
u2 3.8996738320589097
u3 -1.337774412930282
duration 0.0774 0.0017
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6ff37b5e7247767d334dab20dccee4bb
Parameter Value Uncertainty
Am1 0.9997 0.0011
Am2 0
a/Rs 11.21 0.15
Rp/Rs 0.1255 0.0022
ephemeris [JD] 2459569.29795 0.00063
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.175518721896744
u1 -3.737333641754341
u2 3.8995410813151743
u3 -1.3377261033498873
duration 0.0771 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )

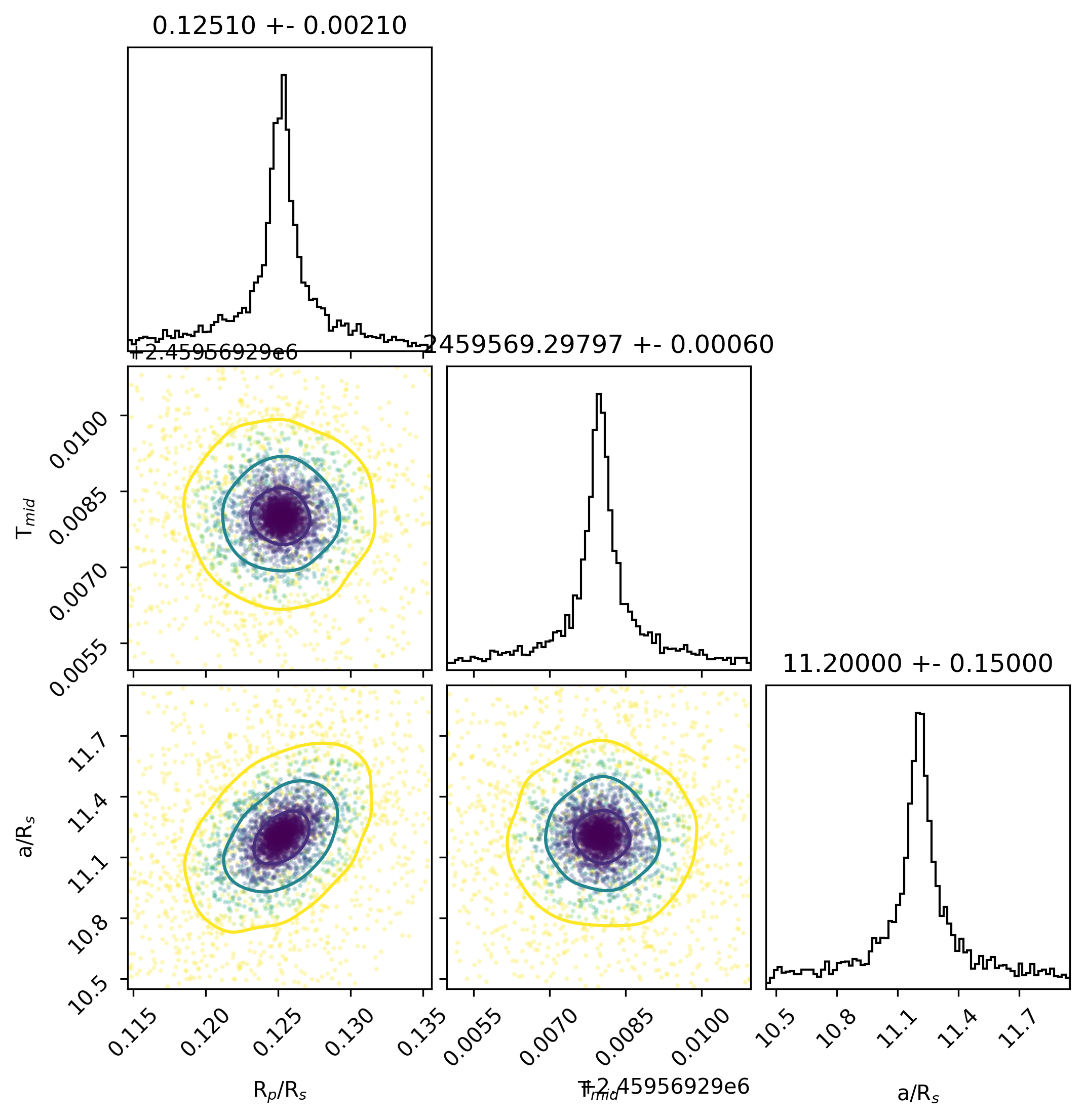

Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0b4ec7a241832a6b97a16c5dbc53ca1f
Parameter Value Uncertainty
Am1 1.0004 0.0011
Am2 0
a/Rs 11.2 0.14
Rp/Rs 0.1275 0.0021
ephemeris [JD] 2459520.41824 0.00061
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1752795716250057
u1 -3.736693820935394
u2 3.8988466461783915
u3 -1.337432338770661
duration 0.0774 0.0015
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0e08579532ece213502ec560237a98c0
Parameter Value Uncertainty
Am1 0.9994 0.0011
Am2 0
a/Rs 11.18 0.15
Rp/Rs 0.1274 0.0022
ephemeris [JD] 2459546.29589 0.00064
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.176518463052626
u1 -3.7405367149036715
u2 3.9032156830163474
u3 -1.3391973730028561
duration 0.0774 0.0016
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

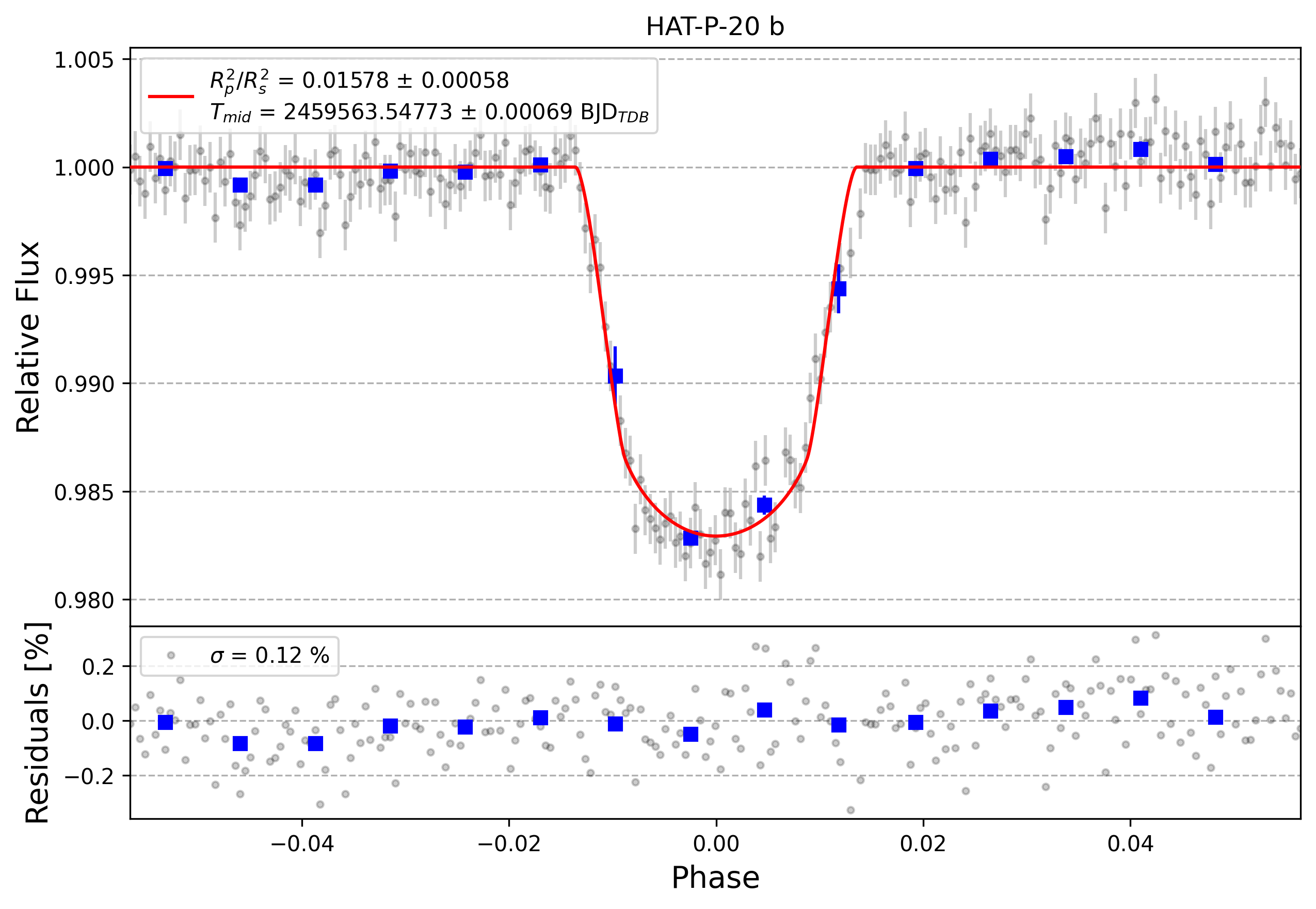

Light curve chart for 0e6fa8c93e1c8a83a401b18e173c2094
Parameter Value Uncertainty
Am1 1.0004 0.0012
Am2 0
a/Rs 11.12 0.17
Rp/Rs 0.1257 0.0023
ephemeris [JD] 2459563.54777 0.00068
eccentricity 0.015
inclination [degrees] 86.8
omega [degrees] 317.0
orbital period [days] 2.87531773
u0 2.1759026360260654
u1 -3.7386113619792996
u2 3.9010301561019562
u3 -1.338321372018843
duration 0.0778 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
