HAT-P-7 b

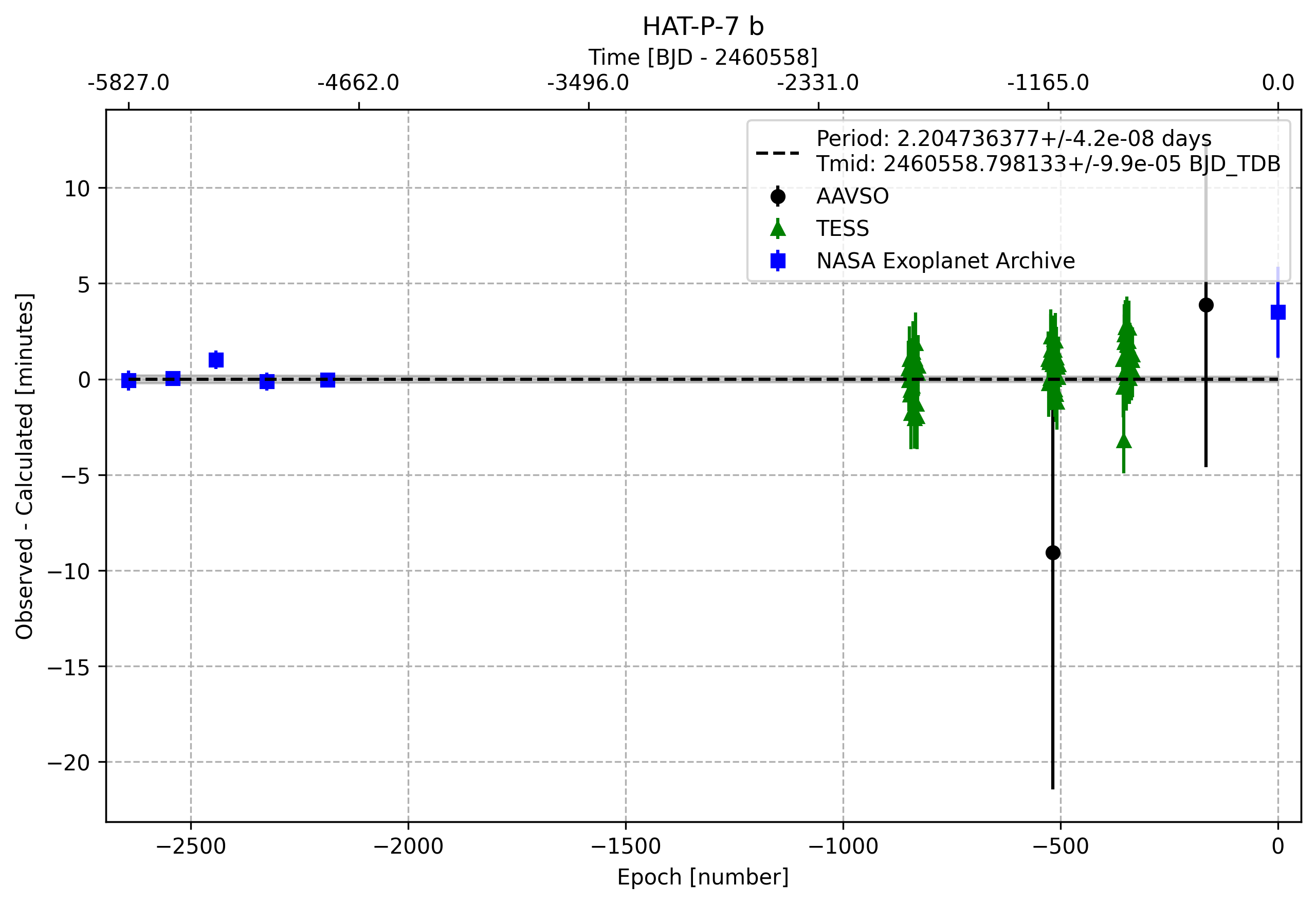

Timing Plot

Total Reductions to Date: 69

Date Processed: 09/06/2025 at 07:00:04 (PDT)

Exoplanet Watch Ephemeris

Parameter Value Uncertainty
Orbital Period (Days) 2.204736377072353 4.1761358084213565e-08
Ephemeris (BJD_TDB) 2460558.798133441 9.886984925278866e-05
Time saved (hours) -

Assumed Priors

Parameter Value Uncertainty Units Reference
RA 292.24719 decimal
DEC 47.9695429 decimal
Host Star Metallicity 0.2 0.04 Fulton & Petigura 2018
Host Star log(g) 3.96818 0.082987 Log10(cgs) Q1-Q17 DR25 Supplemental KOI Table
Host Star Radius [R_Sun] 1.84 0.23 Sol Kokori et al. 2023
Host Star Effective Temperature [K] 6350.0 80.0 K Kokori et al. 2023
a/Rs 4.03 0.16 Kokori et al. 2023
eccentricity 0.0016 0.0034 Kokori et al. 2023
inclination [degrees] 82.2 1.2 deg Kokori et al. 2023
omega [degrees] 165.0 93.0 deg Kokori et al. 2023
orbital period [days] 2.204736003 4.9e-08 day Kokori et al. 2023
Rp 16.25 0.35 R_Earth Fulton & Petigura 2018
Rp/Rs 0.0817 0 Q1-Q17 DR25 KOI Table
ephemeris [JD] 2455739.244382 1.3e-05 BJD-TDB Kokori et al. 2023

Previously Published Mid-Transit Times

Value Uncertainty Units Reference
2454731.67984 0.00033 BJD-TDB, HJD Wong et al. 2016, Winn et al. 2009
2454954.3582856003 1.2381818181818182e-05 BJD, BJD-TDB, JD Q1-Q17 DR25 Supplemental KOI Table, Q1-Q17 DR25 KOI Table, Bonomo et al. 2017, Holczer et al. 2016, Morton et al. 2016, Q1-Q17 DR24 KOI Table, Esteves et al. 2015, Q1-Q16 KOI Table, Q1-Q12 KOI Table, Q1-Q8 KOI Table, Morris et al. 2013
2455174.8326 0.0003 BJD-TDB Kokori et al. 2022
2455430.58123 0.00029 BJD-TDB Ivshina & Winn 2022
2455739.244382 1.3e-05 BJD-TDB Kokori et al. 2023
2460558.800568 0.001647 BJD ExoFOP-TESS TOI

Observations

Light curve chart for 0000765
Parameter Value Uncertainty
Am1 1.0243 0.0042
Am2 -0.017 0.014
a/Rs 4.06 0.27
Rp/Rs 0.0913 0.0042
ephemeris [JD] 2459416.7384 0.0086
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 1.9045877124013826
u1 -3.4423555338598124
u2 4.062566396517457
u3 -1.5247985145220708
duration 0.155 0.012
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CCHD (collaborate/publish)
Light curve chart for 0001377
Parameter Value Uncertainty
Am1 1.0207 0.0096
Am2 -0.0136 0.003
a/Rs 4.5 0.46
Rp/Rs 0.0 0.019
ephemeris [JD] 2459687.929 0.012
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.5185965985734766
u1 -4.5267641170490815
u2 4.64904596007807
u3 -1.6408783723262808
duration 0.113 0.015
Not included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
CBB Astrodon ExoPlanet-BB 500.0 nm 1000.0 nm
Organization Observer Code Secondary Observers
AAVSO LPAC (collaborate/publish)
Light curve chart for 0004403
Parameter Value Uncertainty
Am1 1.0123 0.0049
Am2 -0.0063 0.0041
a/Rs 4.0 0.21
Rp/Rs 0.082 0.013
ephemeris [JD] 2460192.8146 0.0059
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 1.9041335268981447
u1 -3.440354076642467
u2 4.059768841994266
u3 -1.523548231754674
duration 0.166 0.011
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
V Johnson V 502.8 nm 586.8 nm
Organization Observer Code Secondary Observers
AAVSO CCHD (collaborate/publish)
Light curve chart for 6c1167f98d0b3a041533fb2b27fc23b1
Parameter Value Uncertainty
Am1 0.99997 0.00096
Am2 0
a/Rs 4.0 0.035
Rp/Rs 0.0769 0.0011
ephemeris [JD] 2459806.98404 0.0009
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820223981281219
u1 -5.0494824140523304
u2 4.915034992203422
u3 -1.6857764861925824
duration 0.1665 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 59b728fadf13a31413c2f3aceb12445b
Parameter Value Uncertainty
Am1 0.9999 0.0012
Am2 0
a/Rs 4.05 0.041
Rp/Rs 0.0769 0.0013
ephemeris [JD] 2458695.7955 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8204043224612256
u1 -5.049874840366407
u2 4.915372176097981
u3 -1.6859015849480476
duration 0.1632 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 27e3513a2cfe0de478051ceb37322bbe
Parameter Value Uncertainty
Am1 1.0001 0.001
Am2 0
a/Rs 3.989 0.035
Rp/Rs 0.0781 0.0012
ephemeris [JD] 2459771.70797 0.0009
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8200168152907397
u1 -5.048521978823353
u2 4.913753462874105
u3 -1.6852482261208594
duration 0.1672 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d3164cd8758cce8e54d534c6f00d2f4e
Parameter Value Uncertainty
Am1 0.9998 0.0012
Am2 0
a/Rs 3.963 0.049
Rp/Rs 0.0756 0.0013
ephemeris [JD] 2459789.3452 0.0012
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.821109061238483
u1 -5.051346086885472
u2 4.916438660102118
u3 -1.6862015611944838
duration 0.1685 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 76f7741aa60d045a7f7ffe239cba69c4
Parameter Value Uncertainty
Am1 0.9999 0.001
Am2 0
a/Rs 3.979 0.035
Rp/Rs 0.0774 0.0011
ephemeris [JD] 2459414.54049 0.0009
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8205322124315675
u1 -5.050337086316935
u2 4.915951600302558
u3 -1.686146653163803
duration 0.1672 0.002
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a0b81de43438d7043dae1c2153da2108
Parameter Value Uncertainty
Am1 0.9999 0.0011
Am2 0
a/Rs 3.947 0.042
Rp/Rs 0.0772 0.0013
ephemeris [JD] 2459436.5881 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820717539912496
u1 -5.049912505053133
u2 4.9147823623936535
u3 -1.6855873240170522
duration 0.1691 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 90d6d39ac6744fc0bdfdf6e36c566d01
Parameter Value Uncertainty
Am1 0.9999 0.001
Am2 0
a/Rs 3.997 0.044
Rp/Rs 0.0757 0.0012
ephemeris [JD] 2459815.8023 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8212102596200146
u1 -5.051697143219159
u2 4.916827429282275
u3 -1.6863404724166924
duration 0.1658 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 76154650852904d832f69f5c2aa75592
Parameter Value Uncertainty
Am1 0.9999 0.0011
Am2 0
a/Rs 3.97 0.039
Rp/Rs 0.0775 0.0012
ephemeris [JD] 2459791.55112 0.00097
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820580487432635
u1 -5.049329346175545
u2 4.913937690068284
u3 -1.685188758101996
duration 0.1678 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0d9280f9f9073af7c0d60e6a562e41a1
Parameter Value Uncertainty
Am1 1.0001 0.0012
Am2 0
a/Rs 3.981 0.043
Rp/Rs 0.0772 0.0012
ephemeris [JD] 2459793.7566 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820441280378756
u1 -5.050422407980871
u2 4.916284510275151
u3 -1.6863033094146886
duration 0.1672 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 237caaa96231b37faae41add755aaa5b
Parameter Value Uncertainty
Am1 0.9993 0.0015
Am2 0
a/Rs 3.946 0.046
Rp/Rs 0.0763 0.0015
ephemeris [JD] 2459396.9019 0.0012
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820570612737827
u1 -5.050075036928149
u2 4.915368120663824
u3 -1.6858636232288098
duration 0.1688 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 742bfc3e2256c3840879ec7c8b870099
Parameter Value Uncertainty
Am1 1.0 0.0011
Am2 0
a/Rs 4.005 0.038
Rp/Rs 0.0777 0.0012
ephemeris [JD] 2459787.14074 0.00093
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8206979404812564
u1 -5.050253389247365
u2 4.915414196744876
u3 -1.6858586747333888
duration 0.1662 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 19c9674e3508a447f24005f483c2bb92
Parameter Value Uncertainty
Am1 1.0 0.001
Am2 0
a/Rs 3.994 0.04
Rp/Rs 0.0762 0.0012
ephemeris [JD] 2459427.76799 0.00098
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.821109416535987
u1 -5.052492630394503
u2 4.918630604758358
u3 -1.687247317606535
duration 0.1665 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4a9de84a2de9921012b4bd12079f935f
Parameter Value Uncertainty
Am1 0.9999 0.0011
Am2 0
a/Rs 4.003 0.04
Rp/Rs 0.0765 0.0011
ephemeris [JD] 2459443.20159 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8208845036797325
u1 -5.051029162704433
u2 4.916407857827559
u3 -1.686263125542673
duration 0.1658 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b16053200dfca416e06972641fbb72a9
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 4.031 0.046
Rp/Rs 0.077 0.0012
ephemeris [JD] 2458700.2054 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8204014922622767
u1 -5.050025014435239
u2 4.91564160781965
u3 -1.686018012397919
duration 0.1645 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 59fbc90b88b96335039325ca5125bc28
Parameter Value Uncertainty
Am1 0.9999 0.00098
Am2 0
a/Rs 3.996 0.038
Rp/Rs 0.076 0.0011
ephemeris [JD] 2459820.21175 0.00096
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820567303186846
u1 -5.0504798110977625
u2 4.916138096159074
u3 -1.6862255149919916
duration 0.1665 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 41e3aa64f84f1f54feca55c3a102925d
Parameter Value Uncertainty
Am1 0.9999 0.001
Am2 0
a/Rs 4.035 0.042
Rp/Rs 0.0761 0.0012
ephemeris [JD] 2459811.3933 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820654284756274
u1 -5.050861324252677
u2 4.9166376252315915
u3 -1.6864305124715777
duration 0.1638 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for bbab2095f6204bad9eb26de7d960e855
Parameter Value Uncertainty
Am1 1.0 0.0011
Am2 0
a/Rs 3.995 0.037
Rp/Rs 0.0767 0.0012
ephemeris [JD] 2459440.99724 0.00094
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8206813201605385
u1 -5.0502152252209
u2 4.915374646520944
u3 -1.6858406682157927
duration 0.1662 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 11c17d1743a71eeb000b65da28f2a350
Parameter Value Uncertainty
Am1 0.9999 0.0011
Am2 0
a/Rs 3.964 0.04
Rp/Rs 0.0767 0.0012
ephemeris [JD] 2459809.1888 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8204233482445824
u1 -5.049427911665305
u2 4.914462731242925
u3 -1.6854580945910014
duration 0.1678 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4d9c7332bdb6c39730782f88b7caf537
Parameter Value Uncertainty
Am1 1.0001 0.0011
Am2 0
a/Rs 3.959 0.037
Rp/Rs 0.0773 0.0012
ephemeris [JD] 2459822.41707 0.00098
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8201785741297543
u1 -5.049444087788055
u2 4.915064650514765
u3 -1.6857990636162925
duration 0.1685 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 04b51a2921c3fb9d9a2d3525f1b86f2b
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 4.032 0.045
Rp/Rs 0.0778 0.0013
ephemeris [JD] 2458713.4343 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8207422653601983
u1 -5.0507576460009345
u2 4.916224391291254
u3 -1.6862089373930664
duration 0.1645 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 97d3c166ecbbc898a5889a17e62360db
Parameter Value Uncertainty
Am1 1.0 0.0011
Am2 0
a/Rs 3.953 0.041
Rp/Rs 0.077 0.0012
ephemeris [JD] 2459429.9745 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8206137273237104
u1 -5.050348255952685
u2 4.9157459506290095
u3 -1.6860113487497124
duration 0.1688 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for cf6bb6dc0be66858adb152552dce1bd9
Parameter Value Uncertainty
Am1 0.9999 0.001
Am2 0
a/Rs 3.99 0.038
Rp/Rs 0.0767 0.0012
ephemeris [JD] 2459798.16531 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8209160253029686
u1 -5.0506367004389725
u2 4.915592350221692
u3 -1.6858716018376545
duration 0.1668 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for a043dddf687baa6999fe80e83143e104
Parameter Value Uncertainty
Am1 0.9996 0.0014
Am2 0
a/Rs 3.999 0.056
Rp/Rs 0.0806 0.0014
ephemeris [JD] 2458697.9994 0.0013
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8204246080803848
u1 -5.049809428546122
u2 4.915197790255304
u3 -1.6858128965474122
duration 0.1672 0.0033
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 350c327c8279f3362eb4679734669d71
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 3.993 0.043
Rp/Rs 0.0781 0.0013
ephemeris [JD] 2458686.9769 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820396610540845
u1 -5.050071852302502
u2 4.915726146366659
u3 -1.6860508313549731
duration 0.1665 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6851a6fbbff7e06c9c919b41fd1947c3
Parameter Value Uncertainty
Am1 0.99998 0.00096
Am2 0
a/Rs 4.014 0.044
Rp/Rs 0.0755 0.0011
ephemeris [JD] 2459813.598 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8206433893959315
u1 -5.050518869572054
u2 4.916078417544782
u3 -1.686202864113382
duration 0.1648 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for c1cf07254fd261ddb7a3b1c7d69fe60c
Parameter Value Uncertainty
Am1 1.0 0.0013
Am2 0
a/Rs 3.945 0.04
Rp/Rs 0.0803 0.0012
ephemeris [JD] 2458693.5906 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8207308125152
u1 -5.051027977119368
u2 4.916770710419541
u3 -1.68647347254978
duration 0.1698 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 44669599f809e685c33a4869e980dc10
Parameter Value Uncertainty
Am1 0.9998 0.0012
Am2 0
a/Rs 3.971 0.046
Rp/Rs 0.078 0.0013
ephemeris [JD] 2458728.8656 0.0012
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8202109885329203
u1 -5.049050145032874
u2 4.914326100806728
u3 -1.6854868710776088
duration 0.1678 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3673d26e9a41ec2edfc5b8ad641c7ae7
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 4.018 0.044
Rp/Rs 0.0797 0.0013
ephemeris [JD] 2458715.6371 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820909727262247
u1 -5.050993231815699
u2 4.916238731359589
u3 -1.6861551535484711
duration 0.1655 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 967efb445dc0087280aea853f7f1c6bc
Parameter Value Uncertainty
Am1 0.9999 0.0012
Am2 0
a/Rs 3.992 0.041
Rp/Rs 0.0782 0.0012
ephemeris [JD] 2458706.82 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8207766353591945
u1 -5.050578564539034
u2 4.9158350596581295
u3 -1.68603305722664
duration 0.1672 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 225cf3388652f7afe2d2169cf95fbfae
Parameter Value Uncertainty
Am1 0.9997 0.0012
Am2 0
a/Rs 3.978 0.043
Rp/Rs 0.0781 0.0012
ephemeris [JD] 2459425.5647 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820286262057688
u1 -5.049622997436725
u2 4.915165776169352
u3 -1.6858289675486375
duration 0.1678 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 5a30dd696f174b4c88fd474b9cd6ed33
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 3.996 0.047
Rp/Rs 0.0792 0.0013
ephemeris [JD] 2458709.0253 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8205505888007796
u1 -5.0497489302398835
u2 4.914820399071848
u3 -1.6856219843962128
duration 0.1672 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 1b6a9bfd66860ad63e6ccb6a73999354
Parameter Value Uncertainty
Am1 1.0 0.0011
Am2 0
a/Rs 3.951 0.04
Rp/Rs 0.0772 0.0012
ephemeris [JD] 2459778.3228 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8209416095082456
u1 -5.051260332107271
u2 4.9166807222870625
u3 -1.686361926423785
duration 0.1692 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 407a66a25165eafd9c1a44bc379b9410
Parameter Value Uncertainty
Am1 1.0001 0.001
Am2 0
a/Rs 3.964 0.039
Rp/Rs 0.077 0.0012
ephemeris [JD] 2459818.0074 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820962678560106
u1 -5.05107718876249
u2 4.916273674372973
u3 -1.6861590909124016
duration 0.1685 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4819728b0669a4fafe156b75bf6e4936
Parameter Value Uncertainty
Am1 0.9998 0.0013
Am2 0
a/Rs 4.033 0.05
Rp/Rs 0.077 0.0013
ephemeris [JD] 2458702.4098 0.0012
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8207812851162424
u1 -5.0508712634378075
u2 4.916368550716676
u3 -1.6862784991355109
duration 0.1645 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f137f9d98394114bc064620868eaabc6
Parameter Value Uncertainty
Am1 1.0001 0.001
Am2 0
a/Rs 3.966 0.036
Rp/Rs 0.0764 0.0011
ephemeris [JD] 2459434.38311 0.00097
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8205175976416745
u1 -5.049953635085004
u2 4.915263447644079
u3 -1.685827336957617
duration 0.1678 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for cb48f766f9b989a8d296436862f5f92b
Parameter Value Uncertainty
Am1 1.0 0.001
Am2 0
a/Rs 3.98 0.032
Rp/Rs 0.07558 0.00094
ephemeris [JD] 2459421.15562 0.00084
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820800438581285
u1 -5.050231437379042
u2 4.915135473079497
u3 -1.6857044010405144
duration 0.1669 0.0018
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for f951b42a731bc982ef6b8959c7bb263e
Parameter Value Uncertainty
Am1 1.0 0.0011
Am2 0
a/Rs 3.995 0.044
Rp/Rs 0.0773 0.0012
ephemeris [JD] 2458731.0719 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820362400446195
u1 -5.049260328704431
u2 4.9142908102032745
u3 -1.6853928087163985
duration 0.1668 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 038246cc2bd774dc48594d407f99826a
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 3.99 0.047
Rp/Rs 0.0763 0.0012
ephemeris [JD] 2458689.1824 0.0012
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8205213677835093
u1 -5.050249746660191
u2 4.915789477022603
u3 -1.6860610248949492
duration 0.1668 0.0028
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

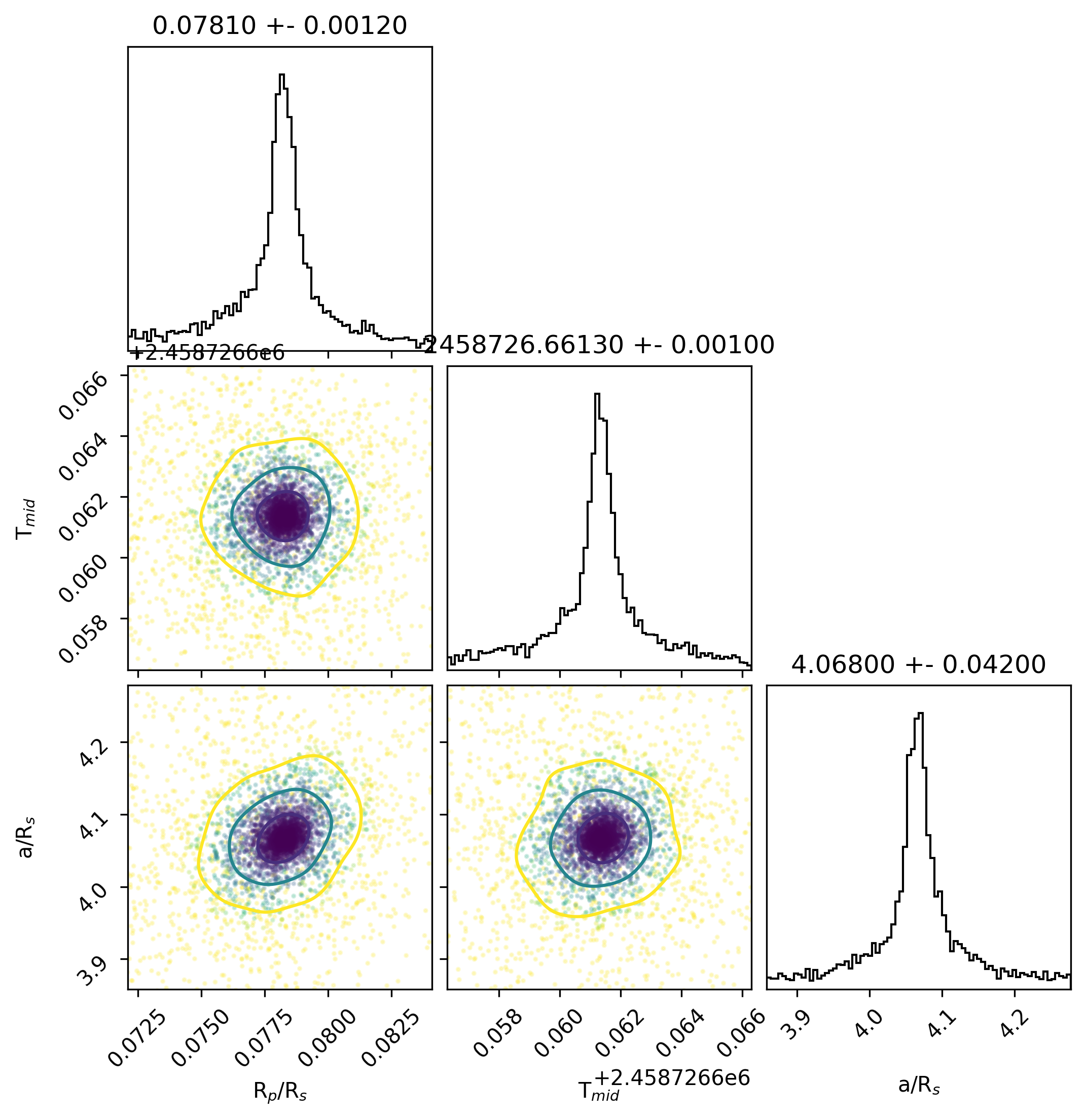

Light curve chart for 031fcd9b62c56c0e2c449be7880b9130
Parameter Value Uncertainty
Am1 1.0001 0.0011
Am2 0
a/Rs 4.068 0.042
Rp/Rs 0.0781 0.0012
ephemeris [JD] 2458726.6613 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820030397001852
u1 -5.048790038174495
u2 4.91424799810131
u3 -1.685488283700665
duration 0.1628 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0e46056a50d93149082d15baada06916
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 4.022 0.041
Rp/Rs 0.0767 0.0012
ephemeris [JD] 2458684.7726 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8203334253776493
u1 -5.049480281561634
u2 4.91478911078559
u3 -1.685642181365541
duration 0.1652 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for eb40e7476cda1c92d55290a9af722432
Parameter Value Uncertainty
Am1 1.0001 0.001
Am2 0
a/Rs 4.081 0.041
Rp/Rs 0.0779 0.0012
ephemeris [JD] 2459438.79122 0.00099
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820493110261386
u1 -5.049934777359102
u2 4.915225671053695
u3 -1.6857839307134088
duration 0.1618 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)

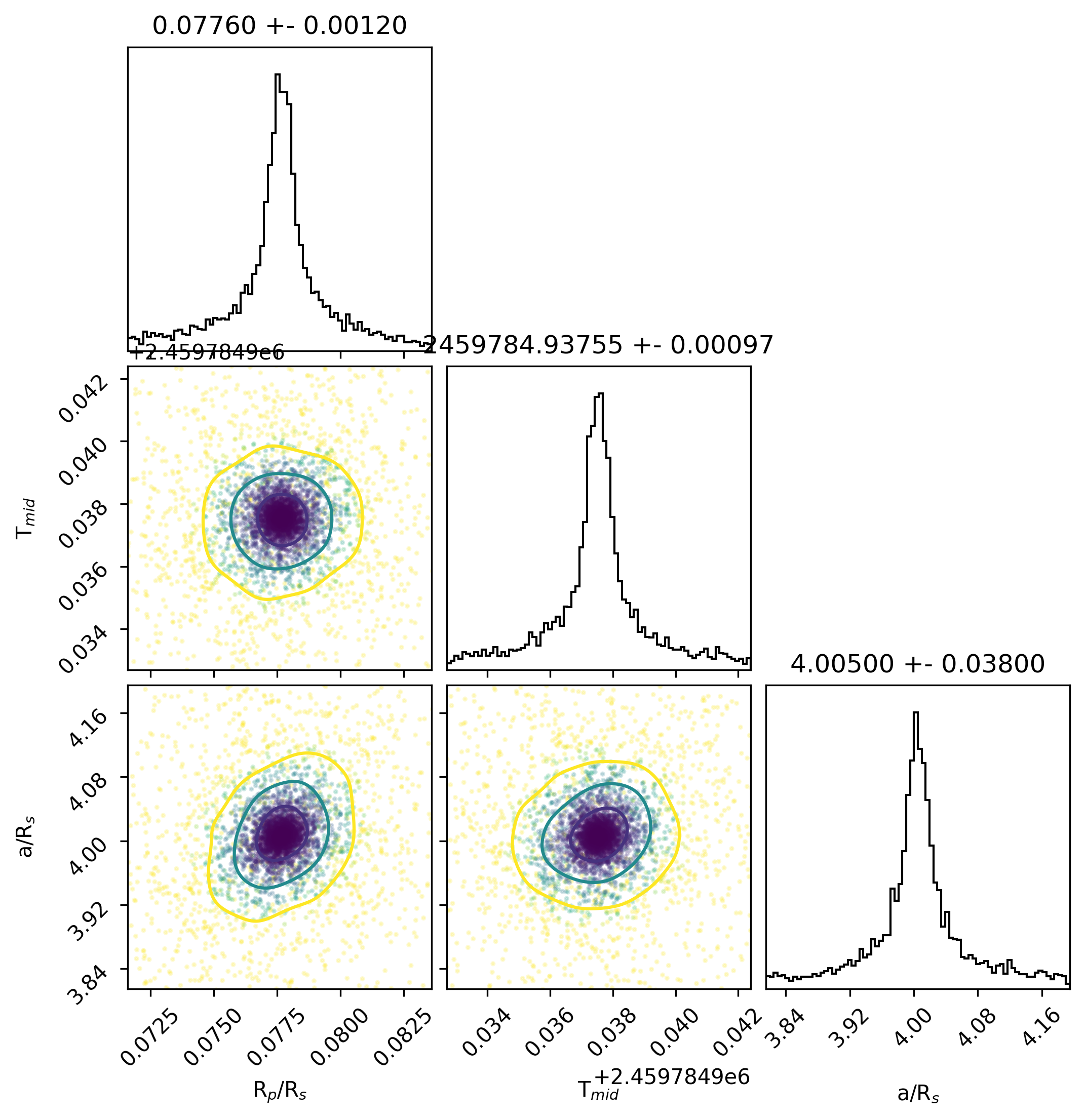

Light curve chart for 8b65b9c44aa4a84bb5b6a5c3835b5024
Parameter Value Uncertainty
Am1 1.0001 0.001
Am2 0
a/Rs 4.005 0.038
Rp/Rs 0.0776 0.0012
ephemeris [JD] 2459784.93755 0.00097
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820555588576054
u1 -5.050199216527331
u2 4.9155776844669195
u3 -1.685933983267827
duration 0.1658 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 14534795b3ec77d3113a03b56e73aa06
Parameter Value Uncertainty
Am1 0.9998 0.0012
Am2 0
a/Rs 3.98 0.041
Rp/Rs 0.0778 0.0013
ephemeris [JD] 2458717.844 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8210262054825845
u1 -5.0517185829471
u2 4.917335438686688
u3 -1.686642987948165
duration 0.1678 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 02a3e6bb612faf9b06a2e4ba6398b78e
Parameter Value Uncertainty
Am1 0.99996 0.00098
Am2 0
a/Rs 4.009 0.037
Rp/Rs 0.0764 0.0011
ephemeris [JD] 2459804.77833 0.00094
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.819943587336372
u1 -5.049124952746858
u2 4.915050660461181
u3 -1.6858692218107327
duration 0.1658 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 6df5ddc2ae5ca65da758fea11b55f37b
Parameter Value Uncertainty
Am1 0.9998 0.0013
Am2 0
a/Rs 3.924 0.046
Rp/Rs 0.0766 0.0013
ephemeris [JD] 2459776.1145 0.0012
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8205313645537244
u1 -5.049793686978348
u2 4.91491510881107
u3 -1.6856527131485035
duration 0.1708 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ca8284d040d427cc59a88c48afaf4ace
Parameter Value Uncertainty
Am1 1.0001 0.0011
Am2 0
a/Rs 4.036 0.041
Rp/Rs 0.0758 0.0012
ephemeris [JD] 2459412.3362 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8206129657168377
u1 -5.050317792639271
u2 4.9157424798598575
u3 -1.6860375796871523
duration 0.1638 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for b22044a2f83218bb5cfcfb5fdf4b0d28
Parameter Value Uncertainty
Am1 0.9999 0.0011
Am2 0
a/Rs 3.98 0.04
Rp/Rs 0.0779 0.0012
ephemeris [JD] 2459401.3122 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820546313930782
u1 -5.049871537777228
u2 4.91499864206411
u3 -1.6856733449784773
duration 0.1678 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for e7ef642f16e6f166b1a4e66252670b13
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 4.018 0.043
Rp/Rs 0.0789 0.0013
ephemeris [JD] 2458704.6146 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.82086748023969
u1 -5.050582910174049
u2 4.9155504454539605
u3 -1.685834942272192
duration 0.1658 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 50c6f4e05f13befa14753f326ded6d78
Parameter Value Uncertainty
Am1 0.9999 0.0011
Am2 0
a/Rs 3.992 0.043
Rp/Rs 0.0777 0.0012
ephemeris [JD] 2459773.9117 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8205399377195772
u1 -5.050938031941139
u2 4.9170191152653775
u3 -1.686620947774521
duration 0.1665 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 3e9d6203afdf6cd694eb849529358df4
Parameter Value Uncertainty
Am1 0.9998 0.0011
Am2 0
a/Rs 4.039 0.041
Rp/Rs 0.0765 0.0012
ephemeris [JD] 2459405.72255 0.00099
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820494429564343
u1 -5.050153256487417
u2 4.915636705415487
u3 -1.6859778052437178
duration 0.1638 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 0bde714de3cb1becd8bdb3e9503e0363
Parameter Value Uncertainty
Am1 0.9999 0.001
Am2 0
a/Rs 3.928 0.037
Rp/Rs 0.0756 0.0011
ephemeris [JD] 2459416.74556 0.00097
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8199812774191813
u1 -5.048605800089328
u2 4.91402137207537
u3 -1.685396776180598
duration 0.1698 0.0021
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 76477cea246e53d159dfcd631571e3ae
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 3.97 0.037
Rp/Rs 0.0793 0.0012
ephemeris [JD] 2459394.69805 0.00099
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820694768642577
u1 -5.050251268233824
u2 4.915316886679941
u3 -1.685760313844765
duration 0.1685 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for da382a99b9152bd6b66e9a67d87b31be
Parameter Value Uncertainty
Am1 1.0001 0.0011
Am2 0
a/Rs 3.986 0.039
Rp/Rs 0.078 0.0012
ephemeris [JD] 2459410.13036 0.00099
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.81979338126253
u1 -5.048095845137089
u2 4.913504274488699
u3 -1.6852017373972212
duration 0.1672 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 7d86f62a18e594c7f41fa4450ff6de80
Parameter Value Uncertainty
Am1 1.0 0.0011
Am2 0
a/Rs 4.007 0.04
Rp/Rs 0.0768 0.0012
ephemeris [JD] 2459432.1773 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8205385233637887
u1 -5.049805559792987
u2 4.914885731946808
u3 -1.6856186222801055
duration 0.1658 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for bf457ee632a987e362589e1104a45a89
Parameter Value Uncertainty
Am1 0.9997 0.0014
Am2 0
a/Rs 3.987 0.044
Rp/Rs 0.0751 0.0014
ephemeris [JD] 2458720.0493 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.82034035651674
u1 -5.0491113870579225
u2 4.914129166734572
u3 -1.685358062967158
duration 0.1665 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 65a32dd582f2815601de74ab7975a1b0
Parameter Value Uncertainty
Am1 1.0 0.001
Am2 0
a/Rs 3.992 0.038
Rp/Rs 0.0772 0.0011
ephemeris [JD] 2459802.57541 0.00098
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8205094735714225
u1 -5.0499724168069955
u2 4.915291246095832
u3 -1.6858282296167113
duration 0.1668 0.0022
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 8448306301ce7188340a946006ae027f
Parameter Value Uncertainty
Am1 1.0001 0.0013
Am2 0
a/Rs 4.011 0.047
Rp/Rs 0.0783 0.0012
ephemeris [JD] 2458691.3867 0.0012
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8205162708920146
u1 -5.0495790279185115
u2 4.914545173114493
u3 -1.685482342855566
duration 0.1658 0.0026
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 523d59b9bd769884a6026b6d6d4ccc56
Parameter Value Uncertainty
Am1 0.9997 0.001
Am2 0
a/Rs 3.984 0.044
Rp/Rs 0.0763 0.0014
ephemeris [JD] 2459795.9598 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.82045563737826
u1 -5.049292951587215
u2 4.914152428483666
u3 -1.6853150410481343
duration 0.1671 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for ff8f8d2843e774093abca495bfe16b25
Parameter Value Uncertainty
Am1 0.9999 0.0011
Am2 0
a/Rs 3.96 0.04
Rp/Rs 0.0765 0.0011
ephemeris [JD] 2459445.4068 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820527083179998
u1 -5.050011644305773
u2 4.915339093004588
u3 -1.6858544586345539
duration 0.1685 0.0023
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 35693b1e9a7a639b05ff398afc21d98e
Parameter Value Uncertainty
Am1 0.9997 0.0012
Am2 0
a/Rs 4.018 0.052
Rp/Rs 0.0765 0.0015
ephemeris [JD] 2459407.9268 0.0013
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8206610348984875
u1 -5.050135368421647
u2 4.915302526751854
u3 -1.6858281199849796
duration 0.165 0.0029
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 4642a7c92475fb1165121b21c96cf4fd
Parameter Value Uncertainty
Am1 0.9998 0.0012
Am2 0
a/Rs 4.013 0.046
Rp/Rs 0.0771 0.0013
ephemeris [JD] 2459403.5163 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8210475575508798
u1 -5.051631208165416
u2 4.917166111725451
u3 -1.68658238783943
duration 0.1652 0.0027
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for d004329a8d8866e78c79d98a07a36c96
Parameter Value Uncertainty
Am1 1.0001 0.0012
Am2 0
a/Rs 3.97 0.042
Rp/Rs 0.0777 0.0012
ephemeris [JD] 2459780.5278 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8204718198701797
u1 -5.050841254240413
u2 4.916981998272848
u3 -1.6866124906338738
duration 0.1678 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 55791ed5d9cd6e2beb43c6375695a5d9
Parameter Value Uncertainty
Am1 1.0 0.001
Am2 0
a/Rs 3.996 0.04
Rp/Rs 0.0786 0.0012
ephemeris [JD] 2459399.1074 0.001
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.820522890010049
u1 -5.050480520687963
u2 4.916226003574768
u3 -1.6862682996393783
duration 0.1665 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 27a7bfa1003f1b13289ab4ec7beb983f
Parameter Value Uncertainty
Am1 1.0 0.0012
Am2 0
a/Rs 3.979 0.041
Rp/Rs 0.0784 0.0012
ephemeris [JD] 2458733.2769 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8208356447441765
u1 -5.050396471576826
u2 4.915360620481021
u3 -1.6857997204037907
duration 0.1678 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for 260e248395e2373cc10181d374e49983
Parameter Value Uncertainty
Am1 1.0001 0.0011
Am2 0
a/Rs 3.976 0.041
Rp/Rs 0.0775 0.0012
ephemeris [JD] 2459423.3589 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8204301334428807
u1 -5.04943328158411
u2 4.91444124229006
u3 -1.6854380209179496
duration 0.1678 0.0024
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
Light curve chart for fb39cd6beac96b4a2b100377db35ecf5
Parameter Value Uncertainty
Am1 1.0 0.0011
Am2 0
a/Rs 3.947 0.043
Rp/Rs 0.0778 0.0012
ephemeris [JD] 2459800.3702 0.0011
eccentricity 0.0016
inclination [degrees] 82.2
omega [degrees] 165.0
orbital period [days] 2.204736003
u0 2.8206635314055313
u1 -5.05120121869761
u2 4.917240486561152
u3 -1.6867027259964797
duration 0.1691 0.0025
Included in ephemeris calculations
Light Curve ( PNG, PDF - high resolution )
Posteriors ( PNG, PDF - high resolution )
Observation Data ( JSON )
Filter Detail Min Max
I Cousins I 721.0 nm 875.0 nm
Organization Observer Code Secondary Observers
EPW TESS (collaborate/publish)
